44-Pin IDE Flash Module

(Horizontal)







Description

With an IDE interface and strong data retention

ability, 44-Pin IDE Flash Modules are ideal for use in

harsh environments where Industrial PCs, Set-Top

Boxes, etc. are used.







Placement







Features

•

RoHS

compliant

• Power supply: 3.3V

5% or 5V

• Operating temperature: 0

C to 70

•

Storage

temperature:

-40

•

Humidity

(Non

condensation)

95%

•

Built-

bit

per

Byte

ECC

(Error

Correction

Code)

functionality to ensure high reliability of data transfer

•

Global

wear-leveling

algorithm

eliminate

excessive

write operation and extend product life

•

Supports

S.M.A.R.T

(Self-defined)

•

Supports

Security

Command

• Supports Host Protected Area

• Supports Ultra DMA Mode 0 to 5

•

Supports

Multiword

DMA

Mode

•

Supports

PIO

Mode

•

Durability

connector:

100

times

• MTBF: 1,000,000 hours (in 25°C)





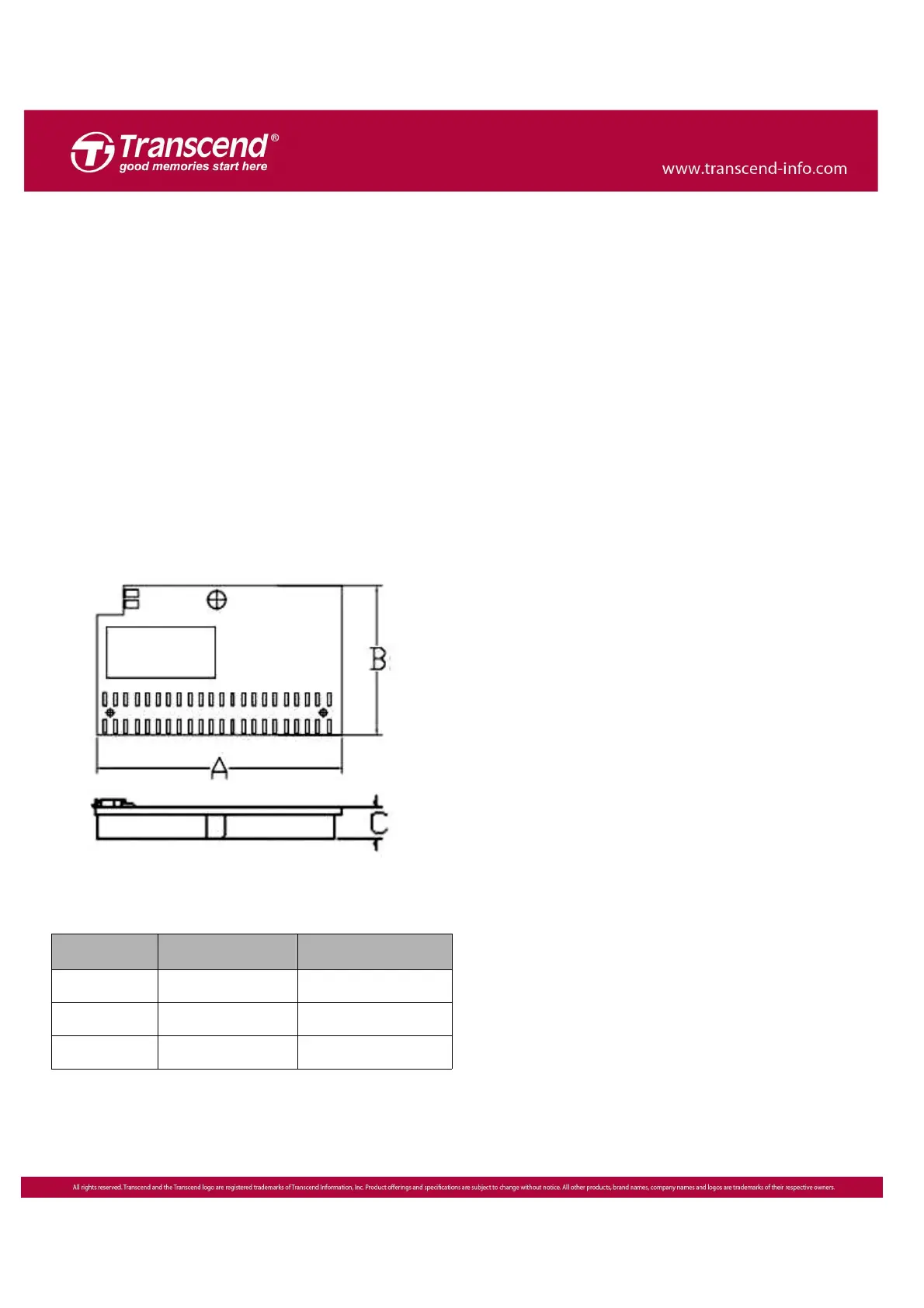

 Dimensions

Side Millimeters Inches

46.00 ± 0.40 1.81 ± 0.016

28.00 ± 0.20 1.10 ± 0.008

6.00 ± 0.50 0.24 ± 0.020







Specifications

Physical Specification

Form Factor

Storage Capacity 128 MB to 4 GB

Dimensions (mm)

Length

52.00

0.40

Width

29.50 ± 0.50

Height

7.20 ± 0.20

Input Voltage

3.3V

5% or 5V

10%

Connector 44 pin IDE female connector (Horizontal)

Environmental Specifications

Operating Temperature

0 ℃ to 70 ℃

Storage Temperature

- 40 ℃ to 85 ℃

Humidity

Operating 0% to 95% (Non-condensing)

Non-Operating 0% to 95% (Non-condensing)

Reliability

Data Reliability Supports BCH ECC 72 bit per 1K byte

Connector Durability 100 times

MTBF 1,000,000 hours

TBW TBT

Regulations

Compliance CE, FCC and BSMI

Note: 25

C, test on GA-Z87-UD3H-CF, 4GB RAM, Windows

8.1 with AHCI mode, benchmark utility Crystal Disk Mark (version 3.0), copied file 1000MB.

Actual Capacity

Model P/N User Max. LBA Cylinder Head Sector

TS512MPTM820 1,000,944

993 16 63

TS1GPTM820 1,957,536

1,942 16 63

TS2GPTM820 3,915,072

3,884 16 63

Performance

Model P/N Read Write

Random Read

(4KB QD32)

Random Write

(4KB QD32)

TS512MPTM820 20.79 MB/s 7.637 MB/s 8.139 MB/s 0.338 MB/s

TS1GPTM820 20.85 MB/s 13.75 MB/s 6.382 MB/s 0.237 MB/s

TS2GPTM820 20.57 MB/s 22.45 MB/s 6.308 MB/s 1.091 MB/s

Produkspesifikasjoner

Merke:	Transcend
Kategori:	minnekort
Modell:	TS512MPTM820
Bredde:	46 mm
Dybde:	6 mm
Høyde:	28 mm
Antall per pakke:	1 stykker
Kapasitet:	0.512 GB
Minnespenning:	3.3, 5 V
Vibrasjonsmotstand:	20 G
Internminnetype:	SLC
Driftstemperatur (T-T):	0 - 70 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 85 °C
Bærekraftsertifikater:	RoHS
Relativ luftfuktighet under drift (H-H):	0 - 95
Gjennomsnittstid mellom feil (MTBF):	1000000 timer
Støt under drift:	1500 G
Type flashkort:	IDE
Lesehastighet, medier:	20.79 MB/s
Skrivehastighet/brennehastighet:	7.637 MB/s
