This Traulsen unit is built to our highest quality standards. We build our refrigerators, freezers and heat-

ed cabinets this way as a matter of pride. This philosophy has made Traulsen the leader in commercial

refrigeration since 1938. We thank you for your choice and condence in Traulsen equipment and we know

you will receive many years of utility from this equipment.

All Traulsen units are placed on a permanent record le with the service department. In the event of any future

questions you may have, please refer to the model and serial number found on the name tag afxed to the unit.

Should you need service, however, call us on our toll free number, 800-825-8220 between 7:30 am and 4:30 pm

CST, Monday-Friday. It is our pleasure to help and assist you in every possible way.

OWNER’S MANUAL

Instructions for the installation, operation

and maintenance of all Traulsen:

R & A Series Reach-In & Roll-In Refrigerators*

R & A Series Pass-Thru & Roll-Thru Refrigerators*

R & A Series Reach-In & Roll-In Freezers*

R & A Series Reach-In Refrigerator/Freezers*

R & A Series Reach-In & Roll-In Hot Food Cabinets*

R & A Series Pass-Thru & Roll-Thru Hot Food Cabinets*

INSTALLER

COMPLETE THE FOLLOWING INFORMATION PRIOR TO UNIT INSTALLATION

INITIAL START DATE: SERIAL NO.

MODEL TYPE:

COMPANY/INDIVIDUAL NAME:

INSTALLER:

FORM NUMBER TR35743 (REV. 09-03-15) P/N 375-60176-00

Quality Refrigeration

* Please Note: This manual is intended for use with the above referenced equipment manufactured

after January 01, 2013. To obtain a copy of the correct Owner’s Manual to support the same

products manufactured prior to this date, please contact Traulsen Service at (800) 825-8220.

TABLE OF CONTENTS

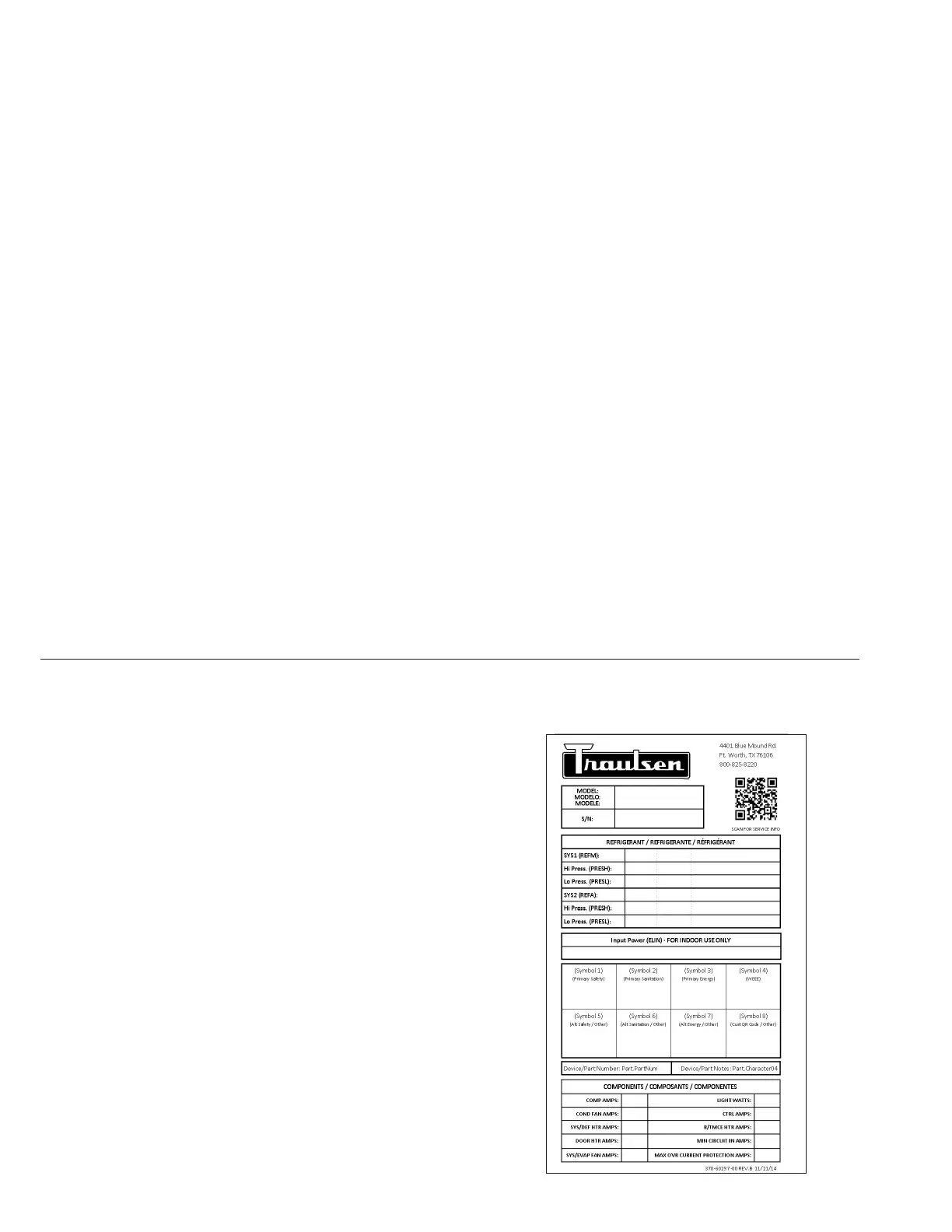

The serial tag is a permanently afxed sticker on which is re-

corded vital electrical and refrigeration data about your Traulsen

product, as well as the model and serial number. This tag is

located in the upper right interior compartment on all reach-in/

pass-thru and roll-in/roll-thru refrigerator, freezer and dual-temp

models. For hot food models, this tag is located on the top of

the unit behind the louvers to protect it from the heat.

I. THE SERIAL TAG

-1-

VII. INTELA-TRAUL

a-Control Features Page 8

b-Alarm Explanations Page 9

c-Control Panel Page 10

d-Notes To The User Page 10

e-Enter The Customer Access Code Page 10

f-Customer Service Parameters Page 11

g-Adjusting Thermostat Set Point Page 11

h-Adjusting Thermostat Set Point Low Page 12

i-Changing The Temperature Scale Page 12

j-Setting The 24-Hour Clock Page 13

k-Setting The Date Page 14

l-Setting Daylight Savings Time Page 14

m-Starting A Manual Defrost Page 15

n-Setting Defrost Lockouts Page 16

o-Adjusting The Room Temperature Offset Page 17

p-Setting The Audible Alarm Style Page 17

q-Viewing Sensor Temperatures Page 18

r-Door Open Icon Page 18

s-Hot Food Units - Adjusting The Thermostat Page 18

t-Hot Food Units - Turning The Unit OFF & ON Page 19

u-Hot Food Units - Temperature Adjustment Page 19

VIII. TROUBLE SHOOTING GUIDE Page 20

XI. SPARE PARTS LIST Page 21

XII. STAINLESS STEEL OVERVIEW Page 22

XIII. CARE OF STAINLESS STEEL Page 23

XIV. CORROSION REMEDIES Page 23

XV. WARRANTY INFORMATION Page 24

I. THE SERIAL TAG Page 1

II. RECEIPT INSPECTION Page 2

III. INSTALLATION

a-Location Page 2

b-Packaging Page 2

c-Installing Legs or Casters Page 2

d-Shelf Pins Page 3

e-Roll-In Model Installation Page 3

f-Attaching Double Depth Units Together Page 3

g-Installing The Condensate Evaporator Page 3

h-Remote Installation Page 4

i-Cord & Plug Page 4

j-Power Supply Page 4

k-Wiring Diagram Page 4

l-Clearance Page 4

IV. OPERATION

a-Refrigerators Page 5

b-Freezers Page 5

c-Hot Food Cabinets Page 5

V. CARE & MAINTENANCE

a-Cleaning The Condenser Page 5

b-Hinge Replacement Page 6

c-Replacing The Gaskets Page 6

d-Cleaning The Exterior Page 6

e-Cleaning The Interior Page 6

f-Adjusting The Shelves Page 6

g-Replacing The Light Bulb Page 7

VI. OTHER

a-Service Information Page 7

b-Spare Parts Page 7

c-Warranty Registration Page 7

-2-

II. RECEIPT INSPECTION

All Traulsen products are factory tested for performance

and are free from defects when shipped. The utmost

care has been taken in crating this product to protect

against damage in transit. All interior ttings have been

carefully secured and the legs or casters are boxed and

strapped inside to prevent damage. Door keys will be

attached to the handle with a nylon strip. The handle is

protected by an easily removable nylon netting.

You should carefully inspect your Traulsen unit for

damage during delivery. If damage is detected, you

should save all the crating materials and make note on

the carrier’s Bill Of Lading describing this. A freight claim

should be led immediately. If damage is subsequently

noted during or immediately after installation, contact the

respective carrier and le a freight claim within 10 days.

Under no condition may a damaged unit be returned to

Traulsen. without rst obtaining written permission (return

authorization).

III. INSTALLATION

III. a - LOCATION:

Select a proper location for your Traulsen unit, away

from extreme heat or cold. Allow enough clearance be-

tween the unit and the side wall in order to make use of

the door stay open feature at 120° (self-closing feature

operates up to 90°). The door(s) must be able to open

a minimum of 90° in order to make use of the maximum

clear door width available.

III. b - PACKAGING:

All Traulsen units are shipped from the factory bolted

to a sturdy wooden pallet and packaged in a durable

cardboard container. The carton is attached to the

wooden skid with the use of large staples. These should

rst be removed to avoid scratching the unit when

lifting off the crate.

Most exterior stainless steel surfaces have a pro-

tective vinyl covering to prevent scratching during

manufacturing, shipping and installation. After the unit

is installed in place of service, remove and discard the

covering from all surfaces.

To remove the wooden pallet, rst if at all possible, we

suggest that the cabinet remain bolted to the pallet

during all transportation to the point of nal installa-

tion. The bolts can then be removed with a 3/4” socket

wrench. Avoid laying the unit on its front, side or back

for removal of the pallet.

NOTE: DO NOT LAY THE UNIT ON ITS SIDE DURING

TRANSPORTATION OR INSTALLATION.

Roll-Thru models also include special interior wood

bracing, intended to protect the cabinet during shipment.

This bracing should under no circumstances be removed

prior to the unit being installed in its nal location.

WARNING: Read and review these instructions, in their

entirety, BEFORE attempting to disassemble and remove

the interior bracing.

III. INSTALLATION (continued)

III. c - INSTALLING LEGS OR CASTERS:

6” high stainless steel legs are supplied standard for

all Traulsen reach-in and pass-thru units. Casters in

lieu of legs are available as an optional accessory for

the same models. These are shipped from the factory

packed inside a cardboard box which is strapped to

one of the shelves. Remove the nylon strap and open

the box, it should contain either four (4) legs or four (4)

casters and sixteen (16) bolts.

WARNING: THE CABINET MUST BE BLOCKED AND

STABLE BEFORE INSTALLING LEGS OR CASTERS.

To install the legs or casters, first raise and block

the reach-in a minimum of 7” from the floor. For

installing legs, thread the legs into the threaded holes

on the bottom of the cabinet (see gure 2). Be certain

that all legs are tightly secured (legs and casters should

be tightened to 300 inch/pounds, max). When the unit

is set in its nal position, it is important for proper op-

eration that the unit be level. The legs are adjustable

for this purpose, turn the bottom of the leg counter-

clockwise to raise it, clockwise to lower it. Level the

unit from front to back as well as side to side in this

manner, using a level placed in the bottom of the

cabinet.

III. b - PACKAGING (cont’d):

If either of the diagonal or upper ceiling braces are

dropped, they could cause personal injury or damage

to the equipment.

To disassemble the bracing, first open the doors

and carefully remove the banding that holds the two

diagonal braces together.

WARNING: The diagonal braces will now be loose and

can fall out of position and possibly permit the ceiling

corner brace to fall.

Carefull remove one diagonal brace while supporting

the ceiling corner brace, so that it does not fall (see

gure 1). Next, remove the ceiling brace, the remaining

diagonal brace, and lastly the oor brace - then discard.

Repeat as necessary for each section of the unit.

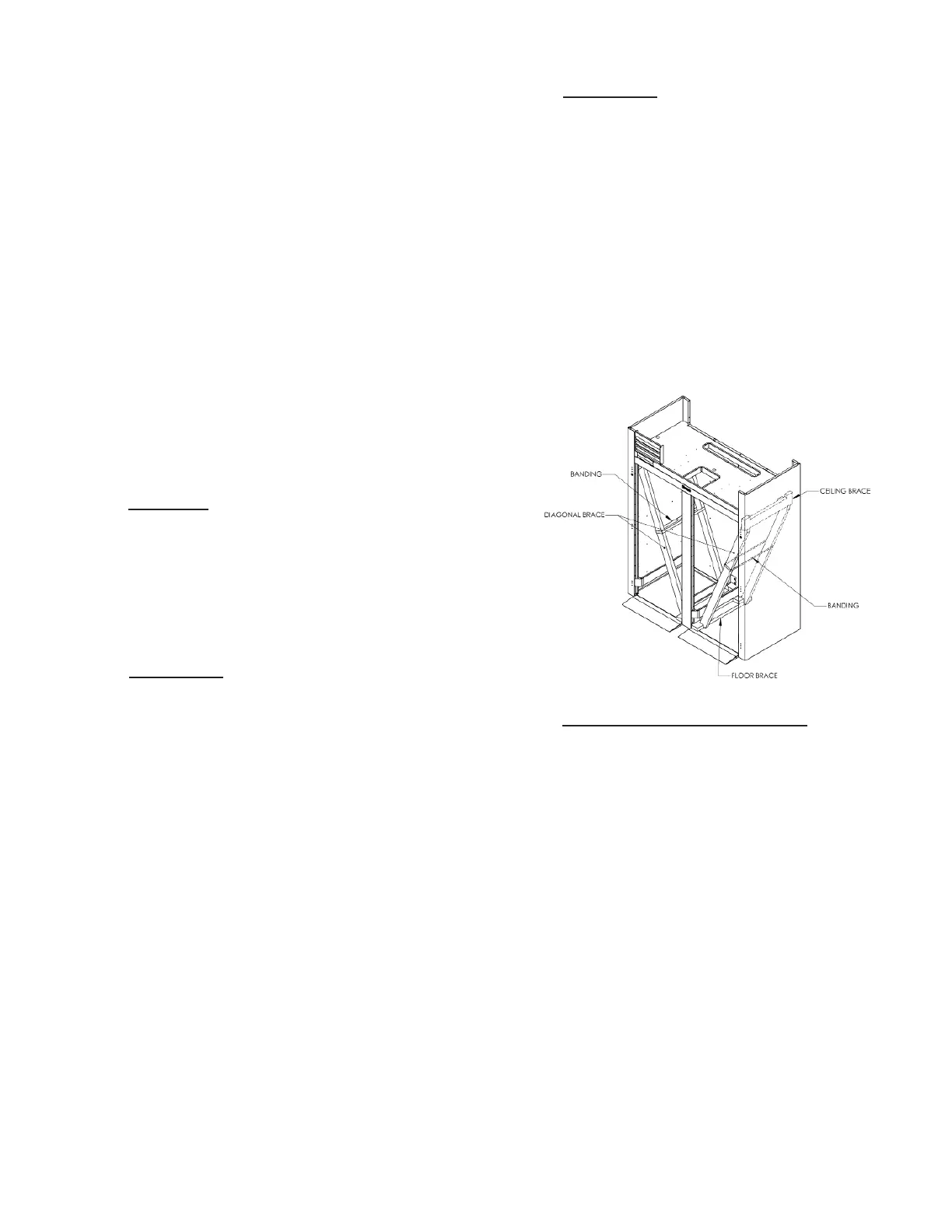

Fig. 1
