Owner’s Manual

EnviroSense2

Leak Detection Sensor

Model: E2SLD

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

1 Introduction 2

1-1 Parts List 2

1-2 Tools Required 2

1-3 Speciﬁcations 2

2 Important Safety Instructions 2

3 E2SLD Installation 3

3-1 Mounting the Leak Detection Sensor 3

3-2 Wiring the Sensor 3

4 Connecting to WEBCARDLX and E2MTHDI 4

5 Warranty and Product Registration 4

Español 5

Français 9

Русский 13

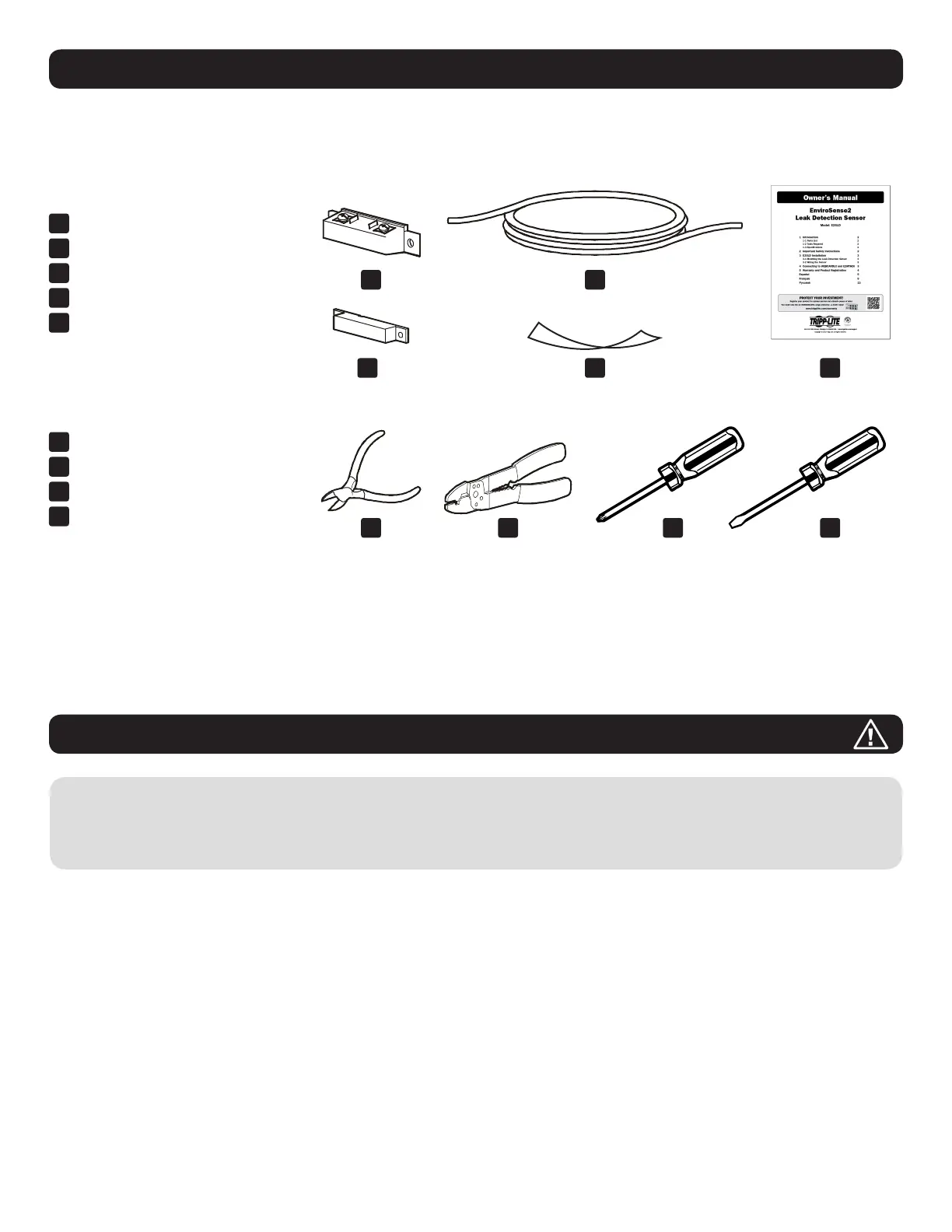

1-1 Parts List

Water Sensor

Cover

22 AWG Cable, 15 ft. (4.6 m)

Owner’s Manual

Double-Sided Adhesive Tape

1-2 Tools Required

Wire Cutters

Wire Strippers

Phillips Screwdriver

Flathead Screwdriver

1-3 Speciﬁcations

Electrical

Voltage: 5~24V DC

Standby Current: 1 mA

Alarm Current: 200 mA

Contact Closure Type: Normally Open

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the products

described in this manual. Read all instructions and warnings thoroughly before attempting installation. Failure to comply may

invalidate the warranty and cause property damage and/or personal injury.

1 – Introduction

2 – Important Safety Instructions

The E2SLD leak detection sensor is designed to detect water leakage or leakage of any electrically conductive ﬂuid. The E2SLD supports a

Normally Open contact closure connection. It must be used with a compatible Tripp Lite UPS or PDU equipped with the WEBCARDLX or

LX Platform interface, along with a compatible E2 environmental sensor module (both are sold separately).

• Install in a controlled indoor environment, away from moisture, temperature extremes, ﬂammable liquids and gasses, conductive contami-

nants, dust and direct sunlight.

• Provide suitable grounding in accordance with all applicable electrical wiring regulations.

• Use of this equipment in life support applications where failure of this equipment can reasonably be expected to cause the failure of the life

support equipment or to signiﬁcantly affect its safety or effectiveness is not recommended.

A B C D

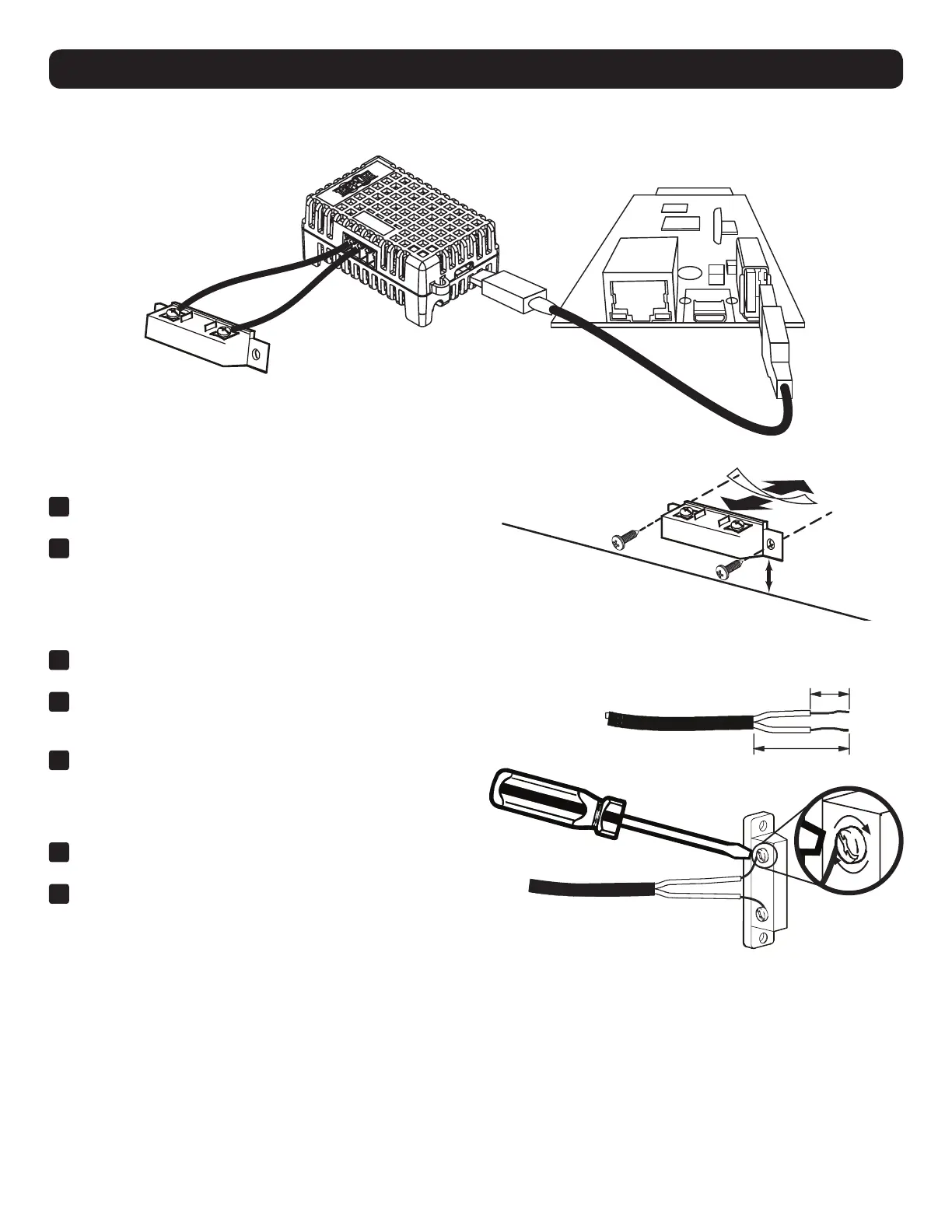

3 – E2SLD Installation

The E2SLD leak detection sensor should be mounted on a raised ﬂoor near cooling units and other applications where water and other

electrically conductive ﬂuid leakage detection can occur.

Approximately 1” (25 mm)

Approximately 0.38” (10 mm)

3-1 Mounting the Leak Detection Sensor

The E2SLD supports mounting by screws, double-sided tape, or adhesive.

Mark the intended location of the E2SLD with the probes facing

downward approximately 1/8” (3 mm) above the ﬂoor.

Mount the sensor to a wood, metal, or concrete* surface using the

provided #6 screws or double-sided tape.

*A user-supplied adhesive will be necessary for concrete surface mounting.

3-2 Wiring the Sensor

Before attaching the wire to the switch, use wire cutters to clip to

desired length (if necessary).

Use wire strippers to cut back the covering of the two wires and

remove a small amount of insulation from the end of each wire

(do not cut through the insulation into the wire itself).

Correct polarity is required. Twist the tinned or bare ends of

each wire and place the red wire on the “+” positive marked

terminal and the black wire on the “-” negative marked terminal.

Wrap them clockwise under the head of each screw on the

sensor. Tighten the screw by turning it clockwise.

Use cable ties and adhesive cable tie holders (user-provided) to

secure the entire length of the wire.

Route the wire away from the sensor and attach the other ends

to one of the input connections on the compatible E2MTHDI

module, noting the polarity markings that were wired at the

sensor.*

*Each E2MTHDI input contacts will have “+” positive polarity markings to

ensure proper wiring connection.

FLOOR

1/8” (3 mm)

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	Detektor
Modell:	E2SLD
Produkttype:	Sensmitter
Vekt:	20 g
Bredde:	63.5 mm
Dybde:	12.7 mm
Høyde:	12.7 mm
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Opprinnelsesland:	Taiwan
Pakkevekt:	100 g
Sertifisering:	TAA, RoHS
Produktfarge:	Hvit
Pakkedybde:	153.9 mm
Pakkehøyde:	32 mm
Pakkebredde:	114 mm
Kroppsmateriale:	Akrylonitril-butadien-styren (ABS)
Masterkassens (ytterkassens) GTIN (EAN/UPC):	10037332213614
Masterkassens (ytterkassens) bruttovekt:	3000 g
Masterkassens (ytterkassens) lengde:	484.9 mm
Produkter per masterkasse (ytterkasse):	30 stykker
Masterkassens (ytterkassens) bredde:	249.9 mm
Masterkassens (ytterkassens) høyde:	195.1 mm
