Installation Guide

11” x 11” ABS Wireless Access

Point Enclosure with Lock

Model: EN1111

PROTECT YOUR INVESTMENT!

You could also win an ISOBAR6ULTRA surge protector—a $100 value!

www.tripplite.com/warranty

1111 W. 35th Street, Chicago, IL 60609 USA • www.tripplite.com/support

Español 5 • Français 9 • 13Русский

Components List

Installation

IMPORTANT:

Ensure that you have received all parts according to the component checklist prior to installing. If any parts are missing or

faulty, visit www.tripplite.com/support for service.

(x1) (x1) (x1) (x1)(x2) (x2) (x2) (x2)

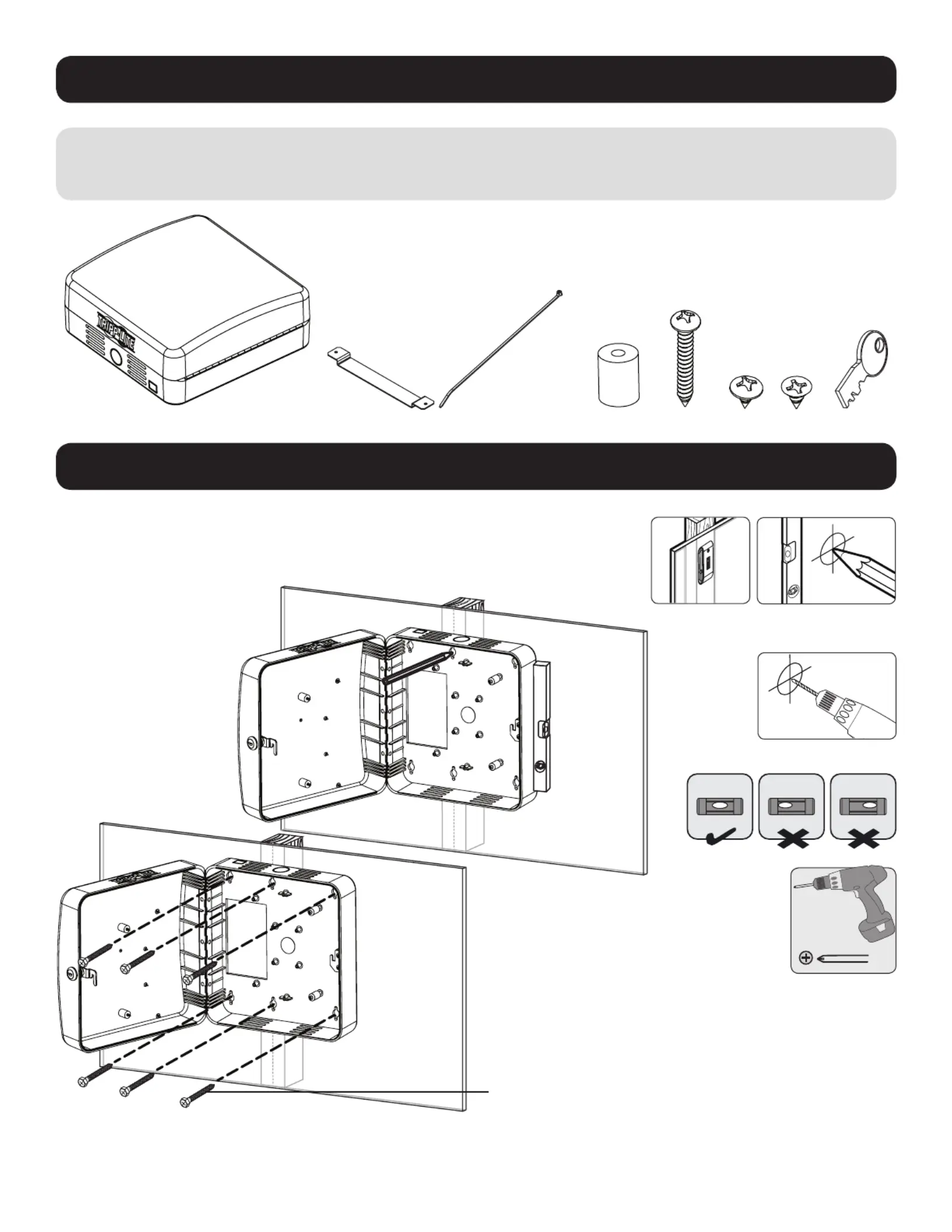

1. Mount Enclosure Box to Wall

Mark the exact location of the

mounting holes

Attach the

enclosure onto

the wall

Drill pilot holes

Find a wood stud

location for mounting

the enclosure

(Mounting Hardware

Not Included)

Installation

IMPORTANT!

Attach all data and power cables to the access point prior to attaching to the enclosure.

•

Installers are responsible for providing wall-mounting hardware. Use a minimum of two #10 x 2” or larger screws (not included) to secure the

enclosure in place.

• Make sure mounting screws are anchored into the center of the studs. Use of a stud ﬁnder is highly recommended.

• If there is no stud at the mounting location, it is recommended you use four anchors to secure the enclosure in place. Due to the

weight of the enclosure, plastic expansion wall anchors are not recommended for drywall installations. Suitable anchors include: thread-

ed drywall anchors, threaded drywall toggles, sleeve-type hollow wall anchors (a.k.a. molly bolts) or toggle bolts.

• If placing the enclosure over a telecommunications receptacle, remove the wall plate, then fasten the enclosure to the wall. Once se-

cured, fasten the wall plate over the receptacle.

•

If no telecommunications receptacle is available, a surface mount box (or biscuit jack) and equipment cord can be mounted inside the unit.

• Use an adhesive-backed surface mount box.

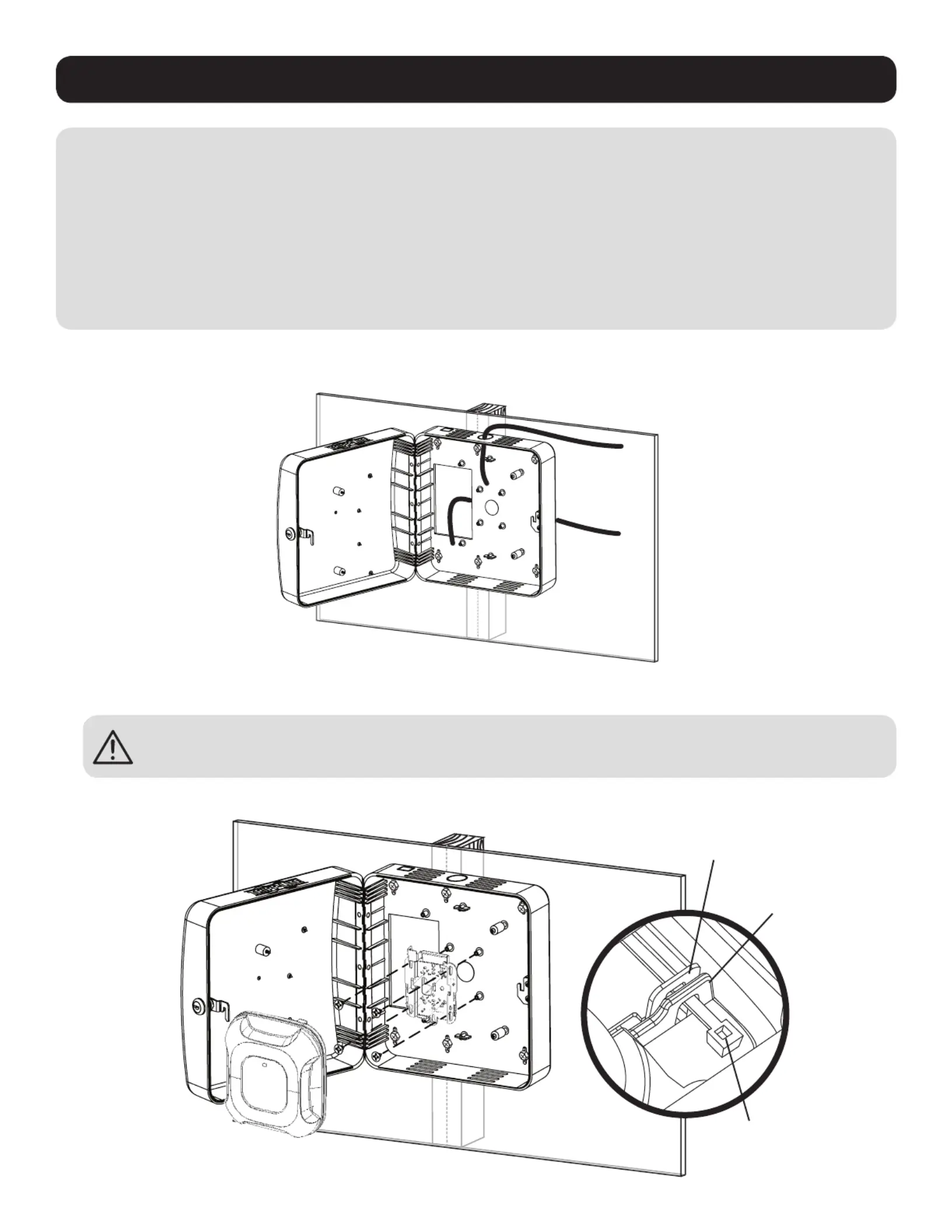

2. Run Data and Power Cable (If Required) Through the Rear Cutout or Side

Conduit Cutout

3. Using the Provided Screws, Attach the Access Point

3a. Cisco Universal Bracket (AIR-AP-BRACKET-2)* Installation

AIR-AP-BRACKET-2

Security Tab

Access Point

Security Tab

Zip Tie

(Included)

* Cisco brackets not included.
