Owner’s Manual

Media Converters

Models: N784-001-SC & N784-001-ST

Warranty

Registration

chance to win a FREE Tripp Lite

product! www.tripplite.com/warranty

Tripp Lite World Headquarters

1111 W. 35th Street, Chicago IL 60609 USA

(773) 869-1234, www.tripplite.com

Note: Follow these instructions and operating procedures to ensure correct performance and to prevent damage to this

unit or to its connected devices.

Overview

Package Checklist

Model Description

Wiring the Power Inputs

Communication Connection

Dip Switch Setting

Link Fault pass-Through

LED Description

Cable Connection Parameter

Specifications

200605219 93-2565 N784 SMC OM.qxd 6/7/2006 3:54 PM Page 1

Overview

The N784 Series Media Converter is a standalone physical layer device that converts

between 10/100BaseT(X) and 100BaseFX segments of the same network. The converter

supports Link Fault Pass-through (LFP) for easy tracing of network link failures, and the

LFP function enhances the integrity and conformity of twisted pair (TP)-Fiber linking to

make the network easier to maintain. The converter is powered by an external power

adapter or USB port on the hosting device (e.g., PC).

Package Checklist

• Media Converter

• AC-DC Power Adapter (100-240V)

• Owner’s Manual

Model Description

N784-001-SC 10/100BaseT(X) to 100BaseFX media converter; multi mode,

SC type fiber connection

N784-001-ST 10/100BaseT(X) to 100BaseFX media converter; multi mode,

ST type fiber connection

Panel Layout

• Front Panel View

• Side Panel View

200605219 93-2565 N784 SMC OM.qxd 6/7/2006 3:54 PM Page 2

Model Description

(continued)

• Rear Panel View

Wiring the Power Inputs

Using the Converter with the AC-DC Power Adapter

1. Use DIP switch settings to enable power through the AC-DC Power Adapter

(refer to DIP switch settings section)

2. Verify that the AC-DC adapter conforms to your country’s AC power requirements and

then insert the power plug.

3. Connect the Converter to the network.

Note: Wear a grounding device to safeguard against damage due to electrostatic charge.

Using the Converter with power Over USB

1. Use DIP switch settings to enable power from the USB port

(refer to DIP switch settings section).

Note: Please ensure that the DIP switch is positioned on the USB side of the slider.

2. Install the USB cable. Plug type A connector in the PC’s USB port and the type B

connector in the Converter’s USB port (see Fig. 1).

3. Connect the Converter to the network.

WARNING

Make sure that the PC’s power is turned on. Otherwise the

Converter will not receive power.

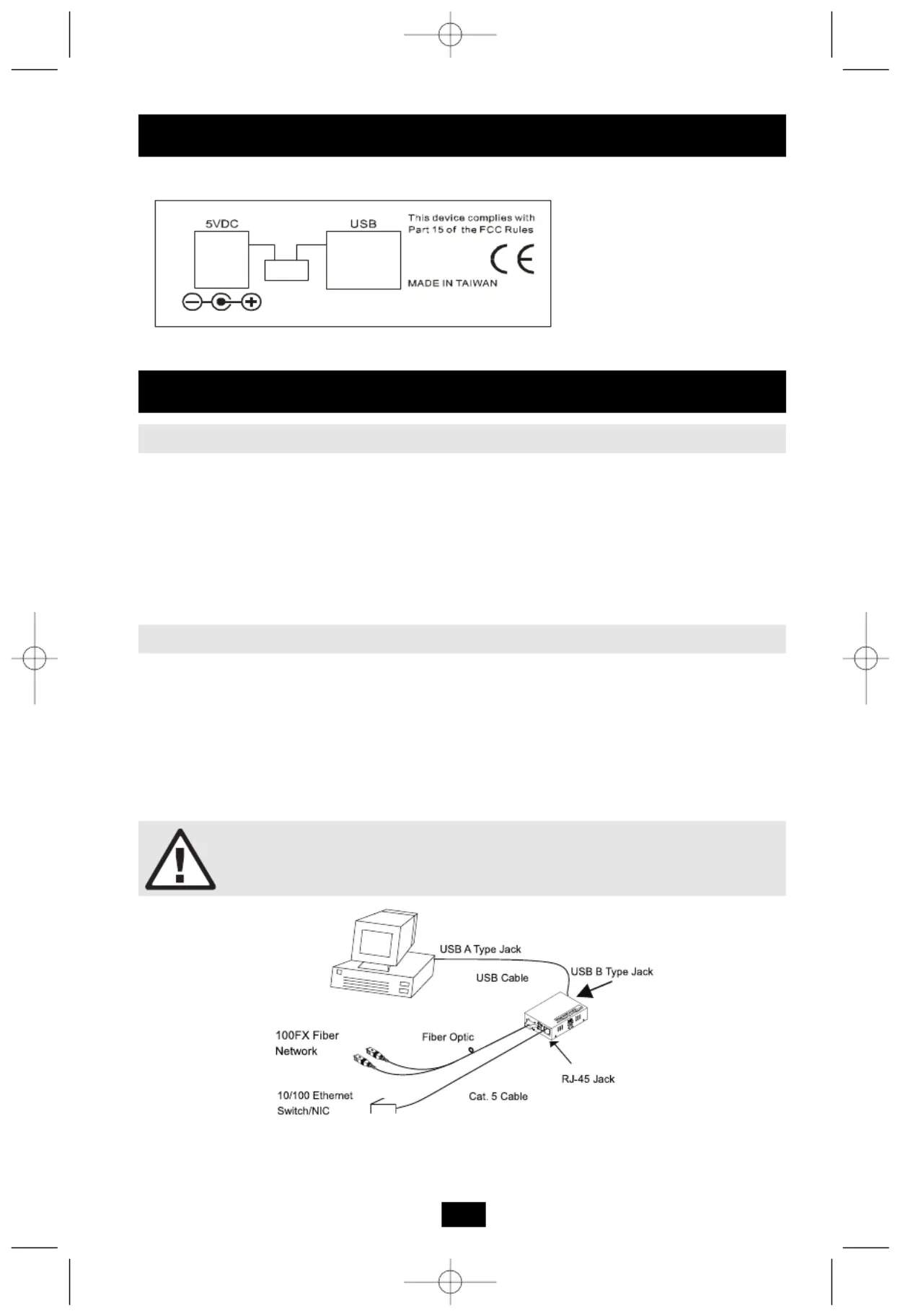

Fig. 1: Media Converter with USB power source (Type B-to-Type A Plug) and FX/TP connection

200605219 93-2565 N784 SMC OM.qxd 6/7/2006 3:54 PM Page 3

Produkspesifikasjoner

Merke:	Tripp Lite
Kategori:	mediaspiller
Modell:	N784-001-ST
Vekt:	210 g
Bredde:	70.1 mm
Dybde:	94 mm
Høyde:	25.9 mm
LED-indikatorer:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Opprinnelsesland:	China
Pakkevekt:	430 g
Inngangsspenning:	100 - 240 V
Bølgelengde:	1310 nm
Maksimal dataoverføringshastighet:	100 Mbit/s
Auto MDI/MDI-X:	Ja
Fiberoptisk kontakt:	ST
Produktfarge:	Sort
Pakkedybde:	125 mm
Pakkehøyde:	235 mm
Pakkebredde:	55.1 mm
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
DC-inngangskontakt:	Ja
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Ethernet-grensesnittype:	Raskt Ethernet
Intern:	Nei
AC-adapter bunt:	Ja
Masterkassens (ytterkassens) GTIN (EAN/UPC):	20037332130901
Masterkassens (ytterkassens) bruttovekt:	4790 g
Masterkassens (ytterkassens) lengde:	275.1 mm
Produkter per masterkasse (ytterkasse):	10 stykker
Masterkassens (ytterkassens) bredde:	254 mm
Masterkassens (ytterkassens) høyde:	305.1 mm
Fibre Channel-porter:	1
Maksimal overføring avstand:	2000 m
Kabeltyper som støttes:	Cat5, Cat6
Fiberkabeldiametere som støttes:	62.5/125 µm
Fibermodusstruktur:	Multi-modus
Omformer-inngangsgrensesnitt:	100Base-T
Omformer-utgangsgrensesnitt:	100Base-FX
