Installation Guide

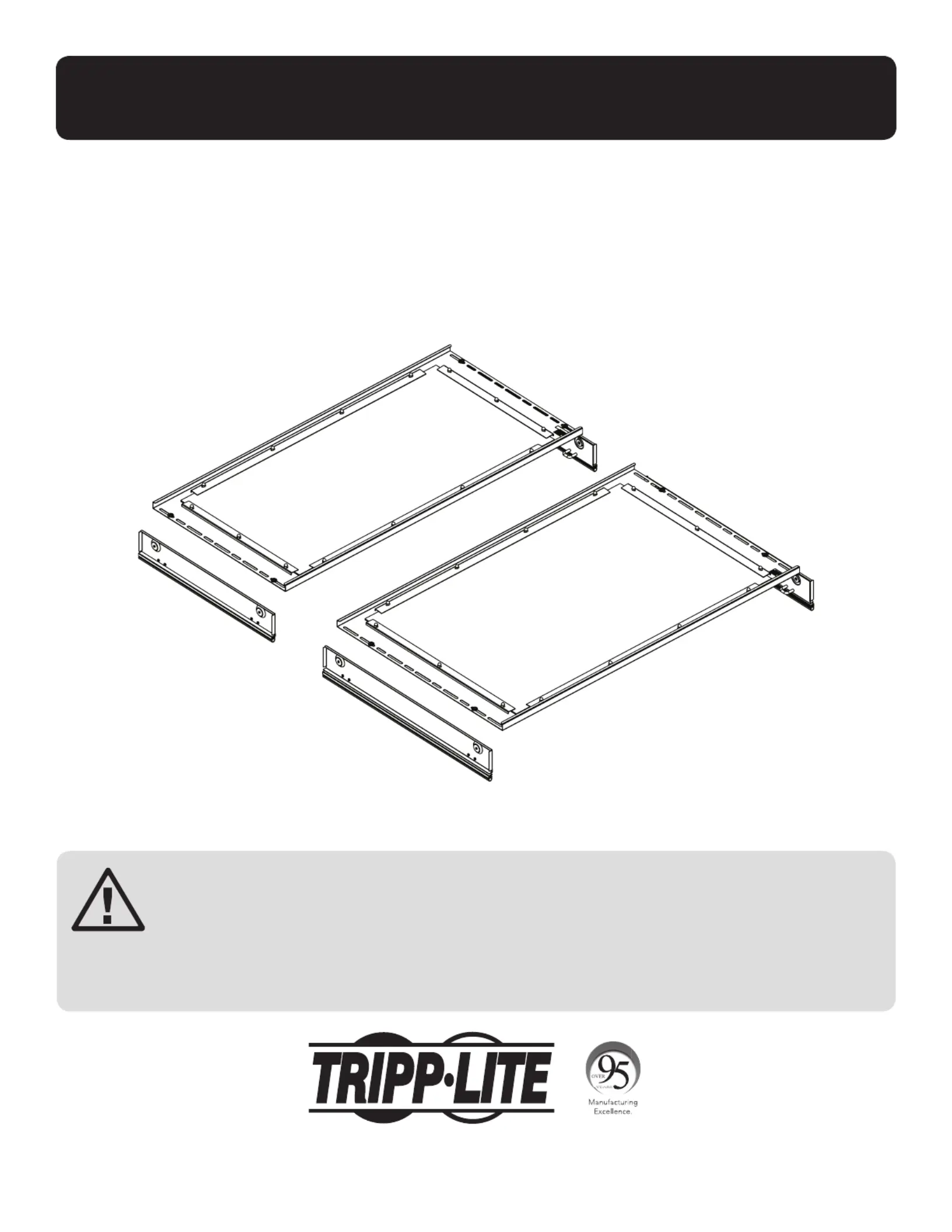

Static Roof Panel Kit

for Aisle Containment System

Models: SRCTMTCVR600, SRCTMTCVR750

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

Español 5 • Français 9 • Русский 13

SRCTMTCVR600

Width: 24” (600 mm)

SRCTMTCVR750

Width 30” (750 mm)

Recommended Installation Order:

1. SRCTMTFRM Frame Kit

2. SRCTMTTLBM Beam Kit

3. SRCTMTSDD Sliding Double-Door Kit

4. SRCTMTCVR600, SRCTMTCVR750 Static Roof Panel Kit

5. SRCTMTR600SH, SRCTMTR600TL, SRCTMTR750SH, SRCTMTR750TL Adapter Riser Panels

Important Safety Instructions

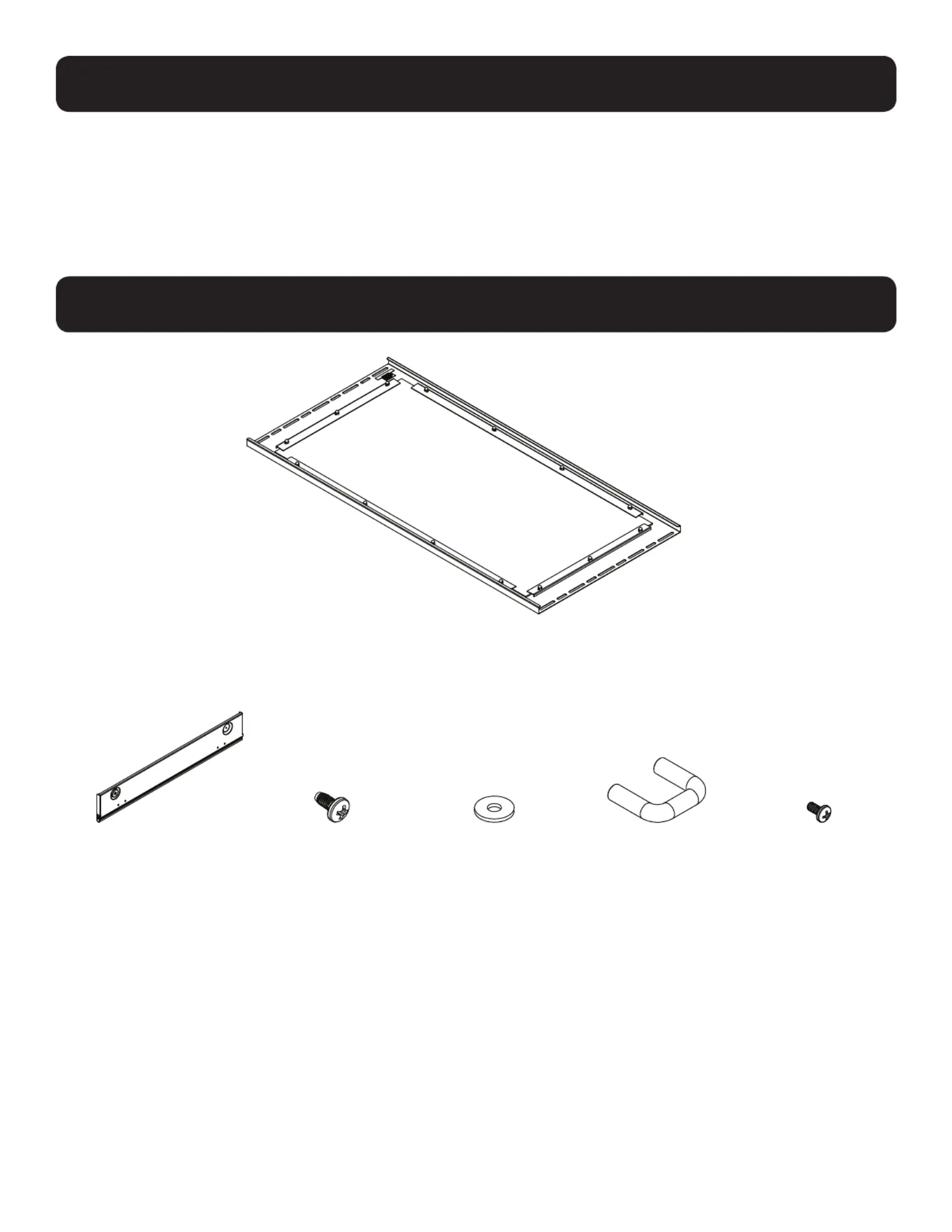

Parts List

• This product should only be installed by someone of good mechanical ability, with basic building experience and a full

understanding of the instructions in this guide.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• This product is intended for indoor use only. Install in a controlled indoor environment. Do not install outdoors or in harsh

environments.

Roof Panel

(x1)

Magnetic

Filler Panel

(x2)

M6 x 12

Self-Tapping Screw

(x4)

Washer

(x4)

Magnetic Filler Panel

Handle

(x4)

M4 x 10

Screw

(x8)

Installation

Before proceeding with installation, make sure the SRCTMTFRM Frame Kit, SRCTMTTLBM

Beam Kit, SRCTMTSDD Sliding Double-Door Kit and SRCTMTRXXX Adapter Riser Panels

(if necessary) have been properly assembled.

Refer to the products’ Installation Guides for more information.

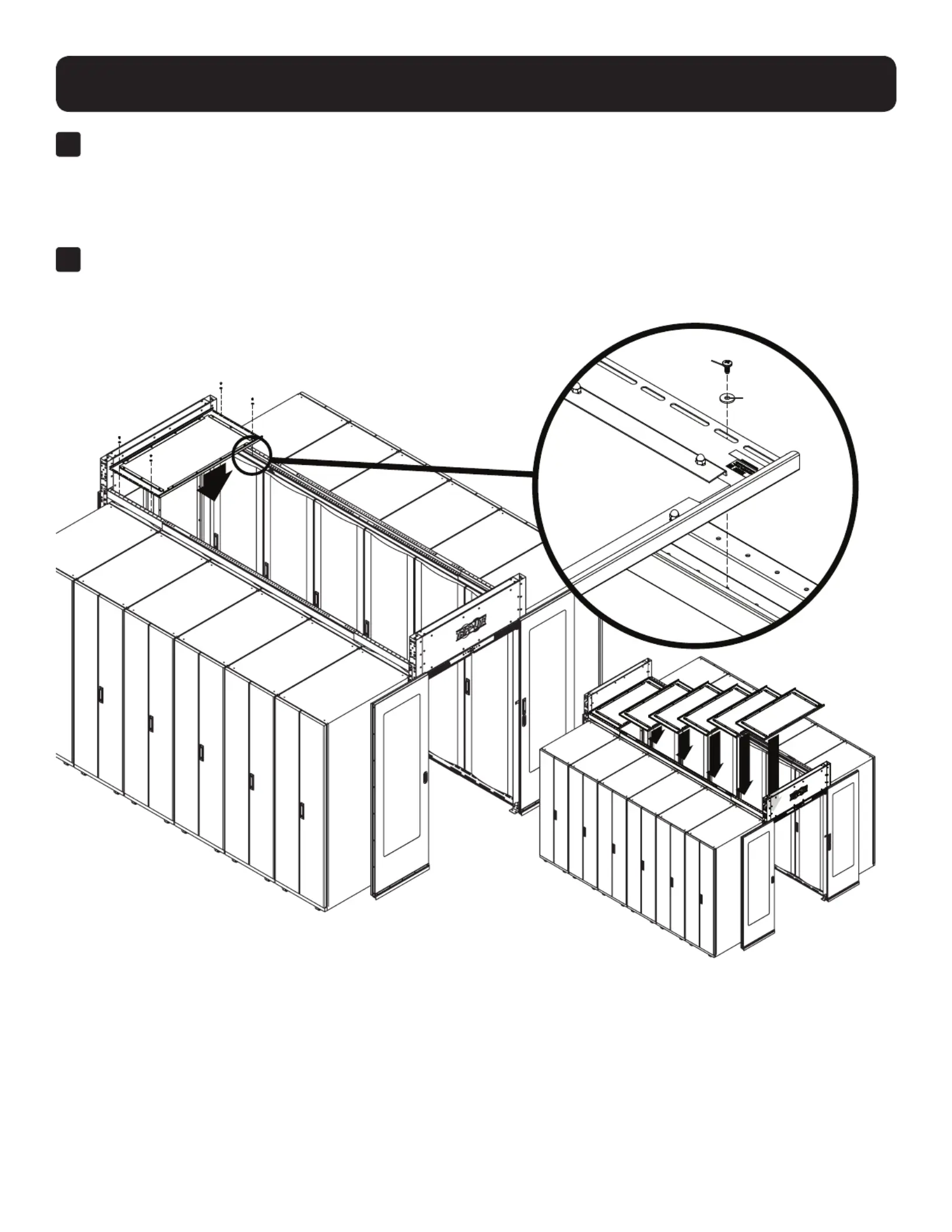

With the help of an assistant, place the static roof panels onto the top of the containment

frame’s upper support beams.

Secure the panel to the beam using the included screws.

Repeat for each additional panel.

Note: Leave screws loose and do not tighten until all panels are installed.

M6 x 12

Self-Tapping

Screw (x4)

M6 Washer

(x4)
