Side 1/8

Owner’s Manual

SmartRack

™

Accessories

Model: SRLADDERATTACH

1 – Introduction 2

4 – Installation 2

4-2 Mounting the Bracket 3

4-5 Perpendicular Rack Attachment (2-Post Racks) 5

2 – Parts List 2

3 – Important Safety Instructions 2

4-1 Planning 2

4-4 Parallel Rack Attachment 4

4-3 Attaching the Ladder 3

4-6 Perpendicular Rack Attachment (4-Post Racks) 6

5 – Storage and Service 8

6 – Warranty and Warranty Registration 8

Tripp Lite World Headquarters

1111 W. 35th Street, Chicago, IL 60609 USA

www.tripplite.com/support

WARRANTY

REGISTRATION:

chance to win a FREE Tripp Lite

product—www.tripplite.com/warranty

1 – Introduction

2 – Parts List

SRLADDERATTACH works in conjunction with the SRCABLELADDER to provide roof-mounted cable routing from Tripp Lite’s SmartRack

Enclosures to a wall, or between 2- and 4-Post Open Frame Racks in either parallel or perpendicular conﬁgurations. Now, cable bundles can

span aisles, spaces between enclosures in the same row and to spaces not occupied by another rack enclosure. Note: Standard installation of

SRLADDERATTACH requires Tripp Lite’s SRCABLELADDER and SRCABLETRAY accessories, sold separately.

The SRLADDERATTACH provides rack-to-wall or rack-to-rack cable routing either between racks, or to areas not occupied by another

rack (e.g. a wall). It is advised that you sketch out your rack conﬁguration. Use a tape measure to determine distances that the corresponding

SRCABLELADDERS will bridge and modify all ladders accordingly before beginning.

SAVE THESE INSTRUCTIONS

This manual contains instructions and warnings that must be followed during the installation and operation of the product described in this

manual. Read all instructions and warnings thoroughly before attempting installation. Failure to comply may invalidate the warranty and

cause property damage and/or personal injury.

• Installinacontrolledindoorenvironment,awayfrommoisture,temperatureextremes,ammableliquidsandgasses,conductive

contaminants, dust and direct sunlight.

• Providesuitablegroundinginaccordancewithallapplicableelectricalwiringregulations.

• Donotattempttoclimborwalkacrossanypartoftheladder.

• Usecautionandwearsafetygloveswhenhandlingmetalpartsthathavebeencuttolength.Sharpedgescancausepersonalinjuryand

property damage.

• Useofthisequipmentinlifesupportapplicationswherefailureofthisequipmentcanreasonablybeexpectedtocausethefailureofthelife

supportequipmentortosignicantlyaffectitssafetyoreffectivenessisnotrecommended.Donotusethisequipmentinthepresenceofa

ammableanestheticmixturewithair,oxygenornitrousoxide.

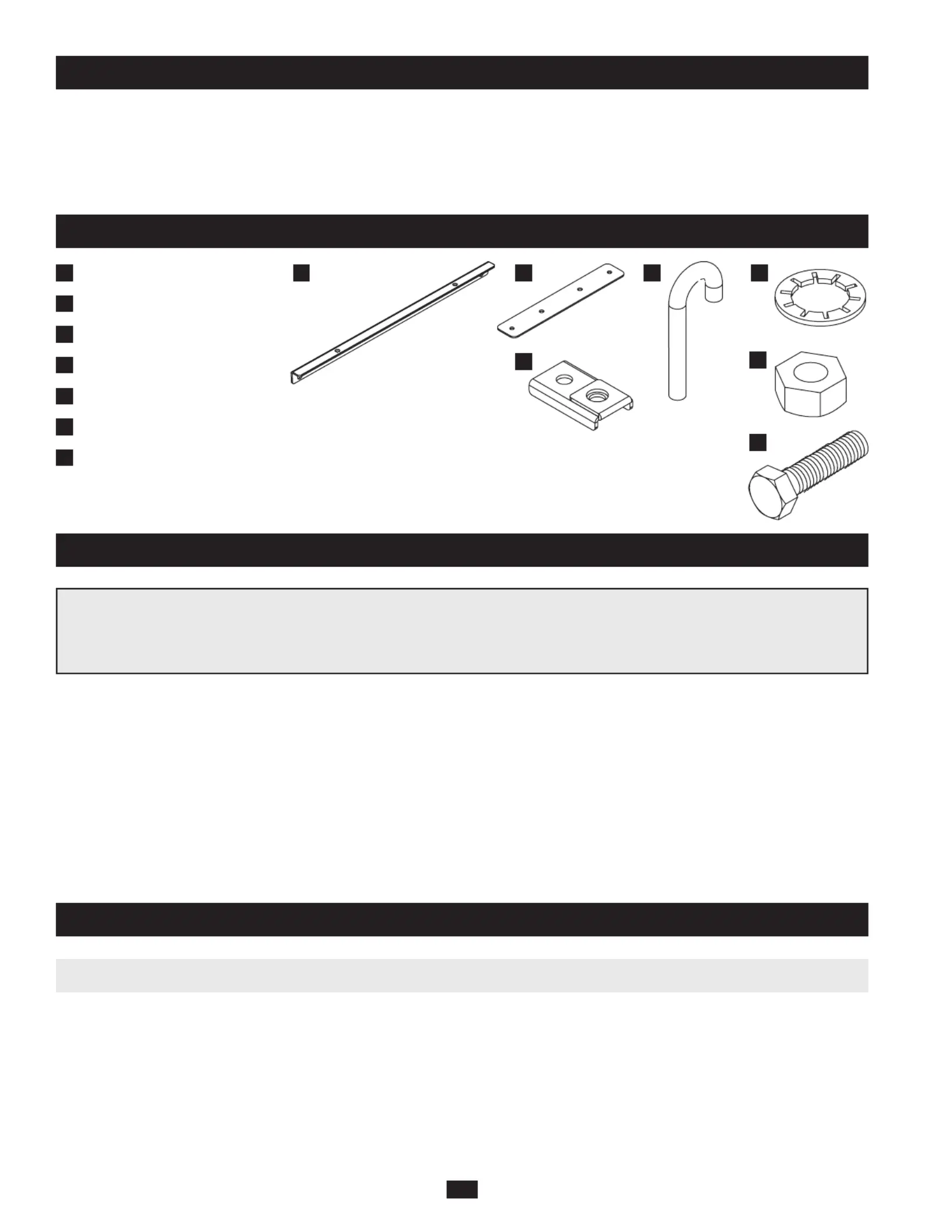

Bracket (1)

Perpendicular Junction Plate (1)

Adjustable J-Hook Clamps (4)

M8 Threaded J-Hooks (4)

M8 Washers (6)

M8HexNuts(6)

M8HexHeadMachineScrews(2)

If any parts are missing, visit www.tripplite.com/support.

4-1 Planning

3 – Important Safety Instructions

4 – Installation

A B

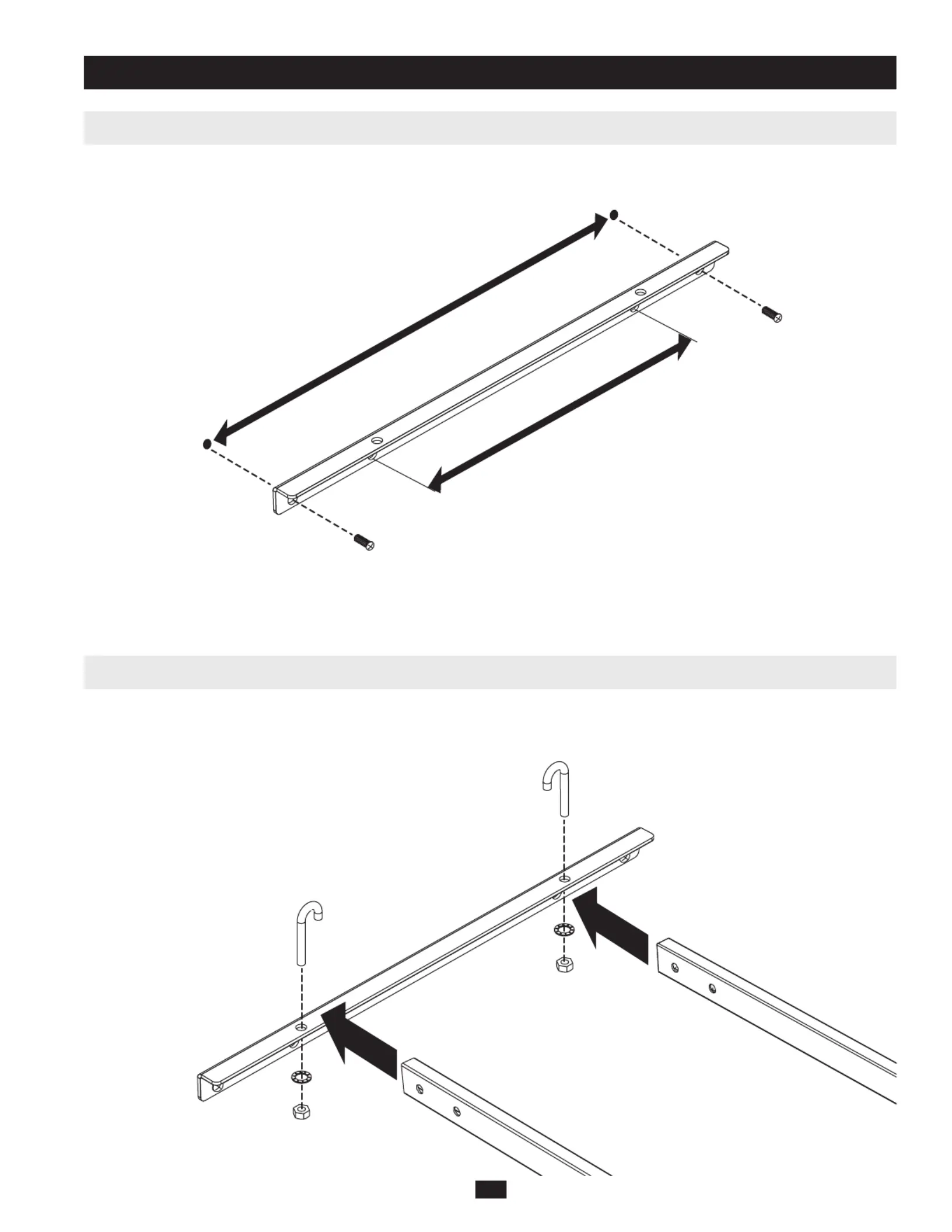

After measuring for distance and modifying the SRCABLELADDER parts, mount the SRLADDERATTACH wall bracket to a wall or other

appropriate surface with user supplied bolts. The bracket’s pre-drilled holes are .433 inches (11 mm) in diameter and are spaced 18.819 inches

(478 mm)/or 16 inches (406 mm) apart.

Warning: Be sure to mount the bracket in a location able to bear the load.

Note: The SRLADDERATTACH wall bracket can also be attached to Tripp Lite’s 2- and 4-Post Rack Kits. If existing brackets on the 2 or 4 post

kits do not include pre-drilled holes, use the bracket included in your SRLADDERATTACH kit.

4-2 Mounting the Bracket (Wall-Mounting)

4 – Installation (continued)

ExtendtheSRCABLELADDERfromyourrackenclosuretothebracketmountedonthewallandsecureittothebracketbyhookingtwoofthe

J-Hooksaroundtheladderframeandintothepre-drilledholesinthebracket.SecuretheladderbyattachingtwoM8WashersandM8HexNuts

to the J-Hooks as shown in the diagram.

4-3 Attaching the Ladder

18.819 (478 mm)

16 (406 mm)
