Turbo Air Speed up the Pace of Innovation
Underbar Equipment
Back Bars
Installation and Operation Manual
CAUTION!
PLEASE KEEP POWER
SWITCH ON BEFORE
OPERATING THIS EQUIPMENT
Please read this manual completely before attempting to install or operate this equipment!
TBB-1SB
TBB-2SG TBB-2SB
TBB-3SG TBB-3SB
TBB-4SG TBB-4SB
www.turboairinc.com
SD series: Stainless Steel Exterior
SB series: Black Laminated Vinyl Exterior or Black Powder Coating Exterior
2
CONTENTS
SPECIFICATIONS
SERIAL NUMBER
PAGE
SPECIFICATION
2
SERIAL NUMBER
2
INSTALLATION OF THE CASTERS
3
Draft Arms Towers Installation Schematic Diagram
3
Beer Line & CO Line Installation Schematic Diagram2
4
Caution "IMPORTANT"
5-6
INSTALLATION
7
CLEANING
8
BASIC OPERATION
9
BEFORE REQUESTING SERVICE
10
WARRANTY
11-12
MODEL COMPH.P. V/Hz REFRIGERANT AMPS WEIGHT
TBB-SB 1/10 110-120V/60Hz R-134a 4.0A 235 lbs
TBB-2SG/SB 1/3, 1/4 110-120V/60Hz R-134a 7.0A 344/332 lbs
TBB-3SG/SB 1/3, 1/4 110-120V/60Hz R-134a 7.0A 385/369 lbs
TBB-4SG/SB 1/3 110-120V/60Hz R-134a 7.5A 485/493 lbs
The serial number is located on the rating label which is on interior left side wall.
Please retain the unitʼs serial number for service purpose.
3

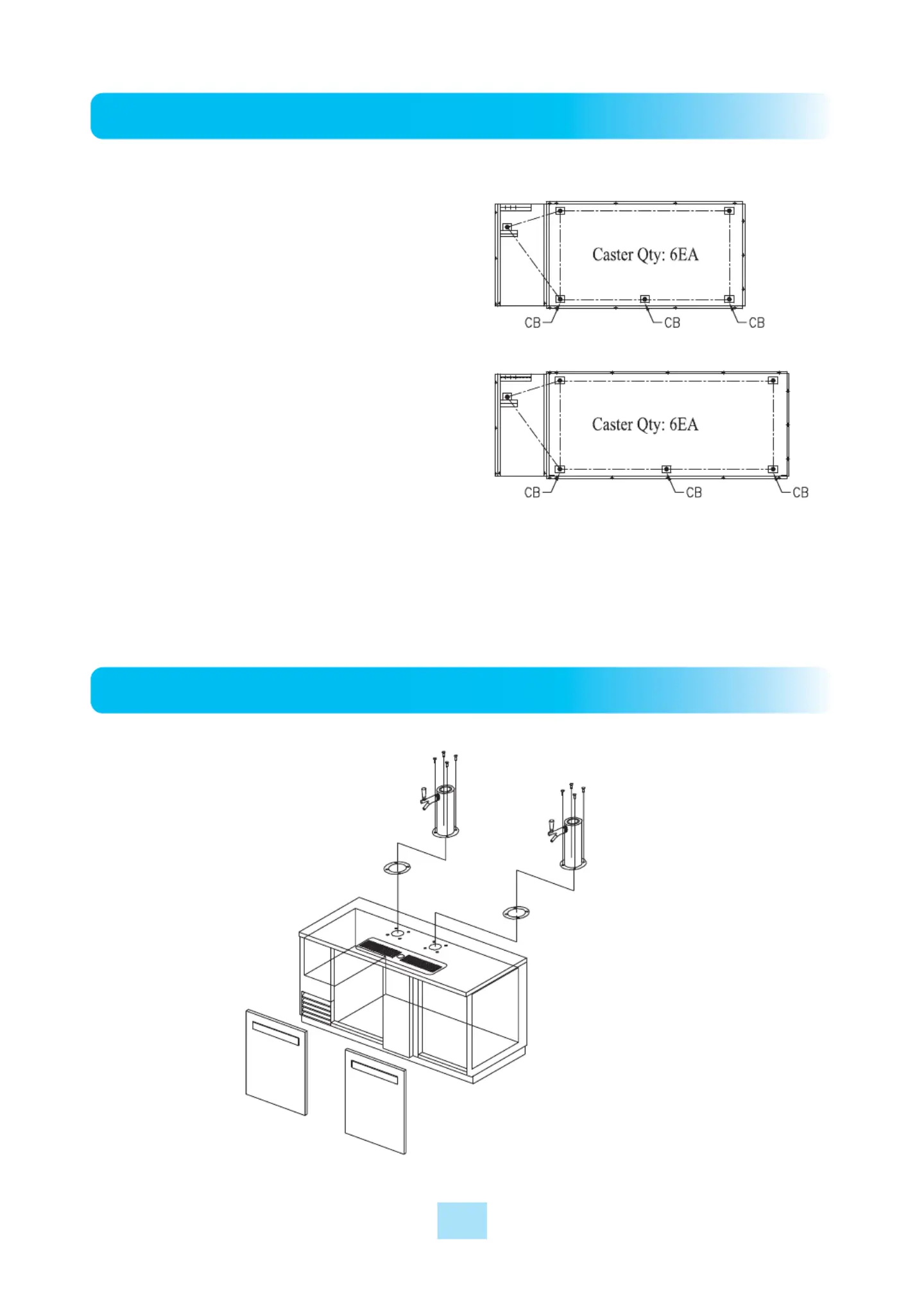

INSTALLATION OF THE CASTERS
DRAFT ARMS TOWERS
Installation Schematic Diagram
According to model, refer to the assembly position of casters.
TCB-2SD, TBD-2SD, TBB-2SB, TBB-2SG
TCB-3SD, TBD-3SD, TBB-3SB, TBB-3SG
TCB-4SD, TBD-4SD, TBB-4SB, TBB-4SG
TCB-2SD, TCB-3SD, TCB-4SD
TBD-2SD, TBD-3SD, TBD-4SD
TBD-2SB, TBD-3SB, TBD-4SB
Screw(M4xL12) x 4EA
Screw(M4xL12) x 4EA
Draft Tower Assembly
Draft Tower Assembly
Rubber Gasket
Rubber Gasket
* Assemble DRAFT TOWER as above drawing.
This picture is a plan view of bottom cabinets.
CB is an abbreviation of the caster with a brake.
Other casters don't have a brake.
