Turbo Air TBD-4SD Bruksanvisning
Les nedenfor 📖 manual på norsk for Turbo Air TBD-4SD (13 sider) i kategorien ølkran. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/13
Turbo Air Speeds up the Pace of Innovation
Underbar Equipment
Beer Dispensers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
TBD-1SD TBD-1SB
TBD-2SD TBD-2SB
TBD-3SD TBD-3SB
TBD-4SD TBD-4SB
www.turboairinc.com
SD series: Stainless Steel Exterior
SB series: Black Laminated Vinyl Exterior or Black Powder Coating Exterior
2
CONTENTS
SPECIFICATIONS
SERIAL NUMBER
PAGE
SPECIFICATIONS
2
SERIAL NUMBER
2
INSTALLATION OF THE CASTERS
3
Draft Arms Towers Installation Schematic Diagram
3
Beer Line & CO Line Installation Schematic Diagram2
4
Caution "IMPORTANT"
5-6
INSTALLATION
7
CLEANING
8
BASIC OPERATION
9
TROUBLESHOOTING
10
WARRANTY
11-13
MODEL COMPH.P. V/Hz REFRIGERANT AMPS WEIGHT
TBD-1SD/SB 1/10 115V/60Hz R-134a 4.0A 198 lbs
TBD-2SD/SB 1/3 115V/60Hz R-134a 7.0A 303/313 lbs
TBD-3SD/SB 1/3 115V/60Hz R-134a 7.0A 338/348 lbs
TBD-4SD/SB 1/3 115V/60Hz R-134a 7.5A 440 lbs
The serial number is located on the rating label which is on interior left side wall.
Please retain the unitʼs serial number for service purpose.
3

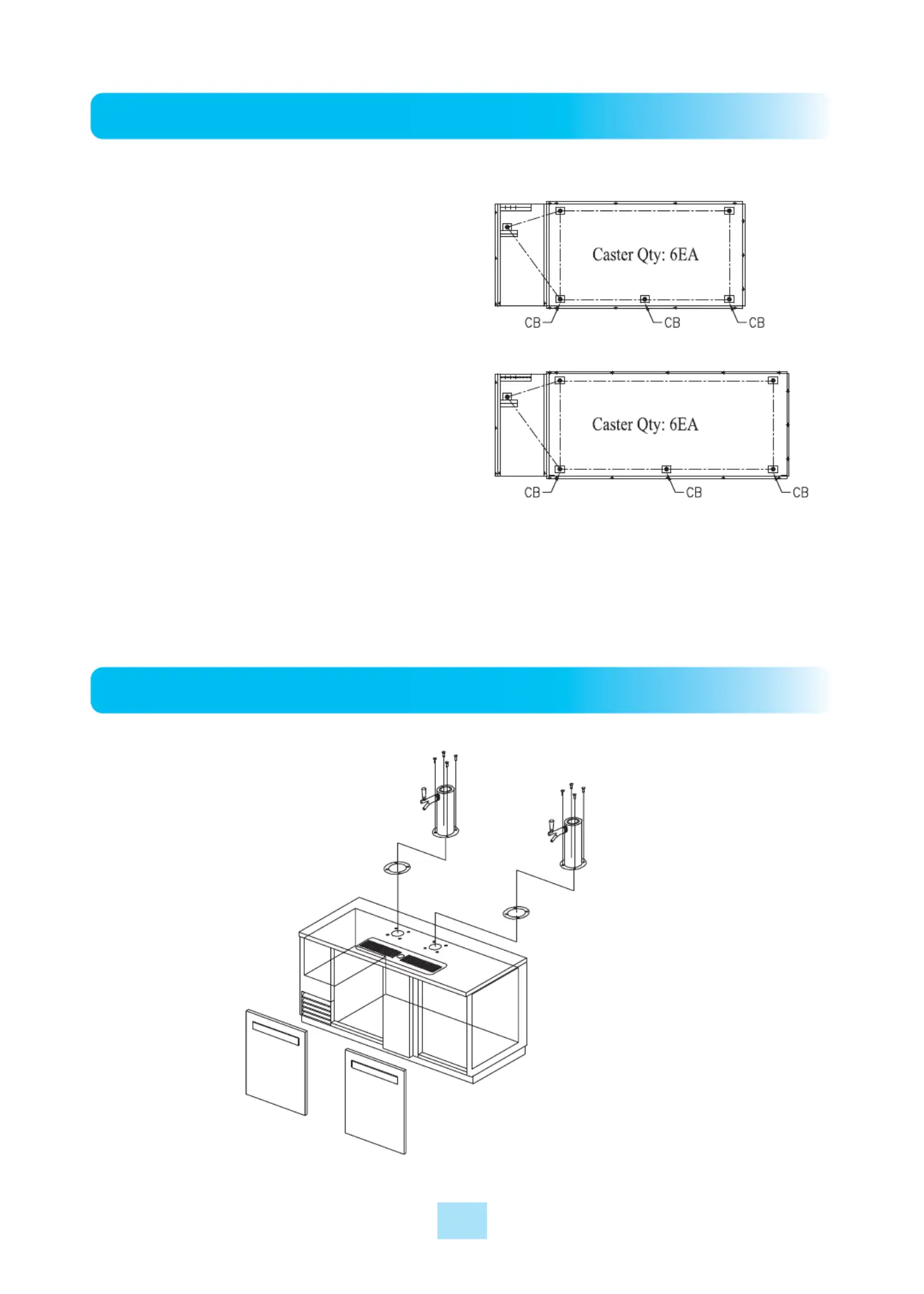

INSTALLATION OF THE CASTERS
DRAFT ARMS TOWERS
Installation Schematic Diagram
According to model, refer to the assembly position of casters.
TCB-2SD, TBD-2SD, TBB-2SB, TBB-2SG
TCB-3SD, TBD-3SD, TBB-3SB, TBB-3SG
TCB-4SD, TBD-4SD, TBB-4SB, TBB-4SG
TCB-2SD, TCB-3SD, TCB-4SD
TBD-2SD, TBD-3SD, TBD-4SD
TBD-2SB, TBD-3SB, TBD-4SB
Screw(M4xL12) x 4EA
Screw(M4xL12) x 4EA
Draft Tower Assembly
Draft Tower Assembly
Rubber Gasket
Rubber Gasket
* Assemble DRAFT TOWER as above drawing.
This picture is a plan view of bottom cabinets.
CB is an abbreviation of the caster with a brake.
Other casters don't have a brake.
