QUICK START GUIDE
GUIDE DE DÉMARRAGE RAPIDE
IMPORTANT
READ BEFORE USING
IMPORTANT
LIRE AVANT UTILISATION
KONE
II AIR
KONE II AIR
CERTIFICATION MODEL:
MOUSE: MWBB0009
DONGLE:MWAA0009
STANDARD
1 = Left click
2 = Right click
3 = Middle click
4 = Tilt Left
5 = Tilt Right
6 = Scroll Up
7 = Scroll Down
8 = Free spin toggle wheel
9 = DPI Cycle
10 = Browser Forward
11 = Browser Backward
12 = Easy-Shift[+]™
STANDARD
1 = Clic gauche
2 = Clic droit
3 = Clic du milieu
4 = Incliner vers la gauche
5 = Incliner vers la droite
6 = Défiler vers le haut
7 = Défiler vers le bas
8 =
Mode libre de la molette
9 = Cycle DPI
10 = Navigateur, suivant
11 = Navigateur, précédent
12 = Easy-Shift[+]
EASY-SHIF T[+]
1 = Left click
2 = Right click
3 = Play/Pause
4 = Previous Track
5 = Next Track
6 = Volume Up
7 = Volume Down
8 = N/A
9 = Profile Cycle
10 = Page Up
11 = Page Down
12 = Easy-Shift[+]
EASY-SHIF T[+]
1 = Clic gauche
2 = Clic droit
3 = Lancer/Pause
4 = Piste précédente
5 = Piste suivante
6 = Augmenter le volume
7 = Baisser le volume
8 = N/A
9 = Cycle des profils
10 = Page haut
11 = Page bas
12 = Easy-Shift[+]
PACKAGE CONTENTS | CONTENU DEFAULT BUTTON ASSIGNMENT | AFFECTATION DES BOUTONS PAR DÉFAUT
(no driver installed)
1 2
534
6
7
8
9
10
11
12
Kone
II Air Gaming Mouse
Souris de jeu Kone
II Air
標準
1 = 左鍵單擊
2 = 右鍵單擊
3 = 中鍵
4 = 向左傾斜
5 = 向右傾斜
6 = 向上滾動
7 = 向下滾動
8 = 自由捲動滾輪切換
9 = DPI 循環
10 = 瀏覽器下一頁
11 = 瀏覽器上一頁
12 = Easy-Shif t [+]
快捷鍵
1 = 左鍵單擊
= 右鍵單擊
3 = 播放/暫停
4 = 上一首曲目
5 = 下一首曲目
6 = 音量增大
7 = 音量減少
8 = N/A
9 = Profile 循環
10 = 向上翻頁
11 = 向下翻頁
12 = Easy-Shift [+]
PhantomFlex
Charging Cable (USB-C to USB-A)
Câble de chargement PhantomFlex
(USB-C vers USB-A)
USB Wireless Transmitter
cepteur USB sans-fil
USB Adapter
Adaptateur USB
Grip Tape
Bandes adhésives supplémentaires
a) b)

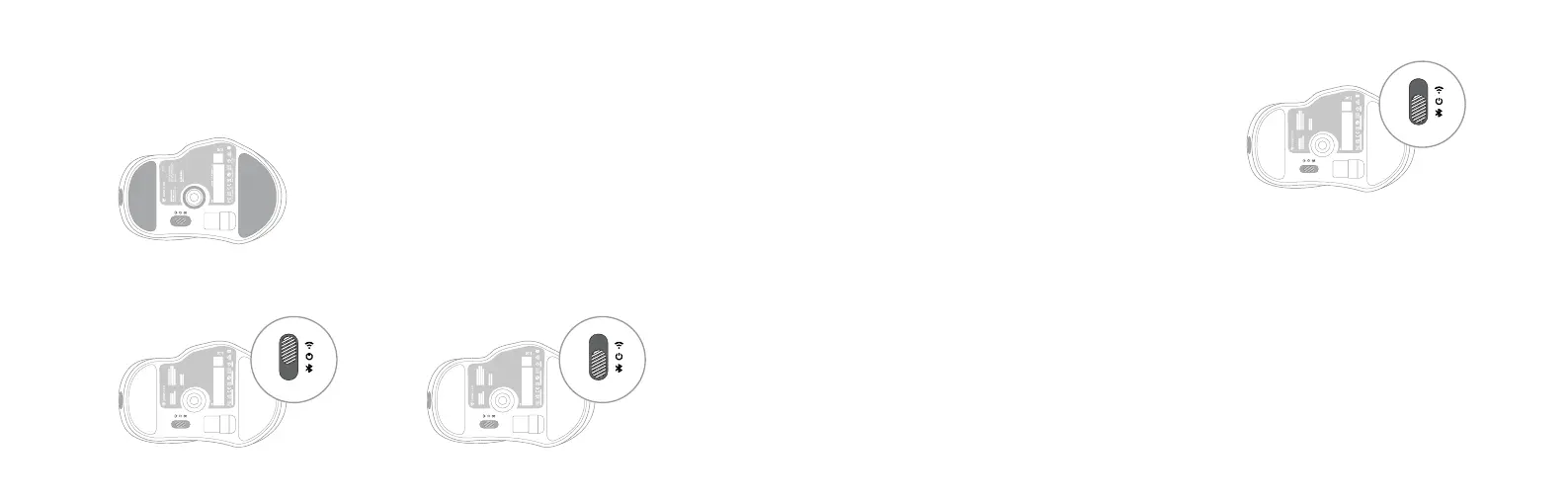

1. Remove the blue protective plastic from the mouse feet.
2. Select 2.4GHz mode on the power slider underneath the mouse to connect via dongle.
Alternatively, select Bluetooth® mode to connect via Bluetooth®.
4. Navigate to www.turtlebeach.com/swarm2
and download the latest driver software.
5. Complete the installation to get access to all software
features and setup.
3. Hold down buttons 3, 10 & 11 to enter pairing mode.
Via Dongle:
The mouse will be paired automatically out of the box.
For manual pairing, the LEDs will breathe white while in dongle
pairing mode, and will turn o when successfully paired.
Via Bluetooth®:
The mouse will enter pairing mode on first use, complete the
connection via your device's Bluetooth® settings. The LEDs will
breathe blue while in Bluetooth® pairing mode, and will turn o
when successfully paired.
