Side 1/7

TB521-2145-01

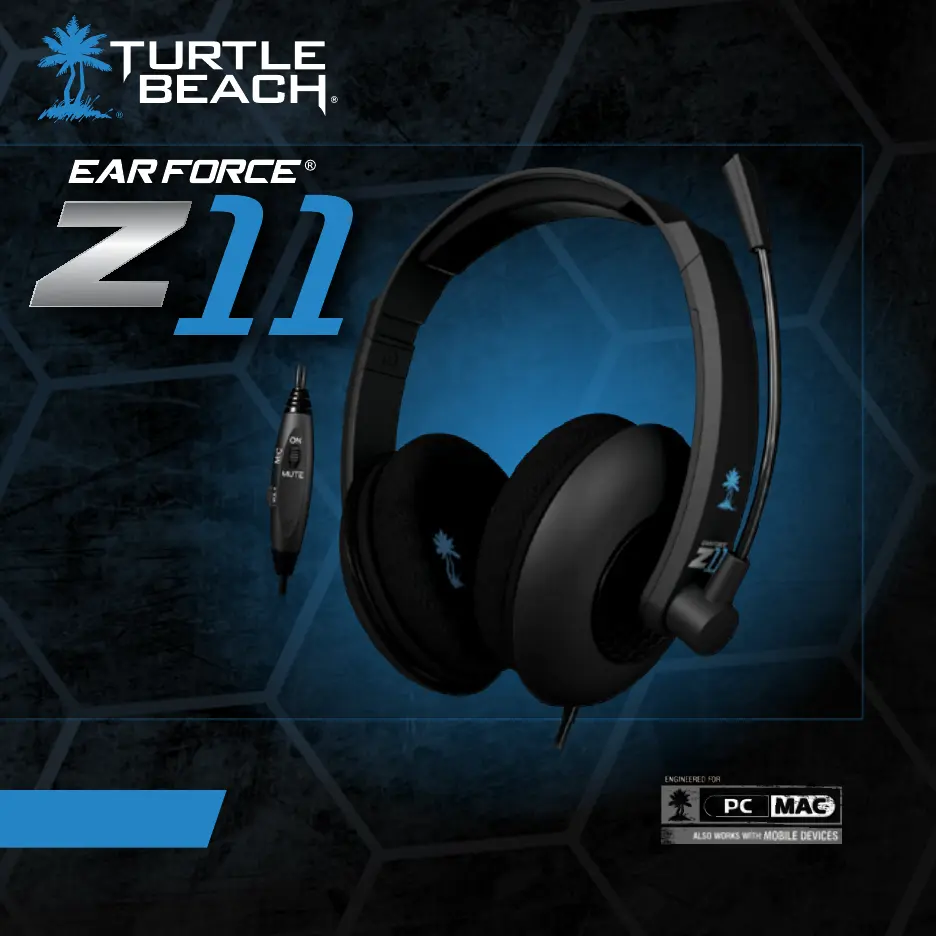

User Guide

Package Contents

Z11 Headset PC Adapter Cable

Turtle Beach Sticker

In-line Controls

Master Volume

Adjusts the master volume of the

incoming game and chat audio.

Mic Mute Switch*

Switch to MUTE to mute the microphone.

* NOTE: When using the Z11 with mobile phones, the mic mute switch control should not be used as it may cause issues

during phone calls. To mute the microphone, use the mute control directly on the phone.

PC/Mac

Setup Mobile Setup

The Z11 includes a 3.5mm, 4-pole plug for easy compatibility with most smartphones*, tablets, digital music players and

portable game systems. Simply plug the 3.5mm connector into the device's headphone jack.

* NOTE: When using the Z11 with mobile phones, the mic mute switch control should not be used as it may cause issues

during phone calls. To mute the microphone, use the mute control directly on the phone.

PC Adapter Cable

(included)

PC/Mac with separate headphone

and mic jacks

The included PC adapter cable is

used for setup with computers that

have individual headphone and

microphone inputs. Connect the

3.5mm male end of the Z11 headset

to the female end of the PC adapter

cable. Then connect the plugs to

the corresponding headphone and

mic jacks on the computer.

PC/Mac with single 4-pole

headphone/mic jack

Some newer PCs and Mac

computers have a single 3.5mm

connection for both the headphone

and mic audio signals. If this is the

case, simply plug the 3.5mm end of

the headset into the jack. The PC

adapter cable is not required for

this setup.

Produkspesifikasjoner

Merke:	Turtle Beach
Kategori:	hodetelefon
Modell:	ZBX0HW68218
Produkttype:	Hodesett
Vekt:	233 g
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Materiale:	Fabric, Foam
Anbefalt bruk:	Spilling
Impedans:	- Ω
3,5 mm-kontakt:	Ja
Mikrofonretningstype:	Retningsuavhengig
Akustisk system:	Lukket
Mikrofonfrekvens:	- Hz
Kabellengde:	1.2 m
Produktfarge:	Black, Blue
Bæremåte:	Hodebånd
Hodetelefonsfrekvens:	- Hz
Driverenhet:	50 mm
Hodesett-type:	Stereofonisk
Øresammenkobling:	Circumaural
Magnettype:	Neodym
