Document Number 411-0058-41 Rev A – August 2022

User Guide for the

Vaddio IR Remote Controller

August 2022

998-2105-000 (Worldwide)

Installing the Batteries

The remote uses two AAA batteries.

1. Remove the cover from the back of the remote. You may need to press down on the

upper edge while sliding it off.

2. Install the batteries as shown in the diagram in the battery opening.

3. Slide and snap the cover back into place.

Tips for Using the Remote

Presets: The remote provides access to camera presets. Your camera’s web interface may

provide access to additional camera presets.

Camera selection: The remote has three IR channels, so it can control up to three

cameras independently. Check your camera’s manual for information on setting it as

camera 1, camera 2, or camera 3. By default, Vaddio cameras respond as camera 1

Troubleshooting tip: If the camera does not respond to the remote, press the Camera 1 button and try

again. If that doesn’t fix the problem, try the other camera selection buttons.

Auto-framing cameras: Auto-framing pauses when you press any button that affects the shot (arrows,

home, zoom, presets).

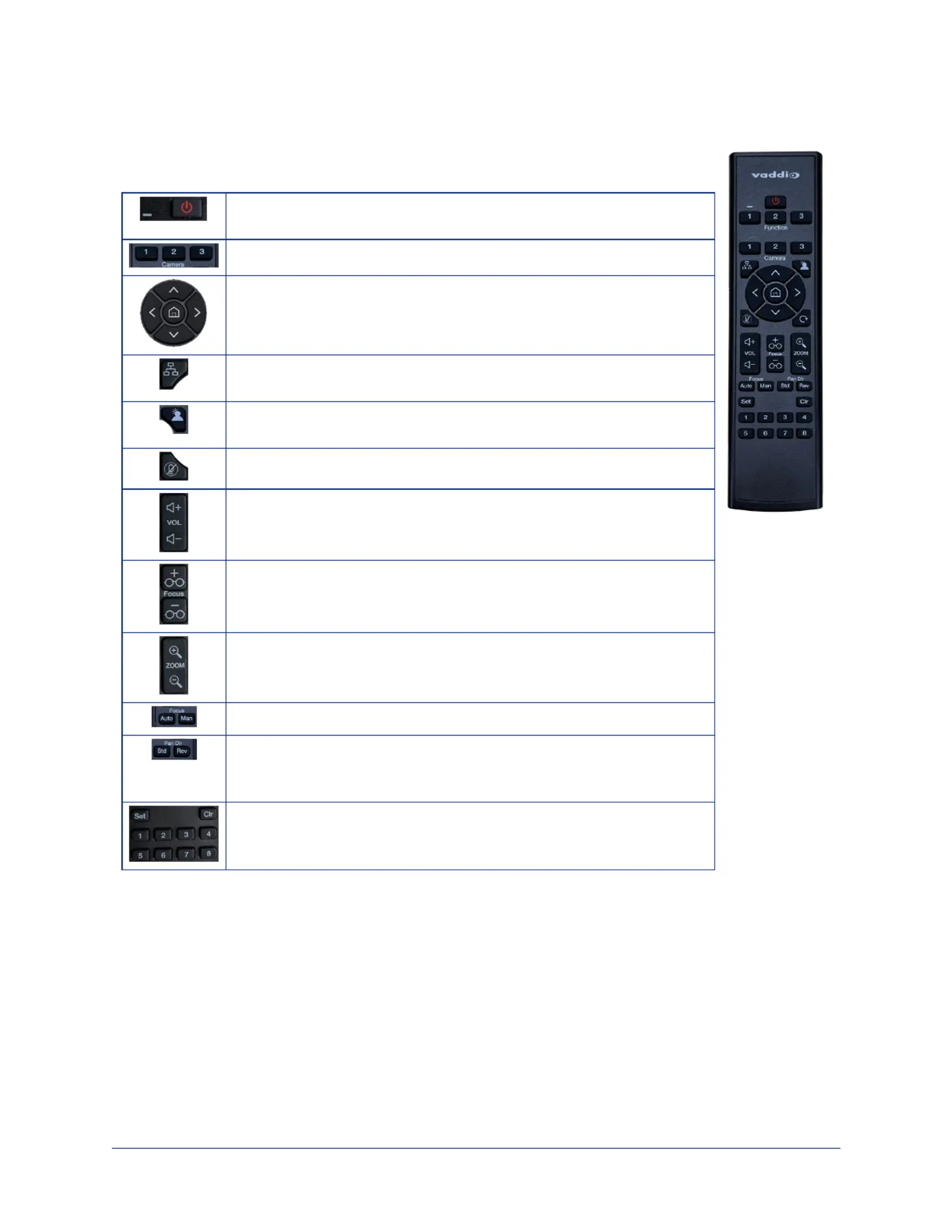

IR Remote Controller Quick Reference

The remote may have controls for capabilities that your camera does not have. Some

buttons behave in different ways depending on the camera’s capabilities.

Power button and indicator – Set the camera to standby mode, or

return to full-power mode.

Arrow buttons – Pan and tilt.

Home button – Function depends on the model of camera. For Auto-

framing cameras, press to resume auto-framing.

Network button – Display the camera's IP address on the video

output(s).

Backlight button – Adjusts for excess light behind the camera’s

subject.

Mute button – Mute connected or built-in microphone(s).

Volume +/– button – Increase or decrease the volume from the

connected or built-in speaker.

Focus +/– buttons – Adjust the focal distance in or out, when Manual

focus mode is selected.

Zoom +/– button– Increase or decrease the zoom.

Focus Auto/Man buttons – Select automatic or manual focus.

Pan Dir buttons – Set pan direction relative to the person using the

remote. Std is from the camera’s perspective. Rev is from the

perspective of a person facing the camera.

Set, Clr, and Preset buttons – Set, clear, or select preset shots.

User Guide for the Vaddio IR Remote Controller

Vaddio is a brand of Legrand AV Inc.· · Phone 800.572.2011 / +1.763.971.4400 ·www.legrandav.com

Fax +1.763.971.4464 · Email ·av.vaddio.support@legrand.com

Vaddio is a registered trademark of Legrand AV Inc. All other brand names or marks are used for

identification purposes and are trademarks of their respective owners. All patents are protected under

existing designations. Other patents pending.

Storing and Clearing Presets

Depending on the camera, presets may store zoom, pan/tilt location, color settings, or some combination

of these.

Your camera may have additional presets available through its web interface.

To store a preset:

Set up the shot. Then hold down the button and press one of the numbered preset buttons.Set

To clear a preset:

Press and hold the button while pressing the number of the preset you want to clear.Clr
