Issue 2

947285

V-9983 2 CHANNEL MODULAR PRE-AMP/MIXER

V-9984 REMOTE INPUT MODULE

V-9985 4 CHANNEL MODULAR PRE-AMP/MIXER

INTRODUCTION

These instructions contain the specications and

guidelines necessary to install, operate, and

maintain the Modular Pre-Amp/Mixer. The unit

provides connections for up to 4 remote input

modules. The mixer consists of a V-9983 Main

Control Module and a V-9984 Remote Input

Module.

The Modular Pre-Amp Mixer is used with

Valcom distributed amplied one way paging

systems providing additional audio source

inputs.

The V-9985 provides active mixing for 1

balanced microphone and 2 auxiliary inputs.

Also supplied is an additional audio input

(building page) with an override feature. Up to 3

additional Remote Input Modules (V-9984) may

be connected to the Main Control Module. Each

Remote Input Module adds 1 Balanced

Microphone and 1 Auxiliary input.

Applications

Valcom, Inc. Distributed Amplied One-Way

Paging Systems. Refer to Figure 1 for a

block diagram of a typical installation.

Features

Main Control Module V-9983

High impedance auxiliary input

Volume control for auxiliary input

3.5mm stereo mini jack for auxiliary input

Master volume control

Up to (4) four remote mixer modules may be

connected

Separate outputs for Horns and Speake rs

Page port connection (Building Page) with

override option switch

Remote Volume Control Connection

LED Signal Meter

Built in Compressor, option dip switch –

controlled

Power "ON" indicator

Mounts in 3 gang electrical box

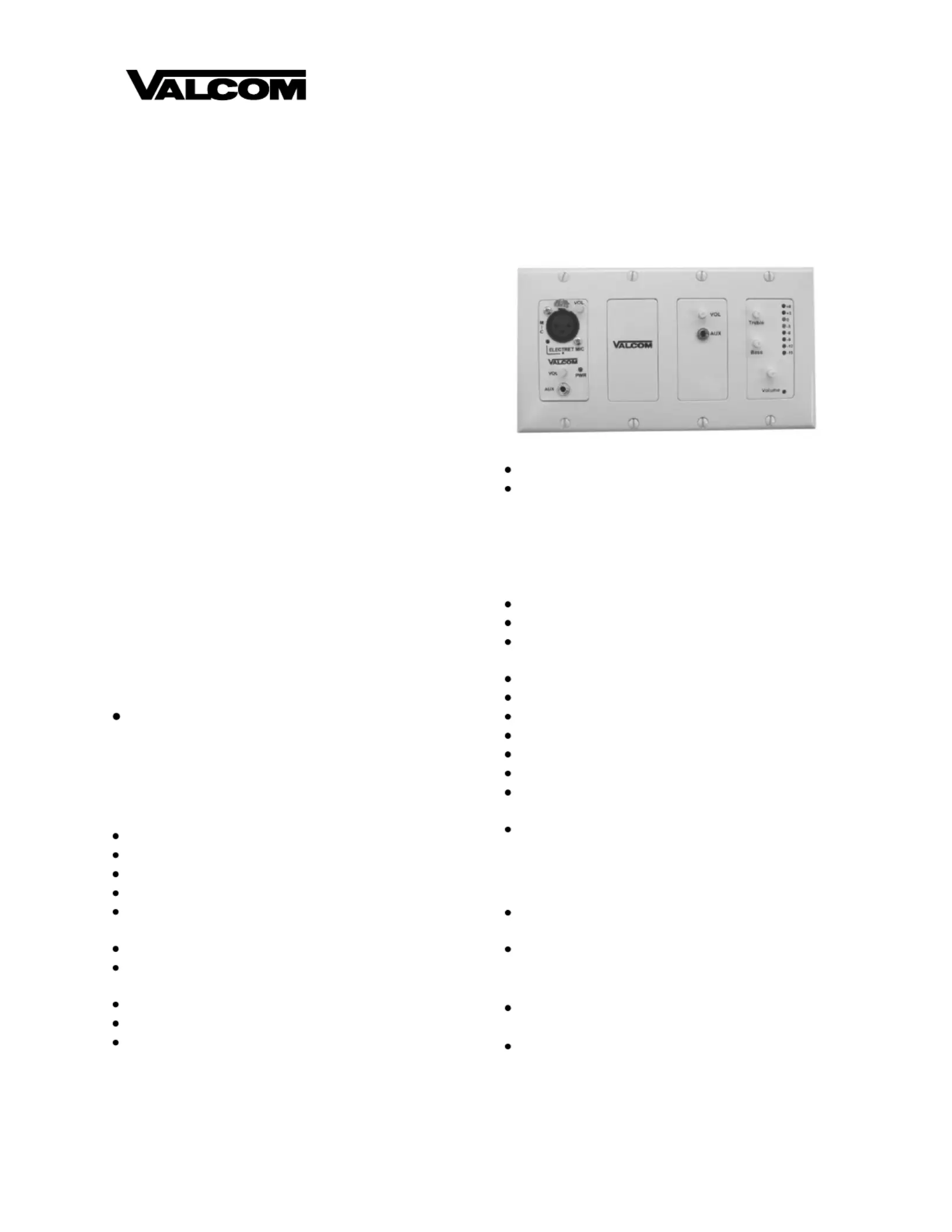

MAIN CONTROL MODULE WITH

REMOTE INPUT MODULE

Remote Input Module V-9984

Balanced microphone

XLR Mic. Connection

Phantom power for electret microphones

(Switch controlled)

Phantom power “ON” indicator

High impedance auxiliary input

Volume control for auxiliary input

3.5mm stereo mini jack for auxiliary input

Power "ON" indicator

Mounts in single gang electrical box

Connects to Main Control Module with 2 pair

24AWG station cable

Screw terminals for distribution connections

Dimensions

Main Control Module

5"W x 4.25"H x 2”D

(12.7cm W x 10.8cm D x 5.08cm H)

4 lbs. (1.5Kg)

Remote Input Module

1.64W x 4.25"H x 2”D

(4.17cm W x 10.8cm D x 5.08cm H)

lbs. (0.1Kg).25

Produkspesifikasjoner

Merke:	Valcom
Kategori:	Hvorfor konsoll
Modell:	V-9985
Vekt:	1500 g
Bredde:	508 mm
Dybde:	108 mm
Høyde:	127 mm
Berøringsskjerm:	Nei
Antall kanaler:	4 kanaler
Maksimalt inngangsnivå:	0.03 V
Line Signal-to-Noise Ratio (SNR):	80 dB
Produktfarge:	Hvit
Mikrofon, linje-inn-støpsel:	Ja
AUX-inngang:	Ja
inngangsimpedans:	4000 Ω
MIDI-utgang:	Nei
Rack-kapasitet:	0U
Rack-montering:	Ja
AC-adapter bunt:	Nei
Inngangsimpedans mikrofon:	3500 Ω
Utjevner/frekvenskorrigerer:	Ja
Frekvensrekkevidde:	2 - 20000 Hz
Apple docking-kompabilitet:	Støttes ikke
Antall frekvenskorrigeringer/utjevnerkorrigeringer:	2
Mikrofon Signal-to-Noise Ratio (SNR):	65 dB
Digital lydbehandling:	0 bit
