Side 1/16

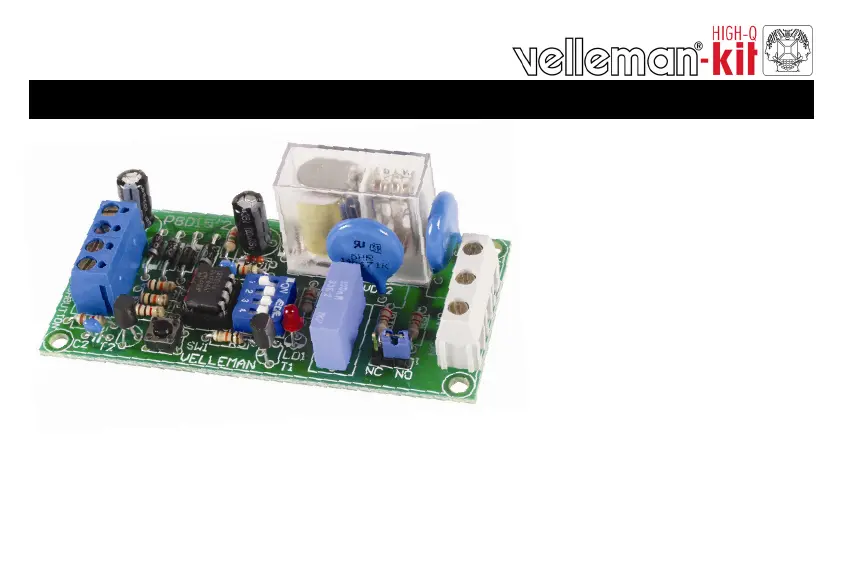

MULTIFUNCTION RELAY SWITCH

K8015

ILLUSTRATED ASSEMBLY MANUAL H8015IP-2

Total solder points: 85

Difficulty level: beginner 1  2  3  4  5  advanced

Features & Specifications

Features:



14 different functions including timers, switching, flashing, interval, random switching, …

 Two pre-programmed delays.

 Learning mode for delays of 2s up to 12 days.

 EEPROM for delay time storage in case of power failure.

 On-board transient filter for the relay contacts.

 Suitable for control of incandescent lighting, halogen lighting, fluorescent lighting, fans, valves, buzzers, …

Specifications:



Operating voltages : 9-12 VAC or 12 VDC.

 Max. load : 5A (1100W/230V; 550W/115V).

 Dimensions pcb (wxdxh): 65 x 57 x 25mm.

Produkspesifikasjoner

Merke:	Velleman
Kategori:	kontroll
Modell:	K8015
Dimensjoner (B x D x H):	86.36 x 38.1 x 25.4 mm
Antall moduler:	1
Produktfarge:	Blue, Green, White
Spolespenning:	230 V
Nåværende kontaktkapasitet:	5 A
