Side 1/63

CDE5520

Commercial Display

User Guide

Model No. VS18185

IMPORTANT: Please read this User Guide to obtain important information on installing

and using your product in a safe manner, as well as registering your product for future

service. Warranty information contained in this User Guide will describe your limited

coverage from ViewSonic Corporation, which is also found on our web site at http://

www.viewsonic.com in English, or in specific languages using the Regional selection

box in the upper right corner of our website. “Antes de operar su equipo lea cu

idadosamente las instrucciones en este manual”

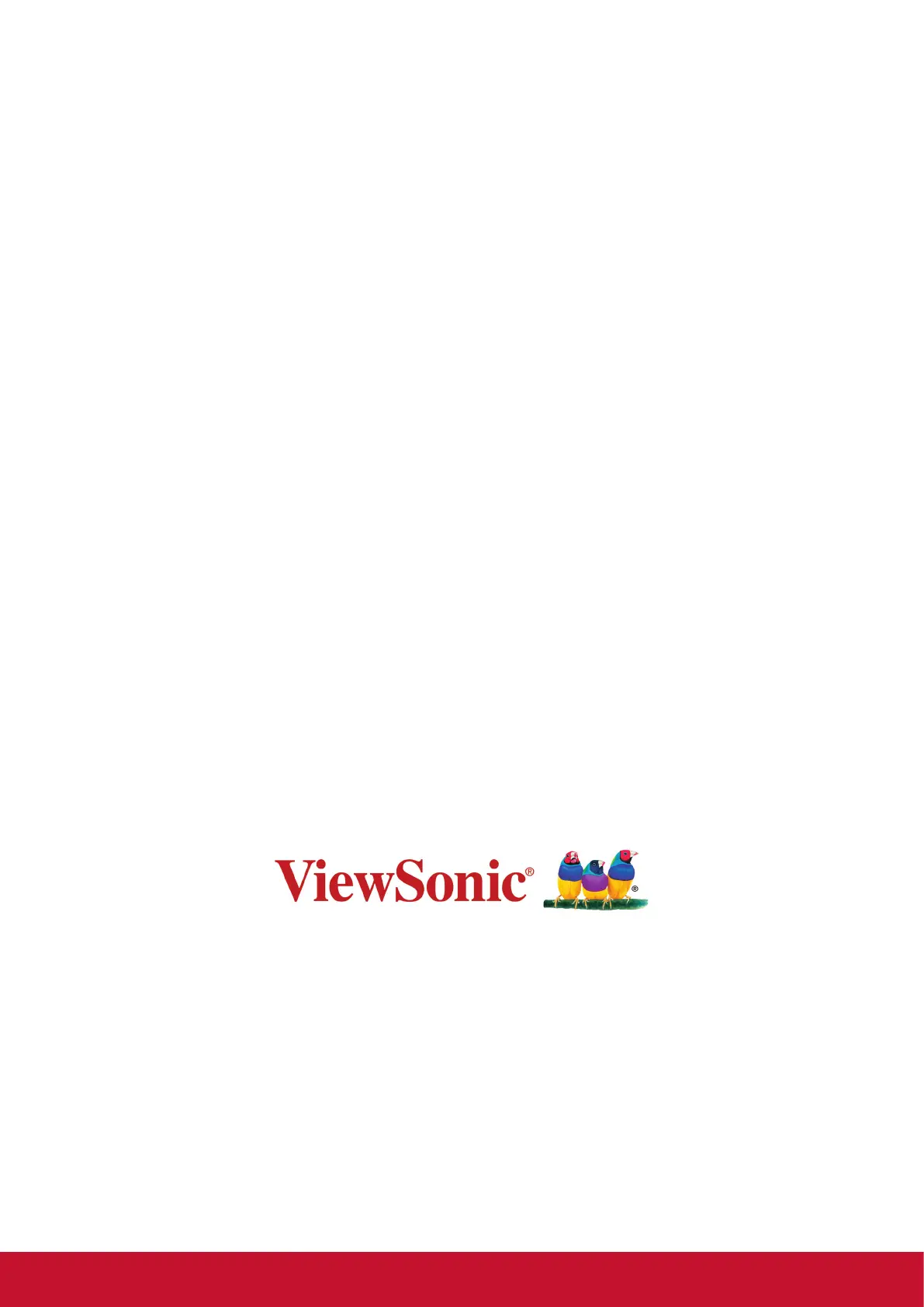

Thank you for choosing ViewSonic

As a world leading provider of visual solutions, ViewSonic is dedicated to

exceeding the world’s expectations for technological evolution, innovation, and

simplicity. At ViewSonic, we believe that our products have the potential to

make a positive impact in the world, and we are condent that the ViewSonic

product you have chosen will serve you well.

Once again, thank you for choosing ViewSonic !

Compliance Information

This section addresses all connected requirements and statements regarding regulations.

Confirmed corresponding applications shall refer to nameplate labels and relevant markings on the

unit.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits were designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy, and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the party

responsible for compliance could void your authority to operate the equipment.

CAN ICES-003(B) / NMB-003(B)

CE Conformity for European Countries

The device complies with the EMC Directive 2014/30/EU and Low Voltage Directive

2014/35/EU.

WARNING: This equipment is compliant with Class B of EN55032.In a residential environment this

equipment may cause radio interference.

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and Electronic

Equipment Directive 2012/19/EU (WEEE).The mark indicates the requirement NOT to

dispose the equipment as unsorted municipal waste, but use the return and collection

systems according to local law.

Produkspesifikasjoner

Merke:	Viewsonic
Kategori:	skjerm
Modell:	CDE5520
Vekt:	16800 g
Bredde:	1243.2 mm
Dybde:	74.8 mm
Høyde:	714 mm
Berøringsskjerm:	Nei
Prosessorfrekvens:	1.4 GHz
Prosessorfamilie:	ARM Cortex
Intern lagringskapasitet:	16 GB
Wi-Fi:	Nei
USB-port:	Ja
Synsvinkel, horisontal:	178 °
Pakkevekt:	23950 g
Antall HDMI-porter:	2
DVI-port:	Ja
Innebygde høyttalere:	Ja
Antall innebygde høyttalere:	2
Sertifisering:	cULus, FCC, Energy Star, TUV Mexico, Mexico Energy, CE, CB, RoHS, ErP, REACH, EEL, WEEE, RCM
USB-versjon:	2.0
Skjermteknologi:	IPS
Antall HDMI-inngangsporter:	2
Datasystem:	Ja
Energiforbruk (HDR) per 1000 timer:	- kWh
Energieffektivitetsklasse (SDR):	G
Energiforbruk (SDR) per 1000 timer:	87 kWh
Kontrastforhold:	1200:1
Produktdesign:	Digital skiltingstavle (flatskjerm)
AC-inngangsspenning:	100-240 V
AC-inngangsfrekvens:	50 - 60 Hz
Energieffektivitetsskala:	A til G
Skjermoppløsning:	3840 x 2160 piksler
Strømforbruk (standby):	0.5 W
Støttede bildeformater:	BMP, JPEG, PNG
Støttede lydformater:	MP3
Produktfarge:	Sort
Antall USB-porter:	2
HD-type:	4K Ultra HD
Pakkedybde:	245 mm
Pakkehøyde:	910 mm
Pakkebredde:	1420 mm
Skjermdiagonal:	55 "
Naturlig sideforhold:	16:9
Operativsystemprogramvare 04:	Android 8.0
Kabler inkludert:	AC, HDMI, RS-232
Strømforbruk (vanlig bruk):	100 W
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 60 °C
Lagringsrelativ fuktighet:	10 - 80
Bærekraftsertifikater:	CE, ENERGY STAR, ErP, REACH, RoHS
Fjernkontroll medfølger:	Ja
Harmonisert system (HS)-kode:	85285210
VESA-montering:	Ja
Orientering:	Horisontal
Synsvinkel, vertikal:	178 °
Innebygd prosessor:	Ja
PC-lydinngang:	Ja
Diagonal skjermstørrelse:	139.7 cm
Overflatehardhet:	2H
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	20 - 80
Lysstyrke for skjerm:	400 cd/m²
Oppdateringsresponstid:	8 ms
Pikselbredde:	0.315 x 0.315 mm
Panelliv:	30000 timer
RS-232-tilkobling:	Ja
Panelmonterbart grensesnitt:	400 x 200 mm
RMS-rangert strøm/utgangseffekt:	20 W
Batterier medfølger:	Ja
Fjern (IR)-utgang:	1
Display antall farger:	1,07 milliarder farger
Anti-blendende skjerm:	Ja
Støttede plasseringer/plasseringer som kan benyttes:	Innendørs
Videoformat som støttes:	ASF, AVI, AVS, AVS+, DIVX, FLV, H.263, H.264, H.265, HEVC, M-JPEG, MP4, MPEG, MPEG1, MPEG2, MPEG4, MVC, RM, VC-1, VP8, VP9, WMV, WMV3, XVID
Aktivt skjermområde (B x H):	1209.6 x 680.4 mm
LED-baklystype:	Direct-LED
Formål:	Universell
Fjerninngang (IR):	1
Tåkenivå:	3
