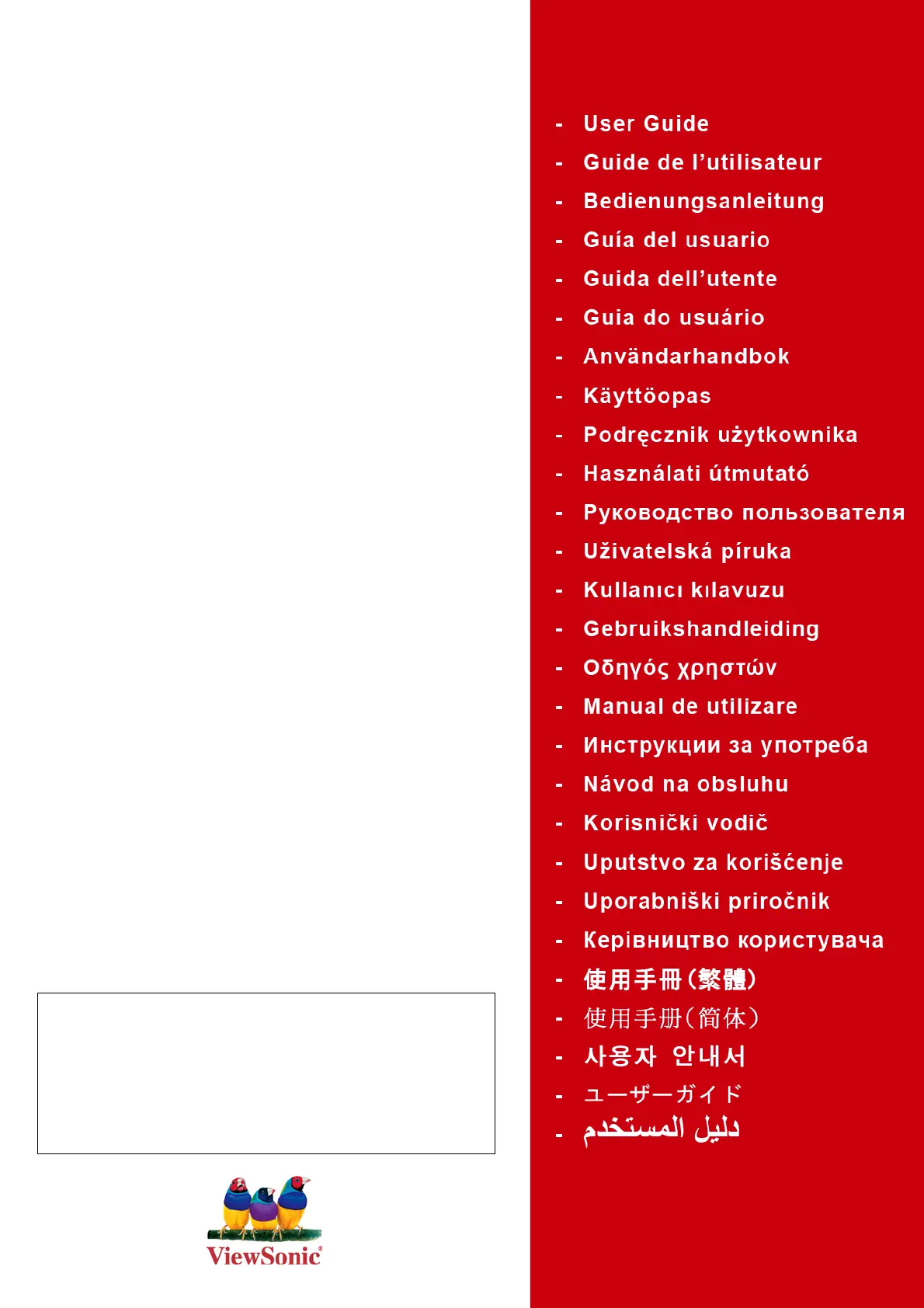

Side 1/27

ViewSonic

VA2033-LED/VA2033a-LED

LCD Display

Model No. : VS13580

IMPORTANT: Please read this User Guide to obtain important

information on installing and using your product in a safe manner, as

well as registering your product for future service. Warranty information

contained in this User Guide will describe your limited coverage from

ViewSonic Corporation, which is also found on our web site at http://

www.viewsonic.com in English, or in specific languages using the

Regional selection box in the upper right corner of our website.

“Antes de operar su equipo lea cuidadosamente las instrucciones en

este manual”

ViewSonic VA2033-LED/VA2033a-LED

Contents

Compliance Information.............................................................................. 1

Important Safety Instructions...................................................................... 2

Declaration of RoHS Compliance............................................................... 3

Product Registration................................................................................... 4

Getting Started

Package Contents ...................................................................................... 5

Precautions ................................................................................................ 5

Quick Installation ........................................................................................ 6

Wall Mounting (Optional) ............................................................................ 7

Using the LCD Display

Setting the Timing Mode............................................................................. 8

OSD and Power Lock Settings ................................................................... 8

Adjusting the Screen Image ....................................................................... 9

Main Menu Controls ................................................................................. 11

Other Information

Specifications ........................................................................................... 14

Troubleshooting........................................................................................ 15

Customer Support .................................................................................... 16

Cleaning the LCD Display ........................................................................ 17

Limited Warranty ...................................................................................... 18

Mexico Limited Warranty .......................................................................... 20

ViewSonic VA2033-LED/VA2033a-LED 1

Compliance Information

For U.S.A.

This device complies with part 15 of FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy, and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the

party responsible for compliance could void your authority to operate the equipment.

For Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Produkspesifikasjoner

Merke:	Viewsonic
Kategori:	skjerm
Modell:	VA2033-LED
Bruksanvisning:	Ja
Berøringsskjerm:	Nei
Synsvinkel, horisontal:	170 °
Pakkevekt:	4000 g
Innebygde høyttalere:	Nei
Sertifisering:	UL, CUL, FCC-B (ICES), CB, CCC, CEL, WEEE, RoHS, ENERGY STAR 5.0, EPEAT-Silver, Windows 7
HDCP:	Nei
3D:	Nei
Sammensatt synkronisering:	Ja
Kontrastforhold (dynamisk):	10000000:1
Innebygd kamera:	Nei
Vekt (med stativ):	2700 g
On Screen Display (OSD):	Ja
Tynn klient installert:	Nei
Kontrastforhold:	1000:1
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Skjermoppløsning:	1600 x 900 piksler
Produktfarge:	Sort
Vippevinkelområde:	5 - 20 °
Bredde (uten stativ):	480 mm
Høyde (uten stativ):	304.8 mm
Vekt (uten stativ):	2400 g
Bredde (med stativ):	480 mm
Dybde (med stativ):	191.1 mm
Høyde (med stativ):	376.1 mm
Pakkedybde:	130 mm
Pakkehøyde:	450 mm
Pakkebredde:	532 mm
Skjermdiagonal:	20 "
Naturlig sideforhold:	16:9
Separat H/V-synkronisering:	Ja
Antall DVI-D-porter:	1
Kabler inkludert:	AC, VGA
Horisontalt frekvensområde:	24 - 82 kHz
Strømforbruk (vanlig bruk):	22 W
Antall VGA (D-Sub)-porter:	1
Strøminngang/AC (strøm) inn:	Ja
Driftstemperatur (T-T):	0 - 40 °C
Bærekraftsertifikater:	ENERGY STAR
Hurtigstartsguide:	Ja
VESA-montering:	Ja
Dybde (uten stativ):	61.5 mm
Synsvinkel, vertikal:	160 °
Relativ luftfuktighet under drift (H-H):	10 - 90
Oppdateringsresponstid:	5 ms
Panelmonterbart grensesnitt:	100 x 100 mm
Skjermlysstyrke (typisk):	250 cd/m²
Størrelseforhold:	16:9
Innebygd TV-mottaker:	Nei
Kabellåsport:	Nei
Vertikal scanningsratio:	50 - 75 Hz
Sync-on-green (SOG):	Ja
