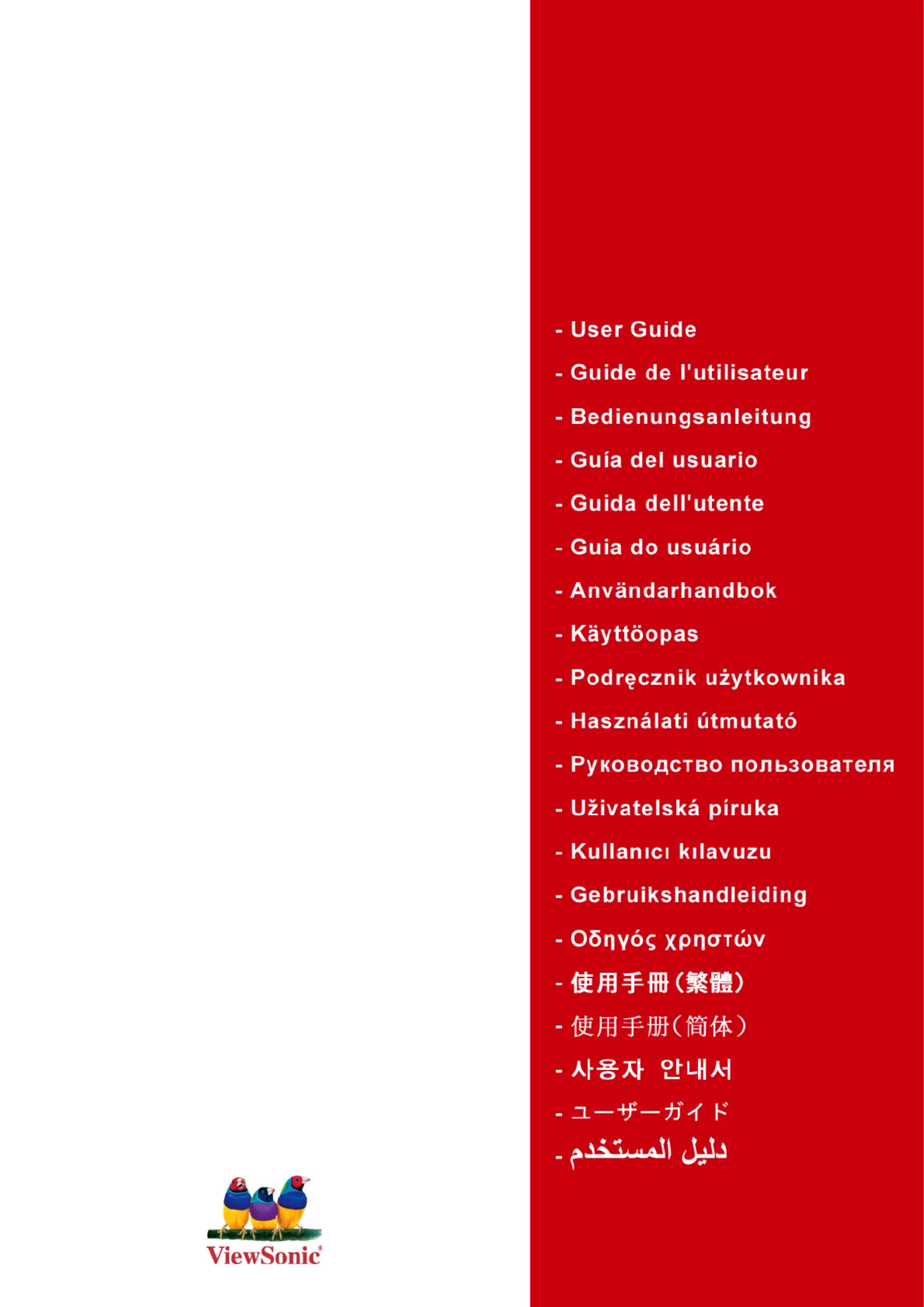

Side 1/22

ViewSonic

VX2255wmb/VX2255wmh

LCD Display

Model No. : VS11661

ViewSonic VX2255wmb/VX2255wmh

Contents

Compliance Information.............................................................................. 1

Important Safety Instructions...................................................................... 2

Declaration of RoHS Compliance............................................................... 3

Product Registration................................................................................... 4

Getting Started

Package Contents ...................................................................................... 5

Precautions ................................................................................................ 5

Quick Installation ........................................................................................ 6

Wall Mounting (Optional) ............................................................................ 7

Using the LCD Display

Setting the Timing Mode............................................................................. 8

OSD and Power Lock Settings................................................................... 8

Webcam Installation ................................................................................... 8

Adjusting the Screen Image ....................................................................... 9

Main Menu Controls ................................................................................. 11

Other Information

Specifications ........................................................................................... 15

Troubleshooting........................................................................................ 16

Customer Support .................................................................................... 17

Cleaning the LCD Display ........................................................................ 18

Limited Warranty ...................................................................................... 19

ViewSonic VX2255wmb/VX2255wmh 1

Compliance Information

For U.S.A.

This device complies with part 15 of FCC Rules. Operation is subject to the following two

conditions: (1) this device may not cause harmful interference, and (2) this device must accept

any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses, and can radiate radio frequency energy, and if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: You are cautioned that changes or modifications not expressly approved by the

party responsible for compliance could void your authority to operate the equipment.

For Canada

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

CE Conformity for European Countries

The device complies with the requirements of the EEC directive 89/336/EEC as

amended by 92/31/EEC and 93/68/EEC Art.5 with regard to "Electromagnetic

compatibility", and 73/23/EEC as amended by 93/68/EEC Art.13 with regard to

"Safety."

Following information is only for EU-member states:

The mark shown to the right is in compliance with the Waste Electrical and

Electronic Equipment Directive 2002/96/EC (WEEE).

The mark indicates the requirement NOT to dispose the equipment as unsorted

municipal waste, but use the return and collection systems according to local law.

Produkspesifikasjoner

Merke:	Viewsonic
Kategori:	skjerm
Modell:	VX2255wmh
Berøringsskjerm:	Nei
Synsvinkel, horisontal:	170 °
Volumkontroll:	Digitalt
Sertifisering:	CE, CB, GS, ERGO, ISO 13406-2 (pixel failure class II), UL, cUL, GOST-R+Hygienic, FCC-B, NOM, SASO, ENERGY, ENERGY STAR, C-Tick, MIC, BSMI, PSB, TUV-S/IRAM/UL-AR S Mark, MPR II, VCCI, CCC, Green Mark, WEEE, RoHS
Lydutgang:	Ja
Digital horisontal frekvens:	24 - 82 kHz
Digital vertikal frekvens:	50 - 85 Hz
Sammensatt synkronisering:	Ja
Innebygd kamera:	Ja
Vekt (med stativ):	5900 g
Antall USB Type-A nedstrømsporter:	1
Kontrastforhold:	1000:1
Skjermoppløsning:	1680 x 1050 piksler
Produktfarge:	Hvit
Vippevinkelområde:	5 - 20 °
USB-hub-versjon:	2.0
Bredde (uten stativ):	527 mm
Høyde (uten stativ):	366 mm
Vekt (uten stativ):	4600 g
Bredde (med stativ):	527 mm
Dybde (med stativ):	225 mm
Høyde (med stativ):	450 mm
Skjermdiagonal:	22 "
Hodetelefontilkobling:	3,5 mm
Separat H/V-synkronisering:	Ja
Antall DVI-D-porter:	1
Strømforbruk (vanlig bruk):	45 W
Antall VGA (D-Sub)-porter:	1
Mikrofon, linje-inn-støpsel:	Ja
Strøminngang/AC (strøm) inn:	Ja
Driftstemperatur (T-T):	0 - 40 °C
Bærekraftsertifikater:	ENERGY STAR
Dybde (uten stativ):	60 mm
Synsvinkel, vertikal:	160 °
Megapiksel:	1.3 MP
Krav til strømforsyning:	AC 100–240V, 50/60Hz
Relativ luftfuktighet under drift (H-H):	10 - 90
Oppdateringsresponstid:	3 ms
Pikselbredde:	0.282 x 0.282 mm
Panelmonterbart grensesnitt:	100 x 100 mm
RMS-rangert strøm/utgangseffekt:	2 W
Skjermlysstyrke (typisk):	300 cd/m²
Display:	LCD
Innebygd TV-mottaker:	Nei
Dreietapp/dreiemekanisme:	180 - 180 °
Lydkontakter:	Ja
Strømforbruk, strømsparing:	2 W
Pakningsstørrelse (BxDxH):	575 x 270 x 525 mm
Sync-on-green (SOG):	Ja
Pikselfrekvens for video:	165 MHz
