Use / Installation
MANUAL
Outdoor Access Doors and Storage Drawer
AD52820 / AD51620
SD5300 / SD5301 / SD5360 / SD5361
2
IMPORTANT - Please Read and Follow
•Before beginning, please read these instructions completely and carefully.
•The installer should leave these instructions with the consumer for future reference.
UNPACK
1. Locate the unit near installation area.
2. Remove all banding from around carton.
3. Remove all tape and packaging material from the outside and inside of the access doors or storage drawer.
4. Keep all carton packaging until your access doors or storage drawers have been thorougly inspected and found to be in good
condition.

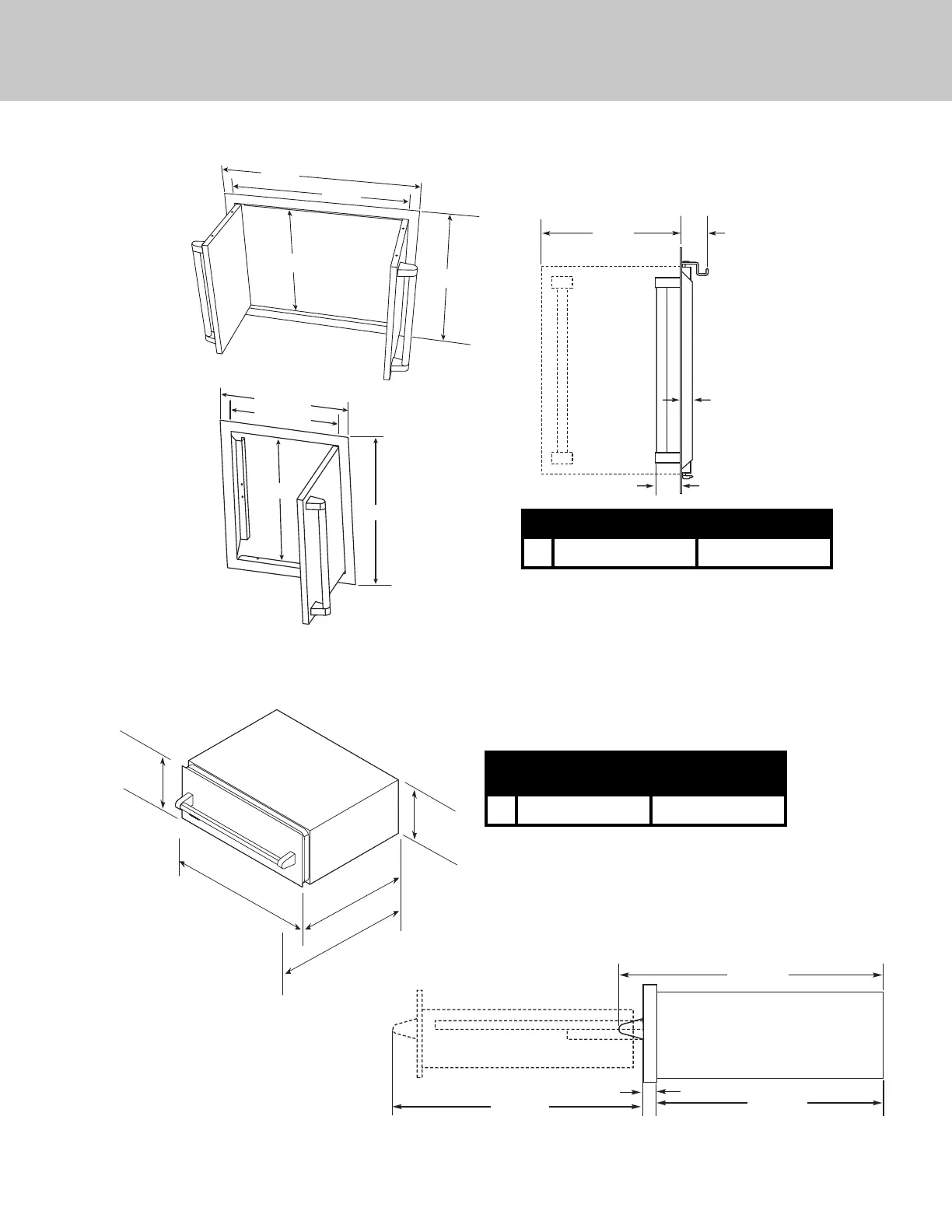

CUTOUT OUT DIMENSIONS
B
A
2”
(
5.
1 cm)
1”
(2.54 cm)
min.
Notch*
1”
(
2.
5 cm)
Access Doors
AD52820 AD51620
A
(includes notches)
28-1/4” (71.8 cm) Min.
30-1/4” (76.8 cm) Max.
16-1/4” (41.3 cm) Min.
18-1/4” (46.4 cm) Max.
B
(opening only)
20-1/4” (51.4 cm) Min.
20-1/2” (52.1 cm) Max
20-1/4” (51.4 cm) Min.
20-1/2” (52.1 cm) Max
*Before centering doors in opening, make the notches in all
four corners for double access doors and only in the hinge
side for single access doors. The notches need to be 1” (2.5
cm) long x 2” (5.1 cm) wide. Attach with the four screws that
are provided.
For Single Access Doors only (AD51620):
Only notch the side where the hinge is located. Door can be
mounted with left or right door swing.
Storage Drawers
D
C
E
SD5300
SD5301
SD5360
SD5361
C 28” (71.1 cm) 33-3/4” (85.7 cm)
D 9-1/4” (23.5 cm) 9-1/4” (23.5 cm)
E 23-3/8” (59.4 cm) 23-3/8” (59.4 cm)
NOTE: Storage drawers (SD5300 / SD5301 / SD5361 / SD5360)
must have cabinet side walls for mounting screws.
3
IMPORTANT - Please Read and Follow!
ACCESS DOOR DIMENSIONS
19-3/16” (48.7 cm)
1
6-3/16” (41.1 cm)
23-1/16”
(58.6 cm)
20-3/16”
(50.9 cm)
L
atch
L
a
tch
mechanism
mecha
ni
s
m
location
locati
on
31
-
3/16”
(79.2 cm
)
28
-
3/16”
(71.6 cm
)
20
-
3/16”
(50.9 cm
)
23
-
1/16”
(58.6 cm
)
A
2-9/16”
(6.5 cm)
1-1/16”
(2.7 cm)
2-1/2”
(6.4 cm)
Double Doors
Single Door
STORAGE DOOR DIMENSIONS
AD52820 AS51620
A 15-7/16” (39.2 cm) 13-3/8” (34.0 cm)
26-29/32”
(68.3 cm)
23”
(58.4 cm)
1-13/32”
(3.6 cm)
24-1/2”
(62.2 cm)
24-13/32”
(62.0 cm)
26-29/32”
(68.3 cm)
8-31/32”
(25.4 cm)
10”
(25.4 cm)
B
SD5300
SD5301
SD5360
SD5361
B 29-1/2” (74.9 cm) 35-1/4” (89.5 cm)
