Side 1/32
Use/Install
GUIDE
Under-counter
Micro Green & Herb Cabinet
GCV12
2
TABLE OF CONTENTS
FEATURES AND SPECIFICATIONS 3
UNPACKING AND INSPECTION 4
SAFETY PRECAUTIONS 5-6
INSTALLATION & STARTUP 6-11
PROGRAMMING 12-13
SETTING UP YOUR GROWING CYCLES 14
FUNCTIONS OF THE ZONE SCREEN 14
FUNCTIONS OF THE MAIN RESERVOIR SCREEN 14
PLANTING & GROWING 15
GROWING GUIDE 16
GROWING DO’S AND DON’TS 17
CLEANING AND MAINTENANCE 18-19
PERIODIC MAINTENANCE PROCEDURES 20
REPLACING THE LIGHTS 21
SANITATION AND FOOD SAFETY 22
FREQUENTLY ASKED QUESTIONS & TROUBLESHOOTING 23
MICRO GREEN PROBLEMS 24
RESOURCES 25-26
WIRING & PLUMBING DIAGRAMS 27-28
SERVICE INFORMATION 29
WARRANTY 30
TABLE OF CONTENTS
3
Model
Number
Number of
Growing
Zones
Capacity
10”x20”
Trays
Overall Dimensions Door
Hinge
Location
Adjustable
Leg
Height
Shipping
Weight
Height Depth Width
GCV12RSS 2 2 33-1/2 (851 mm) 24-7/8” (632 mm) 23-7/8 (607 mm) Right 1-1/8
(28.6 mm)
150 (68kg)
GCV12LSS 2 2 33-1/2 (851 mm) 24-7/8” (632 mm) 23-7/8 (607 mm) Left 1-1/8
(28.6 mm)
150 (68kg)
FEATURES AND SPECIFICATIONS

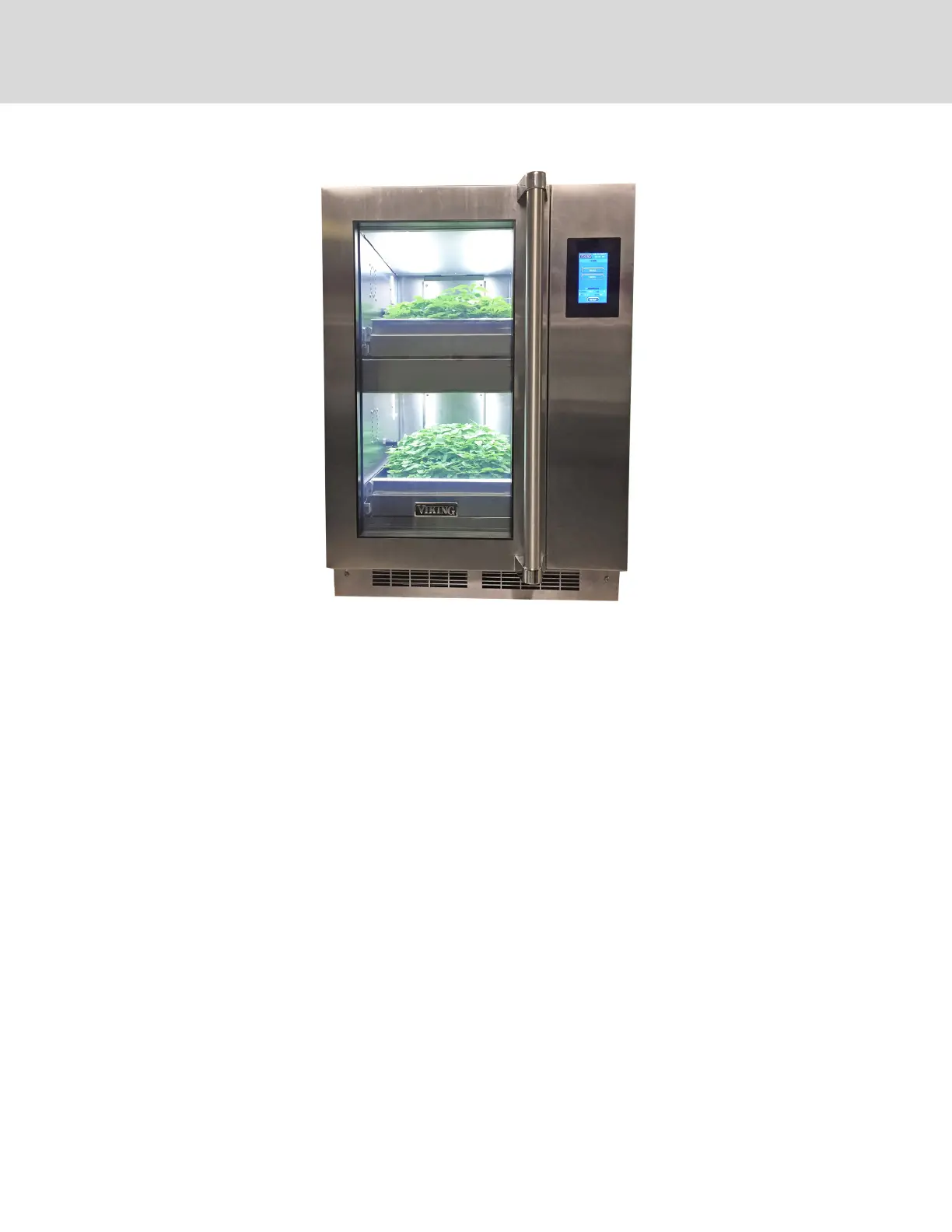

Your Viking Range, LLC Micro Green & Herb Cabinet provides a self-contained
environment that is ideal for growing herbs, micro greens and even edible
owers. The lights produce the proper spectrum and an irrigation system delivers
water and nutrients to the plants. The automated system provides everything the
plants need to grow year round and right in the kitchen. It is preprogrammed for
the growing needs for common herbs and micro greens. You can customize the
growing conditions for other plants as needed.
CONSTRUCTION...Welded & riveted dou-
ble wall, non-insulated cabinet construc-
tion.
CABINET MATERIAL... 430 series stainless
steel exterior; 301 series interior with
reective nish
BASE FRAME... 18 gauge stainless steel full
depth bolsters.
LEGS…2.5” Adjustable leveling bolts
DOORS...Double panel tempered glass
door with integrated gasket. Full length
door handle. GCV12RSS hinged on right;
GCV12LSS hinged on left.
GROWING DRAWERS... Removable grow-
ing drawers. Stainless steel construction
with drainage holes in rear for ebb and
ow irrigation. Each drawer will accom-
modate one standard 10” x 20” at with
5” or 7” greenhouse dome for sprouting.
Includes one set of growing trays and 5”
domes.
CONTROLS...Touchscreen digital controls.
Automated system provides correct
measures of water, nutrients, relative
humidity, lighting on optimum cycle for
plant growth and nutrient data. Prepro-
grammed default settings for most grow-
ing needs; programmable for other grow-
ing situations. Lock-out access code.
ENVIRONMENT... Digital controls for auto-
matic light, watering schedule and hu-
midity levels for growing. Temperature
based on ambient room temperature.
WATERING SYSTEM... Automatic ltered
pump/aerator irrigation system delivers
water and nutrients from the reservoir to
the plants. Programmable watering cycle.
Auto-ll reservoir. 3/8” NPT ll connec-
tion: 3/8” NPT drain connection. pH and
TDS (total dissolved solids) sensors.
GROWING LIGHTS... Equipped with 18” T5
high output uorescent light xtures.
Each xture includes an integrated elec-
tronic ballast, 6400°K lamp with a nano-
tech reector for maximum reection.
Lights imitate the suns’ rays for optimum
growing. Removable opaque polycar-
bonate shields. Fully programmable light
cycles.
ELECTRICAL CHARACTERISTICS...
GCV12: operates on 120 volts, 1.6 amps,
60 cycle, single phase. Junction box pro-
vided for hardwiring of unit or a power
cord kit may be purchased and installed in
order to plug unit into existing outlet.
ACCESSORIES/OPTIONS...
 Starter kit: includes growing trays,
mats, domes, sifter, pH & TDS calibra-
tion solutions, hydrogen peroxide,
20 gallon plastic tub, measuring
syringe
 Power cord kit: includes one 6’ power
cord with a NEMA 5-15P molded plug
cap; cord grip; wire nuts.
Default Programs:
Watering Cycle: Once every 4 days
Watering Time: 5 Minutes
Daylength: 18 Hours (lights on each day)
Level Growing Space
1 (top shelf) 10.125”
2 10.125”
GCV12LSS
