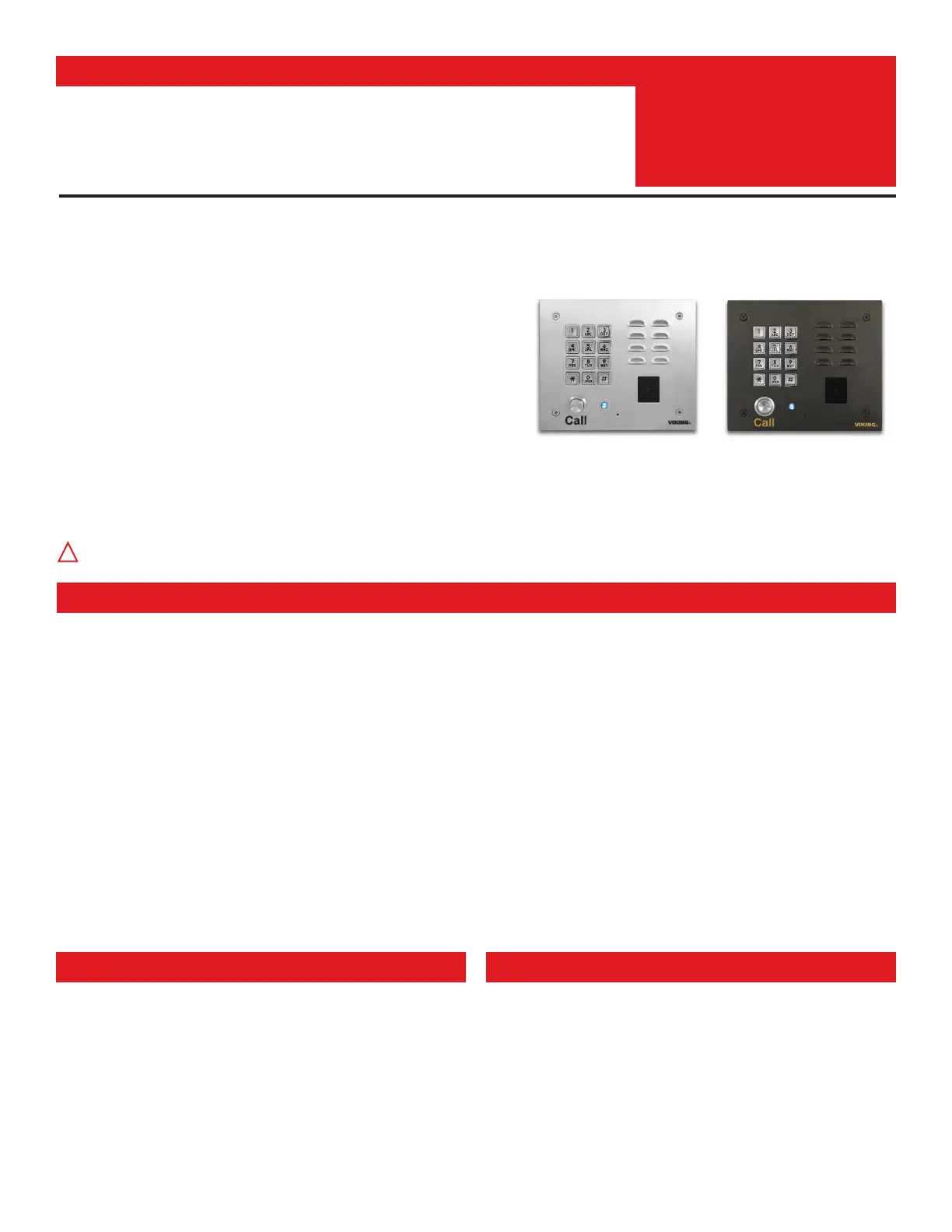

Side 1/25

Features

Applications

Information: 715-386-8861

www.VikingElectronics.com

• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with

permanent laser etched graphics. Speaker/mic screen. Heavy duty metal keypad

and “Call” button. Scratch resistant powder coating (K-1770-BN-IP). T-10 Security

Torx drive mounting screws.

• Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws

and push button switch. Switch internally sealed per IP67. Mylar speaker. Self-

draining mic mount. Faceplate, mic and speaker gaskets. Weather resistant

powder paint (K-1770-BN-IP)

• Available in 2 standard finishes: 316 brushed stainless steel with laser etched

graphics or oil rubbed bronze powder paint with copper metallic graphics

• Built-in 125KHz 26-bit Wiegand proximity card reader with LED and beep card

read confirmation and EWP board protection

• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control

• Optional RC-4A for Secure Remote Relay Control, see DOD 582

• Blue “Call /Status” LED indicator

• SIP compliant (see page 2 for compatible SIP servers and IP phone systems)

• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging

• PoE powered (class 2, <6.5 watts)

• Automatic Noise Canceling (ANC) feature for operation in noisy environments

• Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode

Power: PoE class 2 (<6.5 watts)

Dimensions: Overall: 5.5” x 6.5” x 2.6” (140mm x 165mm x 66mm)

Rough-in box: 4.5” x 5.5” x 2.5” (114mm x 140mm x 64mm)

Shipping Weight: 3.3 lbs (1.5 kg)

Operating Temperature: -30°F to 140°F (-34° C to 60° C)

Humidity - Standard Products: 5% to 95% non-condensing

Humidity - EWP Products: Up to 100%

Audio Codecs: G711u, G711a, G722

Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with

auto cross over

Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A

Connections: (1) RJ45 10/100 Base-T, (14) gel-filled butt connectors

Installation requires the assistance of a Network Administrator / IT Technician.

The K-1770-IP Series entry phones provide a durable and attractive hands-free phone for apartment

and residential door entry or applications requiring a vandal resistant VoIP speaker phone with an

integrated 125 KHz Proximity Card Reader. The K-1770-IP phone is designed to provide quick and

reliable hands-free communication for SIP VoIP phone systems with PoE. The unit can be programmed

from any PC on the same LAN or remotely using a Static IP Address. The K-1770-IP entry phone can

dial up to 250 programmable numbers and another 250 rollover numbers, as well as read up to 1000

proximity card numbers. They are available in two attractive finishes: “Brushed Stainless Steel” and

“Oil Rubbed Bronze”.

When the K-1770-IP phone is connected to an apartment or business tenant, a built-in contact closure

may be activated to control an electric gate or door strike. Up to 1,000 keyless entry codes may be

programmed, providing tenants with keyless entry. The K-1770-IP has a built-in Proximity Card Reader

with capacity to program up to 1,000 card numbers. Keyless entry codes and card numbers can be

programmed to only allow access at specific times and/or day of the week. The K-1770-IP includes a

request for exit (REX) input and also offers activity logging.

• Apartment Entry Phone

• Residential Gate Entrance

• Door Entry Phone

• Courtesy Assistance Phone

• Customer Service Phone

• Automated Teller (ATM) Phone

• Security or Emergency Phone

K-1770-IP

“Brushed 316 Stainless Steel”

(similar to brushed nickel)

The K-1770-IP-EWP shares all of the features of the K-1770-IP in addition to

Enhanced Weather Protection (EWP) for outdoor installations where the unit is

exposed to precipitation or condensation. EWP products are designed to meet IP66

standards and may feature foam rubber gaskets, sealed connections, gel-filled butt

connectors, as well as potted circuit boards. For more information on EWP, see

DOD 859 .

• Network downloadable firmware

• 26 Bit Wiegand input for additional proximity card readers, see DOD 221 and 228

• Programmable to speed dial up to 250 numbers

• Cycles to roll over phone number on busy or no-answer

• Program up to 1,000 keyless entry codes and/or proximity card numbers

• Keyless entry codes and proximity card numbers can be programmed to only allow

access at specific times and day of week

• Event logging with time and date stamp

• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet

IP66 Ingress Protection Rating, see DOD 859

• Hangs up on busy signal, time-out or touch tone command

• Remotely programmable

• Extended temperature range (-40°F to 140°F)

• Programmable volume adjustments for microphone and speaker

• Selectable auto-answer feature for monitoring

• Flush mount with included steel rough-in box, or use an optional VE-6x7 surface

mount box (not included, see DOD 424)

• Optional VE-LIGHT kit to illuminate the front panel at night, see DOD 428

• Diagnostics (for testing mic, speaker, relays and proximity cards)

• Hot-Line Phone

• Kiosk Phone with up to

250 number speed dialing

• Use with any of Viking’s

Proximity Cards: PRX-C,

PRX-X-ISO and PRX-FOB,

see DOD 198

K-1770-BN-IP

“Oil Rubbed Bronze”

(satin dark brown with fine copper metallic)

Vandal Resistant VoIP Entry Phone System with

Integrated Keypad and Proximity Card Reader

Specifications

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA

K-1770-IP Series

VoIP Entry Phone System

with

Proximity Card Reader

September 28 , 2021

SECURITY & COMMUNICATION

VIKING

Produkspesifikasjoner

Merke:	Viking
Kategori:	Adgangskontrollsystem
Modell:	K-1770-IP
Innebygd skjerm:	Nei
Vekt:	1600 g
Bredde:	165 mm
Dybde:	66 mm
Høyde:	140 mm
Støynivå:	70 dB
Plassering:	Vegg
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Pakkevekt:	1500 g
Antall høyttalere:	1
Sertifisering:	FCC Part 68\nFCC Part 15
Kablingsteknologi:	10/100
Antall knapper:	1
Integrert tastatur:	Ja
Autentiseringstype:	Access chip/card, Password
Produktfarge:	Rustfritt stål
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	-29 - 54 °C
Modell/Type:	Smart adgangskontroll-leser
Kroppsmateriale:	Rustfritt stål
Internasjonal beskyttelses (IP)-kode:	IP67
Relativ luftfuktighet under drift (H-H):	5 - 95
Strøm over Ethernet (PoE):	Ja
Power over Ethernet (PoE) effekt per port:	6.5 W
Enkel installering:	Ja
Antall taster på tastatur:	12
Tilgangskode leser:	Ja
Chip/kortleser, adgang:	Ja
