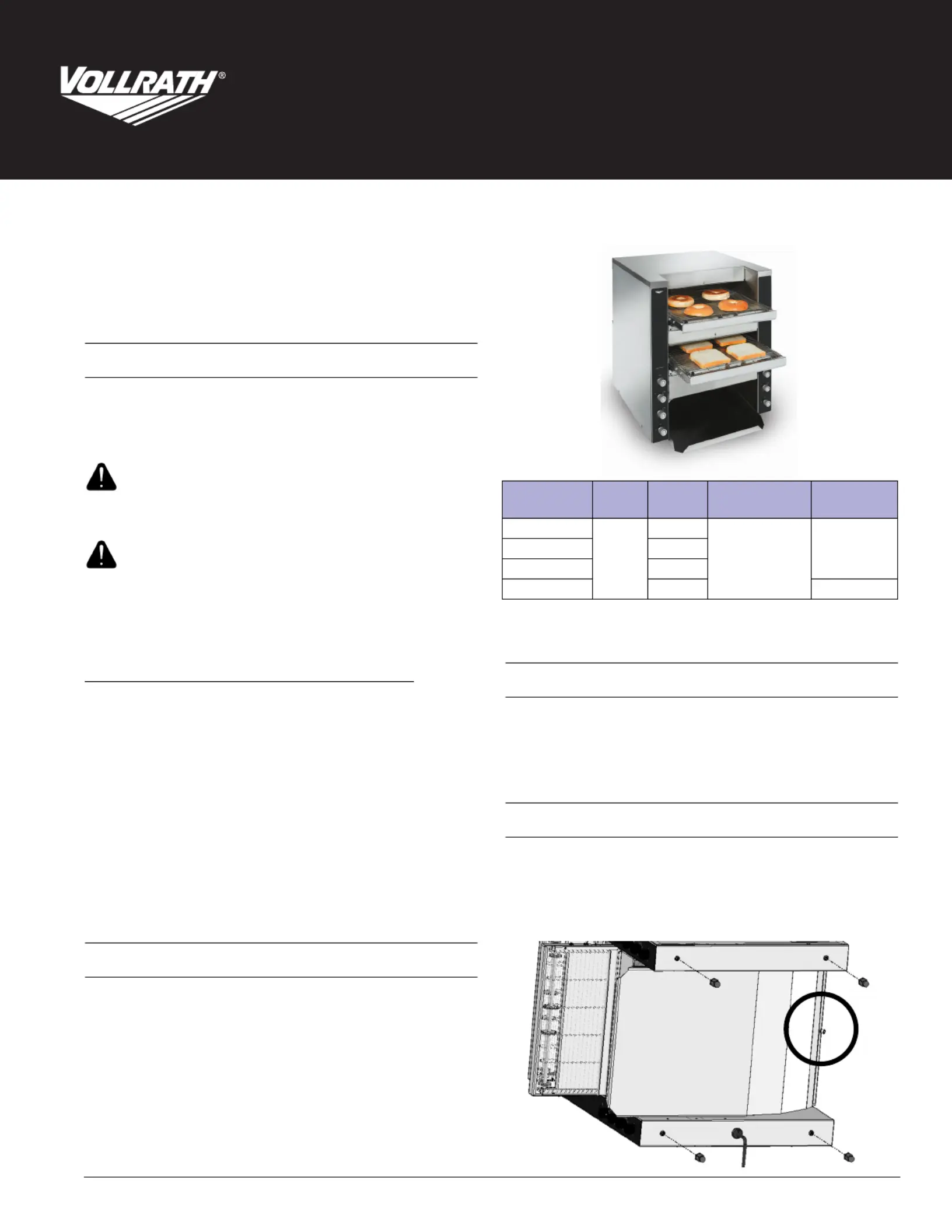

Operator’s Manual
Dual Conveyor Toasters, Up To 1,100 Slices (Combined) Per Hour*
Model JT4
©
2018 The Vollrath Company L.L.C. Part No. 351039-1 ml 12/14/18
Thank you for purchasing this Vollrath equipment. Before operating the
equipment, read and familiarize yourself with the following operating
and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE
REFERENCE. Save the original box and packaging. Use this packaging
to ship the equipment if repairs are needed.
SAFETY PRECAUTIONS
To ensure safe operation, read the following statements and understand
their meaning. This manual contains safety precautions which are
explained below. Please read carefully.
Warning is used to indicate the presence of a hazard that will or can
cause severe personal injury or death.
Caution is used to indicate the presence of a hazard that will or can
cause minor or major personal injury if the caution is ignored.
NOTICE: Notice is used to note information that is important but not
hazard-related.
To reduce risk of injury or damage to the equipment
• Plug only into grounded electrical outlets matching the voltage on
the rating plate.
• Use this equipment in a flat, level position.
• Unplug equipment and let it cool before cleaning or moving.
Equipment remains hot after it is turned off.
• Do not touch during operation.
• Unplug when not in use.
• Keep equipment and power cord away from open flames, electric
burners or excessive heat.
• Do not operate unattended.
• Closely supervise equipment operating in public areas and/or
around children.
• Do not operate if equipment has been damaged or is malfunctioning
in any way.
FUNCTION AND PURPOSE
This equipment is intended to toast bread products. It is intended for
use in mid-size commercial kitchens that need to toast different bread
products at the same time. Not intended for high-volume toasting
operations or household, industrial or laboratory use.
* Slices per hour is based on maximum conveyor speed. Conveyor speed deter-
mines toasting time and affects color and texture of the toast. Results may
vary based upon type of bread, color and texture preference.
CLEARANCE AND ENVIRONMENT REQUIREMENTS
Do not place on surfaces or near walls, partitions or kitchen furniture
unless they are made of non-combustible material or clad with non-
combustible heat-insulating material. Toasters must not be used near
or below curtains and other combustible materials.
Do not place the toaster adjacent to a heat producing appliance.
SET UP
1. Place the toaster on a hard, flat, stable surface.
2. Turn the toaster on it’s side with the bottom facing you.
3. Install the collection pan by placing the back edge of the pan on the
lip at the back of the toaster. Line up the hole in the pan with the
screw. Tighten the screw to secure the collection pan.
WARNING
CAUTION
Item No. Model Voltage
Slices per Hour*
(Up to)
Plug
CT4-208Dual
JT4
208
Up to 1,000
combined
NEMA 6-30PCT4-220Dual 220
CT4-240Dual 240
CT4-230Dual 220-240 Stripped Ends
2 Dual Conveyor Toasters, Up To 1,100 Slices (Combined) Per Hour* Operator’s Manual – Model JT4
FEATURES
BEFORE FIRST USE
1. Clean the toaster. See “Daily Cleaning” on page 3.
OPERATION
NOTICE: The crumb trays must be installed in the toaster during
operation. Failure to install the crumb trays will cause the
toaster to overheat.
NOTICE: Do not toast buttered bread or coated bread products such
as pastries. This will damage the equipment.
Adjust the Heat Shield
Excess space above the product will create heat loss and may reduce
performance.
1. When the equipment is cool to the touch, use a screwdriver to
loosen the screw on the heat shield.
2. Grasp the shield and pull it up or down to adjust the opening so the
tallest products can pass through. Re-tighten the screw.
Preheat
Preheat one or both chambers based upon need. The knobs on the left
control the top chamber; knobs on the right control the bottom
chamber.
1. Plug the toaster into a grounded electrical outlet that matches the
rating on the name plate found on the side of the toaster.
NOTICE: Using a voltage other than the nameplate rated voltage
will cause damage to the unit. Incorrect voltage,
modification to the power cord or electrical components
can damage unit and will void the warranty.
2. Rotate the power knob to the full power position (I).
3. Set the conveyor speed control knob to 7.
4. Rotate the top and bottom heat control knobs to high.
5. Wait 5 minutes for the toaster to preheat.
Test
1. Adjust the settings for the product to be toasted.
Tips
2. Test the settings by placing a sample of the bread items to be
toasted onto the feed ramp. Place bagels or buns onto the feed ramp
with the cut side facing up.
For One-Sided Toasting
TOP heat control to the desired setting.
BOTTOM heat control to the OFF position.
Toast the Bread
1. Adjust the top and bottom heat control settings and conveyor as
needed for even toasting. Allow time for the toaster to adjust to new
heat settings before placing bread or sandwiches on the conveyor.
2. For best performance do not overload the toaster. Wait a few
seconds before loading a second row of bread or sandwiches into
the toaster.

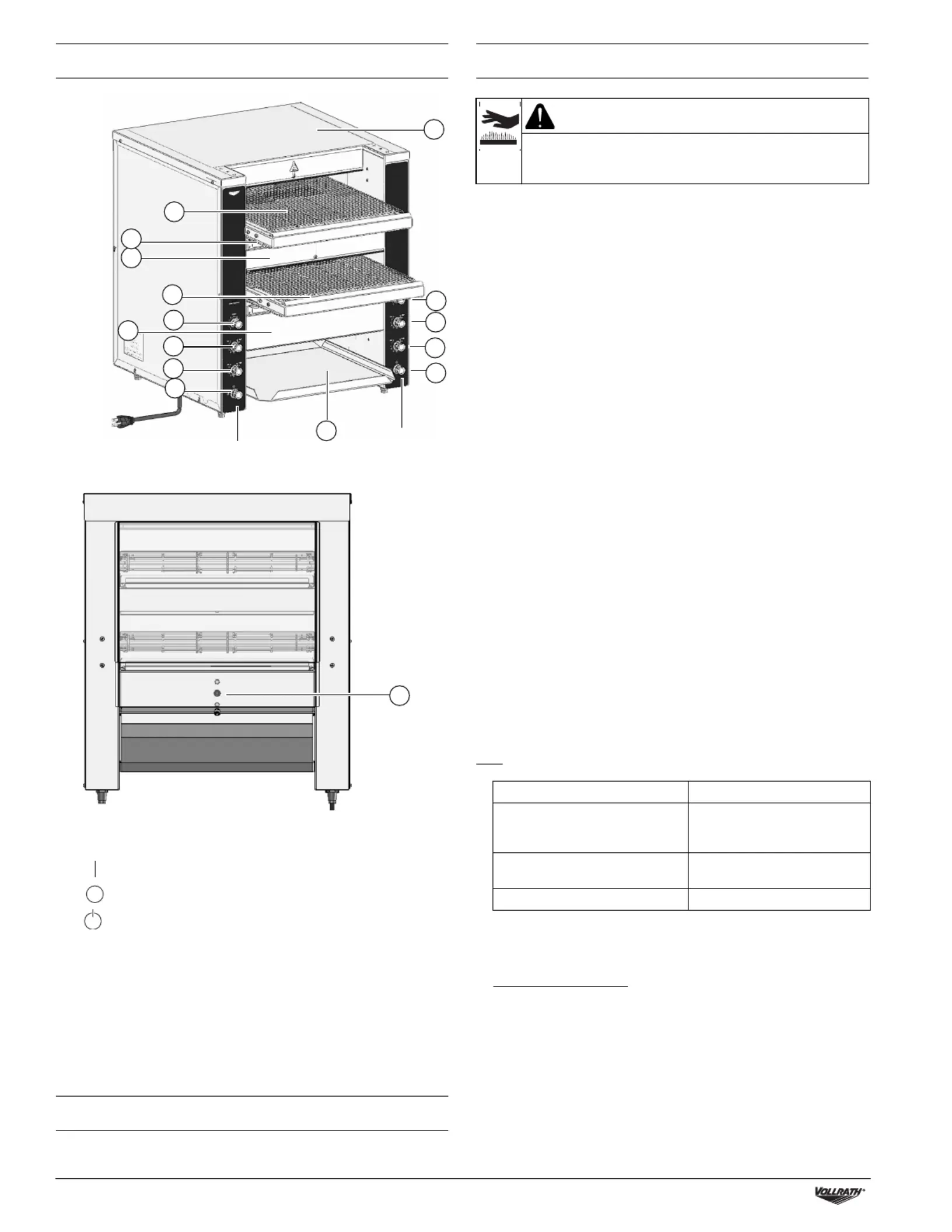

A Collection Pan
B Power Knob
Full Power - maximum heat
Off
Standby - reduces electrical consumption by 75%.
C Bottom Heat Control Knob
D Top Heat Control Knob
E Conveyor Speed Control Knob
F Conveyor
G Crumb Tray
H Adjustable Heat Shield
I Reset Button (Reference only. Access is via the front of the
toasters. See page 3.)
H
A
E
I
Back View
D
C
B
E
D
C
B
F
F
Controls
bottom
conveyor
Controls
top
conveyor
H
G
G
CAUTION
Burn Hazard
Do not touch the equipment while it is heating or operating.
Hot surfaces can burn skin.
Bread Product Suggestions
Bagels, wheat or rye bread or
products with high moisture
content.
Use a slower conveyor speed.
Buttered or coated, such as
pastries
Not recommended.
Frozen Must be thawed before toasting.
Dual Conveyor Toasters, Up To 1,100 Slices (Combined) Per Hour* Operator’s Manual – Model JT4 3
If an Item Becomes Stuck
1. Rotate the power knob to the OFF position (O) and unplug the
equipment.
2. Let the equipment cool completely. Use tongs to remove the item.
Take care to not bump the heating elements above and below the
conveyor.
CLEANING
NOTICE: Do not use abrasive materials, scratching cleansers or
scouring pads to clean the exterior of the equipment.
These can damage the finish.
NOTICE: Heating elements do not need to be cleaned. Crumbs and
food debris will burn off. Over time the heating elements
may develop a chalky appearance, but this will not impact
performance.
Daily Cleaning
1. Before turning off the equipment and with the conveyor rotating,
watch the conveyor belt for food debris.
2. When the food debris reaches the front of the conveyor, rotate the
power knob to the OFF position.
3. Wait for the fan to stop running. Unplug the equipment.
4. Let the equipment cool completely.
5. When the equipment is cool, use a brush or scrub pad to remove the
food debris.
6. To clean the exterior, use a soft cloth dipped in hot soapy water to
wipe the exterior and fan air intake under the equipment. If needed,
wipe the fan intake area with degreaser to prevent long term build
up.
7. Empty and clean the crumb tray(s).
PREVENTATIVE MAINTENANCE
Contact an authorized service agent for a professional cleaning of the components.

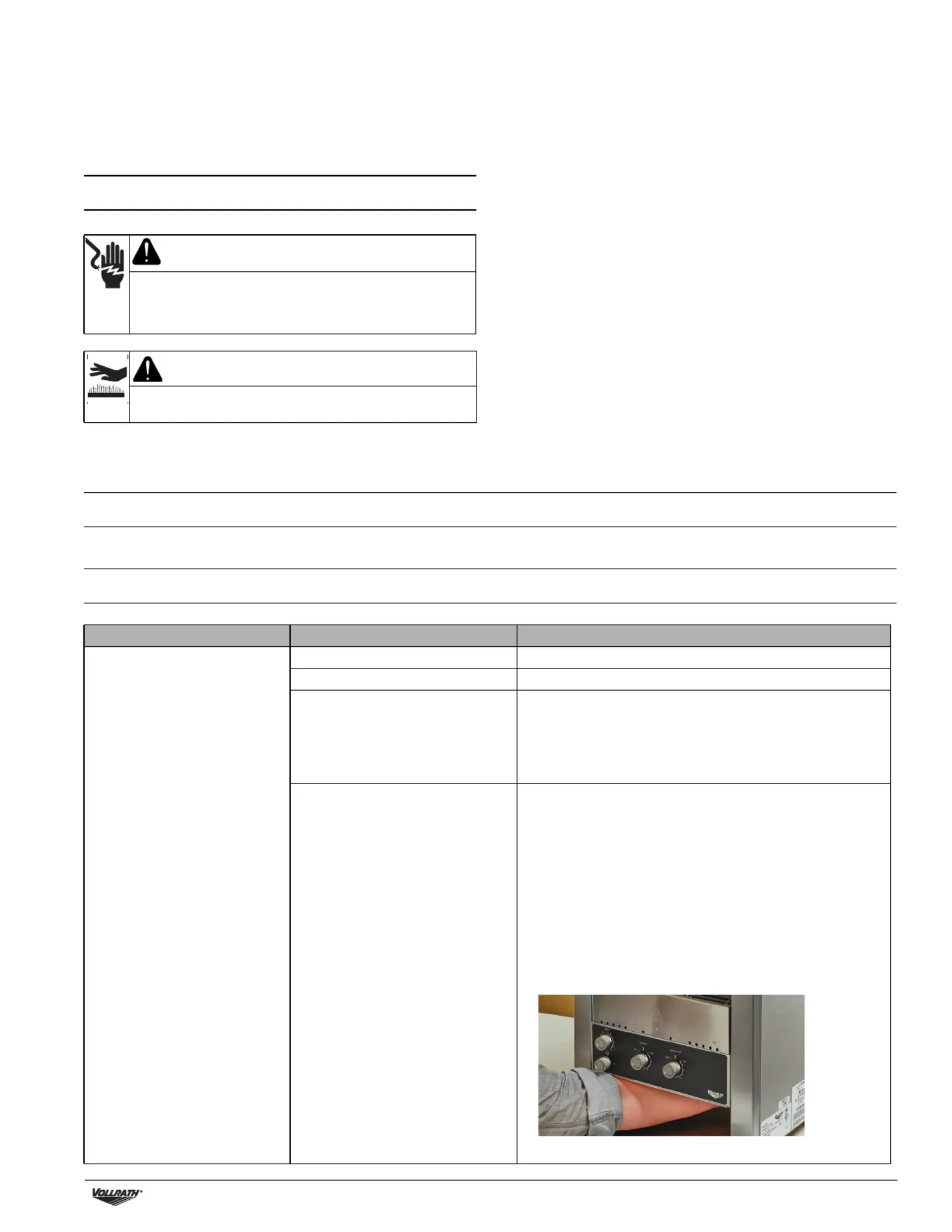

TROUBLESHOOTING
WARNING
Electrical Shock Hazard
Do not spray water or cleaning products. Liquid could contact
the electrical components and cause a short circuit or an
electrical shock.
CAUTION
Burn Hazard
Allow equipment to cool before moving or cleaning.
Problem Might be Caused By Course of Action
Toaster does not heat and the
conveyor belt does not move.
Toaster is not plugged in. Plug in the toaster.
Power knob setting is incorrect. Rotate the power knob to the ON (|) position.
The wall breaker may be tripped.
1. Inspect for tripped breaker.
2. Reset the breaker.
3. If the breaker was not tripped, inspect the toasting chamber for
broken heater tubes.
For broken tubes, contact Vollrath Technical Services.
The reset may be tripped. Look under the toaster to see if an object is preventing the fan
blades from turning.
1. Rotate the heat control knobs to the OFF position.
2. Rotate the power knob to the OFF (O) position.
3. Unplug the toaster.
4. Wait 30 minutes for the toaster to cool.
5. Remove the object.
6. Plug in the toaster.
7. Rotate the power knob to the ON (|) position.
8. Press the reset button. You should hear and feel the button
reset. The toaster should start to operate.
9. If the problem persists call Vollrath Technical Services.
