VXA Amplifier Series

Ref. nr.: 172.050 / 172.052 / 172.054 / 172.056 / 172.058

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

GEBRAUCHSANLEITUNG

MANUAL DE INSTRUCCIONES

MANUEL D'INSTRUCTIONS

INSTRUKCJA OBSŁUGI

V1.0

ENGLISH

Congratulations to the purchase of this Vonyx product. Please read this manual thoroughly prior to using the unit in order to

benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to

avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock.

Keep the manual for future reference.

- Prior to using the unit, please ask advice from a

specialist. When the unit is switched on for the first time,

some smell may occur. This is normal and will disappear

after a while.

- The unit contains voltage carrying parts. Therefore do

NOT open the housing.

- Do not place metal objects or pour liquids into the unit

This may cause electrical shock and malfunction.

- Do not place the unit near heat sources such as

radiators, etc. Do not place the unit on a vibrating

surface. Do not cover the ventilation holes.

- The unit is not suitable for continuous use.

- Be careful with the mains lead and do not damage it. A

faulty or damaged mains lead can cause electrical shock

and malfunction.

- When unplugging the unit from a mains outlet, always

pull the plug, never the lead.

- Do not plug or unplug the unit with wet hands.

- If the plug and/or the mains lead are damaged, they

need to be replaced by a qualified technician.

- If the unit is damaged to such an extent that internal

parts are visible, do NOT plug the unit into a mains outlet

and DO NOT switch the unit on. Contact your dealer. Do

NOT connect the unit to a rheostat or dimmer.

- To avoid fire and shock hazard, do not expose the unit to

rain and moisture.

- All repairs should be carried out by a qualified technician

only.

- Connect the unit to an earthed mains outlet (220-

240Vac/50Hz) protected by a 10-16A fuse.

- During a thunderstorm or if the unit will not be used for a

longer period of time, unplug it from the mains. The rule

is: Unplug it from the mains when not in use.

- If the unit has not been used for a longer period of time,

condensation may occur. Let the unit reach room

temperature before you switch it on. Never use the unit in

humid rooms or outdoors.

- To prevent accidents in companies, you must follow the

applicable guide lines and follow the instructions.

- Do not repeatedly switch the fixture on and off. This

shortens the life time.

- Keep the unit out of the reach of children. Do not leave

the unit unattended.

- Do not use cleaning sprays to clean switches. The

residues of these sprays cause deposits of dust and

grease. In case of malfunction, always seek advice from

a specialist.

- Do not force the controls.

- If this unit is with speaker inside which can cause

magnetic field. Keep this unit at least 60cm away from

computer or TV.

- If this unit is with built-in lead-acid rechargeable battery.

Please recharge the battery every 3 months if you are

not going to use the unit for a long period of time. Or the

battery may be damaged.

- If the battery is damaged please replace with same

specifications battery. And dispose the damaged battery

environment friendly.

- If the unit has fallen, always have it checked by a

qualified technician before you switch the unit on again.

- Do not use chemicals to clean the unit. They damage the

varnish. Only clean the unit with a dry cloth.

- Keep away from electronic equipment that may cause

interference.

- Only use original spares for repairs, otherwise serious

damage and/or dangerous radiation may occur.

- Switch the unit off prior to unplugging it from the mains

and/or other equipment. Unplug all leads and cables

prior to moving the unit.

- Make sure that the mains lead cannot be damaged when

people walk on it. Check the mains lead before every use

for damages and faults!

- The mains voltage is 220-240Vac/50Hz. Check if power

outlet match. If you travel, make sure that the mains

voltage of the country is suitable for this unit.

- Keep the original packing material so that you can

transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient

magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should

read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and

their guarantee!d

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5°C/41°F and

35°C/95°F.

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your

dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other.

Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid

your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings

contained in this manual. Vonyx cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations

and warnings. This is also applicable to all damages in whatever form.

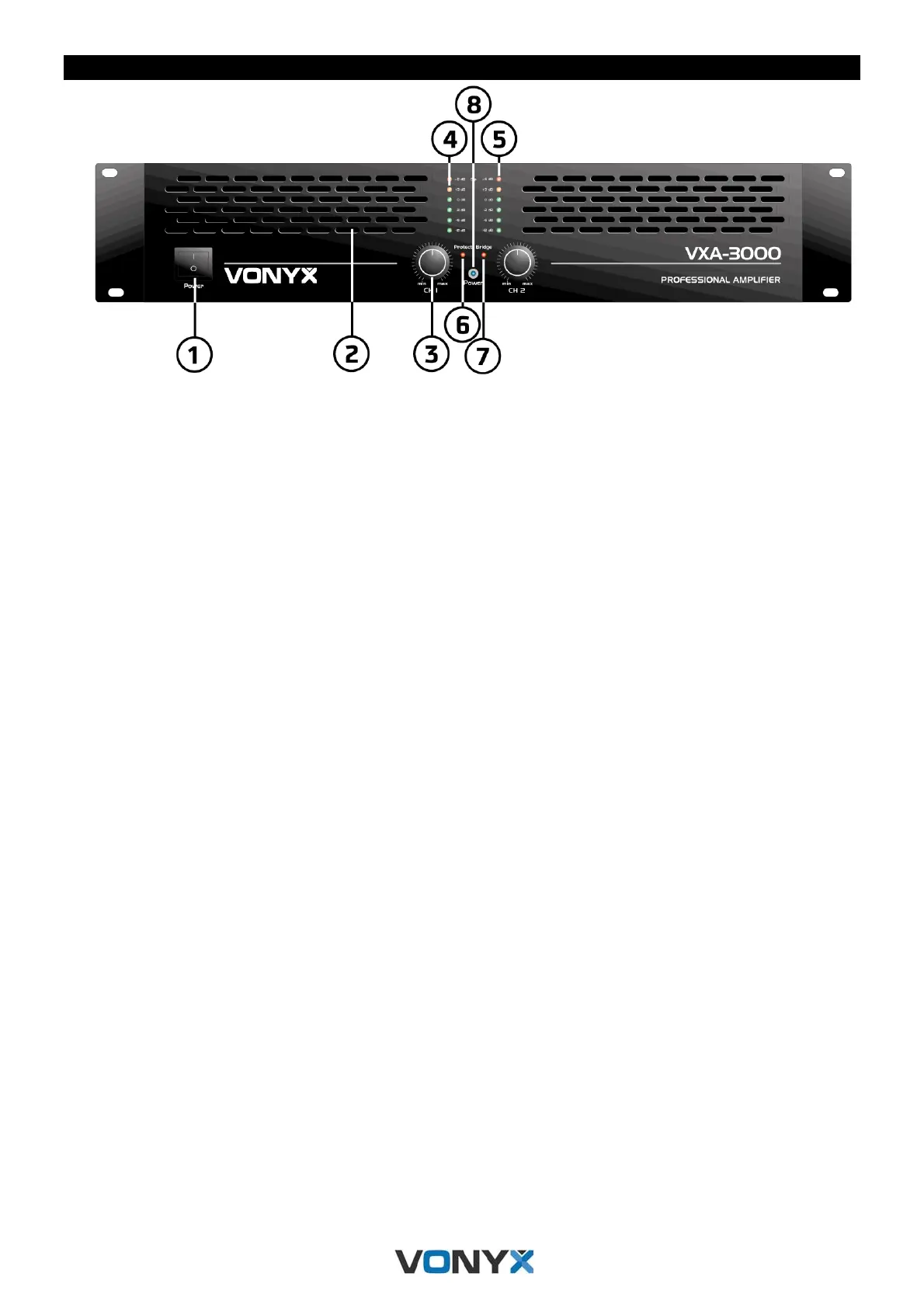

FRONT PANEL

1. On/Off Switch.

For switching the amplifier on and off. Always adjust the volume down to its minimum before switching this

amplifier on.

2. Cooling Vents.

Front to rear forced airflow.

3. Volume Controls.

These controls adjust the volume level of both channels. Turn slightly to the left when the clip indicators (4)

light up.

4. Signal indicators.

Three orange LEDs indicate the amplifiers output signal levels.

5. Clip Indication.

These LEDs will light up when one or both channels are on max power. It can occur that these LEDs will lit up

now and then, this is not a problem. But if it lights up continually you need to adjust the volume down,

otherwise permanent damage to equipment might occur

6. Protect Indication.

When on any given point, something damaging might occur to your amplifier, it will switch in protect mode.

The amplifier will disconnect the point where the damage is about to occur and switch on the protection led to

indicate to you that something is wrong. Reasons might be: Bad ventilation,

A low impedance (< 4 Ohm), Defect fan(s), A short circuit in cables.

7. Bridge Mode Indication.

8. Power Indication.

This clear blue indicator will light when the amplifier is turned on.

Produkspesifikasjoner

Merke:	Vonyx
Kategori:	Mottaker
Modell:	172.054
Vekt:	6950 g
Bredde:	482 mm
Dybde:	295 mm
Høyde:	88 mm
LED-indikatorer:	Ja
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Volumkontroll:	Rotasjon
AC-inngangsspenning:	220-240 V
AC-inngangsfrekvens:	50 Hz
Antall Speakon-porter:	2
Produktfarge:	Sort
Lydinngang (V/H) inn:	1
Strøminngang/AC (strøm) inn:	Ja
inngangsimpedans:	20000 Ω
Signal-til-støy-forhold (SNR):	90 dB
Av/på-bryter:	Ja
Rack-kapasitet:	2U
Lyd-utgang kanaler:	2.0 kanaler
Form for nedkjøling:	Aktiv
Formål:	Opptreden Scene
Frekvensrekkevidde:	10 - 20000 Hz
Inngangssensitivitet:	770 mV
RMS utgangseffekt pr. kanal (4 Ohm):	750 W
Linje innganger (RCA):	1
Crosstalk/krysstale (1kHz):	70 dB
Dempningsfaktor:	250
RMS utgangseffekt pr. kanal (8 Ohm):	500 W
Bridge-modus-effekt per kanal (8 Ohm):	1500 W
