TM

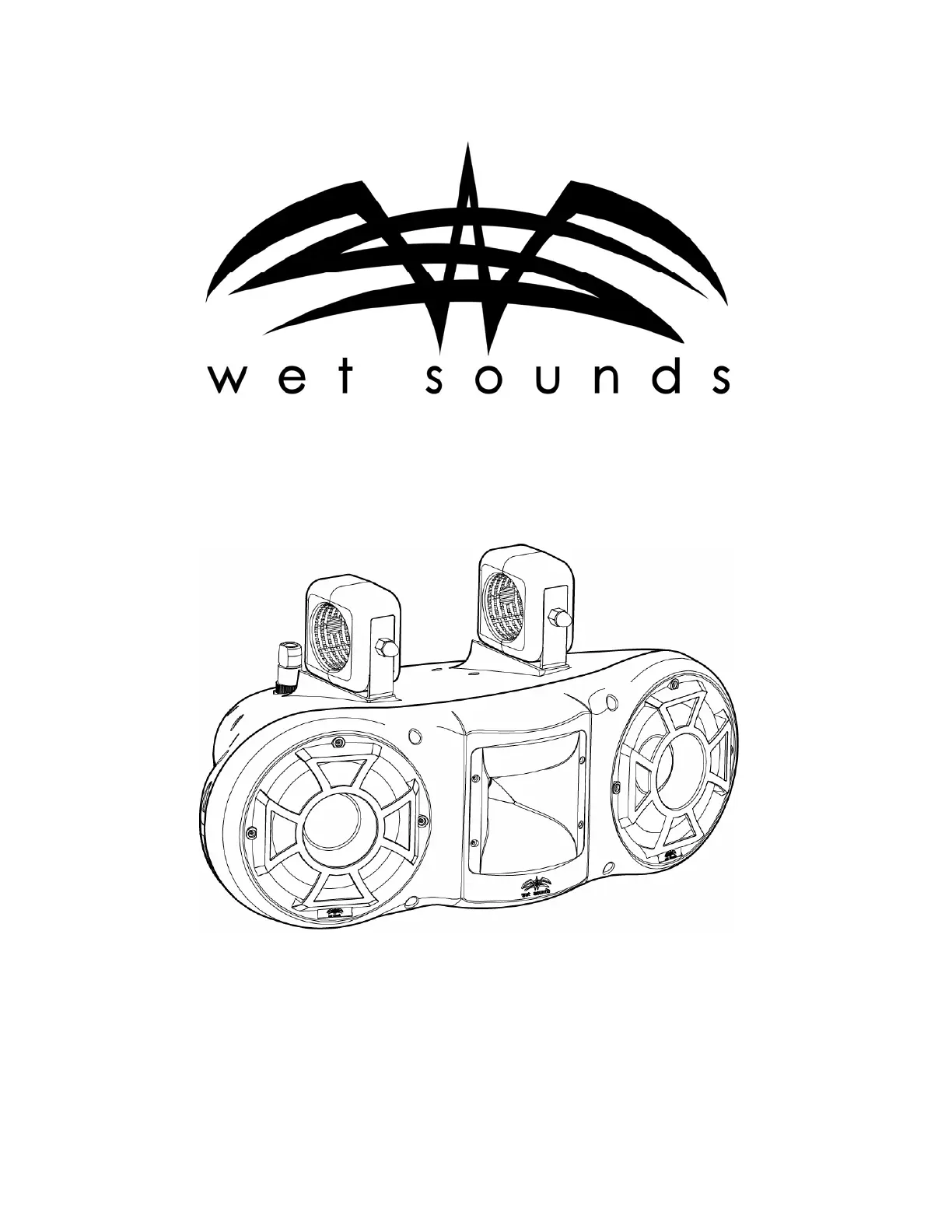

PRO 485
Owner’s Manual & “Limited” Warranty
Technology Specifications:
Thank You for purchasing this Wet Sounds™ product. Wet Sounds™ marine audio
products represent the ultimate in high performance standards. The PRO 485 is
specifically engineered to withstand the rigorous marine environment. Utilizing the state of
the art acoustic engineering and three dimensional computer aided design, the “PRO” series
from Wet Sounds™ represents advanced technologies that are used today in professional
concert hall and stadium applications.
Please take a moment to read the instruction manual before starting your installation. This
manual will explain the benefits of the technologies developed by Wet Sounds™ and will
help you understand the installation and use of this product. If you have any questions or
concerns please contact your certified Wet Sounds™ dealer. You may also contact Wet
Sounds™ technical support by dialing 1-877-WET-SPKR (1-877-938-7757)
SPEAKER SPECIFICATIONS:
RMS: 300 watts
Continual: 450 watts
Peak: 600 watts
Mid Bass: Dual 8 inch EFG (Epoxy/Fiberglass) cone with polyurethane surround
High Frequency: Titanium Diaphragm; High Output; HLCD (Horn Loaded Compression
Driver)
Impedance: 4 ohm
Frequency Response: 20Hz to 20 kHz
Sensitivity: 90DB at 1W/1M
The PRO 485 has our proprietary WdET™ (Wide Dispersion Enhanced Throw)
technology. Unlike most conventional designs, by having WdET™ technology, the PRO
485 provides remarkable volume and amazing sound quality off axis and on axis. Through
several test the PRO 485 was confirmed to project volume at 150 feet without any loss of
detail or information. Not only does the PRO 485 achieve volume and sound quality at a
minimum of 150 ft, but with the WdET™ technology the rider can enjoy quality sound
while riding outside the wake and being almost parallel to boat.
The driver compliment in each PRO 485 combines two 8 inch EFG™ drivers and one
concentrically mounted HLCD (Horn Loaded Compression Driver). For stellar
performance and higher yielding for the marine environment, Wet Sounds™ developed a
proprietary cone material called EFG™, which stands for epoxy and fiberglass composite
mix. This cone material incorporates characteristic values that are impermeable to damage
from intermittent Ultra Violet exposure and minimal moisture exposure. Like the EFG™
cone material, the Polyurethane that is used for the surround will provide protection against
Ultra Violet exposure and moisture. This will prevent deterioration of the surround yielding
longer life and better reliability. We do, however, encourage you to either remove or cover
your tower speakers when they are not in use. Limiting exposure to Ultra Violet Rays and
to moisture will help extend the life of your tower speakers.
1
The high frequency transducer is an HLCD (horn loaded compression driver). This driver
was designed to provide a wide; horizontal trajectory that would not only produce sound in
the directed path but will disperse sound off axis with little to no degradation. It is
considered to be one of the most efficient transducer designs providing remarkable output
while using less power.
***Caution: Do not spray any of the speakers directly with any liquid base substance.
Warranty will be voided if improper care is discovered during extensive examination of the
product.
Installation:
Wiring Diagram Picture-See Attached
WC Speaker Connector Picture and Directions-See Attached
Trick Connect™ Bracket Assembly:
The PRO 485 uses two Trick Connect™ brackets per speaker. These brackets are designed
to give you the option to have speakers facing the rear (stern) or facing forward (bow).
Trick Connect™ also allows you to remove the speakers fairly quick and painless.
There are three essential pieces to the Trick Connect™ bracket assembly; the tower clamp;
the U-bracket and the rubber inserts.
The tower clamp attaches to the tower using the one of the six provided inserts. There is
also a pair of rubber strips that you should use to wrap the tower. This will prevent
scratching from the clamp and movement of the tower speaker.
The U-bracket that is attached to the speaker is designed to slide within the grooves of the
clamp. DO NOT attach the speaker to the tower clamp until the clamp is securely attached
to the tower first.
The bracket is a 2 7/8 inch bracket. If your tower is 2 7/8 inches, you will not need to use
the inserts but we recommend that you still use the rubber strips to help secure and prevent
scratching.
For other size towers there are 6 insert sizes per bracket for a total of 24 inserts.
The sizes are
2 ½ 1 ¾
2 ¼ 1 5/8
2 1 ½
2
