WS 420 SQ

EQUALIZER MANUAL

WS 420 SQ

Congratulations! Thank You for purchasing the Wet Sounds WS 420-SQ.

Wet Sounds professional marine audio products represent the ultimate in

high performance marine audio. Wet Sounds products are specifically

engineered to withstand the rigorous marine environment.

The WS 420-SQ Equalizer is a state of the art equalizer designed to provide

amazing control and flexibility of your marine audio system. The WS 420-SQ

gives you independent control of your tower speakers as well as indepen-

dent control of your in boat speakers and subwoofer(s). The Wet Sounds

talk back microphone allows the boat driver to communicate with the rider

or other boats in the area. By pushing the button on the microphone, the

system will automatically mute the music playing from the tower speakers

and allow you to use your tower speakers as a PA system. Once the button

is released, the tower speakers will begin to play again at the level they

were at. Additionally, the WS 420-SQ includes Wet Sounds exclusive Boat

Link™. Boat Link gives you the ability to link up with other WS 420-SQ

equipped boats for the ultimate party cove experience.

Please take a moment to read the instruction manual before starting your

installation. If you have any questions or concerns, please contact you

certified Wet Sounds dealer or Wet Sounds at 877-Wet-Spkr.

(1-877-938-7757)

WS 420-SQ Specifications

Bass Equalizer Frequency 100Hz

Mid Bass Equalizer Frequency 300 Hz

Mid Equalizer Frequency 2 KHz

Hi Equalizer Frequency 15 KHz

Parametric Equalizer Range + 12dB

S/N Ratio 80 dB REF 1V Input

Frequency Response 10 Hz-40KHz, -3dB

Maximum Output Voltage 5V RMS

T.H.D. 0.05%

Input Impedance 20K Ohms

Stereo Separation 80 dB/1 KHz

Operational Voltage 11-15V DC, Negative Ground

WETSOUNDS.COM

420

ABOUT

WS 420 4 Band Parametric Equalizer with 3 Zone Operation

& Talk Back Microphone

The WS 420-SQ is 3 Zone equalizer/controller with 2 separate equaliz-

ers in one half din chassis using our exclusive design which allows you to

independently control the volume of tower speakers, in boat speakers

and subwoofers all independently and have EQ adjustments of both in

boat and tower speakers independently. The WS-420-SQ is the world’s

only true marine audio zone controller/equalizer. The WS-420SQ gives

you ultimate control over your system. The WS-420-SQ allows you to

have any combination you wish. In boat speakers and subwoofer playing

with no tower speakers, tower speakers and subwoofer playing with no in

boats, all speakers playing, max volume from the tower and subwoofer

with half volume from the in boats and many other configurations. The

WS420-SQ includes a talk back microphone for rider communication.

The level of the talk back microphone is independent from your music

level allowing you to adjust the volume for the PA function. The micro-

phone feature only plays through the tower speakers. When the micro-

phone is keyed up, the music is muted for announcements. After the

key is released, the music will resume at previous level. The WS-420-SQ

has a large knob master volume control giving you quick control for the

overall system. You are able to set the other zones to whichever volume

level you desire and have one knob for quick overall volume adjustment.

There are two separate 4 band equalizers. The outer ring makes

adjustments for the tower speakers and inner knob makes adjustments

for the in boat speakers.

1.. Main Volume. This is the Master Volume that controls the overall

volume of all zones.

2. In Boat and Tower Zone Volume. Adjusts the volume of the tower

speakers (outside ring) and the volume of the in boat speakers (inside

knob) You can set these levels to whichever volume you prefer and use the

master volume for overall control.

3. Subwoofer Volume. Independent Subwoofer volume control.

4. Microphone. Independent Talk Back Microphone volume control.

5. Aux/Main Switch. Auxiliary input or main input selection switch.

6. Equalizer Adjustments. These 4 controls adjust the four separate

frequencies (bass, mid bass, mid, high) Offering 12 dB of cut/boost. The

outside ring adjusts the frequencies for the tower speakers (6a) while the

inside ring adjusts the frequencies for the in boat speakers (6b).

2 3FEATURES FEATURES CONT.

7. Auxiliary Input. 3.5 mm aux input jack for MP3 player or

additional source.

8. Boat Link™ 3.5 mm aux output jack. For linking with other WS

420 equipped boats.

9. Microphone Input. Microphone input for Wet Sounds talk back

microphone.

10: Input Gain.

10(a) Main Input Sensitivity Gain adjustment.

10(b) Auxiliary Input Sensitivity Gain adjustment. NOTE: If you are

not an experienced audio installer, it is recommend to leave these

adjustments in the pre set factory position.

11: Illumination. WS-420-SQ illumination comes pre set in blue

illumination If you would like to change to red. Remove jumper

and position to red.

12: Ground Isolation. Occasionally alternator whine may appear

in your system if you source unit and amplifiers may have different

grounds. You may use the isolation jumper to eliminate the noise.

Please make sure unit is off when adjusting the jumper.

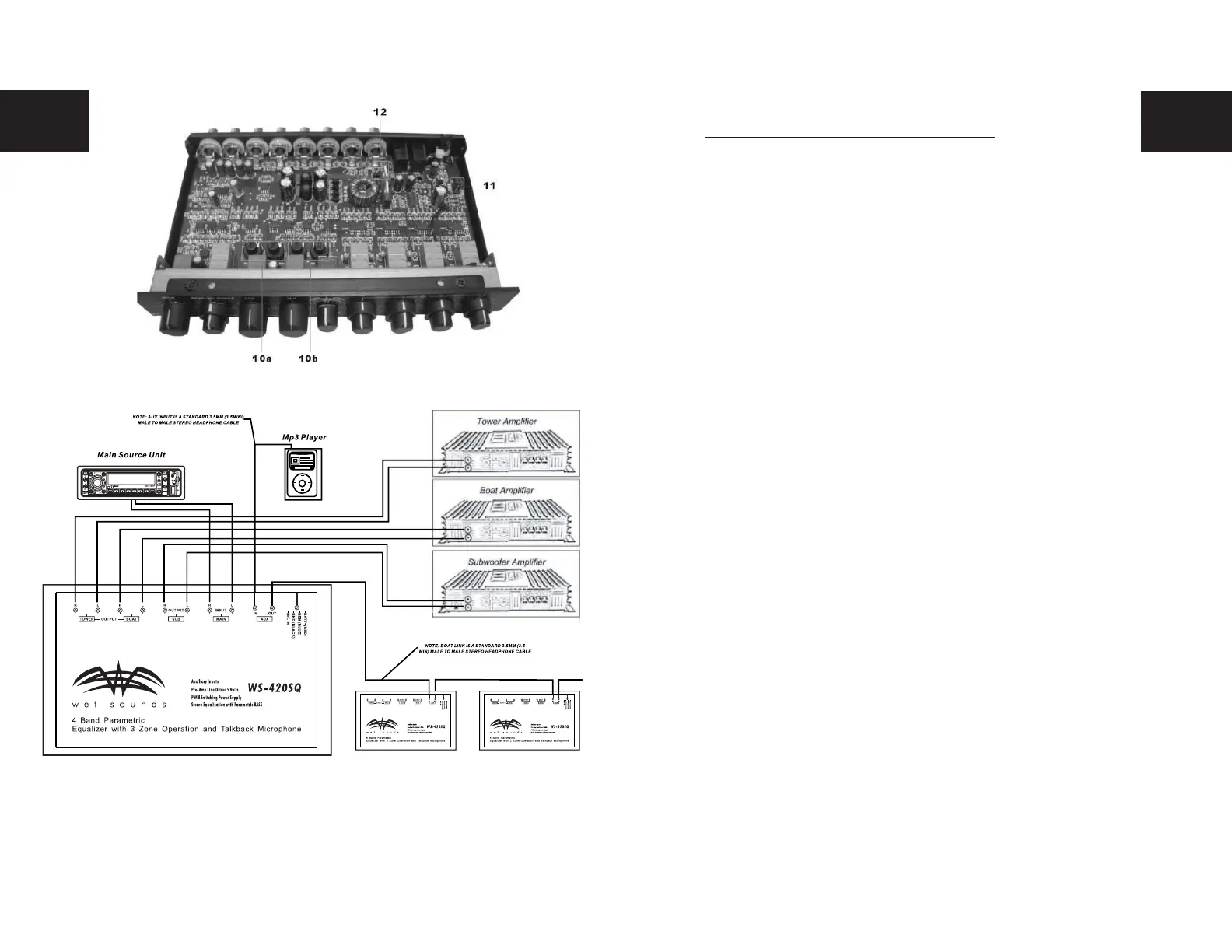

SETTING UP A SYSTEM USING THE WS 420

1. Unplug all the RCA’s from your amps. Turn all the amp gains down.

2. Turn the radio up to find the maximum volume. Set the system with the

head unit volume at 85% of max. This is the loudest the radio should ever

go. Radios will create distortion the higher the volume is turned up. Which

will create distortion on the output signal before reaching the amps. So find

a safe easy to remember volume. If the head unit is 35. Max should be 30.

If the head unit is 40. Maximum should be 30 to 35 and so on.

3. Once you have found the maximum volume set point. Turn the radio back

down. Use a test CD that you are familiar with for tuning. Something that

has highs and lows and vocals.

4. Make sure the settings on the radio are flat. You should not tune a

system with the treble or bass up.

5. Make sure all the eq adjustments are flat. Right in the middle. Plug in all

the rcas from the eq to the amps.

6. Plug in just the RCA’s for the in boat speakers amp. Set the high pass

crossover at around 80HZ to 100HZ.

7. Turn the radio up to the max safe level found in step 2. Turn the eq up to

about ¾ of max volume.

8) Slowly turn the gain up until you hear the speakers distort. Slowly back

off the gain from that point a small amount until you hear the speakers play

as loud as they can with no distortion.

9. Unplug the RCA’s from that amp and plug the RCA’s into the amp running

the tower speakers. Set the high pass crossover on the amp for the

towerspeakers at 80HZ to 100HZ.

10. Slowly turn the gain up until you hear the speakers distort. Slowly back

off the gain from that point a small amount until you hear the speakers play

as loud as they can with no distortion.
