AKM 260 PRODUCT DESCRIPTION SHEET

EXP

5019 319 01035

Whirlpool is a registered trademark of Whirlpool USA

Operation of burners with safety

device and electric ignition

To light one of the burners:

• Press the relative knob and turn it anti-

clockwise to the large flame and star

setting .

• At the same time, keep the knob pressed

against the control panel until the burner

ignites.

• After the burner has ignited, keep the knob

pressed for about 10 seconds.

• Release the knob.

If the burner does not ignite, repeat the operations

described above.

Note:

-Should particular local conditions of the

delivered gas make the ignition of the burner

difficult, it is advisable to repeat the operation

with the knob turned to the small flame

setting .

-The safety device of the burner shuts off the gas

supply to the burner if its flame goes out

accidentally (because of a sudden gust of wind,

an interruption in the gas delivery, the

overflowing of liquids, etc.).

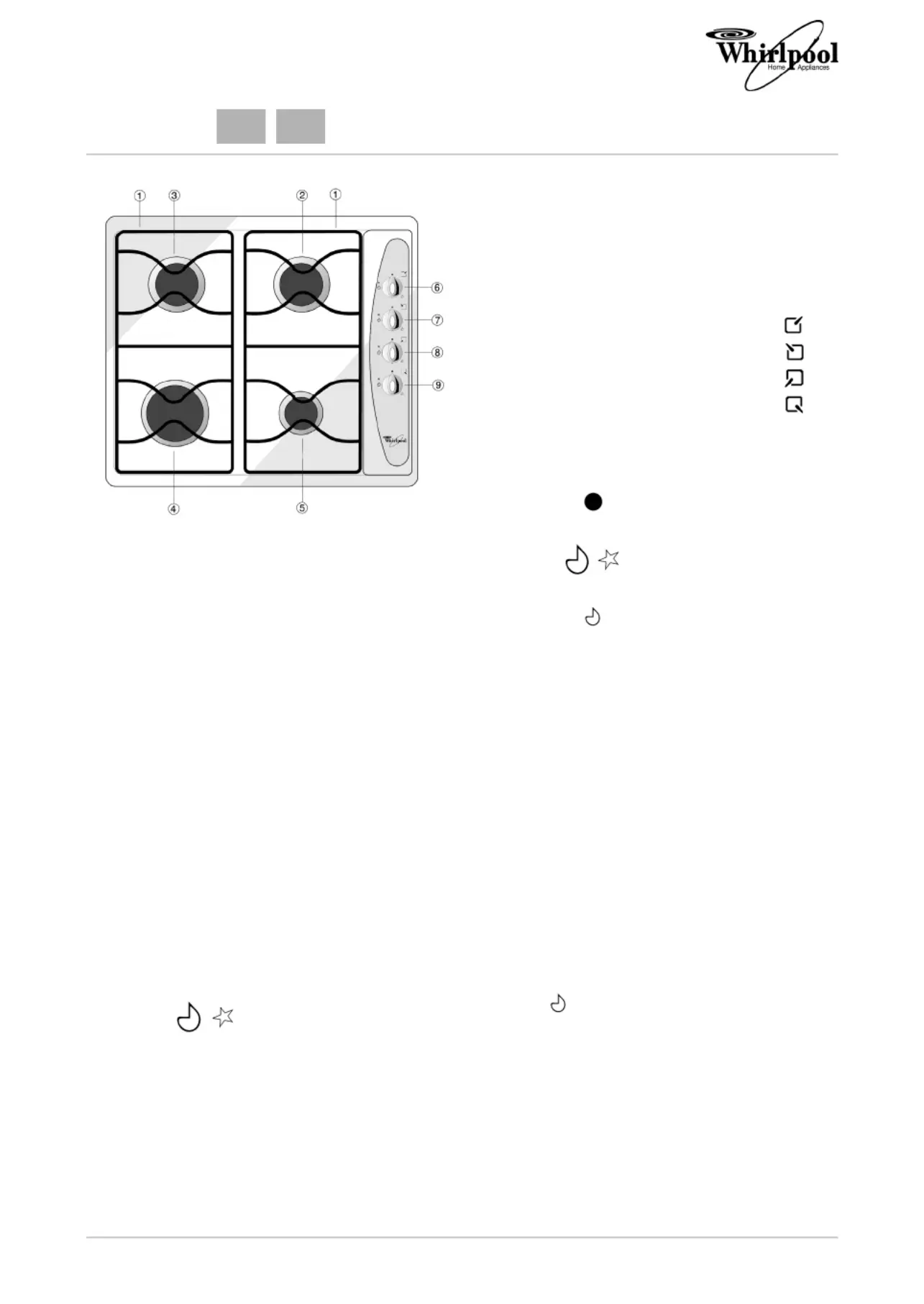

1. Removable panstand grids

2-3. Medium burners

4. Large burner

5. Small burner

6. Medium burner control knob

7. Medium burner control knob

8. Large burner control knob

9. Small burner control knob

Symbols

Shaded

circle

Tap closed

Large

flame

and star

Maximum opening/delivery

and electric ignition

Small

flame

Minimum opening or

reduced delivery

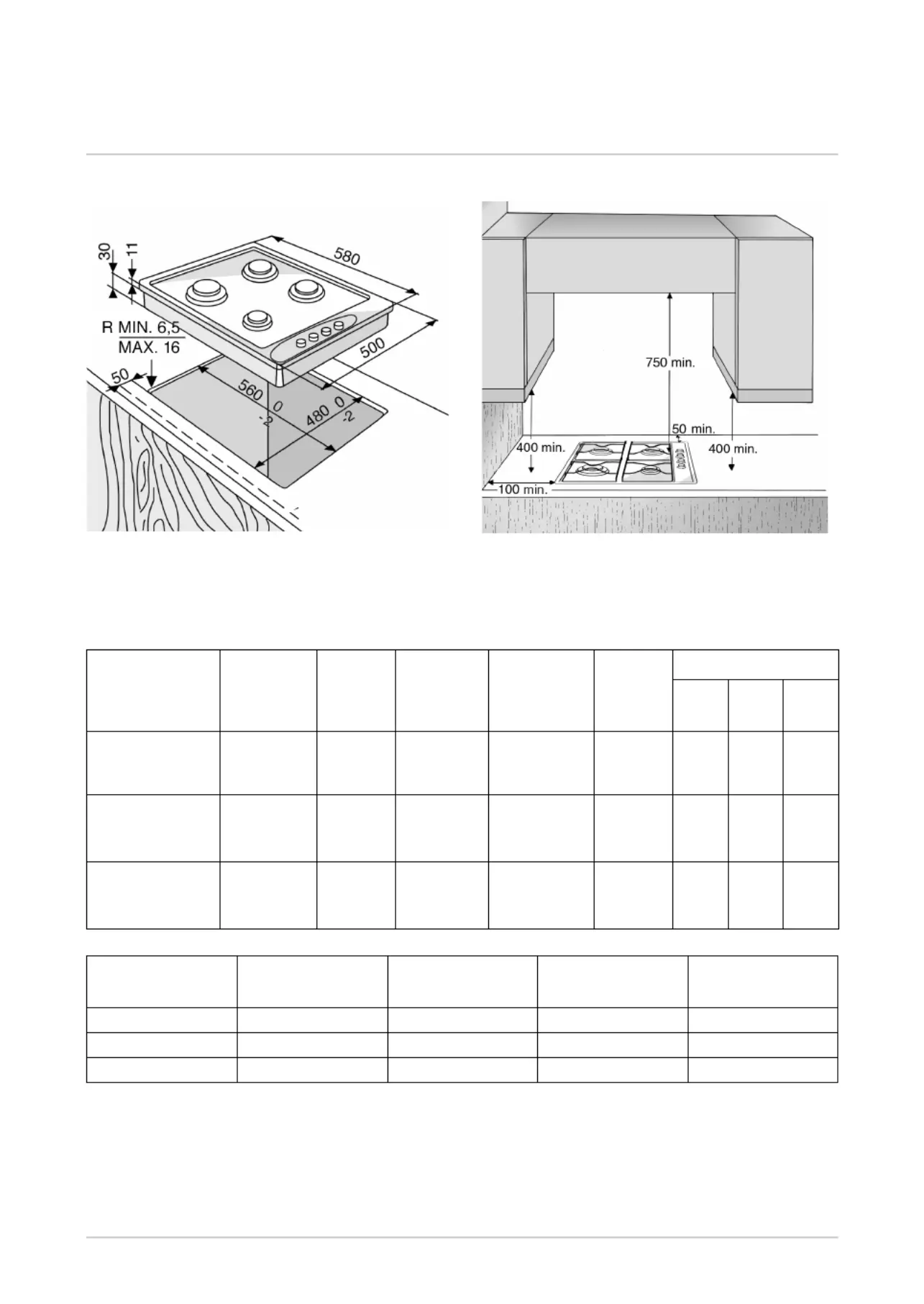

DIMENSIONS OF COOKING HOB AND WORKTOP (mm)

NOTES: In case of installation of a hood above the cooktop, please refer to the hood

instructions for the correct distance.

INJECTORS TABLE CATEGORY II2H3+

ELECTRIC SUPPLY: 230-240V - 50 Hz

Type of gas used Type of

burner

Injector

marking

Rated

heat

capacity

Rated

consumption

Reduced

heat

capacity

Gas pressure mbar

min. rat. max.

NATURAL GAS

(Methane) G20

large

medium

small

H3 130

H2 98

X 72

3.00

1.65

1.00

286 l/h

157 l/h

95 l/h

0.60

0.35

0.30

17 20 25

LIQUID

PETROLEUM GAS

(Cylinder) G30

large

medium

small

3.00

1.65

1.00

218 g/h

120 g/h

73 g/h

0.60

0.35

0.30

20 28-30 35

LIQUID

PETROLEUM GAS

(Cylinder) G31

large

medium

small

3.00

1.65

1.00

214 g/h

118 g/h

71 g/h

0.60

0.35

0.30

25 37 45

Type of gas used Appliance model Total rated heat

capacity kW

Total rated

consumption

Air required for

burning m

G20 20 mbar 4 gas 7.30 695 l/h 14.6

G30 28-30 mbar 4 gas 7.30 531 g/h 14.6

G31 37 mbar 4 gas 7.30 521 g/h 14.6

Produkspesifikasjoner

Merke:	Whirlpool
Kategori:	varmeaparat
Modell:	AKM260/IX
Vekt:	7500 g
Bredde:	580 mm
Dybde:	500 mm
Høyde:	41 mm
Antall brennere/kokesoner:	4
Antall gassbrennere:	4
AC-inngangsspenning:	230 V
Produktfarge:	Sølv
Plassering av innretning:	Innebygget
Benke type:	Gass
Brenner / kokeområde 1 posisjon:	Foran til venstre
Brenner / kokeområde 1 strømkilde:	Gass
Brenner / kokeområde 1 type:	Stor
Brenner / kokeområde 1 strøm:	3000 W
Brenner / kokeområde 2 posisjon:	Bak til venstre
Brenner / kokeområde 2 strømkilde:	Gass
Brenner / kokeområde 2 type:	Normal
Brenner / kokeområde 2 strøm:	1650 W
Brenner / kokeområde 3 posisjon:	Bakre høyre side
Brenner / kokeområde 3 strømkilde:	Gass
Brenner / kokeområde 3 type:	Normal
Brenner / kokeområde 3 strøm:	1650 W
Brenner / kokeområde 4 strømkilde:	Gass
Brenner / kokeområde 4 type:	Småkoking
Brenner / kokeområde 4 strøm:	1000 W
Form på stekesone 4:	Rund
Brenner / kokeområde 4 posisjon:	Fremre høyre side
Form på stekesone 1:	Rund
Form på stekesone 2:	Rund
Form på stekesone 3:	Rund
