Xiaomi MiJia 360° Bruksanvisning

Xiaomi filmkamera MiJia 360°

Les nedenfor 📖 manual på norsk for Xiaomi MiJia 360° (4 sider) i kategorien filmkamera. Denne guiden var nyttig for 3 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/4

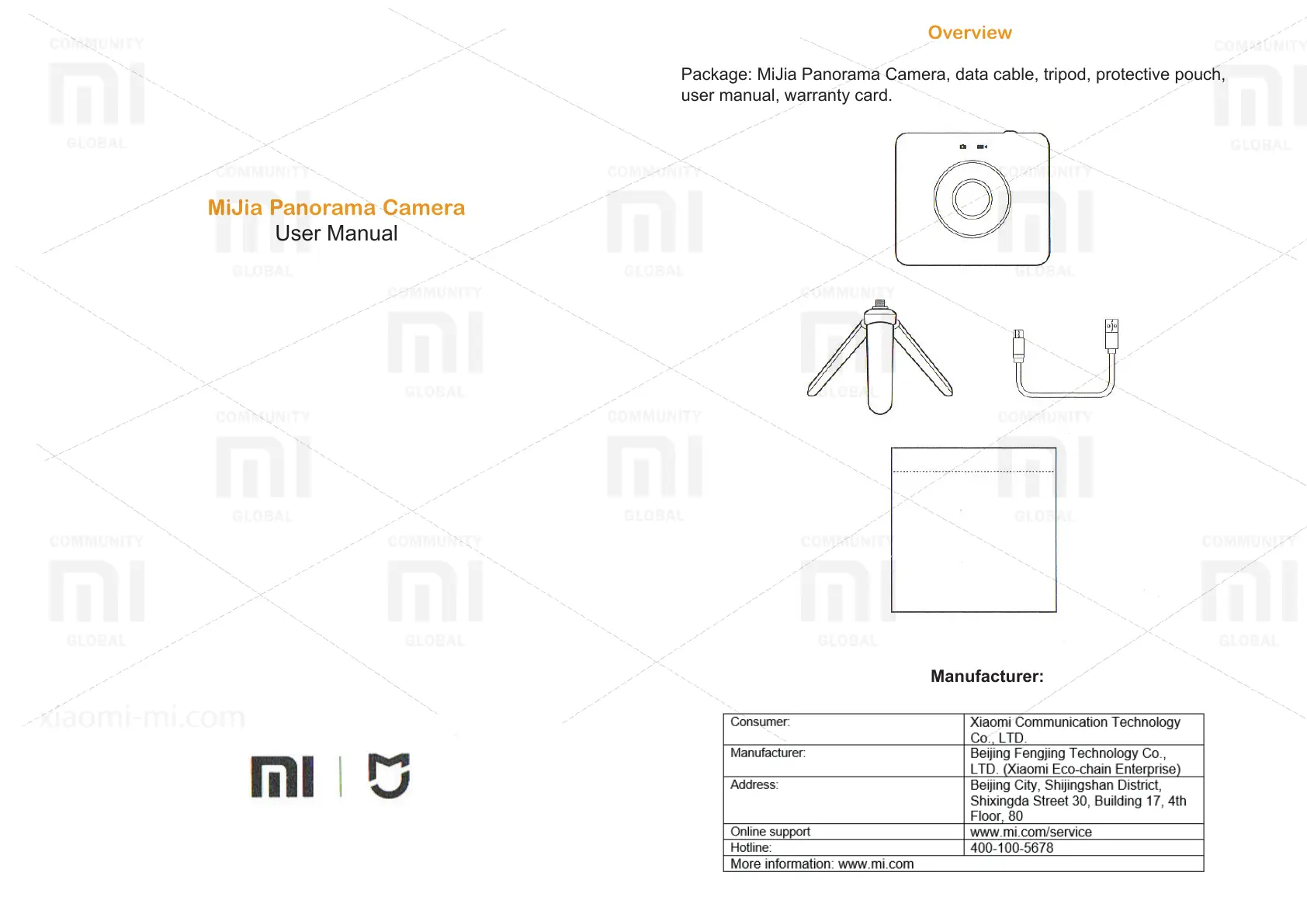

MiJia Panorama Camera

User Manual

Overview

Package: MiJia Panorama Camera, data cable, tripod, protective pouch,

user manual, warranty card.

Manufacturer:

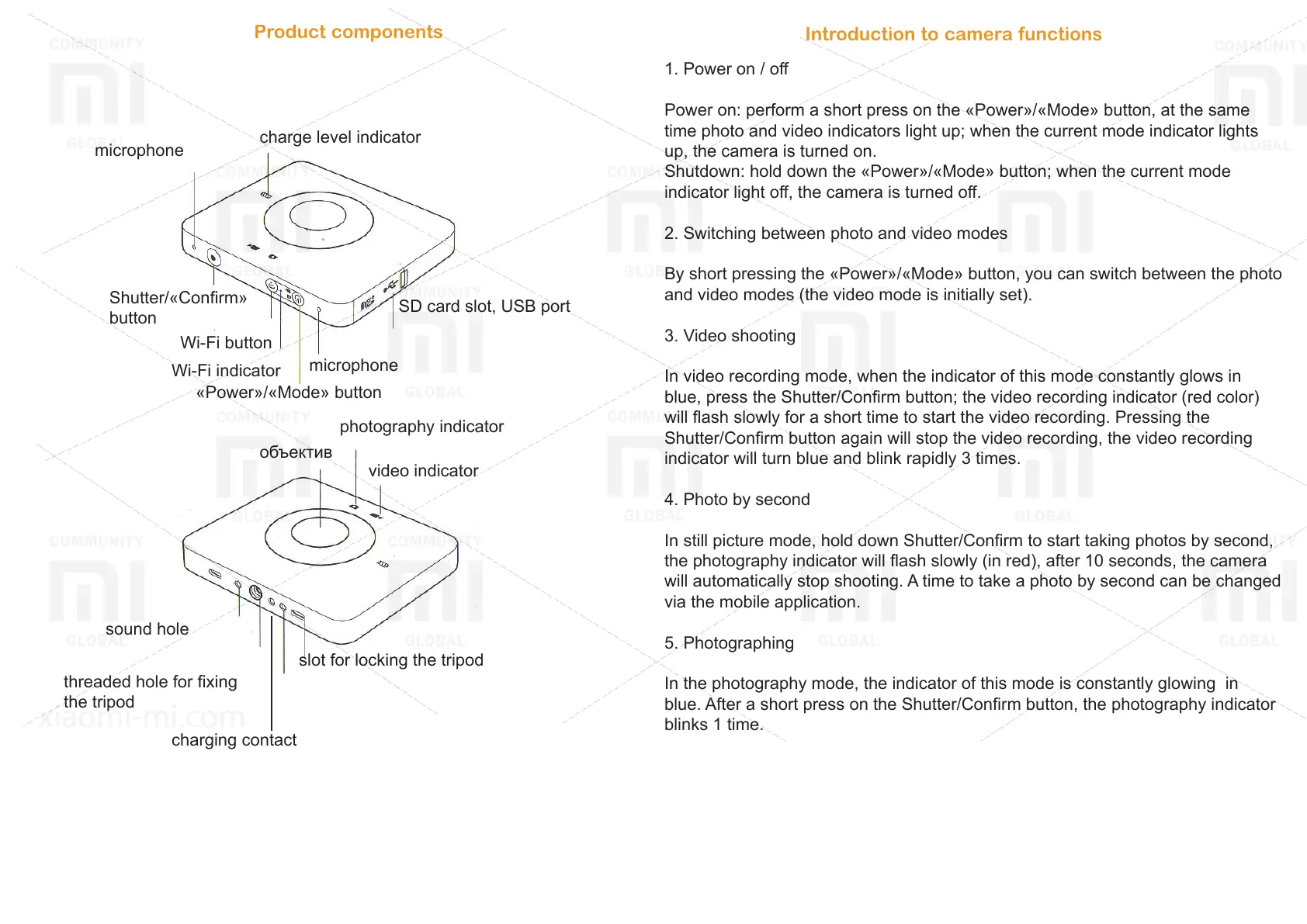

Product components

microphone

charge level indicator

Shutter/«Conrm»

button

Wi-Fi button

Wi-Fi indicator

«Power»/«Mode» button

microphone

SD card slot, USB port

объектив

photography indicator

video indicator

sound hole

threaded hole for xing

the tripod

charging contact

slot for locking the tripod

Introduction to camera functions

1. Power on / o󰀨

Power on: perform a short press on the «Power»/«Mode» button, at the same

time photo and video indicators light up; when the current mode indicator lights

up, the camera is turned on.

Shutdown: hold down the «Power»/«Mode» button; when the current mode

indicator light o󰀨, the camera is turned o󰀨.

2. Switching between photo and video modes

By short pressing the «Power»/«Mode» button, you can switch between the photo

and video modes (the video mode is initially set).

3. Video shooting

In video recording mode, when the indicator of this mode constantly glows in

blue, press the Shutter/Conrm button; the video recording indicator (red color)

will ash slowly for a short time to start the video recording. Pressing the

Shutter/Conrm button again will stop the video recording, the video recording

indicator will turn blue and blink rapidly 3 times.

4. Photo by second

In still picture mode, hold down Shutter/Conrm to start taking photos by second,

the photography indicator will ash slowly (in red), after 10 seconds, the camera

will automatically stop shooting. A time to take a photo by second can be changed

via the mobile application.

5. Photographing

In the photography mode, the indicator of this mode is constantly glowing in

blue. After a short press on the Shutter/Conrm button, the photography indicator

blinks 1 time.

6. Reset your Wi-Fi password

Press and hold the Wi-Fi button for 5 seconds, then Wi-Fi password will be

reseted.

Connection to cameraIntroduction to camera functions

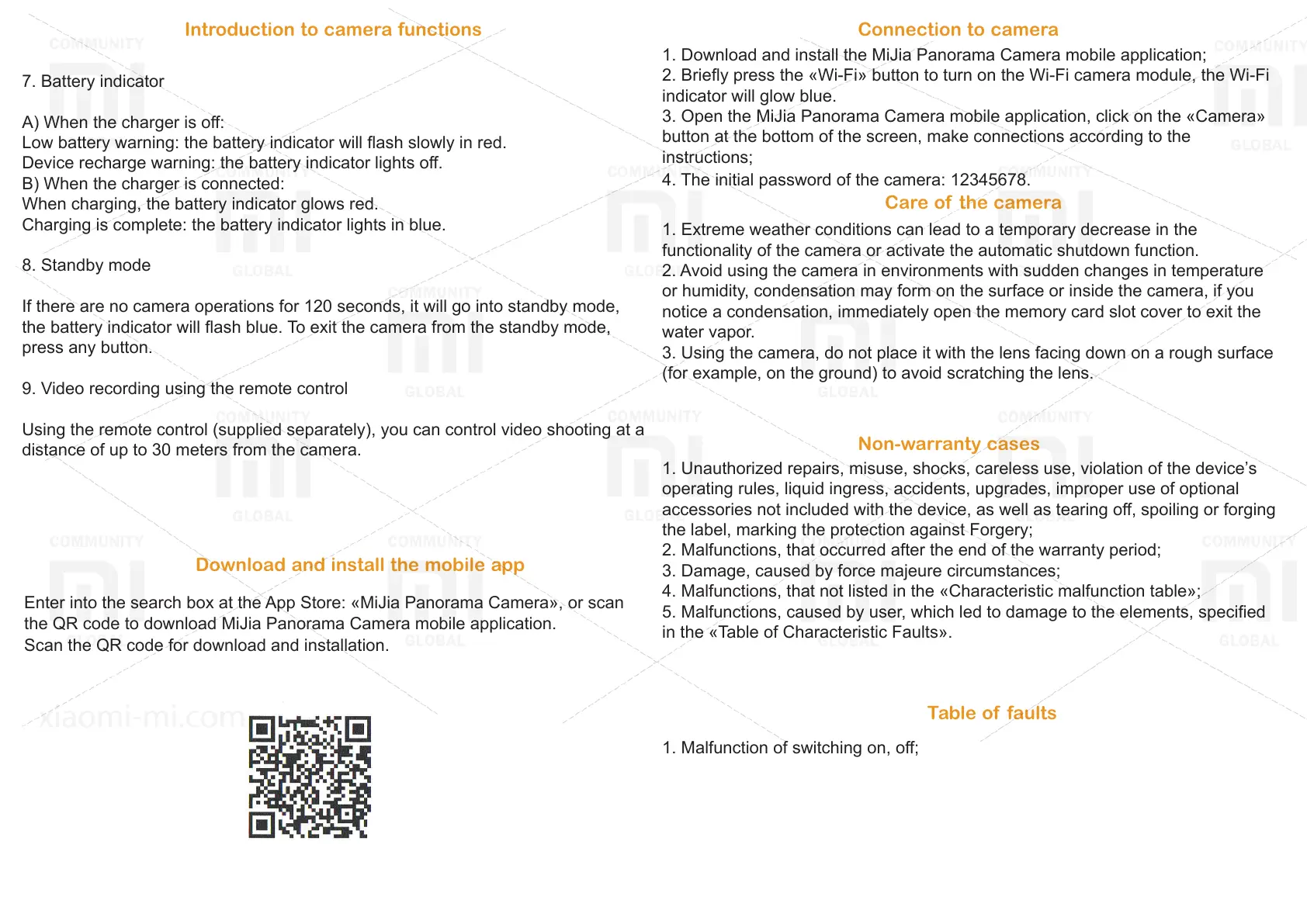

7. Battery indicator

A) When the charger is o󰀨:

Low battery warning: the battery indicator will ash slowly in red.

Device recharge warning: the battery indicator lights o󰀨.

B) When the charger is connected:

When charging, the battery indicator glows red.

Charging is complete: the battery indicator lights in blue.

8. Standby mode

If there are no camera operations for 120 seconds, it will go into standby mode,

the battery indicator will ash blue. To exit the camera from the standby mode,

press any button.

9. Video recording using the remote control

Using the remote control (supplied separately), you can control video shooting at a

distance of up to 30 meters from the camera.

Download and install the mobile app

Enter into the search box at the App Store: «MiJia Panorama Camera», or scan

the QR code to download MiJia Panorama Camera mobile application.

Scan the QR code for download and installation.

1. Download and install the MiJia Panorama Camera mobile application;

2. Briey press the «Wi-Fi» button to turn on the Wi-Fi camera module, the Wi-Fi

indicator will glow blue.

3. Open the MiJia Panorama Camera mobile application, click on the «Camera»

button at the bottom of the screen, make connections according to the

instructions;

4. The initial password of the camera: 12345678.

Care of the camera

1. Extreme weather conditions can lead to a temporary decrease in the

functionality of the camera or activate the automatic shutdown function.

2. Avoid using the camera in environments with sudden changes in temperature

or humidity, condensation may form on the surface or inside the camera, if you

notice a condensation, immediately open the memory card slot cover to exit the

water vapor.

3. Using the camera, do not place it with the lens facing down on a rough surface

(for example, on the ground) to avoid scratching the lens.

Non-warranty cases

1. Unauthorized repairs, misuse, shocks, careless use, violation of the device’s

operating rules, liquid ingress, accidents, upgrades, improper use of optional

accessories not included with the device, as well as tearing o󰀨, spoiling or forging

the label, marking the protection against Forgery;

2. Malfunctions, that occurred after the end of the warranty period;

3. Damage, caused by force majeure circumstances;

4. Malfunctions, that not listed in the «Characteristic malfunction table»;

5. Malfunctions, caused by user, which led to damage to the elements, specied

in the «Table of Characteristic Faults».

Table of faults

1. Malfunction of switching on, o󰀨;

2. Malfunctions, associated with the image / sound;

3. Malfunctions, associated with indicators;

4. Problems with Wi-Fi / Bluetooth;

5. Malfunctions, associated with the buttons;

6. Malfunctions with a signal;

7. Faults, related to a battery.

Produkspesifikasjoner

Merke:	Xiaomi
Kategori:	filmkamera
Modell:	MiJia 360°
Innebygd skjerm:	Nei
Vekt:	109 g
Bredde:	78 mm
Dybde:	24 mm
Høyde:	67.4 mm
Støttede mobile operativsystemer:	Android 5.0
Bruksanvisning:	Ja
Batterikapasitet:	1600 mAh
Wi-Fi:	Ja
GPS:	Nei
USB-kontakttype:	Micro-USB
Maksimal bildefrekvens:	60 fps
Maksimal videooppløsning:	3456 x 1728 piksler
Innebygd mikrofon:	Ja
Videooppløsninger:	2304 x 1296 piksler
Lagringsmedier:	Memory card
Sensortype:	CMOS
Støttede bildeformater:	JPEG
Produktfarge:	Sort
HD-type:	Full HD
Minnekortenhet:	MicroSD (TransFlash)
Batteriliv (maks.):	1.25 timer
Kabler inkludert:	USB
Batterispenning:	3.8 V
Driftstemperatur (T-T):	-10 - 45 °C
CCD-sensorstørrelse:	1/2.3 "
Totale megapiksler:	16 MP
Maksimal størrelse på hukommelseskort:	128 GB
Videoformat som støttes:	H.264
Oppladingstid:	2 timer
Tripod montert:	Ja
Fotomodus:	Ja
Lydinnspillingsformater:	AAC
Gyroscope:	Ja
