Side 1/4

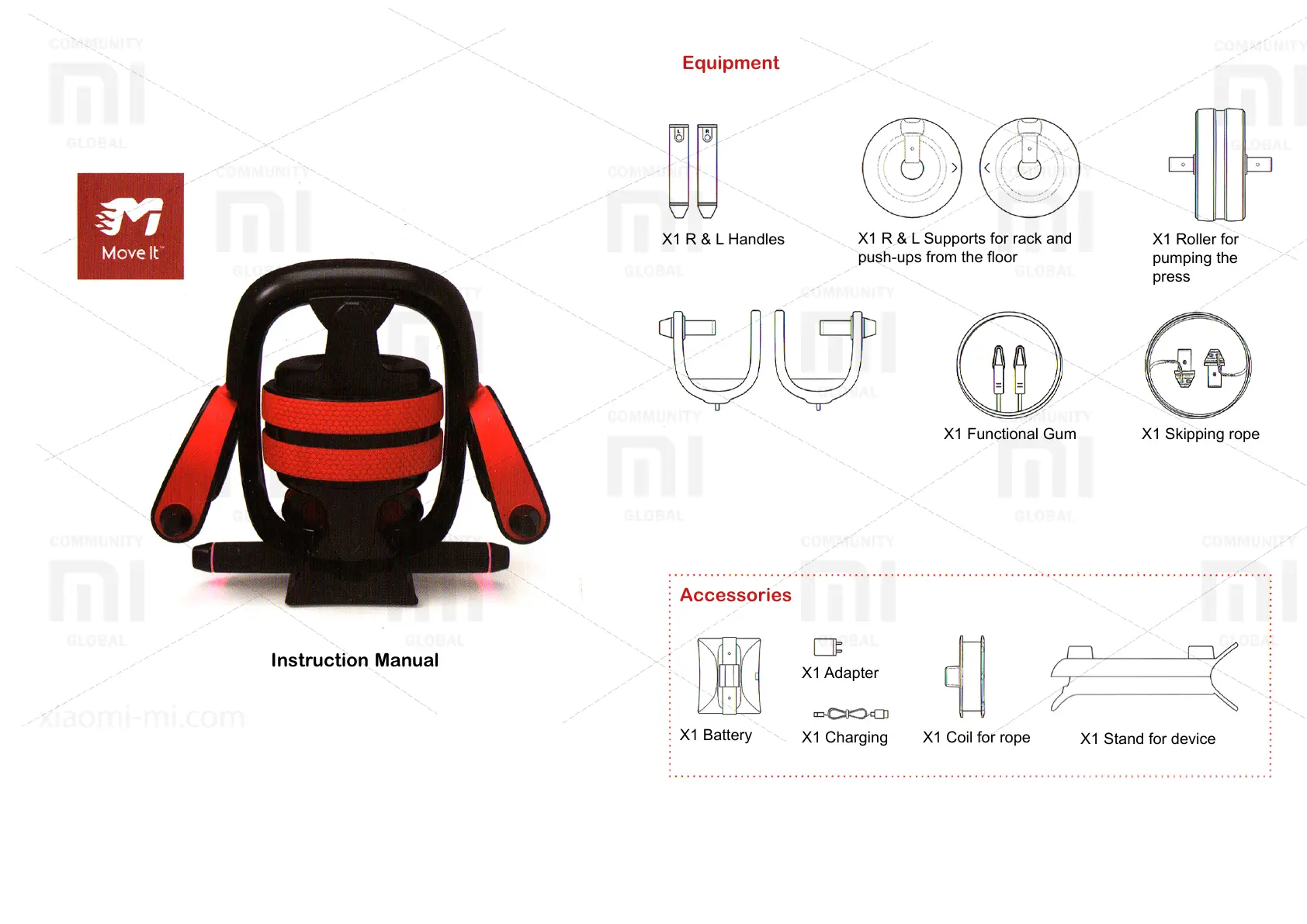

Instruction Manual
Equipment
X1 R & L Handles
X1 R & L Supports for rack and
push-ups from the oor
X1 Roller for
pumping the
press
X1 Skipping rope
Accessories
X1 Battery
Charger
X1 Adapter
X1 Charging
cable
X1 Coil for rope
X1 Stand for device
X1 Functional Gum

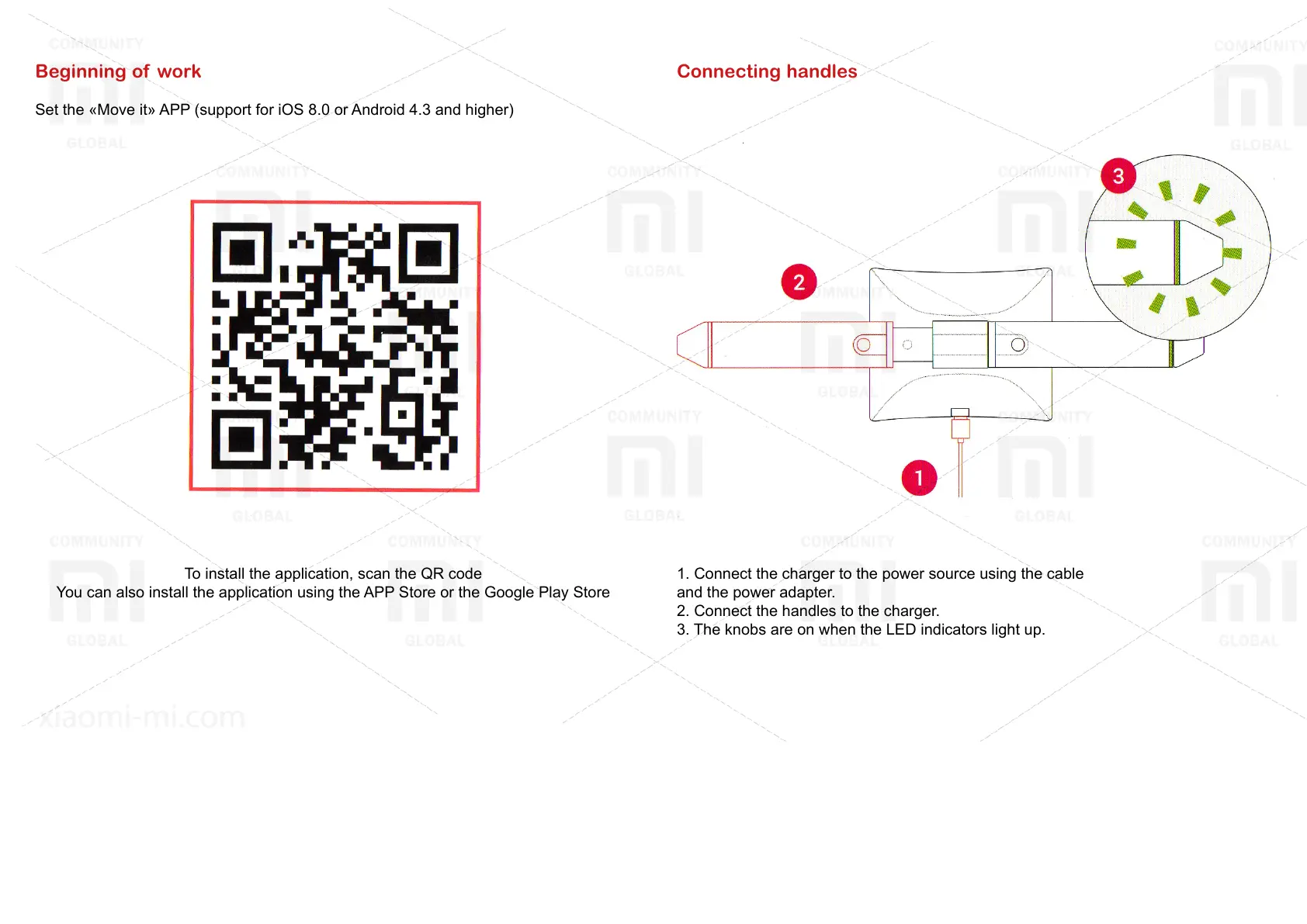

Beginning of work
Set the «Move it» APP (support for iOS 8.0 or Android 4.3 and higher)
To install the application, scan the QR code
You can also install the application using the APP Store or the Google Play Store
Connecting handles
1. Connect the charger to the power source using the cable
and the power adapter.
2. Connect the handles to the charger.
3. The knobs are on when the LED indicators light up.

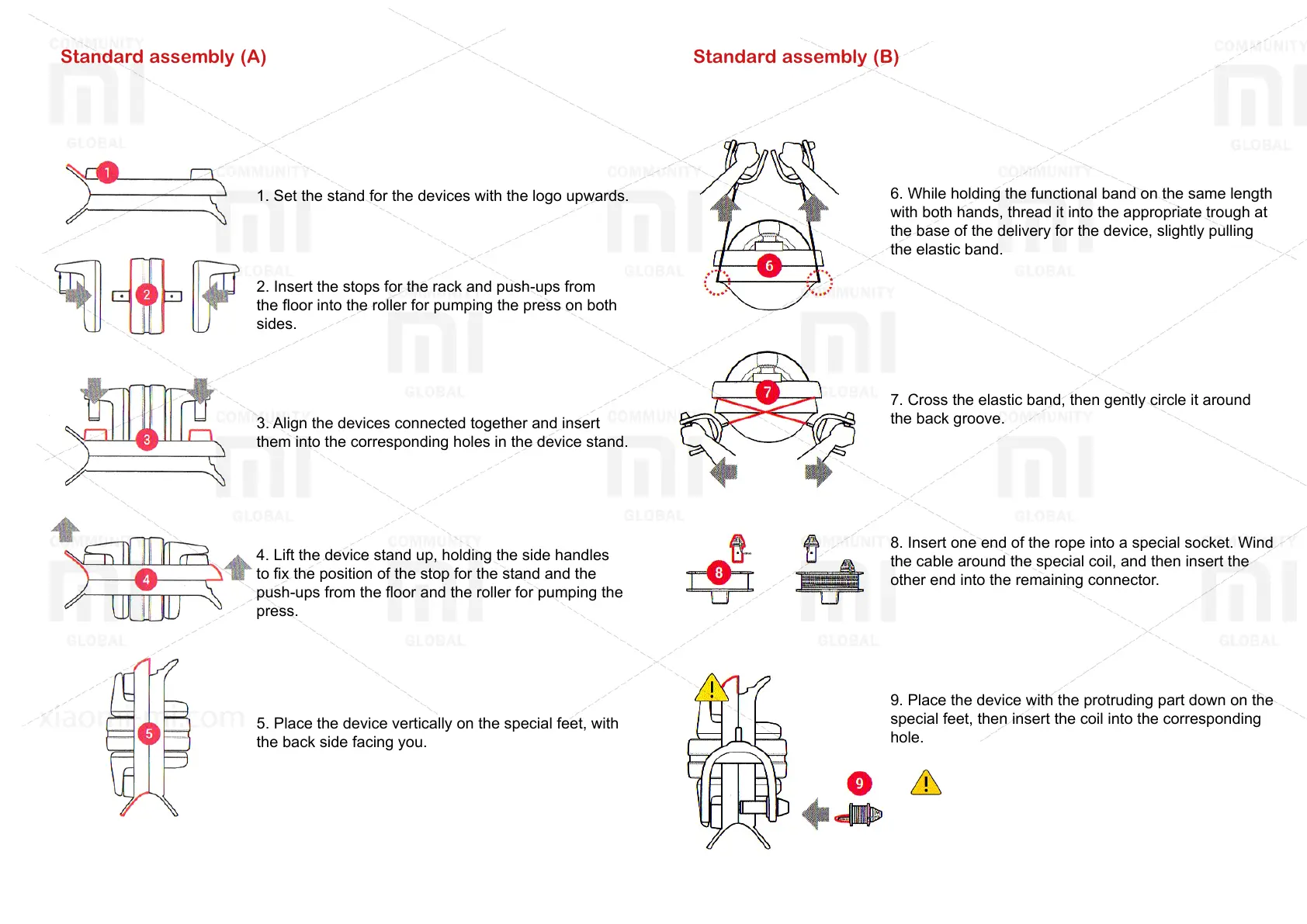

Standard assembly (B)
6. While holding the functional band on the same length
with both hands, thread it into the appropriate trough at
the base of the delivery for the device, slightly pulling
the elastic band.
7. Cross the elastic band, then gently circle it around
the back groove.
8. Insert one end of the rope into a special socket. Wind
the cable around the special coil, and then insert the
other end into the remaining connector.
9. Place the device with the protruding part down on the
special feet, then insert the coil into the corresponding
hole.
When transporting the device in its
assembled state, always hold the device
holder with a special handle.
Standard assembly (А)
1. Set the stand for the devices with the logo upwards.
2. Insert the stops for the rack and push-ups from
the oor into the roller for pumping the press on both
sides.
3. Align the devices connected together and insert
them into the corresponding holes in the device stand.
4. Lift the device stand up, holding the side handles
to x the position of the stop for the stand and the
push-ups from the oor and the roller for pumping the
press.
5. Place the device vertically on the special feet, with
the back side facing you.
