Xiaomi TV Stick 4K Bruksanvisning

Xiaomi USB penn TV Stick 4K

Les nedenfor 📖 manual på norsk for Xiaomi TV Stick 4K (38 sider) i kategorien USB penn. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/38

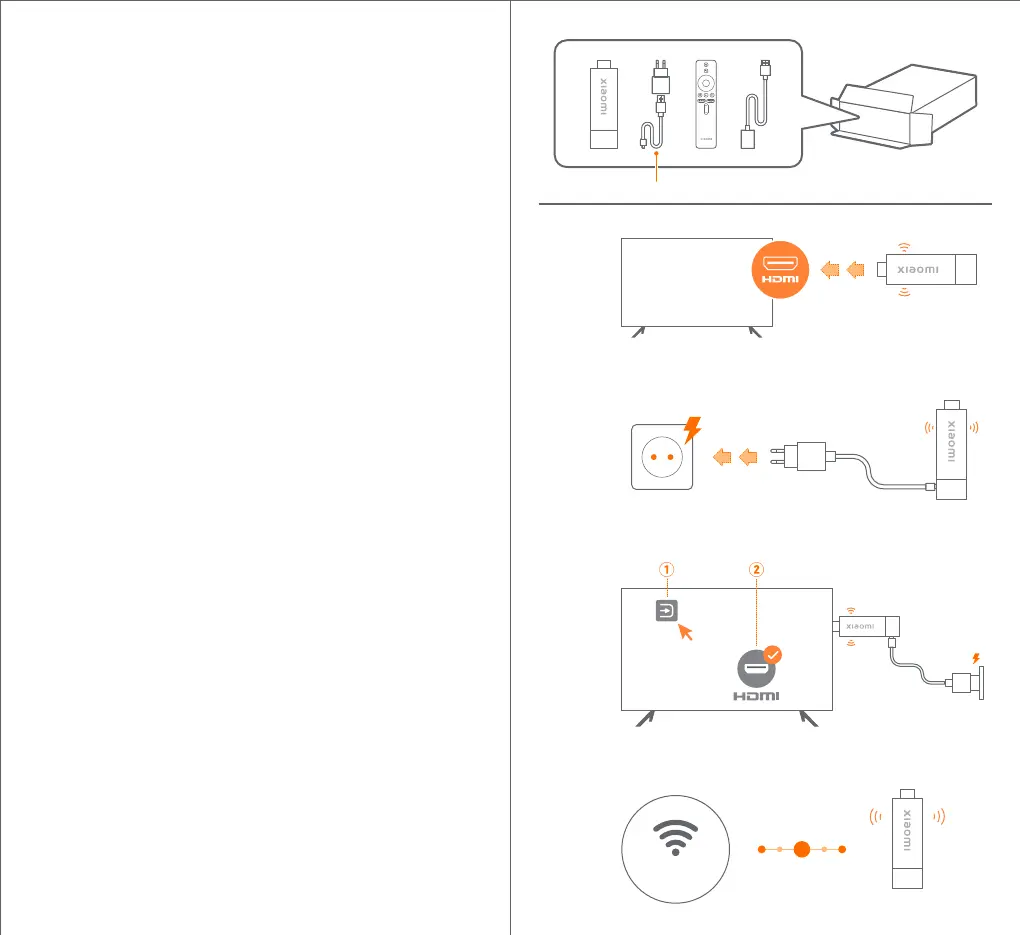

Wiﬁ

Only for power supply

Xiaomi Smart TV Stick 4K Important Product Information

MODEL: MDZ-27-EU

Simpliﬁed EU Declaration of Conformity

Hereby, Beĳing Xiaomi Electronics Co.,Ltd declares that the radio equipment type TV Stick is in compliance with Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

hp://www.mi.com/global/service/support/declaration.html

RF Frequency and Power

This device oﬀers the following frequency bands in EU areas only and maximum radio-frequency power

Bluetooth: 20 dBm

Wi-Fi 2.4 GHz band: 20 dBm

Wi-Fi 5 GHz: 5150 to 5250MHz: 23 dBm, 5250 to 5350 MHz: 20 dBm, 5470 to 5725 MHz: 20 dBm, 5725 to 5850 MHz: 14 dBm.

This device may be operated in all member states of the EU.

Observe national and local regulations where the device is used.

This device is restricted to indoor use only when operating in the 5250 to 5350 MHz frequency range in:

AT,BE,BG,HR,CY,CZ,DK,EE,FI,FR,DE,EL,HU,IE,IT,LV,LT,LU,MT,NL,PL,PT,RO,SK,SI,ES,SE,UK,UK(NI),IS,LI,NO,CH,TR.

Receiver Category 2

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmier must be

installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any

other antenna or transmier.

For the purpose of recycling to facilitate eﬀective utilization of resources, please return this product to a nearby authorized Collection

Centre, registered Dismantler or Recycler, or Xiaomi Service Centre when disposing of this product.

What the Wheelie Bin symbol means: The symbol says don ’ t dispose your e-waste into the municipal waste collection bins. That ’ s because

these wastes are hazardous in nature and need to be recycled in a special way.

Warning: Ensure that the power adapter used meets the requirements of Clause 2.5 in IEC62368-1 / EN62368-1 and has been tested and approved

according to national or local standards.

For AC/DC Adapter, the socket-outlet shall be installed near the equipment and shall be easily accessible.

Caution!

Any changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user's authority to operate the

equipment.

Operating temperature range:

Operating temperature: 0°C–40°C;

Storage temperature: -15°C–45°C;

Relative humidity: <80%.

E-Waste

Xiaomi products are in conformity with the requirements of the reduction of hazardous substances of the E-waste Rules 2016. The content of

hazardous substance with the exemption of the applications listed in SCHEDULE II of the E-waste Rules:

1. Lead (Pb) – not over 0.1% by weight;

2. Cadmium (Cd) – not over 0.01% by weight;

3. Mercury (Hg) – not over 0.1% by weight;

4. Hexavalent chromium (Cr6+) – not over 0.1% by weight;

5. Polybrominated biphenyls (PBBs) – not over 0.1% by weight;

6. Polybrominated diphenyl ethers (PBDEs) – not over 0.1% by weight.

How to Dispose this Product

Carry it to nearest service centre of Xiaomi or call the Toll Free Number: hps://www.mi.com/global/support/contact

Or write to us on service.global@xiaomi.com. Instructions of handling the product during and aer its use and Do’s and Dont’s with respect to

handling the product;

Do’s:

a. Always look for information on the catalogue with your product for end-of-life equipment handling.

b. Ensure that only Authorized Recyclers repair and handle your electronic products.

c. Always call Authorized E-waste Recyclers to Dispose products that have reached end-of life.

d. Always drop your used electronic products, baeries or any accessories when they reach the end of their life at your nearest Authorized

E-Waste CollectionCenter / Collection Point.

e. Wherever possible or as instructed, separate the packaging material according to responsible waste disposal options and sorting for recycling.

Don’ts:

a. Do not dismantle your electronic Products on your own.

b. Do not throw electronics in bins having “Do not Dispose” sign.

c. Do not give e-waste to informal and unorganized sectors like Local Scrap Dealer / Rag Pickers.

Bluetooth

Voice Remote Important Product Information

Simpliﬁed EU Declaration of Conformity

Hereby, Beĳing Xiaomi Electronics Co.,Ltd declares that the radio equipment type Bluetooth Voice Remoteis in compliance with Directive

2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address:

hp://www.mi.com/global/service/support/declaration.html

RF Frequency and Power

This device oﬀers the following frequency bands in EU areas only and maximum radio-frequency power Bluetooth V4.0 ( 2402-2480 MHz) : < 4dBm

For the purpose of recycling to facilitate eﬀective utilization of resources, please return this product to a nearby authorized Collection

Centre, registered Dismantler or Recycler, or Xiaomi Service Centre when disposing of this product.

What the Wheelie Bin symbol means: The symbol says don ’ t dispose your e-waste into the municipal waste collection bins. That ’ s because

these wastes are hazardous in nature and need to be recycled in a special way.

Caution!

Any changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user's authority to operate the

equipment.

Operating temperature range:

Operating temperature: 0°C–40°C;

Storage temperature: -15°C–45°C;

Relative humidity: <80%.

Warning: Do not mix old and new baeries and Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc.) baeries.

E-Waste

Xiaomi products are in conformity with the requirements of the reduction of hazardous substances of the E-waste Rules 2016. The content of

hazardous substance with the exemption of the applications listed in SCHEDULE II of the E-waste Rules:

1. Lead (Pb) – not over 0.1% by weight;

2. Cadmium (Cd) – not over 0.01% by weight;

3. Mercury (Hg) – not over 0.1% by weight;

4. Hexavalent chromium (Cr6+) – not over 0.1% by weight;

5. Polybrominated biphenyls (PBBs) – not over 0.1% by weight;

6. Polybrominated diphenyl ethers (PBDEs) – not over 0.1% by weight.

How to Dispose this Product

Carry it to nearest service centre of Xiaomi or call the Toll Free Number: hps://www.mi.com/global/support/contact

Or write to us on service.global@xiaomi.com. Instructions of handling the product during and aer its use and Do’s and Dont’s with respect to

handling the product;

Do’s:

a. Always look for information on the catalogue with your product for end-of-life equipment handling.

b. Ensure that only Authorized Recyclers repair and handle your electronic products.

c. Always call Authorized E-waste Recyclers to Dispose products that have reached end-of life.

d. Always drop your used electronic products, baeries or any accessories when they reach the end of their life at your nearest Authorized

E-Waste CollectionCenter / Collection Point.

e. Wherever possible or as instructed, separate the packaging material according to responsible waste disposal options and sorting for recycling.

Don’ts:

a. Do not dismantle your electronic Products on your own.

b. Do not throw electronics in bins having “Do not Dispose” sign.

c. Do not give e-waste to informal and unorganized sectors like Local Scrap Dealer / Rag Pickers.

XIAOMI TERMS & POLICIES

THIS LEGAL WARRANTY NOTICE INFORMS YOU ABOUT YOUR RIGHTS UNDER THE LEGAL WARRANTY. FOR A FULL UNDERSTANDING OF

YOUR RIGHTS YOU ARE INVITED TO CONSULT THE LAWS OF YOUR COUNTRY, PROVINCE OR STATE. The duration and conditions related to the

legal warranties are provided by respective local laws. For more information about the consumer warranty beneﬁts, please refer to Xiaomi's

oﬃcial website hps://www.mi.com/en/service/warranty/. If you have purchased the Product directly from Xiaomi. In all other cases, please

consult your seller. There is no guarantee that the operation of the Product will be uninterrupted or error free. Damages arising from

non-compliance with the instructions related to the use of the Product are excluded. If a hardware defect is found within the Warranty period, the

Product will be either (1) repaired, (2) replaced, or (3) refunded, depending on your rights under local laws. Normal wear and tear, force majeure,

abuse or damage caused by the user's negligence or fault are not warranted. The contact person for the aer-sales service may be any person in

Xiaomi's authorized service network, Xiaomi's authorized distributors or the ﬁnal vendor who sold the Products to you.

The present warranty does not apply in Hong Kong and Taiwan.

Products which were not duly imported and/or were not duly manufactured by Xiaomi and/or were not duly acquired from Xiaomi or a Xiaomi’s

oﬃcial seller are not covered by the present warranties. As per applicable law you may beneﬁt from warranties from the non-oﬃcial retailer who

sold the Product. Therefore, Xiaomi invites you to contact the retailer from whom you purchased the Product.

English

Produkspesifikasjoner

Merke:	Xiaomi
Kategori:	USB penn
Modell:	TV Stick 4K
Vekt:	42.8 g
Bredde:	29.4 mm
Dybde:	15.4 mm
Høyde:	106.8 mm
Strømkilde:	USB
Bruksanvisning:	Ja
Bluetooth:	Ja
Intern lagringskapasitet:	8 GB
Wi-Fi:	Ja
Wi-Fi-standarder:	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth-versjon:	5.2
Maksimal videooppløsning:	3840 x 2160 piksler
Internminne:	2000 MB
Prosessorarkitektur:	ARM Cortex-A35
HDMI:	Ja
Fungerer med Google Assistant:	Ja
Bildefrekvens:	60 fps
Støttede bildeformater:	BMP, GIF, JPG, PNG
Støttede lydformater:	AAC, FLAC, MP3
Produktfarge:	Sort
HD-type:	4K Ultra HD
Prosessorkjerner:	4
Operativsystemprogramvare 04:	Android
Støttede videofunksjoner:	2160p
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Ja
Enhetsgrensesnitt:	HDMI
Videokontakter:	Mali-G31 MP2
AC-adapter bunt:	Ja
Videoformat som støttes:	AVI, DAT, ISO, MKV, MOV, MP4, MPEG, MPG, RM
Innebygd lyddekoder:	DTS-HD, Dolby Atmos
Videoapplikasjoner:	Amazon Prime Video, NetFlix, YouTube
Operativsystem, versjon:	11
Talekontroll:	Ja
Antall Micro-USB porter:	1
