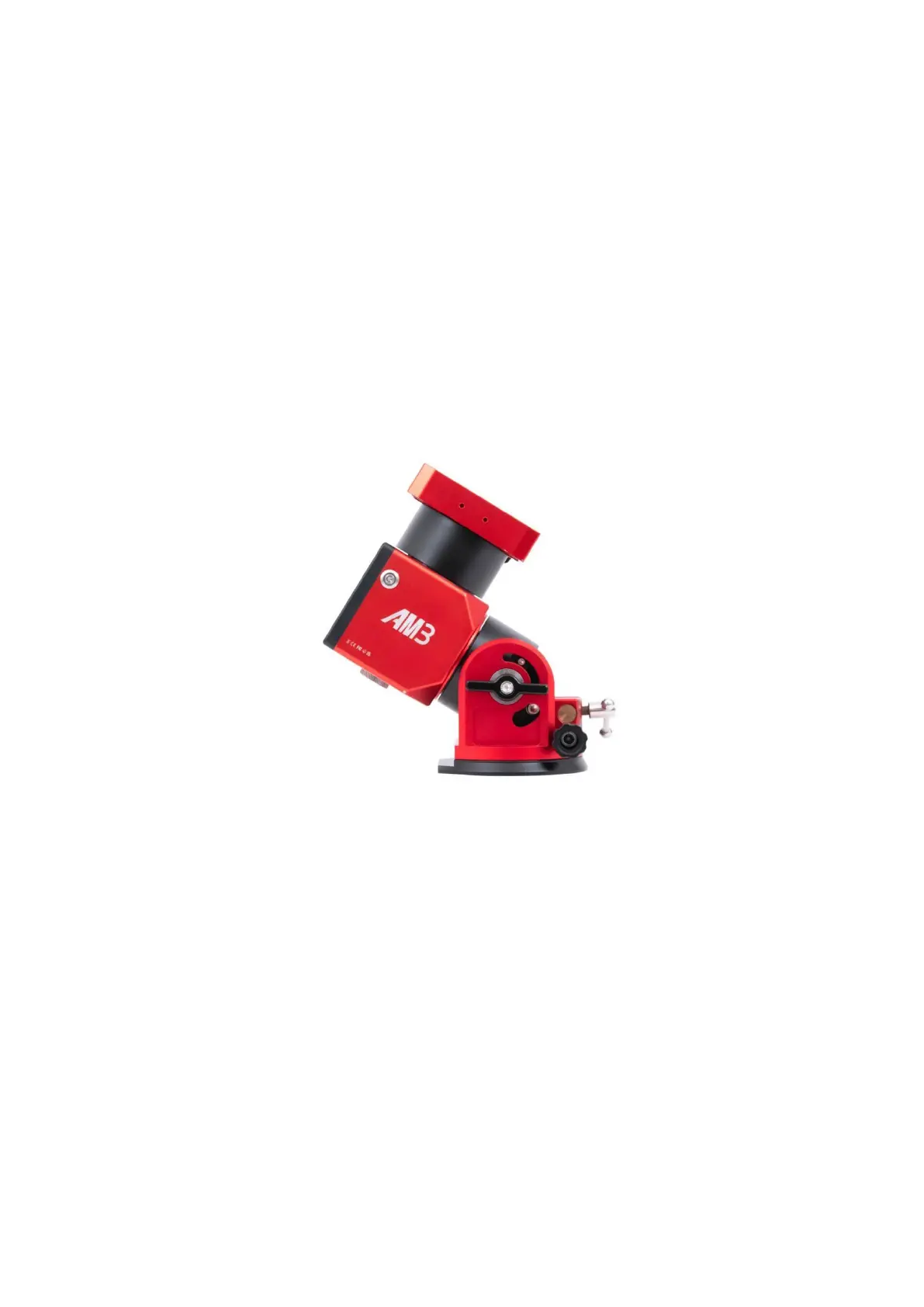

ZWO ASI Mount 3
User Manual
1
Table of Contents
Preface
Tips
Packing List
1. Product Introduction
2. Performance Parameters
3. How to Use
3.1 Introduction to the AM3
3.2 Introduction to the hand controller
3.3 Mounting the AM3
3.3.1 Mount installation
3.3.2 Hand controller connection
3.3.3 ASI Mount App connection
3.3.4 Optional accessory installation
3.3.4.1 Pier extension installation (optional)
3.3.4.2 Counterweight installation (optional)
3.3.4.3 The ASIAIR installation (optional)
3.4 Use of AM3
3.4.1 How to adjust the latitude angle from gear 1 to gear 2
3.4.2 How to adjust the azimuth scale
3.4.3 How to switch from the equatorial mode to the alt-azimuth mode
3.4.4 How to control the mount via PC
3.4.5 How to control the mount via ASI Mount App
3.4.6 How to control the mount via ASIAIR
4 Structural Dimensions
5 After Sales
6 Warranty
2
Preface
Thank you for purchasing the ZWO ASI Mount 3 Strain Wave Gear Mount (AM3
hereafter).
After years of research, ZWO developed strain wave gears to meet the
astrophotography needs of the mount for low periodic error, stable transmission,
and high torque output. Each mount has a specific Periodic Error Test Report that
can guarantee the mount's performance. In addition, the belt drives are adopted in
both axes to achieve 300:1 reduction, which benefits high-precision control. To make
the AM3, ZWO uses updated technology, computer integrated manufacturing
system, and modern industrial design concepts. The AM3 does not unthinkingly
pursue a lightweight design. Still, it focuses more importantly on stability and
durability during use, which brings the AM3 a balance between lightweight design
and stability in use.
Therefore, the AM3, as a strain wave gear German equatorial mount with a
lightweight design and a descent load capacity, can meet the requirements of most
carry-on astrophotography setups.
The purpose of this manual is to introduce the use of the AM3 to users in the form of
text descriptions and illustrations and to remind users of possible improper
operations or dangerous situations. Please make sure to read this manual carefully
before using the AM3 and follow the instructions in this manual carefully. Otherwise,
the user takes responsibility for any equipment damage and personal injury caused
by improper operation. Both software and hardware of the ZWO AM3 strain wave
gear mount are developed and designed with independent intellectual property
rights perfectly compatible with the ASIAIR, ASCOM, and INDI protocols.
