Side 1/6
ADDERLink
™
XD612 and XD614
User Guide
Experts in
Connectivity
Solutions
Extender
Solutions
INSTALLATION
1
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
Welcome ................................................................................................................ 2
CATx Link Cable Recommendations ........................................................3
Multi-display support using MST ..................................................... .................. 4
AdderLink XD612 features ................................................................................6
AdderLink XD614 features ................................................................................7
Technical specications .......................................................................................8
Supplied items ....................................................................................................... 9
Optional extras ................................................................................................... 10
Installation
Locations ..............................................................................................................11
Connections ........................................................................................................11
Transmitter video link(s).............................................................................12
Transmitter audio links ...............................................................................12
Transmitter USB links ..................................................................................13
Transmitter Remote port ...........................................................................13
Transmitter power connection .................................................................14
Linking .............................................................................................................15
CATx link .......................................................................................................15
Fiber optic link ..............................................................................................16
Receiver video display(s) ............................................................................17
EDID management .................................................................................17
Receiver audio devices ................................................................................17
Receiver USB devices ..................................................................................18
Receiver Remote port ................................................................................18
Receiver power connection .......................................................................19
Conguration
Accessing the Dashboard .................................................................................20
Choosing RX video mode (XD614 models only).......................................20
Resetting a module ............................................................................................21
Upgrading Firmware ..........................................................................................21
Operation
Indicators .............................................................................................................22
Further information
Getting assistance ..............................................................................................23
Appendix 1 - Remote port pin-out ..................................................... ...........24
Index
Contents
INSTALLATION
2
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX

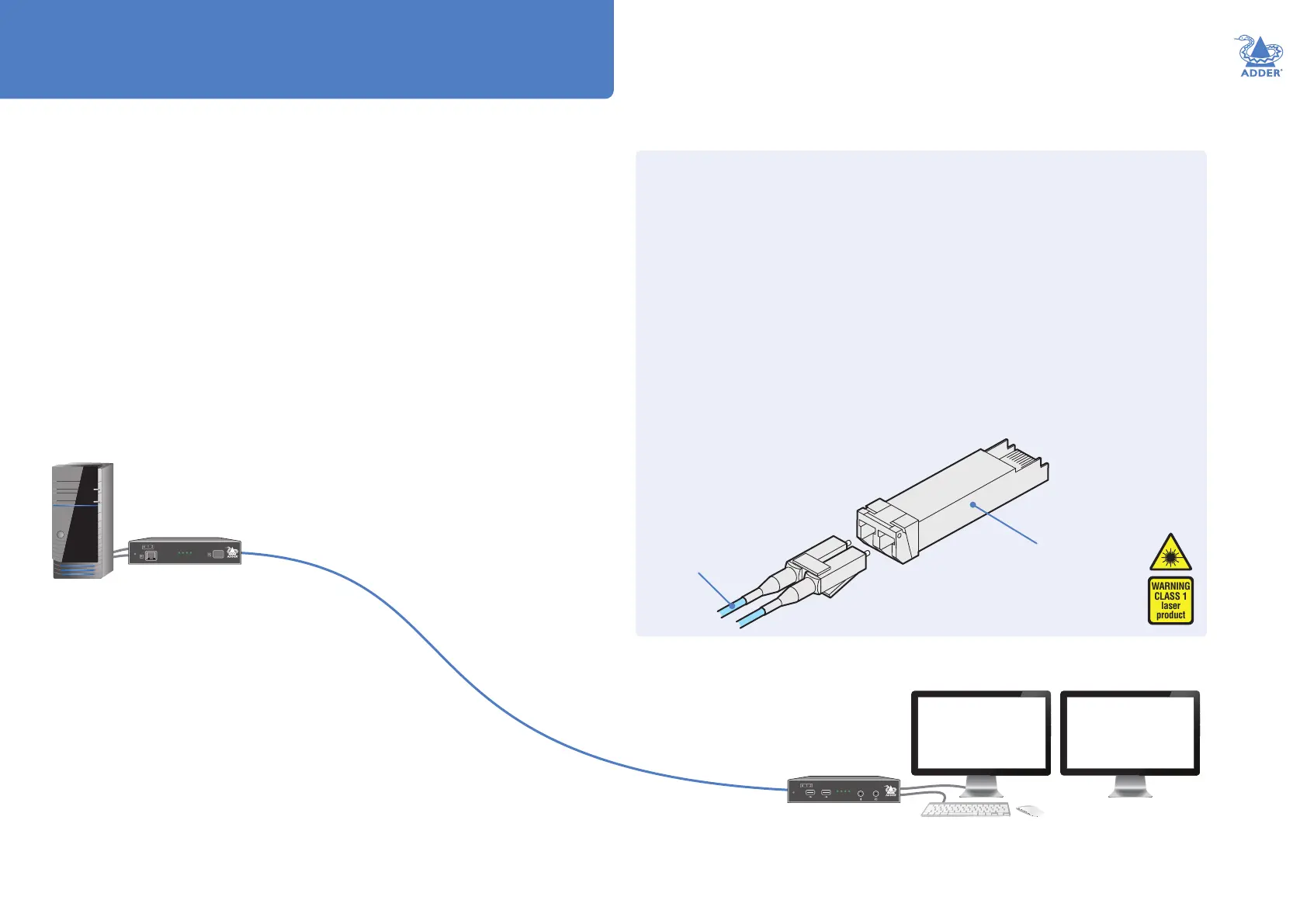

ADDERLink XD
Transmitter
module
ADDERLink XD
Receiver
module
Fiber optic link
(up to 4km)
OR
CATx link
(CAT5e up to 50m)
(CAT6 up to 100m)
ADDERLink
™
XD
612
PWRSTS VIDLNK
RX
RECEIVE
ADDERLink
™
XD
612
PWR
LINK
LINK
A
B
STS VID LNK
TX
TRANSMIT
Introduction
WELCOME
Thank you for choosing the ADDERLink
®
XD612 (dual head) or XD614 (quad head)
extender modules. Using either ber optic or CATx links, these compact modules
allow you to extend KVM connections over long distances from a host computer (see
Transmission distances when using ber on the right).
The high-grade screening employed within the metal cased enclosures, particularly when
combined with the immunity from interference of the ber optic links.
AdderLink XD61x extender modules provide support for:
• High quality single-, dual-, triple- or quad- digital video
• Video resolutions up to 4K 4096 x 2160 @60Hz (XD614 models),
• USB keyboard and mouse plus two other USB devices (up to USB 2.0),
• An RS232 serial device at speeds up to 115200 baud,
• Mono microphone,
• Stereo speakers, digital stereo audio out
• Line-level audio in/out connections.
Transmission distances when using ber
The choice of ber used with the ADDERLink XD61x modules has a considerable effect
on the distance over which operation can take place. Using multi-mode ber you can
achieve distances up to 400m (1,312 feet); whereas, by using single-mode ber (and
accompanying SFP+ modules), the achievable maximum distance is increased to 4km (2.5
miles):
Distance Fibertype Fibercolorcode SFP+module
70m OM1 (TIA-492AAAA) Orange SFP-MM-LC-10G
150m OM2 (TIA-492AAAB) Orange SFP-MM-LC-10G
380m OM3 (TIA-492AAAC) Aqua SFP-MM-LC-10G
400m OM4 (TIA-492AAAC) Aqua SFP-MM-LC-10G
4km OS1 (TIA-492C000) Yellow SFP-SM-LC-10G
OS2 (TIA-492E000) Yellow SFP-SM-LC-10G
The ADDERLink extender modules are
totally transparent in operation, leaving you
free to use your computer as though you’re
still sitting next to it.
SFP+
module
Fiber
color
WARNING
CLASS 1
laser
product
Up to 4 DisplayPort
®
video displays (see page 4)
Four USB devices
One RS232 serial device
Stereo speakers plus microphone
