Side 1/50
ADDERLink
™
XD641 and XD642
User Guide
Experts in
Connectivity
Solutions
Extender
Solutions
INSTALLATION
1
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX
Introduction
Welcome ................................................................................................................ 2
CATx Link Cable Recommendations ........................................................3
AdderLink XD641 features ................................................................................4
AdderLink XD642 features ................................................................................5
Technical specications .......................................................................................6
Supplied items ....................................................................................................... 7
Optional extras .....................................................................................................8
Installation
Locations ................................................................................................................ 9
Connections ..........................................................................................................9
Transmitter video link(s).............................................................................10
Transmitter audio links ...............................................................................10
Transmitter USB links ..................................................................................11
Transmitter Remote port ...........................................................................11
Transmitter power connection .................................................................12
Linking .............................................................................................................13
CATx link .......................................................................................................13
Fiber optic link ..............................................................................................14
Receiver video display(s) ............................................................................15
EDID management .................................................................................15
Receiver audio devices ................................................................................15
Receiver USB devices ..................................................................................16
Receiver Remote port ................................................................................16
Receiver power connection .......................................................................17
Conguration
Accessing the Dashboard .................................................................................18
Choosing the dual head mode (XD642 models only) ...............................18
Resetting a module ............................................................................................19
Upgrading rmware ...........................................................................................19
Operation
Indicators .............................................................................................................20
Further information
Getting assistance ..............................................................................................21
Appendix 1 - Remote port pin-out ..................................................... ...........22
Index
Contents
INSTALLATION
2
CONFIGURATIONOPERATION
FURTHER
INFORMATION
INDEX

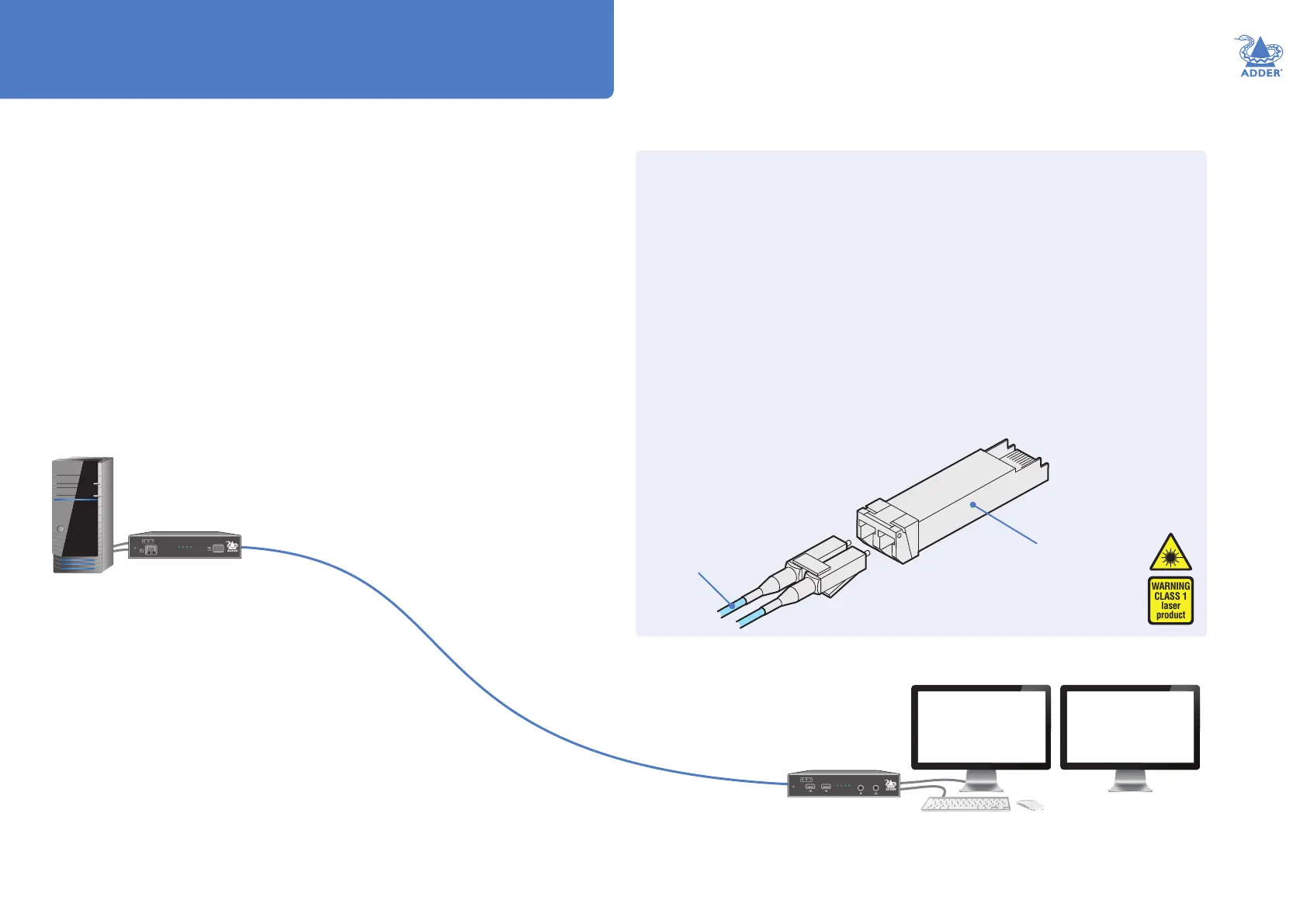

ADDERLink XD
Transmitter
module
ADDERLink XD
Receiver
module
Single or dual (XD642 models) DisplayPort video displays
®
Four USB devices
One RS232 serial device
Stereo speakers plus microphone
Fiber optic link
(up to 4km)
OR
CATx link
(CAT5e up to 50m)
(CAT6 up to 100m)
ADDERLink
™
XD
641
PWRSTS VIDLNK
RX
RECEIVE
ADDERLink
™
XD
641
PWR
LINK
LINK
A
B
STS VID LNK
TX
TRANSMIT
Introduction
WELCOME
Thank you for choosing the ADDERLink
®
XD641 (single head) or XD642 (dual head)
extender modules. Using either ber optic or CATx links, these compact modules
allow you to extend KVM connections over long distances from a host computer (see
Transmission distances when using ber on the right).
The high-grade screening employed within the metal cased enclosures, particularly when
combined with the immunity from interference of the ber optic links.
AdderLink XD64x extender modules provide support for:
• High quality single- or dual- digital video (up to 4K 4096 x 2160 @60Hz),
• USB keyboard and mouse plus two other USB devices (up to USB 2.0),
• An RS232 serial device at speeds up to 115200 baud,
• Mono microphone,
• Stereo speakers,
• Line-level audio in/out connections.
Transmission distances when using ber
The choice of ber used with the ADDERLink XD64x modules has a considerable effect
on the distance over which operation can take place. Using multi-mode ber you can
achieve distances up to 400m (1,312 feet); whereas, by using single-mode ber (and
accompanying SFP+ modules), the achievable maximum distance is increased to 4km (2.5
miles):
Distance Fibertype Fibercolorcode SFP+module
70m OM1 (TIA-492AAAA) Orange SFP-MM-LC-10G
150m OM2 (TIA-492AAAB) Orange SFP-MM-LC-10G
380m OM3 (TIA-492AAAC) Aqua SFP-MM-LC-10G
400m OM4 (TIA-492AAAC) Aqua SFP-MM-LC-10G
4km OS1 (TIA-492C000) Yellow SFP-SM-LC-10G
OS2 (TIA-492E000) Yellow SFP-SM-LC-10G
The ADDERLink extender modules are
totally transparent in operation, leaving you
free to use your computer as though you’re
still sitting next to it.
SFP+
module
Fiber
color
WARNING
CLASS 1
laser
product
Note: Adder supplied SFP+ modules are
recommended. If using alternatives, ensure
that they are 10G SFP+ parts with LC
connectors.
