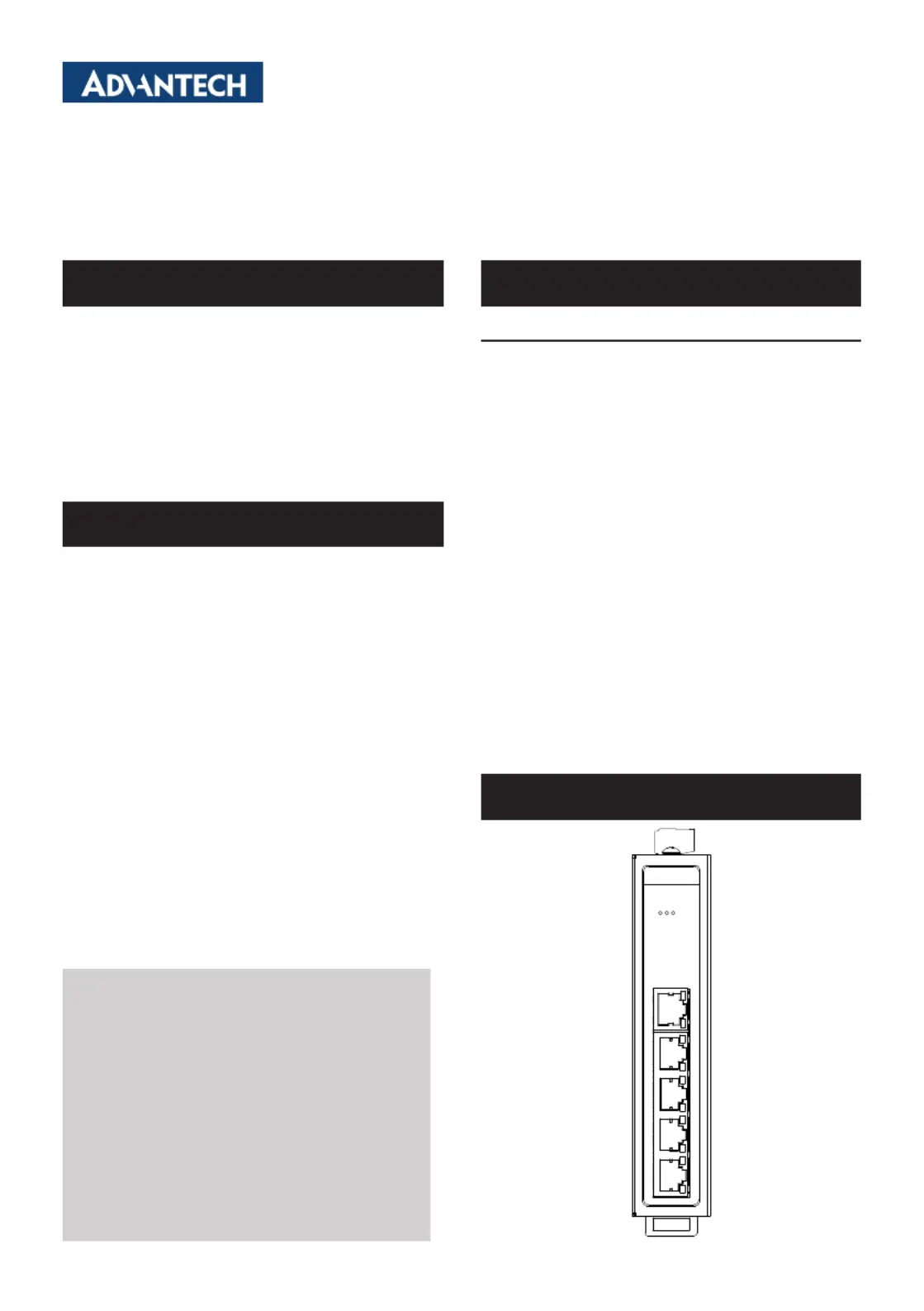

EKI-2725/I Startup Manual 1
Before installation, please make sure that you have re-
ceived the following:
• 1 x EKI-2725/I Industrial Ethernet Switch
• 2 x Wall Mounting Bracket and 8 x Screws M3x5L
• 1 x DIN-rail Bracket and 4 x Screws M3x5L
• 1 x EKI-2725/I Startup Manual
If anything is missing or damaged, contact your distributor
or sales representative immediately.
The EKI-2725 comes equipped with all the standard
unmanaged switch features of the EKI family. Furthermore,
itoersa+12~48V
DC
redundant power input design, and
is secured with a double protection mechanism; Power
polarity Reverse Protect and an Overload Current Fuse;
The former is using for protection against accidental reverse
polarity and the latter is using for protection against exces-
sive currents or current beyond the acceptable current
rating of EKI- 2725. Each port of EKI-2725 has 2 LED’s
to show the link status transmission speed and collision
status. It also provides a relay output for an event alarm. In
the event of a power failure, the built-in LED will activate the
alarm to notify administrators. Engineers can simply verify
the hardware status by checking the LED, which makes
troubleshooting quick and easy.
EKI-2725/I-CE
Industrial Unmanaged Gigabit Ethernet Switch
Startup Manual
General
• Compatibility: IEEE 802.3, 802.3u, 802.3x, 802.3ab
• LAN: 4 x 10/100/1000Base-T(X)
• TransmissionDistance:Ethernet: Up to 100 m
• TransmissionSpeed:Up to 1000Mbps
• Connectors:5 x 10/100/1000Base-T/TX RJ-45 ports
• LEDIndicators:P1, P2, P-Fail
10/100/1000T (X): Link/Activity, Duplex/Collision
• SwitchArchitecture:Store and Forward
• PowerRequirement:12~48V
DC
, redundant dual power
inputs with reverse polarity protection
• PowerConsumption:2.5 Watts
• Dimensions(WxHxD):30 x 140 x 95 mm
• OperatingTemperature:
-EKI-2725:-10~60°C(14~140°F)
-EKI-2725I:-40~75°C(-40~167°F)
• StorageTemperature:-40~85°C(-40°F~185°F)
• OperatingHumidity:10~95%(non-condensing)
• StorageHumidity:10~95%(non-condensing)
• Safety:UL62368
• EMC:CE, FCC
• Warranty:5 years
EKI-2725
P1
P2
P-Fail
5
4
3
2
1
SpecicationsPackingList
For more information about this or other Advantech
products, visit the Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com.tw
This manual is for EKI-2725/I.
Part No. 2002272522 Edition 3
November 2024
Introduction
Overview
2 EKI-2725/I Startup Manual
DIN-railMounting
1. Installing the DIN-Rail Mounting Kit.
2. Removing the DIN-Rail.
WallMounting
1. Attach the brackets included to the switch with screws.
2. With the brackets attached, hang the switch to nails on
the wall.
TheEKI-2725seriesswitchsupportsdual+12~48V
DC
power inputs and changes relay status when power failure
power failure occurs.
1. InsertthepositiveandnegativewiresintotheV+and
V-contactsontheterminalblockconnector.
2. Tighten the wire-clamps screws to prevent the DC wires
coming loose.
Warning: This product is intended to be supplied by an
ULcertiedpowersupplyordcsourcesuitable
foruseatminimumTma75°Cwhoseoutput
meetsSELVorES1andisrated12-48Vdc,1.5A
min., if need further assistance, please contact
Advantech for further information.
Warning: Ensure that the voltage of the power source is
correct before connecting the equipment to a
power outlet. The power outlet socket should
have grounded connection.
Warning: Never open the equipment. For safety reasons,
the equipment should be opened only by quali-
edskilledperson.
Avertissement: Ce produit est destiné à être alimenté par
une alimentation certiée UL ou une source de
courant continu adaptée à une utilisation à au
moins Tma 75 °C dont la sortie satisfait les con-
ditions SELV ou ES1 et est évaluée à 12-48Vdc,
1.5A min-imum. Si vous avez besoin d’une aide
supplémentaire, veuillez contacter Advantech
pour plus d’informations.
Avertissement: Assurez-vous que la tension de la source
d’alimentation est correcte avant de connecter
l’équipement à une prise de courant. La prise de
courant doit avoir une prise de terre.
Avertissement: N’ouvrez jamais l’équipement. Pour des
Raisons de sécurité, l’équipement ne doit être
ouvert que par une personne qualiée.
PowerConnection
Mounting
