Side 1/3

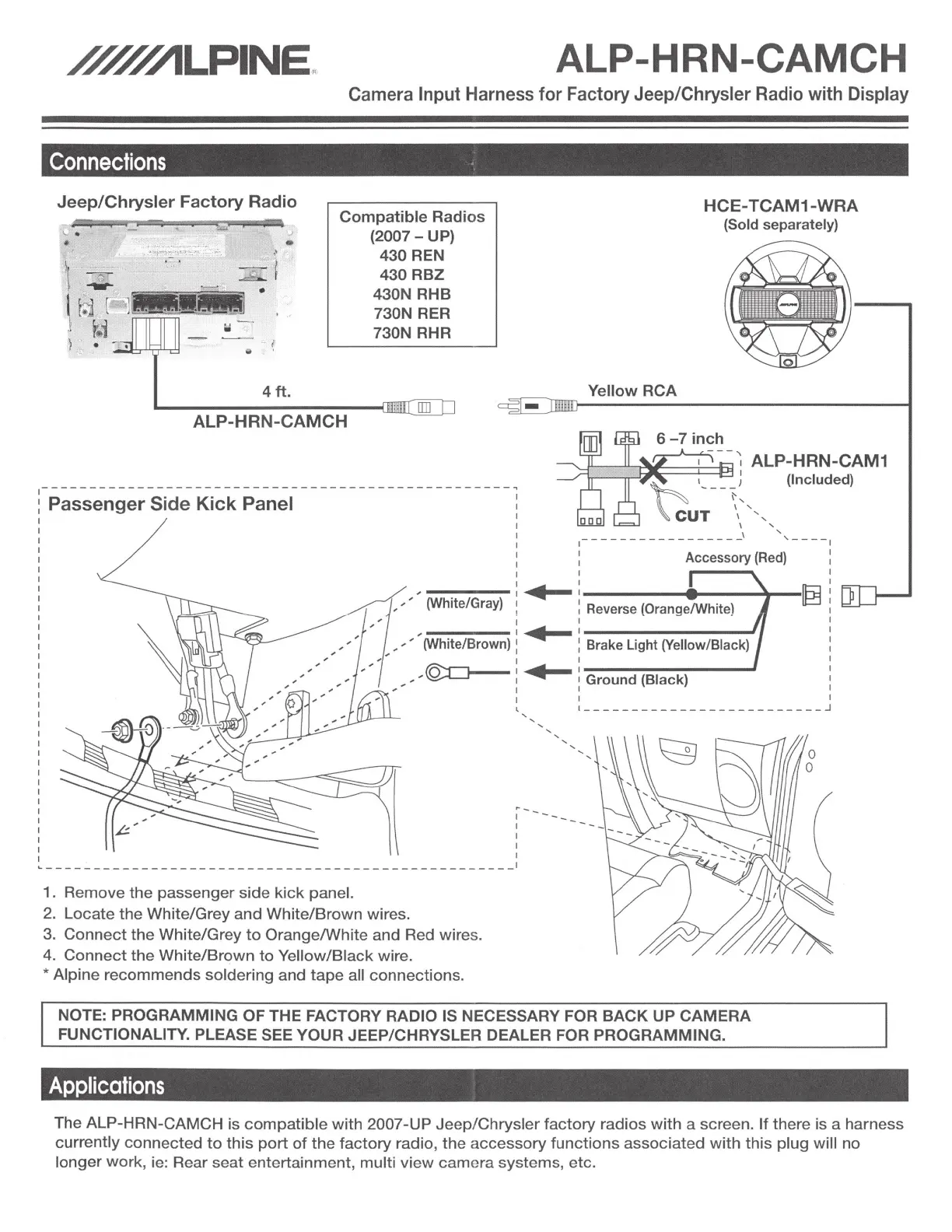

##DILPINE
"
ALP-HRN-CAMCH
Camera Input Harness
for
Factory Jeep/Chrysler Radio with Display
Connections
Jeep/Chrysler Factory Radio
J
•
4ft.
Compatible
Radios
(2007-
UP)
430
REN
430
RBZ
430N RHB
730N RER
730N RHR
ALP-HRN-CAMCH
Passenger Side
Kick
Panel
I
I
I
I
I
-------------------------------------------------1
1 . Remove
the
passenger
side
kick
panel.
2.
Locate
the
White/Grey
and
White/Brown
wires.
3.
Connect
the
White/Grey
to
Orange/White and Red wires.
4.
Connect
the
White/Brown
to
Yellow/Black wire.
* Alpine
recommends
soldering
and
tape
all connections.
'
'
'
'
'
'
'
'
Yellow
RCA
HCE-TCAM1-WRA
(Sold separately)
ALP-HRN-CAM1
(Included)
Accessory
(Red)
Brake
Light
(Yellow/Black)
Ground
(Black)
NOTE: PROGRAMMING
OF
THE FACTORY RADIO IS NECESSARY FOR
BACK
UP
CAMERA
FUNCTIONALITY. PLEASE SEE YOUR JEEP/CHRYSLER DEALER FOR
PROGRAMMING.
Applications
The ALP-HRN-CAMCH is
compatible
with
2007-UP
Jeep/Chrysler
factory
radios
with
a screen.
If
there is a harness
currently
connected
to
this
port
of
the
factory
radio,
the
accessory
functions
associated
with
this
plug
will
no
longer
work, ie: Rear
seat
entertainment, multi
view
camera
systems, etc.
