Side 1/24
USER MANUAL
ANACONDA-MICRO
THERMAL IMAGING CLIP-ON SYSTEM
© 2019 AGM Global Vision. All rights reserved worldwide.
This documentation is subject to change without notice.
No parts of this manual, in whole or in part, may be copied, photocopied, translated,
or transmitted by any electronic medium or in machine-readable form without the
prior written permission of AGM Global Vision.
If you have questions that are not covered in this manual, or need service, contact
AGM Global Vision customer support for additional information prior to returning a
product.
AGM Global Vision
173 West Main Street
PO Box 962
Springerville, AZ 85938
Tel. 928.333.4300
Fax 480.393.4882
support@agmglobalvision.com
www.agmglobalvision.com
EXPORT INFORMATION
Buyer acknowledges that all products supplied by AGM Global Vision are subject to U.S.
export control laws, including, but not limited to, the Export Administration Regulations, the
International Economic Emergency Powers Act, and various U.S. embargoes and sanctions.
AGM Global Vision products may not be exported, re-exported, or transferred contrary to U.S.
export control laws. In particular, AGM Global Vision products may not be exported, re-export-
ed, or transferred to prohibited countries, individuals, organizations, or entities, including but
not limited to those individuals and entities listed on the List of Specially Designated Nationals
and Blocked Persons administered or maintained by the U.S. Office of Foreign Assets Control
(“OFAC”), the various lists maintained by the Bureau of Industry and Security of the Department
of Commerce, and the U.S. State Department and Buyer represents and warrants that neither
Buyer nor any of its officers, directors, or employees are on such lists. Distribution or resale by
Buyer to such countries, individuals, organizations, or entities is expressly prohibited. Buyer
has and will maintain a positive process to ensure compliance with this Section.
2019.09.13
3
Anaconda-Micro USER MANUAL
LIST OF CONTENTS
TITLE PAGE
Safety Summary 4
1. GENERAL INFORMATION 6
1.1 System Description 6
1.2 Mai n Feat ure s 6
1.3 Main Parts and Components 7
2. OPERATING INSTRUCTIONS 8
2.1 Installation and Mounting 8
2.2 Controls and Indication 11
2.3 Operating 17
3. WARRANTY INFORMATION 20
3.1 Warranty Information and Registration 20
4. SPECIFICATIONS 22
4.1 Sp ecifications 22
4 AGM Global Vision
SAFETY SUMMARY
• Read and follow all instructions
• Read all warnings
• Only use the attachments/ accessories specified by the manufacturer
• All service must be provided by the manufacturer
WARNING:
The proper usage of the device is important for safe exploitation!
Therefore read carefully the present manual!
WARNING:
If the device was left in storage for a longer period of time, before exploitation check
its functionality.
WARNING:
Disassembling of the device is prohibited, except in authorized repair centers.
WARNING:
The external optical surfaces should be clean at all times. Touching the optical
surfaces with bare hands is not recommended.
WARNING:
Sand and sea water can damage the optical coatings!
WARNING:
Do not point the device directly at the sun!
WARNING:
Image performance is dependent on scenery and atmosphere conditions. Contrast in
the same image may vary as a function of the time of day due to the effect of the sun.
For example, at sunset objects will have absorbed different levels of heat resulting in
greater temperature differences and better contrast.
WARNING:
When left in storage for a longer period of time, batteries have to be removed and
stored in polyethylene bags to prevent contact with metal.
(It is recommended to recharge the batteries every two to three months.)
WARNING:
When carrying or transporting the device, put the protective lens cap!
5
Anaconda-Micro USER MANUAL
WARNINGS:
Condensation can cause fogging of the optical surfaces! Condensation occurs when
the temperature or humidity changes as follows:
– When moving the device from cold to warm place or vice versa;
– In places with high humidity.
When equalizing the temperature of the device with the environmental, the condensa-
tion disappears. Use the towel to remove moisture.
WARNING:
Clean the lens surfaces with the Lens Cloth or with the napkin!
LEGAL NOTICE
Before attaching to weapons, check the regional legal regulations in the area of ap-
plication. The attachment to a weapon is always the sole responsibility of the user.
6 AGM Global Vision
1 GENERAL INFORMATION
1.1 SYSTEM DESCRIPTION
The AGM Anaconda-Micro TC50 is a compact thermal imaging clip-on system that
allows quick transformation of the day optics into thermal imaging device without any
special skills. Anaconda-Micro TC50 can be easily attaching on up to 8x magnification
scopes for medium range use.
Powered with two CR123 batteries the AGM Anaconda-Micro gives up to 5 hours of
continues work. An external 5 V power bank ( battery pack) can be easily connected via
an USB connector for a significant increase of operating time.
1.2 MAIN FEATURES
• Quick conversion of daytime optics into thermal imaging scope
• Mounts in front of any daytime scope, no re-zeroing is required
• Electronic accuracy correction
• Lightweight and compact design
• Easy to operate control panel
• Automatic or manual (silent) calibration
• High resolution OLED display
• Waterproof, shockproof
• Powered by two standard CR123A batteries
• External power supply capability
1.3 MAIN PARTS AND COMPONENTS
The Anaconda-Micro TC50 is shown in Figure 1-1. The ITEM column of Table 1-1 indi-
cates the number used to identify items in Figure 1-1.
7
Anaconda-Micro USER MANUAL
TABLE 1-1. ANACONDA-MICRO MAIN PARTS AND COMPONENTS
ITEM DESCRIPTION ITEM DESCRIPTION
1 Lens cover 10 Lens tissue
2 Objective focus ring 11 User manual
3 Operation joystick 12 Carrying bag
4 Attachment place
13
Small day scope adapter
42-50 mm (optional)
5 Extension interface
6 Battery compartment cover
14
Middle day scope adapter
51-59 mm (optional)
7
USB / Video connector (closed
with a cover)
15
Large day scope adapter
60-65 mm (optional)
8 USB cable
9 Video cable 16 Detachable eyepiece (optional)
5
6 7
1
8
9
11
10
12 16
13 (14, 15)
2 3
4
FIGURE 1-1. ANACONDA-MICRO TC50 MAIN PARTS AND COMPONENTS
USER MANUAL
8 AGM Global Vision
2 OPERATING INSTRUCTIONS
2.1 INSTALLATION AND MOUNTING
2.1.1 UNPACKING
The following steps must be completed prior to each mission.
1. Open the carrying bag, remove the device, and verify that all components are ac-
counted for.
2. Inspect the device for any obvious evidence of damage to the optical surfaces, body,
operation button, etc. Ensure that all optical surfaces are clean and ready for use.
Clean all optical surfaces with a lens tissue.
2.1.2 BAT TERIES INSTALLATION
Turn the battery cover knob clockwise until stop and remove the cover from battery
compartment (see the Figure 2-1, OPEN position). Install two CR123A batteries in op-
posite polarity direction (Figure 2-2).
OPEN
Pull
CLOSE
Press

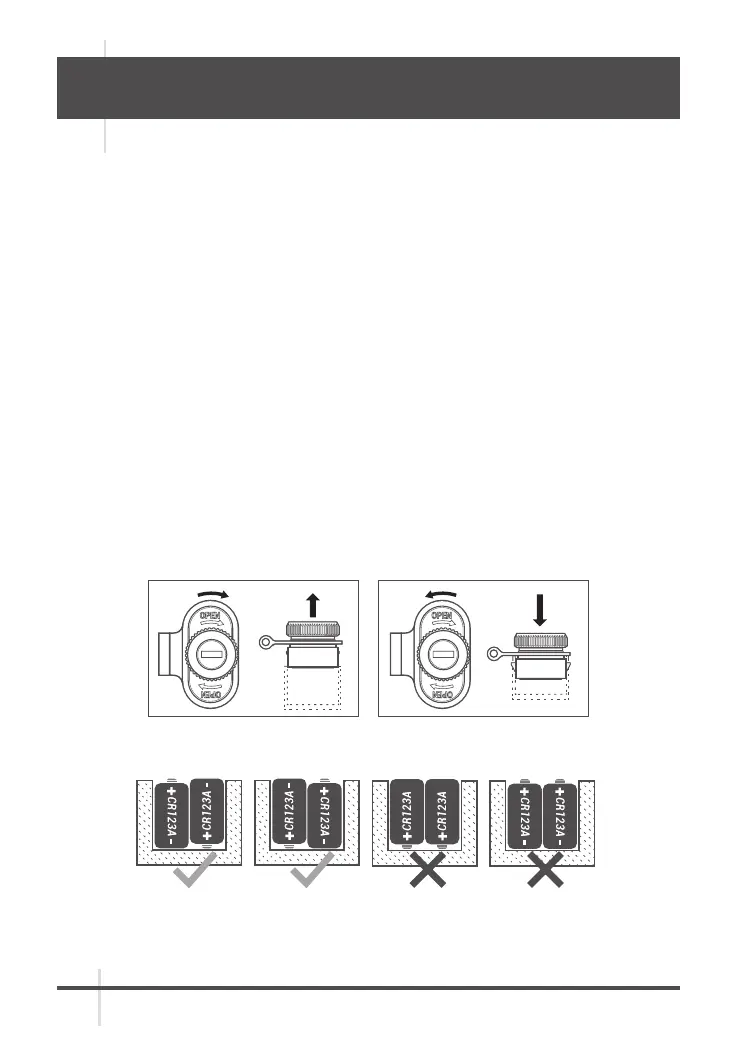

FIGURE 2-1. BATTERY COMPARTMENT
FIGURE 2-2. BATTERY POLARITY
9
Anaconda-Micro USER MANUAL
Turn the battery cover knob counterclockwise until stop. The latches from both sides of
the cover will pull out. Replace the battery cover and press it until its clicking position.
(see the Figure 2-1, CLOSE position). Make sure the cover is closed on both sides.
Battery charge level is displayed on the status bar (Figure 2-3)
WARNING:
Do not use rechargeable batteries since their use causes inaccurate battery level
indication and possible disconnection during operation.
NOTE:
Please do not use batteries of different types or batteries with various charge levels.
2.1.3 CLIP-ON INSTALLATION
Use the optional day scope adapter (DSA) to install the Anaconda-Micro onto day
scope lenses.
ATTENTION:
The day scope adapter are not recommended for installing the Anaconda-Micro on
firearms with dynamic recoil (0.308 Win or stronger).
NOTE:
The adapters differ in attaching diameters and must fit with the day scope front lens
diameter. There are three models of adapter: Small, Medium, and Large.
Small adaptor fits objective lenses between 42-50 mm in diameter.
Medium adaptor fits objective lenses between 51-59 mm in diameter.
Large adaptor fits objective lenses between 60-65 mm in diameter.
Install the Anaconda-Micro on the lens of a day scope as follows (refer to Figure 2-4):
1. Screw the day scope adapter (A) onto the Anaconda’s attachment place thread (B).
2. Turn the lever (C) backwards to loosen the adapter clamping device.
3. Slide the Anaconda-Micro with the DSA onto the lens of the day scope as far as it
goes.
4. Turn the nut (D) CW/CCW respectively for adapter’s size adjustment.
5. Affix the DSA to the day scope by locking the lever (C). Verify that the clip-on is firmly
secured to the day scope. If necessary, readjust the clamping device by turning the nut
(D).
FIGURE 2-3. BATTERY STATUS BAR
11
Anaconda-Micro USER MANUAL
2.1.6 INSTALLATION OF THE INTERCHANGEABLE OCULAR (OPTIONAL)
The interchangeable ocular converts the Anaconda-Micro into a 2.6x thermal imaging
monocular for middle range observation.
To install the ocular to the Anaconda-Micro, do the following:
1. Take off the day scope adapter if it installed.
2. Screw the ocular part onto the Anaconda’s attachment place thread.
3. Turn on the device and adjust the focus by rotation the diopter adjusment ring of
ocular.
2.2 CONTROLS AND INDICATION
2.2.1 CONTROLS
ATTENTION:
The main operations are performed through the operation joystick.
The Anaconda-Micro TC50 controls are shown in Figure 2-8. The ITEM column of Table
2-1 indicates the number used to identify items in Figure 2-8.

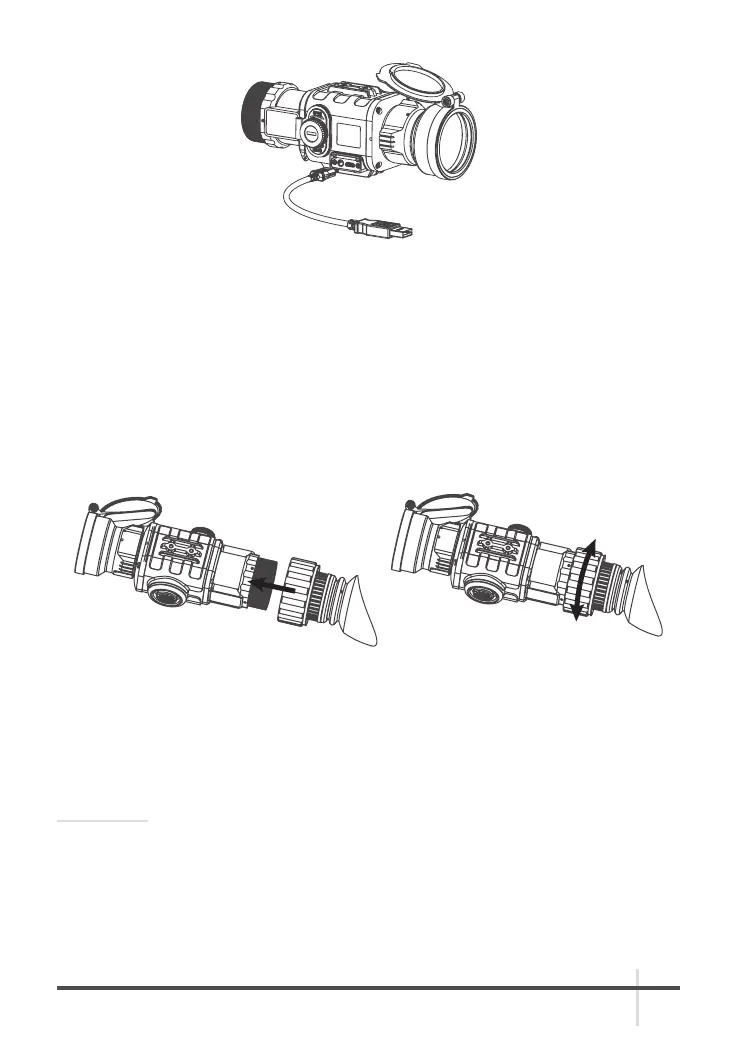

FIGURE 2-6. EXTERNAL BATTERY CONNECTION
FIGURE 2-7. TRANSFORM TO MONOCULAR
12 AGM Global Vision
TABLE 2-1. CONTROLS
ITEMS CONTROLS OPERATING MODE SHORT PRESS LONG PRESS
1
Joystick
Button
Push
Real time image NUC
ON / OFFQuick menu EXIT quick Menu
Main menu Confirm selection
Joystick
Up
Real time image Bring out quick menu
Enter main menuQuick menu Change parameters
Main menu Change parameters
Joystick
Down
Real time image Bring out quick menu
NAQuick menu Change parameters
Main menu Change parameters
Joystick
Left
Real time image Bring out quick menu
NAQuick menu Switch function
Main menu Select Setting Options
Joystick
Right
Real time image Bring out quick menu
NAQuick menu Switch function
Main menu Select Setting Options
2
Focus Ring Focuses the objective lens for the sharpest image
In real time image mode press any button to enter Quick Menu.
ATTENTION:
Turn off the device after usage, otherwise you can permanently damage the batteries!
1
2
FIGURE 2-8. CONTROLS
13
Anaconda-Micro USER MANUAL
2.2.2 STATUS BAR
The status bar is located in the lower part of the display (Figure 2-8) and shows infor-
mation about an actual operating status of the sight, including:
1. Color palette: WH (White Hot), BH (Black Hot), C1~C10.
2. Current digital zoom magnification.
3. Battery charge with current level in percent.
2.2.3 QUICK MENU
The Quick Menu allows change of basic settings. Enter the Quick menu with a short
press of any button in Up/Down/Left/Right. To toggle between the functions below,
press Left or Right button when Quick menu is in display. If select of Zoom, Palette,
Brightness, Contrast, Sharpness functions do not take place in 5 second, the informa-
tion disappear from display.
ZOOM
Press the Up/Down buttons to change digital zoom from 1X, 2X, 4X, and PIP.
Picture in inset window under PIP mode is 2X digital zoom.
PALETTE
Basic image mode is “White Hot”. Press the Up/Down buttons to select palette
C1~C10.
BRIGHTNESS
Press the Up/Down buttons to change image brightness from 0~9.
CONTRAST
Press the Up/Down buttons to change display contrast from 0~9.
SHARPNESS
Select one of the sharpness aside with a short press of Up / Down.
MANUAL(SILENT) CALIBRATION
Close the Lens Cover before calibration.
1 2 3
FIGURE 2-8. STATUS BAR
14 AGM Global Vision
RANGEFINDER
Anaconda-Micro TC50 imagers are equipped with a stadiametric rangefinder
which allows the user to estimate approximate distance to an object of known
size.
You will see on the display: measurement bars, icons of three reference objects and
respective distances for the three objects.
There are three pre-set reference objects:
Hare - height 0.3 m
Wild boar - height 0.7 m
Deer - height 1.7 m
The lower fixed bar under the object automatically appear on display, press the Up/
Down buttons to move the upper horizontal bar until the object fits entirely between
the two lines. The distance to the object is automatically recalculated as you move the
upper line.
Press Left/Right buttons to choose reference object, press Middle button to exit range-
finder mode, range information will not disappear from display automatically.
Distance to the object displays in status bar.
To select the unit of measurement (meters or yards), go to the respective menu option.

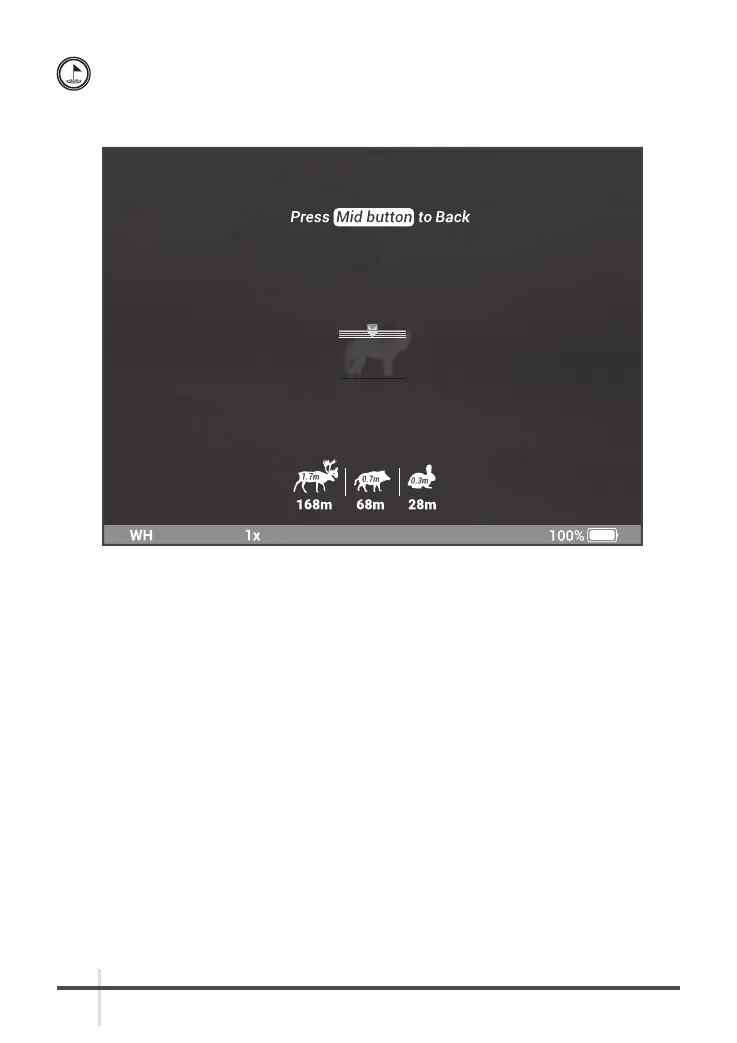

FIGURE 2-9. RANGEFINDER
15
Anaconda-Micro USER MANUAL
2.2.4 MAIN MENU
NOTE
Enter the main menu with a long press of the Up button. Press the Left/Right buttons
to select between the main menu options.
All menu is displayed in the central area of the image. The reason is the reduced field of
view of the day sight by higher magnifications. Reaching a low battery state the device
gives a warning in the top left corner of the central area.
EXIT
Press the Up/Down button to Exit, the Main Menu will not disappear
automatically.
MODE
Press Up/Down to change your thermal imager to Clip-On mode (C = Clip-On;
M = Monocular).
NOTE
It is recommended to use up to 3x magnification of the primary optical unit in order to
keep the menu and all submenus visible in clip-on mode.
AUTO NUC
Press the Up/Down button to turn Automatic Non-uniformity Calibration On/
Off. In the automatic mode the need for calibration is based on software algo-
rithm, calibration starts automatically. When choose Off, user will do calibration
manually by either lens cover(silent without shutter) or press middle button(with
shutter). Manual calibration function is in Quick Menu.
16 AGM Global Vision
OLED BRIGHTNESS
Press the Up / Down buttons to change OLED brightness from -2, -1, 0, 1, 2.
UNIT
Press Up/Down to select units of measurement from Yards and Meters.
DEFECTIVE PIXEL REPAIR
Press Up/Down buttons then close lens cover to repair defective pixel. Defective
pixels are found by software algorithm.
INFO
This option allows the user to view the following information about the imager.
17
Anaconda-Micro USER MANUAL
RESTORE DEFAULT SETTING
Press Up/Down buttons to Restore Default Setting, there will be no further in-
dication. The following settings will be restored to their original values before
changes made by user:
- Zoom
- Image Brightness
- Contrast
- Sharpness
- OLED Brightness
ALIGNMENT
All Anaconda-Micro are adjusted on the laboratory test equipment with ac-
curacy from 0.1 mrad to 0.3 mrad. The final accuracy depends on customer
riflescope, parallax of used rifle scope and shooting distance. Anaconda-Micro
TC50 is preset on 500 m distance.
Customer who would like to use device on the shorter distance could recognize
deviation and eliminate it by software correction.
The manufacturing process of the Anaconda-Micro TC50 ensures the shooting
precision tolerance within 3 to 7 cm at 100 m. To achieve better result accuracy,
use Alignment Correction in main menu (See part 2.3.3 for more detailed).
LANGUAGE
This option allows the user to select the interface language.
2.3 OPERATING
2.3.1 TURNING THE DEVICE ON
Open the objective lens cover.
NOTE
The objective lens cover protects the scope from inadvertent exposure to extremely
high levels of radiant flux. Never leave the scope without confirming that the objective
lens is covered.
To turn the unit on push and hold the operation joystick.
18 AGM Global Vision
2.3.2 FOCUSING
Anaconda-Micro TC50 has the ability to focus over either long or short-range distanc-
es. Rotate the front lens to focus it until the image becomes clear and sharp.
2.3.3 ELECTRONIC ACCURACY CORRECTION
Adjust the electronic accuracy correction as follows:
1. Aiming your daytime scope to the middle of target and shoot. This is test process of
control good daytime scope accuracy.
2. Put Anaconda-Micro TC50 on the rifle scope using adapter. Aim to the thermal target
and shoot again.
3. Measure horizontal distance (x) and vertical distance (y) between shoot and aiming
position from step 2).
4. Long press up button to enter main menu. Short press up button to enter Alignment
sub-menu.
5. By pressing Left or Right button to move between X, Y, and EXIT. By pressing Up
button to change positive value (X+, Y+), by pressing Down button to change negative
value (X-, Y-).
Anaconda-Micro TC50 is preset in position X:0, Y:0.
When the point of impact with Anaconda-Micro TC50 is on the Right side of pre-
vious point of impact (previous aiming position), change value X (X- => pressing
button Down), decrease X value, and vice versa.
When the point of impact with Anaconda-Micro TC50 is on the Upside of previous
point of impact (previous aiming position), change value Y (Y- => pressing button
Down), decrease Y value, and vice versa.
While using the Alignment Correction is shown value of axis X and Y, one step for
camera Anaconda-Micro TC50 means 1.16 MOA = 3.4 cm on 100 m.
While using the Alignment Correction is shown value of axis X and Y, one step for
camera.
19
Anaconda-Micro USER MANUAL
6. The setting is saved by pressing EXIT button Up or Down
7. Control if the value is save correctly.
2.3.4 SHUT DOWN OPERATIONS
To prepare the device for storage:
1. Turn the device OFF. Push and hold the operation joystick.
2. Place the protective cover over the objective lens.
3. Disconnect the cable or adapters (if applicable). Place the protective caps over the
connector sockets.
4. Return the scope and any accessories to the case.
2.3.5 MAINTENANCE
1. Gently brush off any dirt from the body of the device using a clean, soft cloth.
2. Moisten the cloth with fresh water and gently wipe down the external surfaces (ex-
cept lenses).
3. Dry any wet surfaces (except lenses) using another dry, clean, soft cloth.
4. Using a lens brush, carefully remove all loose dirt from the lenses.
5. Dampen a cotton swab with ethanol and slowly, gently wipe down the lenses. Clean
the glass surfaces using circular movements, starting from the center of the lens and
moving out towards the edge, without touching the lens holder. Change the cotton
swab after each circular stroke. Repeat this step until the glass surfaces are clean.
2.3.6 PREPARING FOR EXTENDED STORAGE
To prepare the Anaconda-Micro TC50 for extended storage:
1. Remove the batteries.
2. Clean the device and accessories.
3. Place all items into the storage case.
20 AGM Global Vision
3 WARRANTY INFORMATION
3.1 WARRANTY INFORMATION AND REGISTRATION
3.1.1 WARRANTY INFORMATION
This product is guaranteed to be free from manufacturing defects in material and work-
manship under normal use for a period of three (3) years from the date of purchase. In the
event that a defect covered by the warranty below occurs during the applicable period stated
above, AGM Global Vision, at its discretion, will either repair or replace the product; such ac-
tion on the part of AGM Global Vision shall be the full extent of AGM Global Vision’s liability,
and the Customer’s sole and exclusive reparation. This warranty does not cover a product
if it has been (a) used in ways other than its normal and customary manner; (b) subjected to
misuse; (c) subjected to alterations, modifications or repairs by the Customer or by any party
other than AGM Global Vision without prior written consent of AGM Global Vision; (d) is the
result of a special order or categorized as “close-out” merchandise or merchandise sold “as-
is” by either AGM Global Vision or the AGM Global Vision dealer; or (e) merchandise that has
been discontinued by the manufacturer and either parts or replacement units are not avail-
able due to reasons beyond the control of AGM Global Vision. AGM Global Vision shall not be
responsible for any defects or damage that in AGM Global Vision’s view are a result from the
mishandling, abuse, misuse, improper storage or improper operation of the device, including
use in conjunction with equipment that is electrically or mechanically incompatible with, or
of inferior quality to, the product, as well as failure to maintain the environmental conditions
specified by the manufacturer. This warranty is extended only to the original purchaser. Any
breach of this warranty shall be enforced unless the customer notifies AGM Global Vision at
the address noted below within the applicable warranty period.
The customer understands and agrees that except for the foregoing warranty, no other
warranties written or oral, statutory, expressed or implied, including any implied warranty
of merchantability or fitness for a particular purpose, shall apply to the product. All such
implied warranties are hereby and expressly disclaimed.
3.1.2 LIMITATION OF LIABILITY
AGM Global Vision will not be liable for any claims, actions, suits, proceedings, costs, ex-
penses, damages, or liabilities arising out of the use of this product. Operation and use of the
product are the sole responsibility of the Customer. AGM Global Vision’s sole undertaking is
limited to providing the products and services outlined herein in accordance with the terms
and conditions of this Agreement. The provision of products sold and services performed by
AGM Global Vision to the Customer shall not be interpreted, construed, or regarded, either
expressly or implied, as being for the benefit of or creating any obligation toward any third
party of legal entity outside AGM Global Vision and the Customer; AGM Global Vision’s ob-
ligations under this Agreement extend solely to the Customer. AGM Global Vision’s liability

Produkspesifikasjoner

Merke: AGM
Kategori: Ikke kategorisert
Modell: Anaconda TC50-640

Trenger du hjelp?

Hvis du trenger hjelp med AGM Anaconda TC50-640 still et spørsmål nedenfor, og andre brukere vil svare deg


Ikke kategorisert AGM Manualer

AGM

AGM Rattler TC35-640 Bruksanvisning

15 Januar 2025
AGM

AGM Wolf-7 Pro Bruksanvisning

15 Januar 2025
AGM

AGM Anaconda TC50-640 Bruksanvisning

15 Januar 2025
AGM

AGM Secutor Pro TS50-640 Bruksanvisning

15 Januar 2025
AGM

AGM Sioux850 Bruksanvisning

15 Januar 2025

Ikke kategorisert Manualer

Nyeste Ikke kategorisert Manualer

Rowenta

Rowenta Air Force Extreme RH8771 Bruksanvisning

14 August 2025
Rowenta

Rowenta Brush Activ CF9528 Bruksanvisning

14 August 2025
Rowenta

Rowenta X-Pert 6.60 RH6848 Bruksanvisning

14 August 2025
Rowenta

Rowenta Imagin' Structure CF3010 Bruksanvisning

14 August 2025
Milwaukee

Milwaukee HAMMERVAC M18 M28 49-90-2342 Bruksanvisning

14 August 2025
Rowenta

Rowenta Vitality DH3020 Bruksanvisning

14 August 2025
Rowenta

Rowenta Brunch CT202 Bruksanvisning

14 August 2025
Rowenta

Rowenta Comfort GC3014 Bruksanvisning

14 August 2025
Nabo

Nabo Foldable Bruksanvisning

14 August 2025
Rowenta

Rowenta SteamPod LP7200 Bruksanvisning

14 August 2025
