Free Standing
The console is supplied ready for free standing operation with its side trims fitted and connector pod positioned for rear
access. If you are converting from rack to free standing then make sure the pod is correctly rotated and secured, and the
side trims fitted as shown:
19” Rack Mount
For rack mounting, remove the two side trims and rotate the pod into the connector position preferred. Allow enough
space for the cables and connectors behind the console.
Do not transport the console with its connector pod securing screws removed. Do not attempt to remove the
connector pod from the console. Do not obstruct the ventilation slots. Allow adequate space around the
console for air flow. If the side trims are to be removed, do not refit their fixing screws to the unit. Retain and
store these in case the trims need to be refitted in the future.
ALLEN&HEATH MixWizard WZ
3

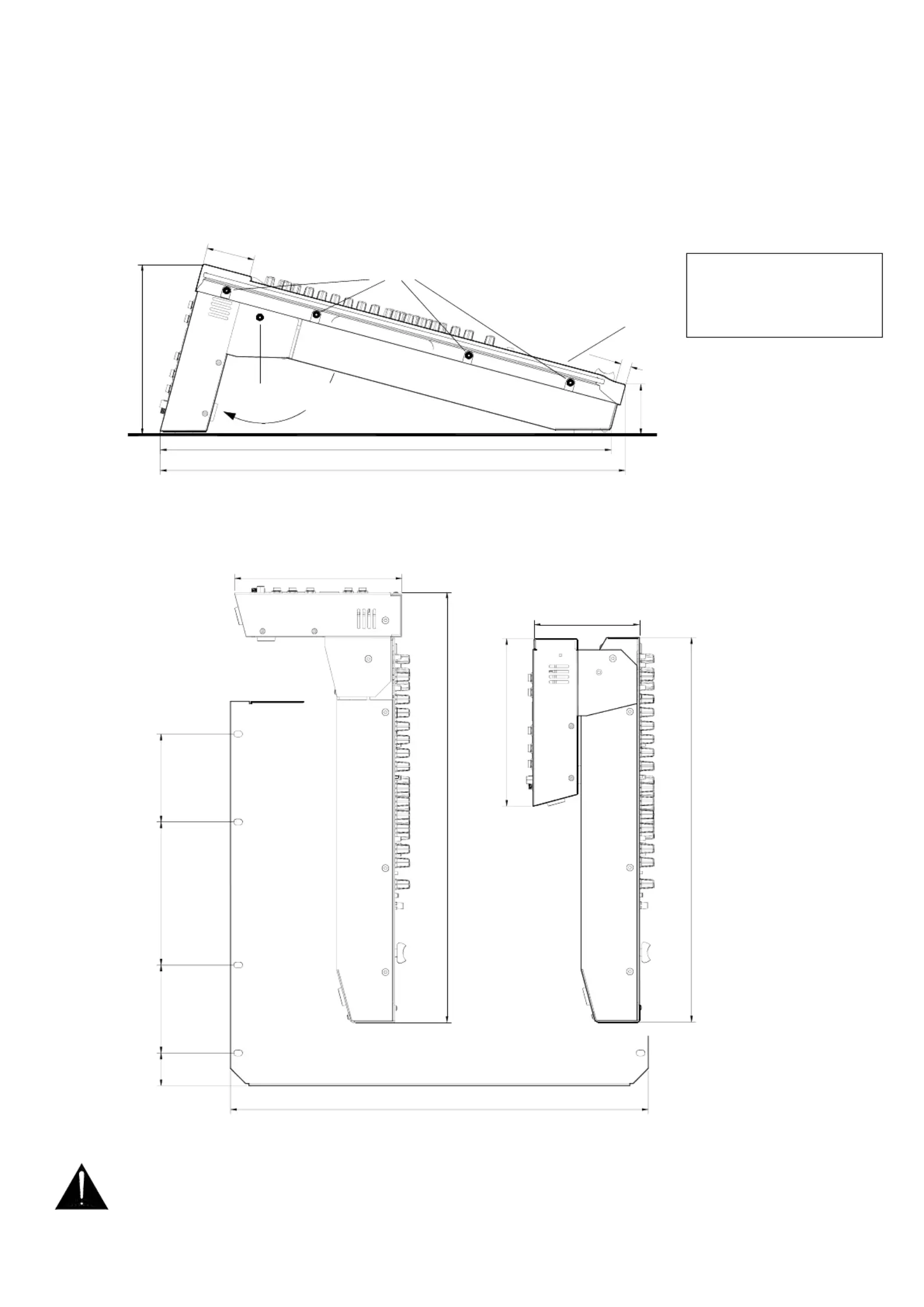

DIMENSIONS
AND WEIGHTS
194
55
12
58
514
530
ROTATE POD AND REFIT SECURING SCREWS
RELEASE M4 POZI SCREW EACH SIDE
FIT SIDE TRIMS - 4x M4 POZI SCREWS PER SIDE
CONSOLE WIDTH = 507mm
101.6165.1101.637.7
482.6 (19" RACK)
444
(10U)
193
497
(11.2U)
SECURE IN RACK USING 8x M6 BOLTS
USE PLASTIC CUP WASHERS TO PROTECT THE PANEL
122
193
Weight
13kg (29 lbs)
