Side 1/13

V 12/16

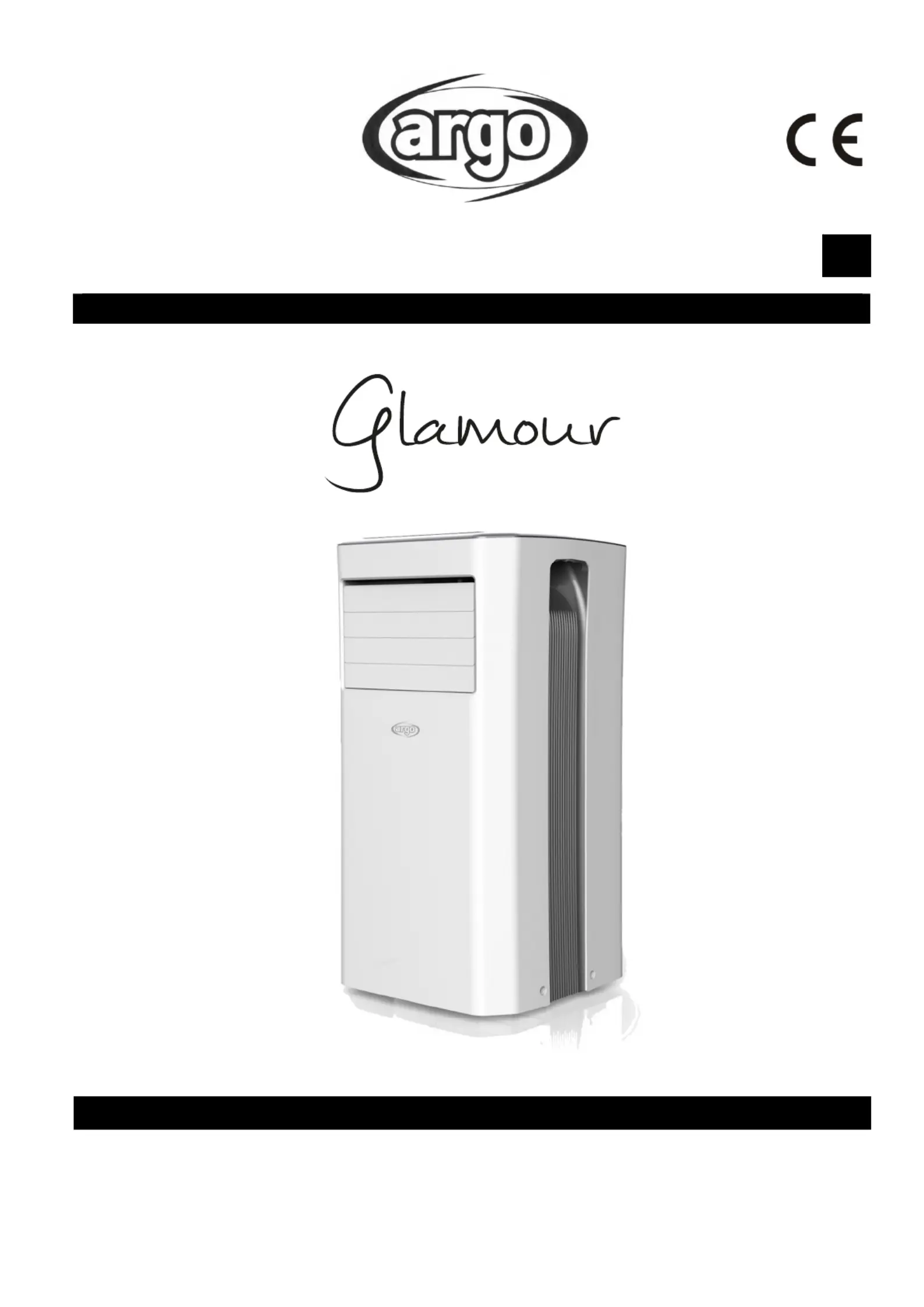

PORTABLE AIR CONDITIONER (LOCAL)

OPERATING INSTRUCTIONS

Read the instructions carefully before operating the appliance or carrying out maintenance work.

Observe all the safety instructions; failure to observe the instructions may lead to accidents and/or

damage. Store these instructions in a safe place for future reference.

V 12/16

GENERAL OPERATING AND SAFETY INSTRUCTIONS

 This appliance is a portable air conditioner designed for domestic

use.

 Only use this air conditioner as described in this manual.

 Ensure that the required voltage and frequency (220-240V / 50Hz)

match the available power source.

 This appliance can be used by children aged from 8 years and

above and people with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in a

safe way and understand the hazards involved.

 Children shall not play with the appliance.

 Cleaning and user maintenance shall not be made by children

without supervision.

 Ensure that the electrical system is able to deliver the operating

current required by the air conditioner, in addition to that normally

absorbed by other appliances (electrical appliances, lighting system,

etc.). Please refer to the maximum power input data shown on the

air conditioner's data plate.

 Connection to the electricity grid must take place in accordance with

current installation standards.

 Ensure that the automatic switches and system protection valves

are able to withstand a start-up current of 6A (normally for less than

1 second).

 The power socket must always include an efficient earth connection.

 Make sure the plug is inserted fully. Do not use multiple adapters.

Do not touch the plug with wet hands. Make sure that the plug is

clean.

 Do not use the plug as a means by which to start/stop the air

conditioner: use the ON/OFF button on the remote control or on the

control panel.

V 12/16

 Do not install the air conditioner in rooms that may be subject to

water spray (e.g. laundries).

 This air conditioner can be used by children of 8 years or older and

by persons with reduced physical, sensory and mental abilities, or

lacking the necessary experience and knowledge, provided they are

supervised or instructed on its use by a person responsible for their

safety, so that they are fully aware of the attendant risks.

 Before moving or cleaning the appliance, ensure that it is unplugged

from the socket.

 Do not move the air conditioner while it is operating; first turn the

appliance off, then check and remove any condensate which may

have formed.

 To turn the appliance off, set the remote control to OFF and remove

the plug from the socket. Pull on the plug only. Do not pull the cord.

 Do not use the appliance if the cord or plug are damaged.

Contact a service centre to replace a damaged power cord, so as to

avoid any safety risks.

PRECAUTION!

 Do not insert any objects into the air conditioner: this is very

dangerous as the fan turns at high speed.

 Ensure that air circulates freely around the unit. Do not cover

the air intake and delivery grilles with drapes or any other

means.

WARNING!

 The air conditioner must be positioned at least 50 cm from the wall

or any other obstacles, on a flat and stable surface so as to avoid

water leaks.

 The air conditioner is fitted with a system for protecting the

compressor from overload. This means that the compressor

only starts 3 minutes after its previous stoppage.

Produkspesifikasjoner

Merke:	Argoclima
Kategori:	luftkondisjonering
Modell:	Glamour
Innebygd skjerm:	Ja
Timer:	Ja
Vekt:	24000 g
Bredde:	355 mm
Dybde:	345 mm
Høyde:	730 mm
Håndtak:	Ja
Støynivå:	64 dB
Bruksanvisning:	Ja
Kjølemedium:	R410A
Innebygd vifte:	Ja
Automatisk temperaturkontroll:	Ja
Teknologi:	Luft - luft
Justerbar termostat:	Ja
Sertifisering:	CE
Luftfilter:	Ja
Energiforbruk per time (kjøling):	1 kWh
Energiforbruk per time (oppvarming):	- kWh
Avfuktingskapasitet:	0.8 l/t
Luftstrøm (høy hastighet):	320 m³/t
Luftstrøm (lav hastighet):	250 m³/t
AC-inngangsspenning:	230 V
AC-inngangsfrekvens:	50 Hz
Slangelengde:	1.5 m
Produktfarge:	Silver, White
Skjermtype:	LED
Fjernkontroll medfølger:	Ja
Modell/Type:	Forflyttbart klimaanlegg (monoblokk)
Svinghjul:	Ja
Strøm:	1 A
Tilkoblet nettbelastning:	1000 W
Kjølekapasitet i watt (nominell):	2600 W
Varmekapasitet i watt (nominell):	- W
Antall hastighetsnivåer:	3
Timertype:	Digitalt
Nedkjølingskapasitet i watt (maks.):	- W
Kjøling medium vekt:	520 g
Fjerndrevet:	Ja
Comfort sovemodus:	Ja
Sovemodus:	Ja
Klimaanleggets funksjoner:	Cooling, Dehumidifying, Ventilating
Nedkjølingskapasitet (maks.):	10000 BTU/t
Kjøleenergieffektivitet (EER, W/W):	2600
Luftstrøm (medium hastighet):	280 m³/t
Hose diameter:	130 mm
Oppvarmingskapasitet i watt (maks.):	- W
Energieffektiv klasse (oppvarming):	Nei
Årlig energiforbruk (nedkjøling):	- kWh
