ASRock 775XFire-RAID Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or

translated in any language, in any form or by any means, except duplication of

documentation by the purchaser for backup purpose, without written consent of

ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any

kind, either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the guide or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

Published February 2006

ASRock 775XFire-RAID Motherboard

EnglishEnglish

English

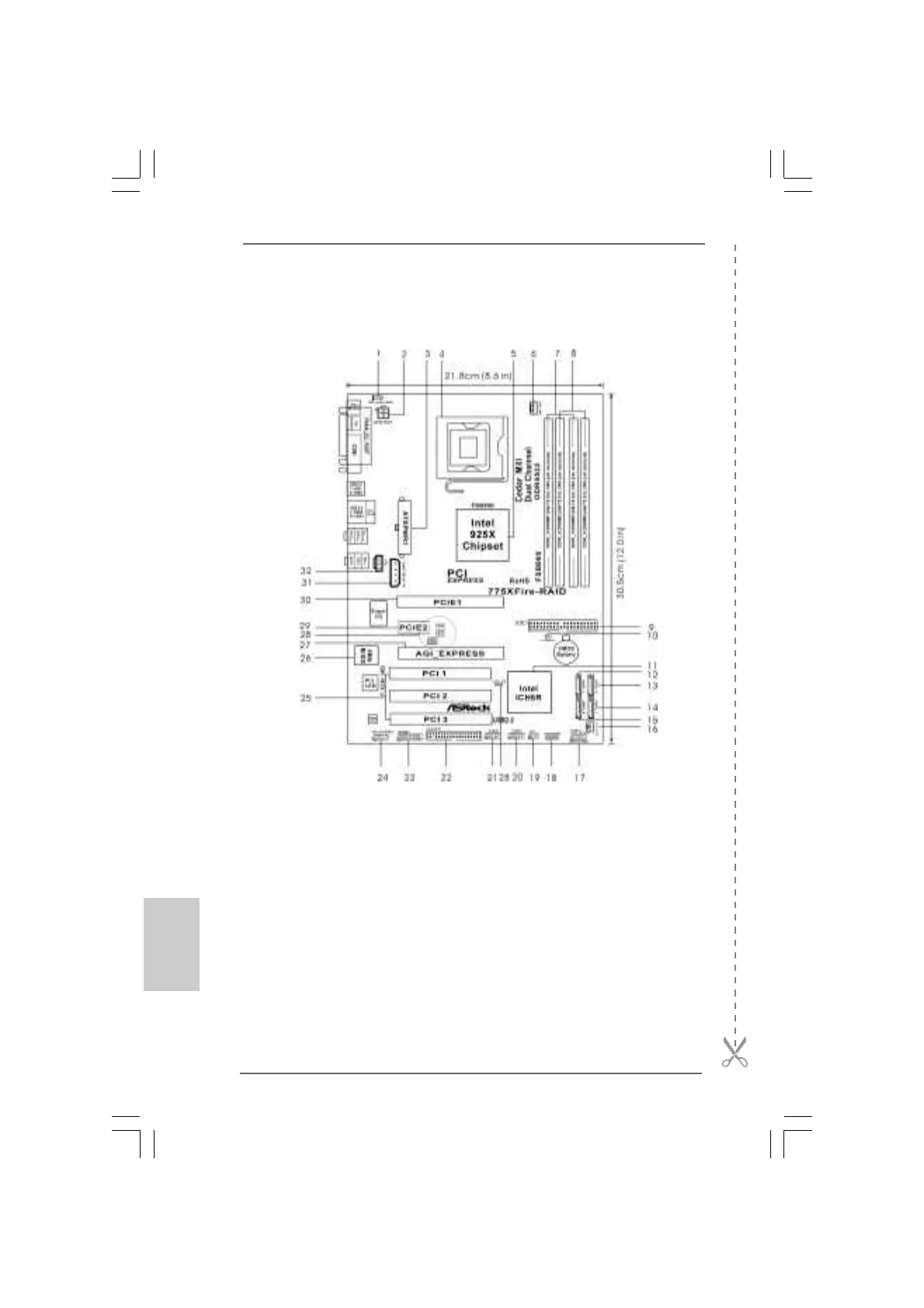

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

1 PS2_USB_PWR1 Jumper 16 Chassis Fan Connector (CHA_FAN1)

2 ATX 12V Connector (ATX12V1) 17 System Panel Header (PANEL1)

3 ATX Power Connector (ATXPWR1) 18 Chassis Speaker Header (SPEAKER 1)

4 775-Pin CPU Socket 19 Infrared Module Connector (IR1)

5 North Bridge Controller 20 USB 2.0 Header (USB67, Blue)

6 CPU Fan Connector (CPU_FAN1) 21 USB 2.0 Header (USB45, Blue)

7 2 x 240-pin DDRII DIMM Slots 22 Floppy Connector (FLOPPY1)

(Dual Channel A: DDRII_1, DDRII_3; Yellow) 23 Game Port Header (GAME1)

8 2 x 240-pin DDRII DIMM Slots 24 Front Panel Audio Header (HD_AUDIO1)

(Dual Channel B: DDRII_2, DDRII_4; Orange) 25 PCI Slots (PCI1- 3)

9 IDE1 Connector (IDE1, Blue) 26 BIOS FWH Chip

10 Clear CMOS Jumper (CLRCMOS1) 27 AGI Express Slot (PCI Express x 4)

11 South Bridge Controller 28 PCIEX1_EN1 - 5

12 Serial ATA Connector 2 (SATA_2, black) 29 PCI Express x 1 Slot (PCIE2)

13 Serial ATA Connector 3 (SATA_3, black) 30 PCI Express x 16 Slot (PCIE1)

14 Serial ATA Connector 1 (SATA_1, blue) 31 SLI / XFIRE Power Connector

15 Serial ATA Connector 0 (SATA_0, blue) 32 Internal Audio Connector: CD1 (Black)

ASRock 775XFire-RAID Motherboard

EnglishEnglish

English

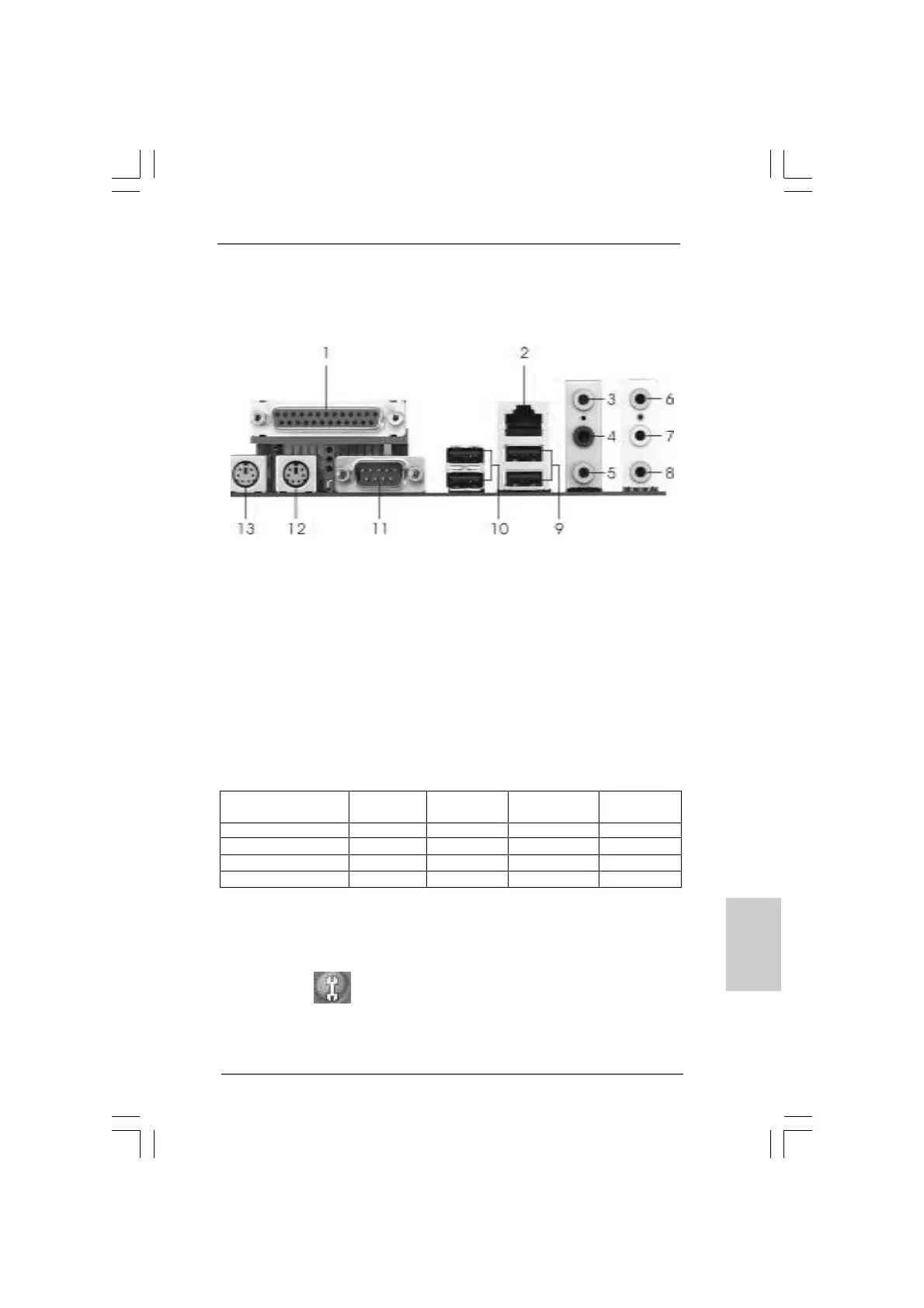

HD 8CH I/OHD 8CH I/O

HD 8CH I/O

1 Parallel Port 8 Microphone (Pink)

2 RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 Serial Port: COM1

5 Central / Bass (Orange) 12 PS/2 Keyboard Port (Purple)

6 Line In (Light Blue) 13 PS/2 Mouse Port (Green)

*7 Front Speaker (Lime)

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”. See

the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

* If you use 8-channel audio and enable Multi-Streaming function, “Side Speaker” will be disabled

. Therefore, only 6-channel audio function will work but not 8-channel audio. To enable Multi-

Streaming function, you need to connect a front panel audio cable to the front panel audio

header. After restarting your computer, you will find “Mixer” tool on your system. Please select

“Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose

“2CH”, “4CH”, or “6CH”, and then you are allowed to select “Realtek HDA Primary output” to use

Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to

use front panel audio to share Side Speaker.

Produkspesifikasjoner

Merke:	Asrock
Kategori:	Hovedkort
Modell:	775XFire-RAID
Bredde:	305 mm
Dybde:	218 mm
Strømkildetype:	ATX
Antall USB 2.0-porter:	4
Hodetelefonutganger:	1
Lydutgang:	Realtek ALC861 7.1channel
Maksimalt internminne:	4 GB
Kompatible operativsystemer:	Microsoft Windows 2000/XP/XP 64-bit
Forhåndsinstallert programvare:	Drivers, Utilities, AntiVirus Software
Utvidelsesspor:	- ATI CrossFire\n- 3 x PCI \n- 1 x PCI Express x 16 \n- 1 x AGI Express (PCI Express x 4)\n- 1 x PCI Express x 1
Hovedkort formfaktor:	ATX
Antall minnespor:	4
Antall SATA-tilkoblinger:	4
USB 2.0-tilkoblinger:	4
CD/AUX lydinngang:	Ja
Antall parallelle ATA-tilkoblinger:	2
GAME/MIDI-tilkobling:	Ja
Mikrofon, linje-inn-støpsel:	Ja
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
prosessorprodusent:	Intel
Antall PS/2-porter:	2
Prosessorstøpsel:	LGA 775 (Socket T)
Kommunikasjonsserieporter:	1
BIOS minnestørrelse:	32 Mbit
ATX strømtilkobling (24-pin):	Ja
Diskettstasjonstilkobling:	Ja
Parallellporter kvantitet:	1
Nettverksgrensesnitt:	Realtek PCI LAN 8101L (10/100 Ethernet )
Antall understellsviftetilkoblinger:	1
CPU viftetilkobling:	Ja
Lydtilkobling på fremsiden:	Ja
