ASRock G43TwinsFullHD Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published August 2008

ASRock G43TwinsFullHD Motherboard

EnglishEnglish

English

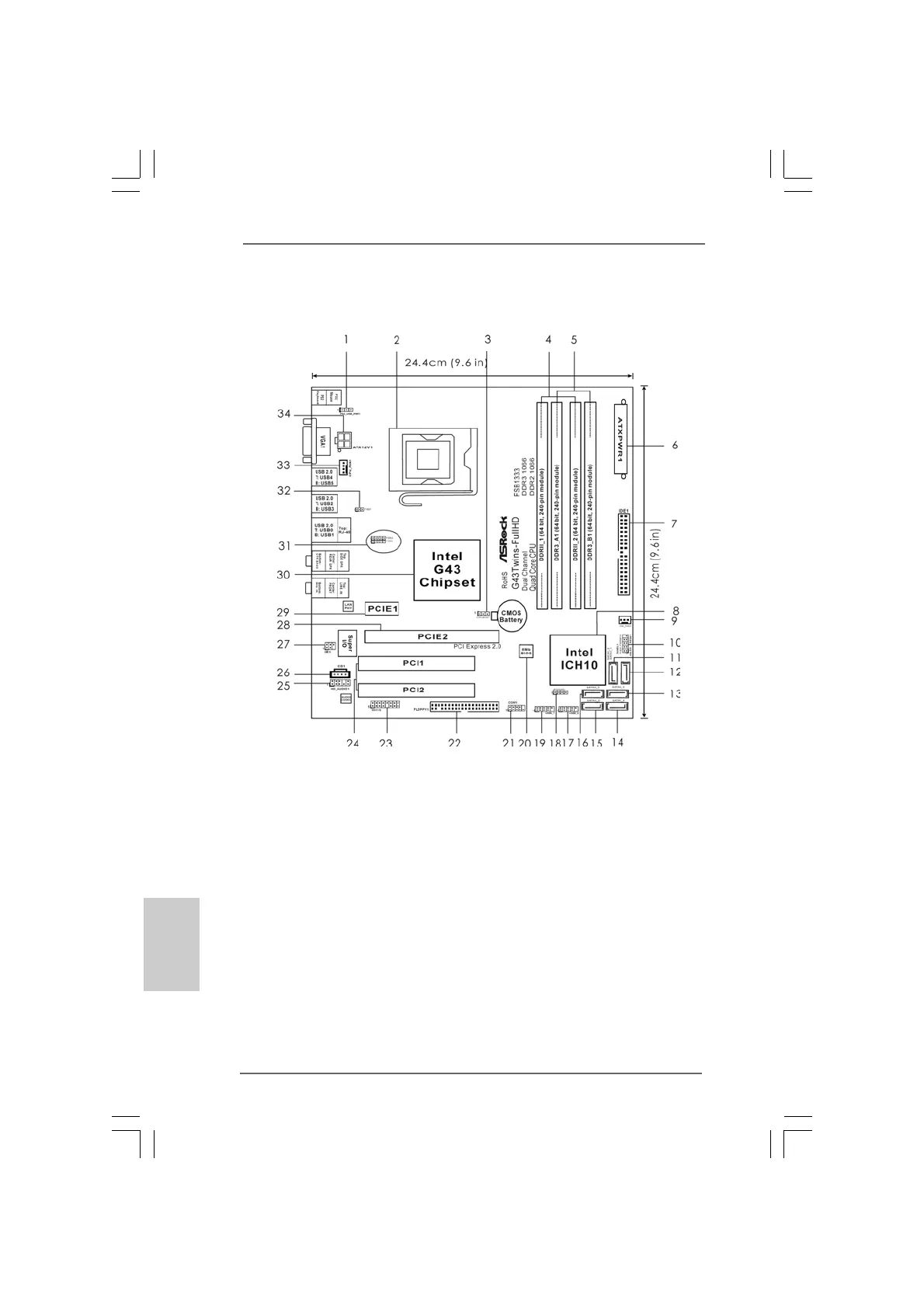

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 17 USB 2.0 Header (USB8_9, Blue)

2 775-Pin CPU Socket 18 Chassis Speaker Header (SPEAKER 1)

3 Clear CMOS Jumper (CLRCMOS1) 19 USB 2.0 Header (USB6_7, Blue)

4 2 x 240-pin DDR2 DIMM Slots 20 Flash Memory

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 21 COM Port Header (COM1)

5 2 x 240-pin DDR2 DIMM Slots 22 Floppy Connector (FLOPPY1)

(Dual Channel B: DDR3_A1, DDR3_B1; Green) 23 WiFi/E Header (WIFI/E)

6 ATX Power Connector (ATXPWR1) 24 PCI Slots (PCI1 - 2)

7 IDE1 Connector (IDE1, Blue) 25 Front Panel Audio Header (HD_AUDIO1)

8 South Bridge Controller 26 Internal Audio Connector: CD1 (Black)

9 Chassis Fan Connector (CHA_FAN1) 27 Infrared Module Header (IR1)

10 System Panel Header (PANEL1) 28 PCI Express 2.0 x16 Slot (PCIE2; Green)

11 Secondary SATAII Connector (SATAII_2) 29 PCI Express p2-x1 Slot (PCIE1; White)

12 Primary SATAII Connector (SATAII_1) 30 North Bridge Controller

13 Third SATAII Connector (SATAII_3) 31 FSB2 / FSB3 Jumpers

14 Fourth SATAII Connector (SATAII_4) 32 FSB1 Jumper

15 Sixth SATAII Connector (SATAII_6) 33 CPU Fan Connector (CPU_FAN1)

16 Fifth SATAII Connector (SATAII_5) 34 ATX 12V Connector (ATX12V1)

ASRock G43TwinsFullHD Motherboard

EnglishEnglish

English

ASRock GLAN_8CH I/OASRock GLAN_8CH I/O

ASRock GLAN_8CH I/O

1 PS/2 Mouse Port (Green) 8 Microphone (Pink)

2 LAN RJ-45 Port 9 USB 2.0 Ports (USB01)

3 Side Speaker (Gray) 10 USB 2.0 Ports (USB23)

4 Rear Speaker (Black) 11 USB 2.0 Ports (USB45)

5 Central / Bass (Orange) 12 VGA Port

6 Line In (Light Blue) 13 PS/2 Keyboard Port (Purple)

* 7 Front Speaker (Lime)

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “Mixer” tool on your system.

Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click

“ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA

Primary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA

Audio 2nd output” to use front panel audio.

* If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 7) (No. 4) (No. 5) (No. 3)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

Produkspesifikasjoner

Merke:	Asrock
Kategori:	Hovedkort
Modell:	G43Twins-FullHD
Bredde:	244 mm
Dybde:	244 mm
Strømkildetype:	ATX
Antall USB 2.0-porter:	6
Hodetelefonutganger:	1
Sertifisering:	FCC, CE, WHQL
Maksimalt internminne:	8 GB
Kompatible operativsystemer:	Microsoft Windows 2000 / XP / XP 64-bit / Vista / Vista 64-bit
Lydbrikke:	Realtek ALC888
Hovedkort formfaktor:	Micro ATX
Antall minnespor:	4
BIOS-type:	AMI
Antall SATA-tilkoblinger:	6
USB 2.0-tilkoblinger:	2
CD/AUX lydinngang:	Ja
Antall parallelle ATA-tilkoblinger:	1
Antall VGA (D-Sub)-porter:	1
Mikrofon, linje-inn-støpsel:	Ja
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
prosessorprodusent:	Intel
Antall viftetilkoblinger:	Ja
Antall PS/2-porter:	2
Prosessorstøpsel:	LGA 775 (Socket T)
BIOS minnestørrelse:	64 Mbit
Lyd-utgang kanaler:	7.1 kanaler
Antall COM-tilkoblinger:	1
ATX strømtilkobling (24-pin):	Ja
Diskettstasjonstilkobling:	Ja
PCI Express x16 slots:	1
PCI-slots:	2
PCI Express x1 slots:	1
Nettverksgrensesnitt:	Gigabit LAN 10/100/1000 Mb/s
CPU viftetilkobling:	Ja
Grafikkontroller:	Intel Graphics Media Accelerator X4500
Maks. skjermkortminne:	352 MB
Lydtilkobling på fremsiden:	Ja
WiFi-AP antennestøpsel:	1
Kontrollergrensesnitt:	SATAII
Kontroll (2.) grensesnittype:	ATA133
