ASRock N68-GS3 / N68-S3 Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published November 2009

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

ASRock N68-GS3 / N68-S3 Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard L

ayout (N68-ayout (N68-

ayout (N68-

GS3 / N68-S3)GS3 / N68-S3)

GS3 / N68-S3)

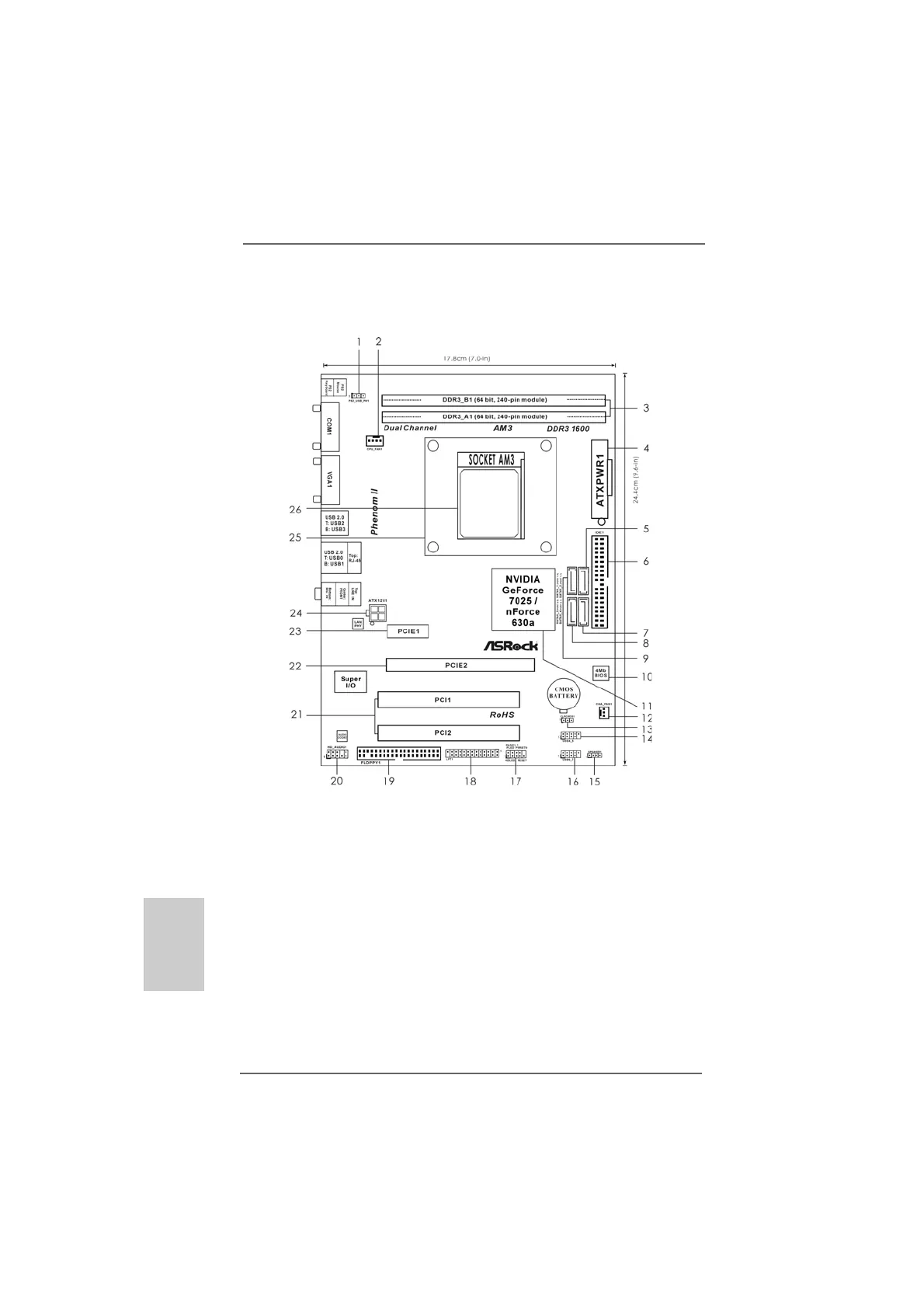

1 PS2_USB_PW1 Jumper 15 Chassis Speaker Header

2 CPU Fan Connector (CPU_FAN1) (SPEAKER 1, Purple)

3 2 x 240-pin DDR3 DIMM Slots 16 USB 2.0 Header (USB6_7, Blue)

(Dual Channel: DDR3_A1, DDR3_B1; Blue) 17 System Panel Header (PANEL1, Orange)

4 ATX Power Connector (ATXPWR1) 18 Print Port Header (LPT1, Purple)

5 SATAII Connector (SATAII_2 (PORT 1.1)) 19 Floppy Connector (FLOPPY1)

6 Primary IDE Connector (IDE1, Blue) 20 Front Panel Audio Header

7 SATAII Connector (SATAII_4 (PORT 2.1)) (HD_AUDIO1, Lime)

8 SATAII Connector (SATAII_3 (PORT 2.0)) 21 PCI Slots (PCI1- 2)

9 SATAII Connector (SATAII_1 (PORT 1.0)) 22 PCI Express x16 Slot (PCIE2)

10 SPI Flash Memory (4Mb) 23 PCI Express p2-x1 Slot (PCIE1)

11 NVIDIA GeForce 7025 / nForce 630a 24 ATX 12V Power Connector (ATX12V1)

12 Chassis Fan Connector (CHA_FAN1) 25 CPU Heatsink Retention Module

13 Clear CMOS Jumper (CLRCMOS1) 26 AM3 938-Pin CPU Socket

14 USB 2.0 Header (USB4_5, Blue)

ASRock N68-GS3 / N68-S3 Motherboard

EnglishEnglish

English

I/O PI/O P

I/O P

anel (N68-anel (N68-

anel (N68-

GS3 / N68-S3)GS3 / N68-S3)

GS3 / N68-S3)

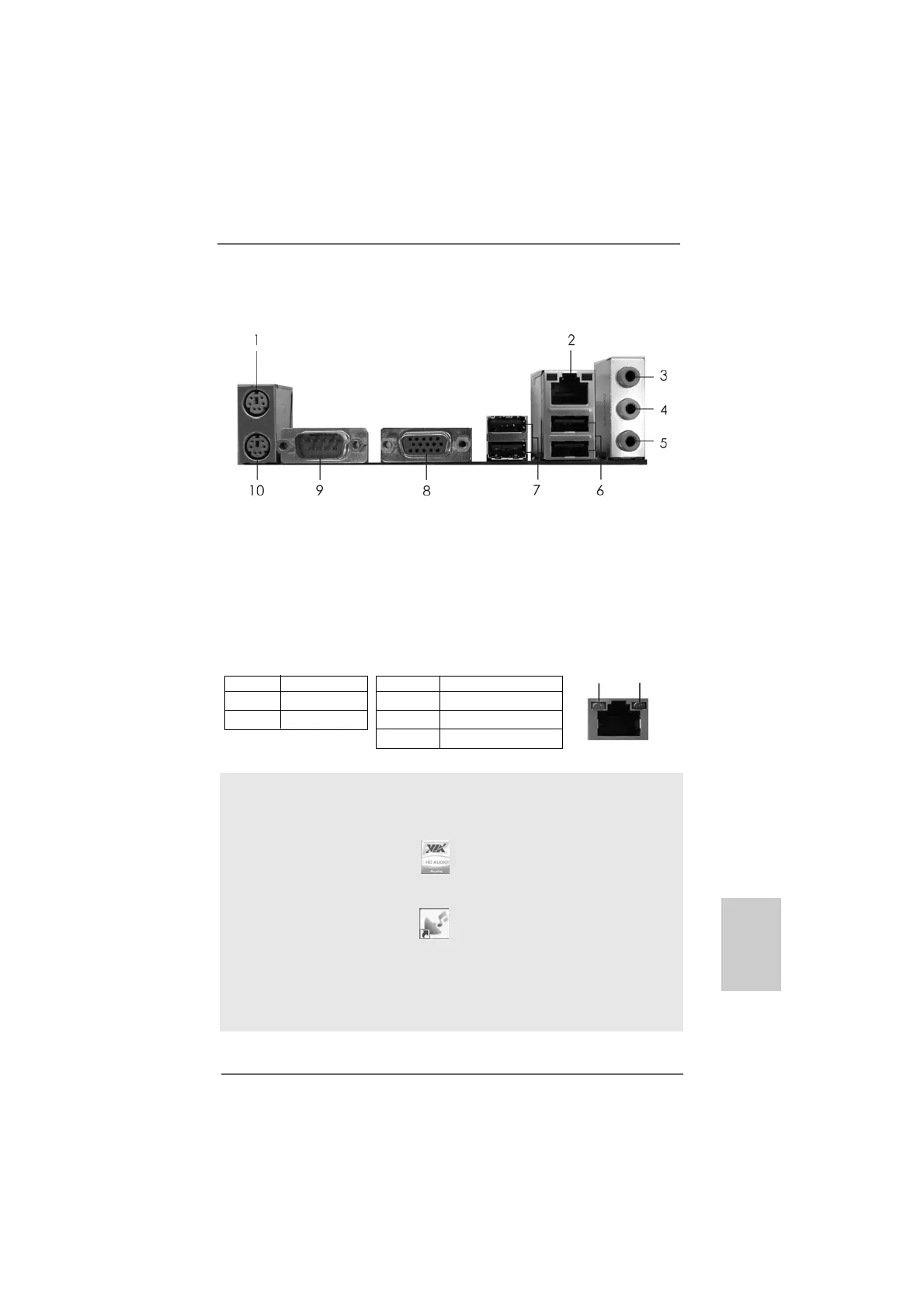

1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)

2 RJ-45 Port 7 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 8 VGA Port

4 Front Speaker (Lime) 9 COM Port

* 5 Microphone (Pink) 10 PS/2 Keyboard Port (Purple)

* For N68-GS3 motherboard, please refer to the table below for the LAN port LED indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

LAN Port

ACT/LINK

LED

SPEED

LED

To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. After restarting your computer, you will find “VIA HD Audio Deck” tool on

your system. Please follow below instructions according to the OS you install.

For Windows

XP / XP 64-bit OS:

Please click “VIA HD Audio Deck” icon , and click “Speaker”. Then you are allowed to

select “2 Channel” or “4 Channel”. Click “Power” to save your change.

For Windows

7 / 7 64-bit / Vista

/ Vista

64-bit OS:

Please click “VIA HD Audio Deck” icon , and click “Advanced Options” on the left side

on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click

“OK” to save your change.

If you enable Multi-Streaming function, Side Speaker function will be disabled. You can only

choose to enable either Multi-Streaming function or Side Speaker function.

Produkspesifikasjoner

Merke:	Asrock
Kategori:	Hovedkort
Modell:	N68-S3
Bredde:	244 mm
Dybde:	178 mm
Strømkildetype:	ATX
Antall USB 2.0-porter:	4
Hodetelefonutganger:	3
Sertifisering:	FCC, CE, WHQL
Maksimalt internminne:	8 GB
Kompatible operativsystemer:	Win 7, Vista, XP
Lydbrikke:	VIA VT1705
Hovedkort formfaktor:	Micro ATX
Antall minnespor:	2
Antall SATA-tilkoblinger:	4
USB 2.0-tilkoblinger:	2
Antall parallelle ATA-tilkoblinger:	1
Antall VGA (D-Sub)-porter:	1
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
prosessorprodusent:	AMD
Antall PS/2-porter:	2
Prosessorstøpsel:	Socket AM3
Kommunikasjonsserieporter:	1
BIOS minnestørrelse:	64 Mbit
Lyd-utgang kanaler:	5.1 kanaler
On-board grafikkort:	Ja
ATX strømtilkobling (24-pin):	Ja
Diskettstasjonstilkobling:	Ja
PCI Express x16 slots:	1
PCI-slots:	2
PCI Express x1 slots:	1
CPU viftetilkobling:	Ja
Maks. skjermkortminne:	256 MB
Lydtilkobling på fremsiden:	Ja
