ASRock X58 Extreme3 Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

Published February 2010

ASRock X58 Extreme3 Motherboard

EnglishEnglish

English

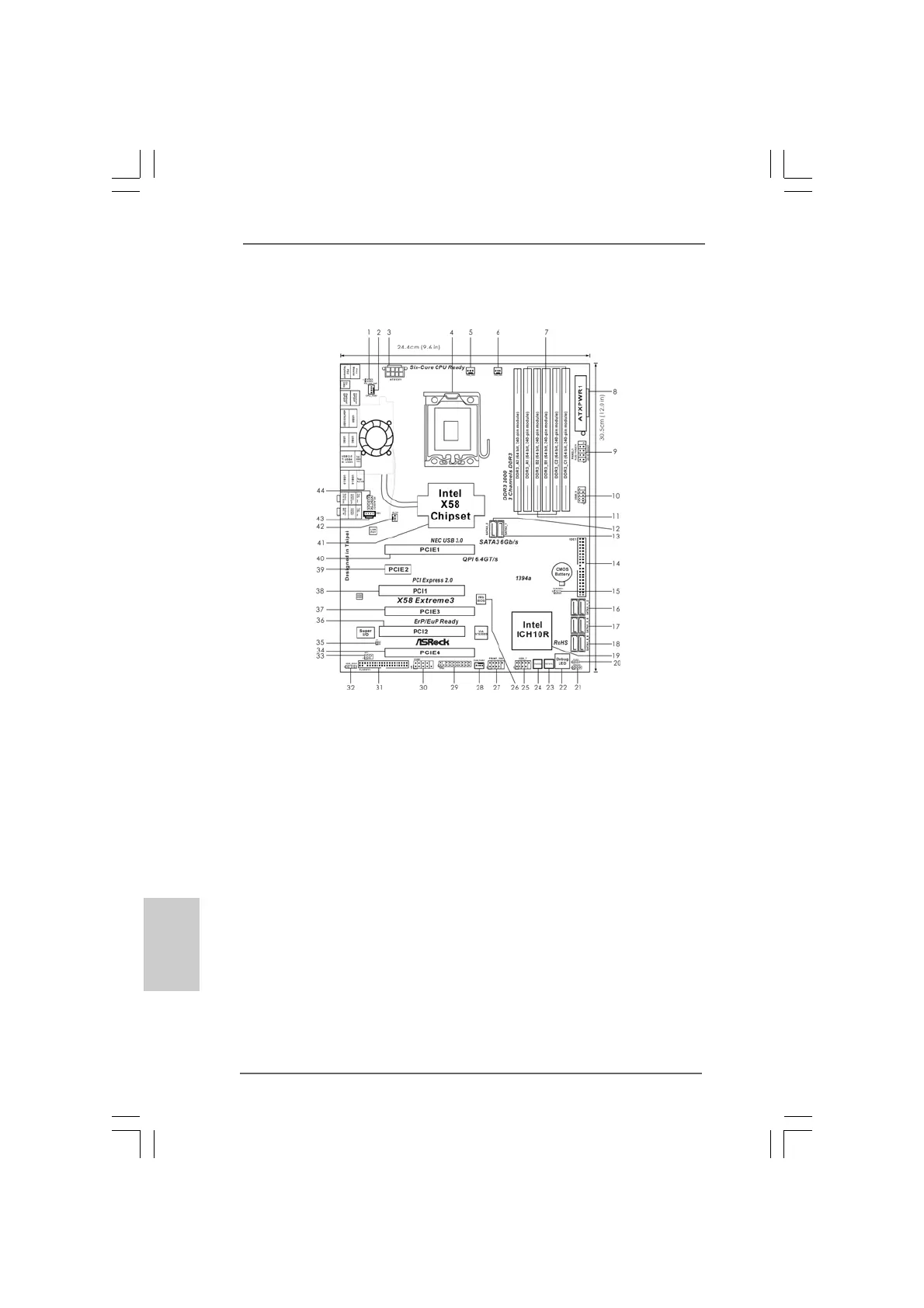

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 22 Dr. Debug

2 CPU Fan Connector (CPU_FAN1) 23 Reset Switch (RSTBTN)

3 ATX 12V Power Connector (ATX12V1) 24 Power Switch (PWRBTN)

4 1366-Pin CPU Socket 25 USB 2.0 Header (USB6_7, Blue)

5 Power Fan Connector (PWR_FAN1) 26 8Mb SPI Flash

6 Chassis Fan Connector (CHA_FAN2) 27 Front Panel IEEE 1394 Header

7 3 x 240-pin DDR3 DIMM Slots (FRONT_1394, White)

(Triple Channel: DDR3_A1, DDR3_B1, DDR3_C1 28 Chassis Fan Connector (CHA_FAN1)

; White) 29 TPM Header (TPM1)

8 ATX Power Connector (ATXPWR1) 30 COM Port Header (COM1)

9 System Panel Header (PANEL1, White) 31 Floppy Connector (FLOPPY1)

10 USB 2.0 Header (USB8_9, Blue) 32 HDMI_SPDIF Header (HDMI_SPDIF1, White)

11 3 x 240-pin DDR3 DIMM Slots 33 Infrared Module Header (IR1)

(Triple Channel: DDR3_A2, DDR3_B2, DDR3_C2 34 PCI Express x16 Slot (PCIE4, White)

; Blue) 35 Chassis Intrusion Header (CI1)

12 SATA3 Connector (SATA3_2, White) 36 PCI Slot (PCI2)

13 SATA3 Connector (SATA3_1, White) 37 PCI Express 2.0 x16 Slot (PCIE3, Blue)

14 Primary IDE Connector (IDE1, Blue) 38 PCI Slot (PCI1)

15 Clear CMOS Jumper (CLRCMOS1) 39 PCI Express p2-x1 Slot (PCIE2, White)

16 SATAII Connector (SATAII_1_2, Blue) 40 PCI Express 2.0 x16 Slot (PCIE1, Blue)

17 SATAII Connector (SATAII_3_4, Blue) 41 North Bridge Controller

18 SATAII Connector (SATAII_5_6, Blue) 42 North Bridge Fan Connector (NB_FAN1)

19 South Bridge Controller 43 Internal Audio Connector: CD1 (Black)

20 Power LED Header (PLED1) 44 Front Panel Audio Header

21 Chassis Speaker Header (SPEAKER 1, White) (HD_AUDIO1, White)

ASRock X58 Extreme3 Motherboard

EnglishEnglish

English

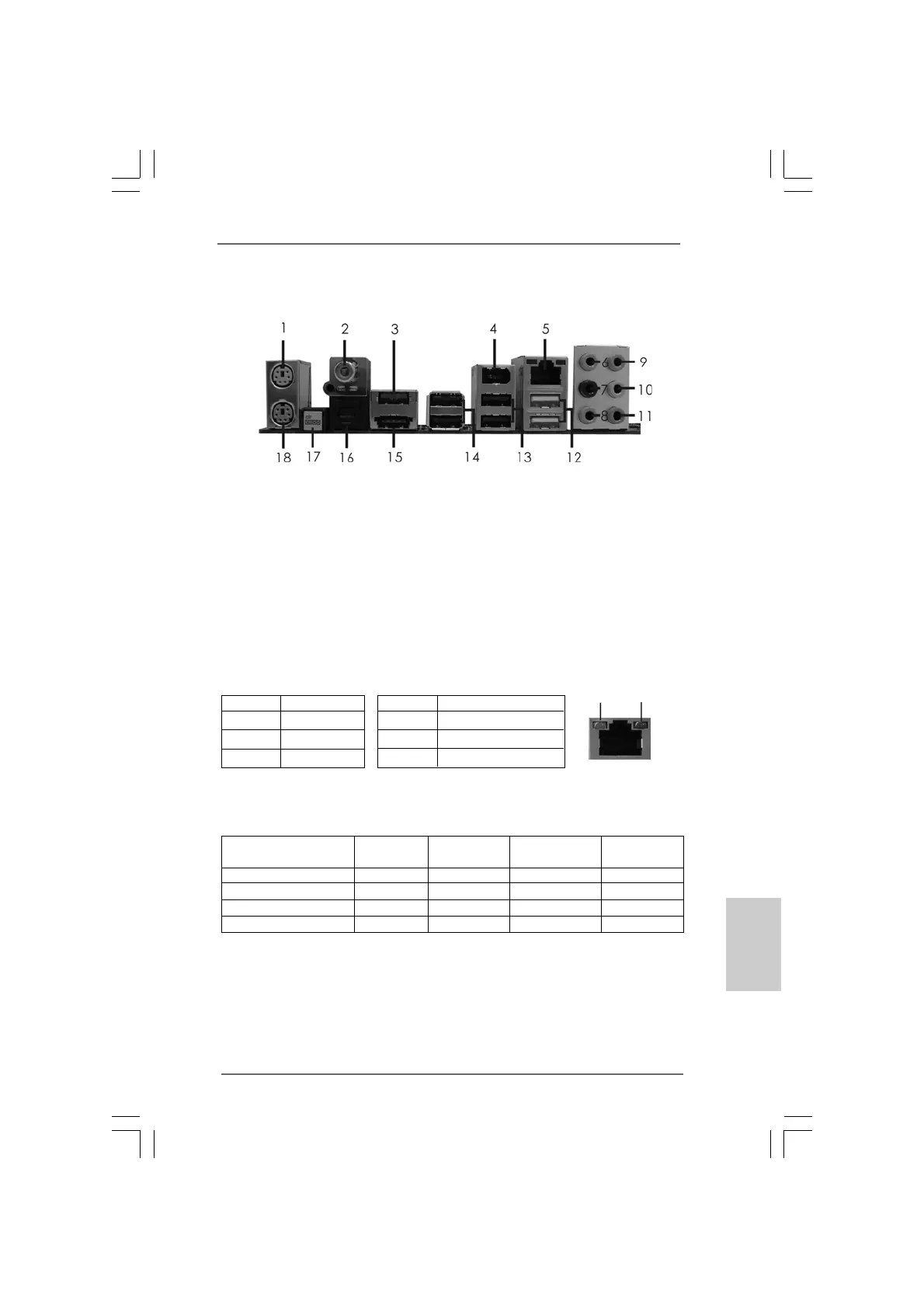

I/O PI/O P

I/O P

anelanel

anel

** If you use 2-channel speaker, please connect the speaker’s plug into “Front Speaker Jack”.

See the table below for connection details in accordance with the type of speaker you use.

TABLE for Audio Output Connection

Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker

(No. 10) (No. 7) (No. 8) (No. 6)

2 V -- -- --

4VV----

6 VVV--

8 VVVV

1 PS/2 Mouse Port (Green) ** 10 Front Speaker (Lime)

2 Coaxial SPDIF Out Port 11 Microphone (Pink)

3 USB 2.0 Port (USB0) 12 USB 3.0 Ports

4 IEEE 1394 Port (IEEE 1394) 13 USB 2.0 Ports (USB45)

* 5 LAN RJ-45 Port 14 USB 2.0 Ports (USB23)

6 Side Speaker (Gray) 15 Powered eSATAIII/USB 2.0 Connector

7 Rear Speaker (Black) 16 Optical SPDIF Out Port

8 Central / Bass (Orange) 17 Clear CMOS Switch (CLRCBTN)

9 Line In (Light Blue) 18 PS/2 Keyboard Port (Purple)

LAN Port

ACT/LINK

LED

SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Link Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

On Link Green 1Gbps connection

Produkspesifikasjoner

Merke:	Asrock
Kategori:	Hovedkort
Modell:	X58 Extreme3
Strømkildetype:	ATX
Antall USB 2.0-porter:	5
Antall HDMI-porter:	1
Hodetelefonutganger:	3
Sertifisering:	FCC, CE, WHQL\nErP/EuP
Internminne:	24 GB
Maksimalt internminne:	24 GB
Kompatible operativsystemer:	Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit
Antall IEEE 1394/Firewire-porter:	1
Hovedkort formfaktor:	ATX
Antall minnespor:	6
ACPI-versjon:	1.1
Antall SATA-tilkoblinger:	2
USB 2.0-tilkoblinger:	2
Antall COM-porter:	1
Mikrofon, linje-inn-støpsel:	Ja
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
prosessorprodusent:	Intel
Antall PS/2-porter:	2
Prosessorstøpsel:	Socket B (LGA 1366)
BIOS minnestørrelse:	64 Mbit
Understell inngrepstilkobling:	Ja
Antall COM-tilkoblinger:	1
ATX strømtilkobling (24-pin):	Ja
PCI Express x16 slots:	3
PCI Express x1 slots:	1
Antall understellsviftetilkoblinger:	1
Antall USB 3.2 Gen 1 (3.1 Gen 1)Type-A-porter:	2
S/PDIF-utport:	Ja
Antall IEEE1394-tilkoblinger:	1
