Side 1/24

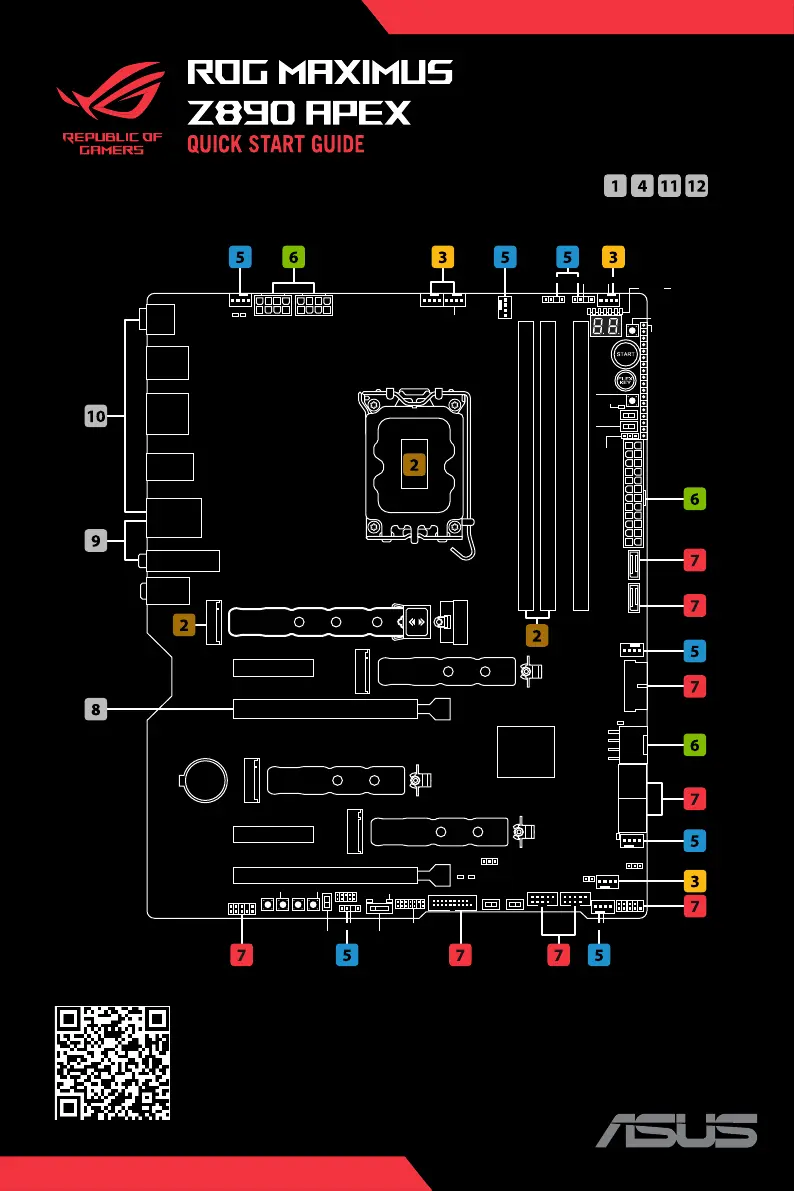

The items labeled below correspond to the installation steps, for steps
and more information on the steps, please refer to the rest of the guide.
Support
SEEKING A SOLUTION?
Scan now for assistance
MAXIMUS Z890 APEX
DDR5 DIMM_B
(64bit, 288-pin module)
DDR5 DIMM_A (64bit, 288-pin module)
CPU_12V_1 CPU_12V_2
CPU_PROTECT_LED
CPU_12V_LED
ATX_PWR
PCIEX16(G5)_1
TB(USB4)_HEADER
EF_FAN
FS_FAN2
W_PUMP+
CPU_FAN
CPU_OPT
CHA_FAN1
FS_FAN1
F_AUDIO
SATA6G_1
SATA6G_2
SATA6G_3
SATA6G_4
AUDIO
U10G_567
KBMS_U5G_E78
TBT4_C2
U5G_E56
TBT4_C1
M.2(WIFI)
USB_34USB_E12
RSVD_1 RSVD_2
U5G_E34
PCIEX16(G5)_2
U20G_C9U10G_C8
BATTERY
F_PANEL
ADD GEN2_3
ALT_PCIE_MODE
ADD GEN2_1
ADD GEN2_2 AIO_PUMP
CHA_FAN2
T_SENSOR
80_LIGHT_BAR
LGA1851
Intel
®
Z890
DIMM.2_SLOT
BOOT
C_DET_CPU
C_DET_DRAM
C_DET_PCIE
VGA
DRAM
CPU
U5G_E12
HD_LED
PCIE_8PIN_LED
M.2_3(SOCKET3)
M.2_1(SOCKET3)
2280
22602242
M.2_4(SOCKET3)
2280
22602242
M.2_2(SOCKET3)
2280
22602242
RSVD_4
PCIEX4(G4)_1
PCIEX4(G4)_2
LAN1_U10G_1
U20G_C3
FLBK_CL_CMOS
LED2
LED1
BIOS_LED2
BIOS_SELECT
BIOS_LED1
PCIE_8PIN_PWR
RETRY_BUTTONSLOW_MODE
PAUSE
PAUSE_LED
LN2_MODE
Q_CODE
ProbeIt
SAFE_BOOT
M.2_1(SOCKET3)
22110
228022602242
BIOS_SWITCH
CPU_BCLK-
SOC_BCLK+CPU_BCLK+
SOC_BCLK-
ARGB
ARGB
USB 20Gbps
USB 5Gbps
USB 5Gbps
Chassis Fan
USB 2.0
Front Panel System
Front Panel Audio
Chassis Fan
USB 10Gbps
2
Q25166 / Revised Edition V2 / October 2024
Prepare the components
NOTE: The components listed above are recommendations, please prepare components according to your needs.
Chassis
CPU Memory M.2 SSD
SATA device
Power supply unit Graphics card
CPU Cooler
• Install the Memory
NOTE: Please refer to the manual(s) for more information:
Motherboard
Install key components
• Install the CPU
NOTE: Do not remove the PnP cap before the CPU is properly installed.
Thermal paste
OROR
Please refer to the manual(s) for more information:
Motherboard
Please scan for more
information on CPU
installation steps.
3
• Install the M.2 SSD
M.2 Q-Release M.2 Q-Slide
NOTE: Please refer to the manual(s) for more information:
Motherboard
OR
Remove
M.2 slot
Remove
Optional
M.2 slot
Make sure of the following:
OPTIONAL
Install the bundled
M.2 rubber when
installing a single
sided M.2 module
OPTIONAL
Install the bundled
M.2 rubber when
installing a single
sided M.2 module
Make sure the M.2 Q-Slide clicks and
locks the M.2 SSD
Type-A Install
RemoveType-B
M.2 slot
M.2 slot
Additional Information (on selected models)
• M.2 Q-Latch
clicks and locks
the M.2 SSD
• Secure the
screw properly
• Insert the pin
of the M.2 Anchor
into the hole
