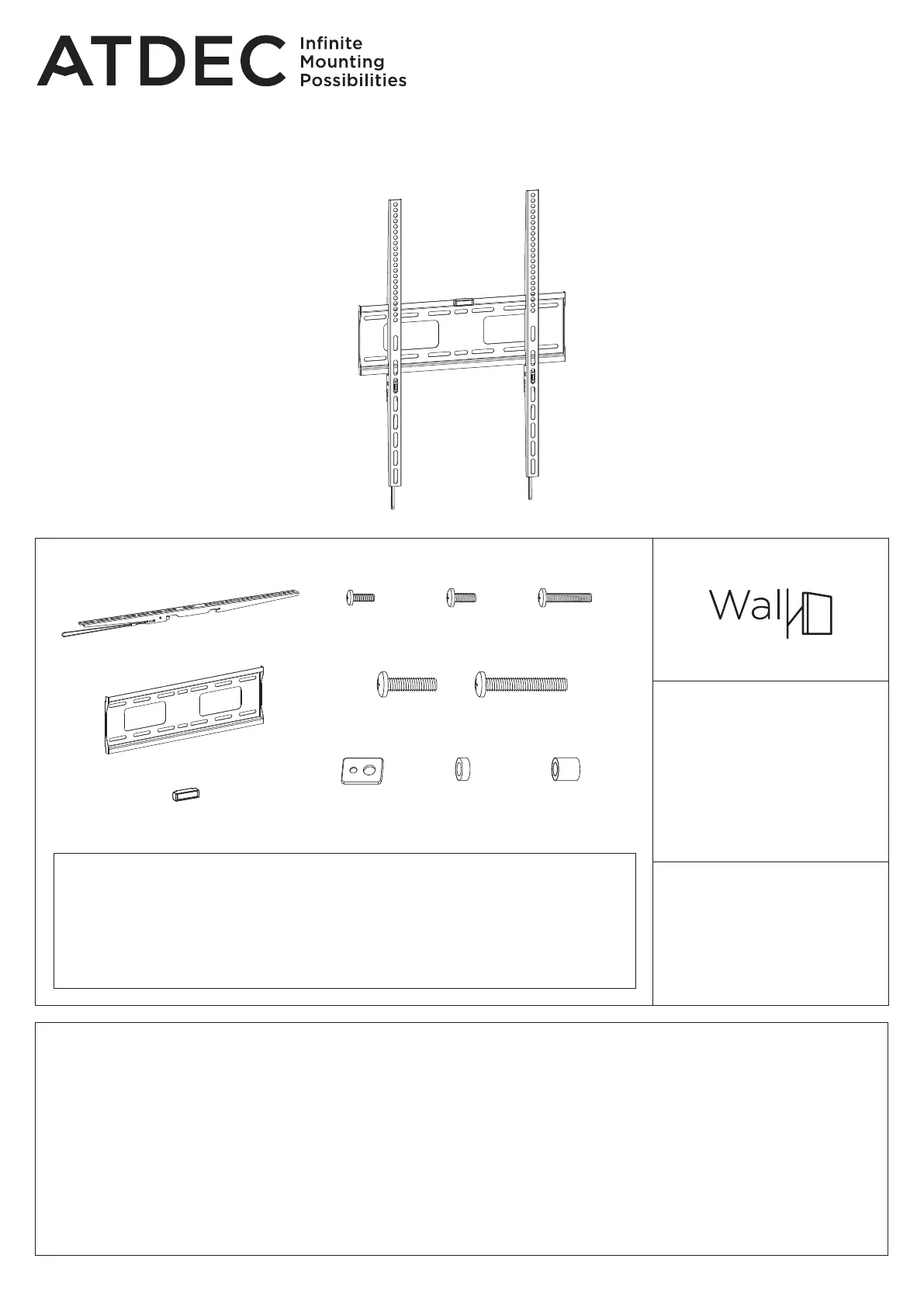

Side 1/2

AD-WFP-5060 Page 1 of 2

REQUIRED TOOLS

• Phillips head screwdriver

• Power drill

• Suitable drill bit

• Driver bit for selected

wall fasteners

• Stud nder

• Spirit level

XX (x4)

Wall Plate

Spirit Level

M-A

M5x14 (x4)

Screw

M-B

M6x14 (x4)

Screw

M-C

M6x30 (x4)

Screw

M-G

Short Spacer

(x8)

M-H

Long Spacer

(x8)

M-F

Multi Washer

(x4)

M-D

M8x30 (x4)

Screw

M-E

M8x50 (x4)

Screw

Display Bracket (x2)

Installation Guide

AD-WFP-5040

Portrait Fixed Wall Mount 5040

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to mount this product correctly may cause serious injury/death during or following installation.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! This product supports a maximum load of 50kg (110lb).

! Wall Plate only achieves maximum weight rating when appropriately fastened to a wall of adequate structural capacity.

! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total

weight of all equipment being mounted.

! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid

electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.

! Suits displays with mounting hole patterns from 75mm to 410mm wide by 70mm to 605mm high.

COMPONENT CHECKLIST

0 - 50kg

(0 - 110lb)

WEIGHT RANGE

NOTE:

! Wall Plate Mounting Fasteners are NOT supplied with Wall Mounts. Professional

installer to ensure correct Mounting Fastener type, location & quantity to suit

structure where Wall Mount is installed.

! ALWAYS use a washer between the chosen fastener and the wall plate.

! Mounting fasteners to be used as per manufacturers instructions, including

minimum engagement to achieve necessary performance.

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Flatpanelstøtte
Modell:	AD-WFP-5040
Pakkevekt:	2080 g
Antall per pakke:	1 stykker
Antall skjermer som støttes:	1
Maksimal skjermstørrelse:	- "
Produktfarge:	Sort
Pakkedybde:	660 mm
Pakkehøyde:	41 mm
Pakkebredde:	156 mm
Kroppsmateriale:	Stål
Panelmonterbart grensesnitt:	100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,200 x 600,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300,400 x 600,600 x 200,600 x 400 mm
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	50 kg
Masterkassens (ytterkassens) bruttovekt:	17400 g
Masterkassens (ytterkassens) lengde:	677 mm
Produkter per masterkasse (ytterkasse):	8 stykker
Masterkassens (ytterkassens) bredde:	335 mm
Masterkassens (ytterkassens) høyde:	185 mm
Monteringsgrensesnitt, kompatibilitet (min):	100 x 100 mm
Monteringsgrensesnitt, kompatibilitet (maks):	600 x 400 mm
Distanse til vegg (maks.):	27 mm
Festeballens diameter:	- mm
