Maximum Weight:

25kg (55lbs)

TH-PS-S

Short Throw Projector Wall Mount | Single Stud

General Features

Dimensions

Tilt Adjustment: Roll Adjustment: Color: Warranty:

ARM

5° MOUNT

20° MOUNT

5° Silver 10 years

84mm

(3.3”)

160mm

(6.3”)

42mm

(1.7”)

40mm (1.6”)

65mm

(2.6”)

65mm

(2.6”)

100mm

(3.9”)

Ø8.5mm

(0.33”)

119mm

(4.7”)

855mm (33.7”)

30mm

(1.2”)

144mm

(5.7”)

182mm

(7.2”)

580mm (22.8”)

762mm (30”)

+5°

-5°

The Support Arm can be

adjusted by +/- 5° to account

for wall slope or individual

projector characteristics.

99mm Max.

(3.9”)

92mm Min.

(3.6”)

Technical Specifications

Dimensions

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 11.01.13 ©

Roll Adjustment:

Tilt Adjustment:

+5°

-5°

+20°

-20°

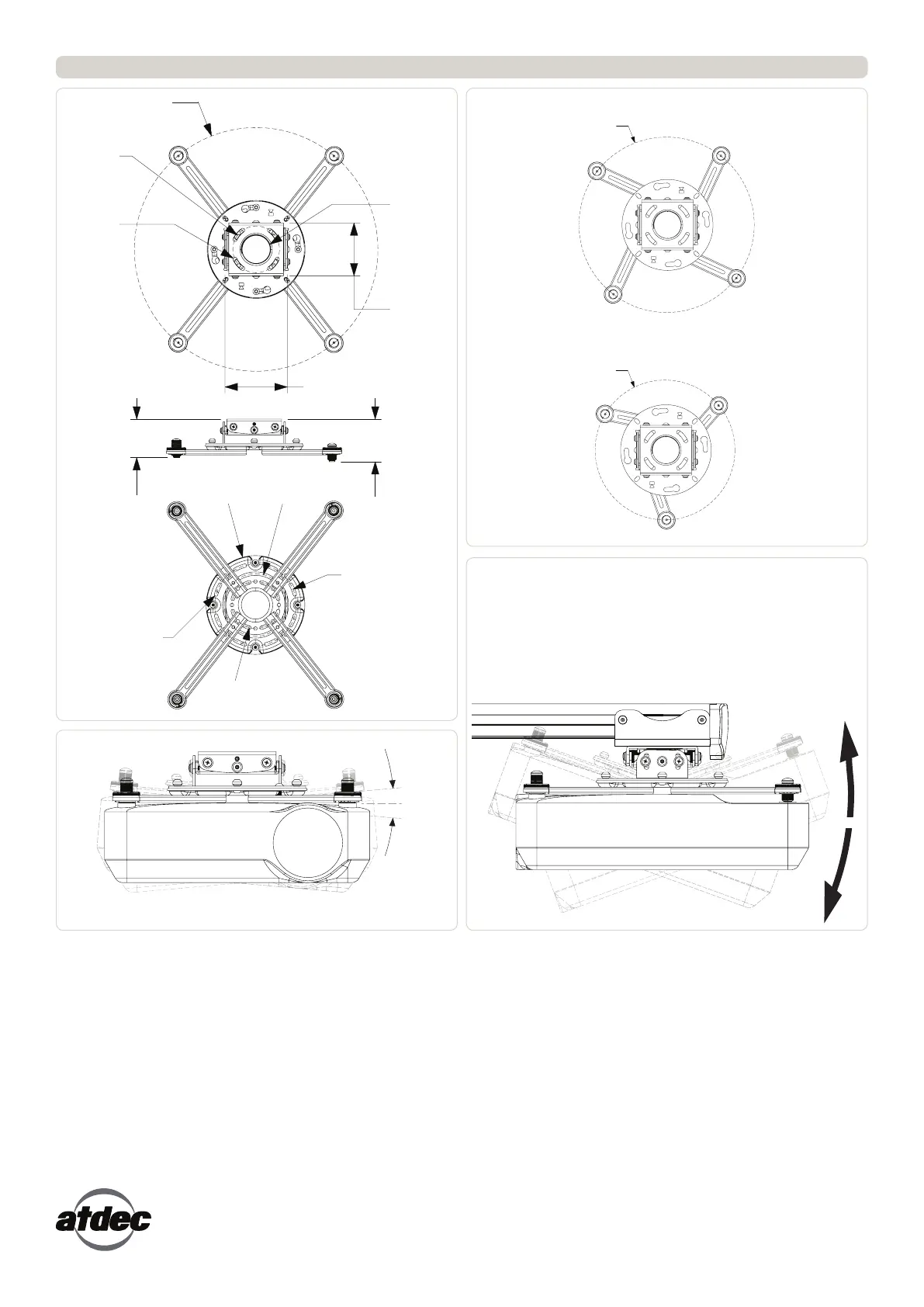

FRONT VIEW SIDE VIEW

R220mm Max.

(8.7”)

Ø75mm

(3”)

Bolt Circle

Ø6.5mm

(0.25”)

1.5NPT

85mm

(3.3”)

100mm

(4”)

62mm Min.

(2.4”)

69mm Max.

(2.7”)

Ø157.5mm

(6.2”)

Ø100mm (4”)

Bolt Circle

Ø130mm (5”)

Bolt Circle

Ø75mm (3”)

Bolt Circle

Ø5.5mm

(0.2”)

Ø300mm

(12”)

Ø200mm

(8”)

4-LEG MINIMUM DISTANCE:

3-LEG MINIMUM DISTANCE:

Note: Depending on where

the projector is mounted

along the support arm and

if the projector extends from

the centre of the mount

more than 8”/200mm, the

tilt adjustment achievable on

the mount may be reduced.

Technical Specifications

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Flatpanelstøtte
Modell:	TH-PS-S
Rotasjonsvinkel:	360 °
Produktfarge:	Sølv
Vippevinkelområde:	-20 - 20 °
Svingvinkel:	5 °
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	25 kg
Justerbar:	Ja
Distanse til vegg (maks.):	762 mm
Distanse til vegg (min.):	177 mm
