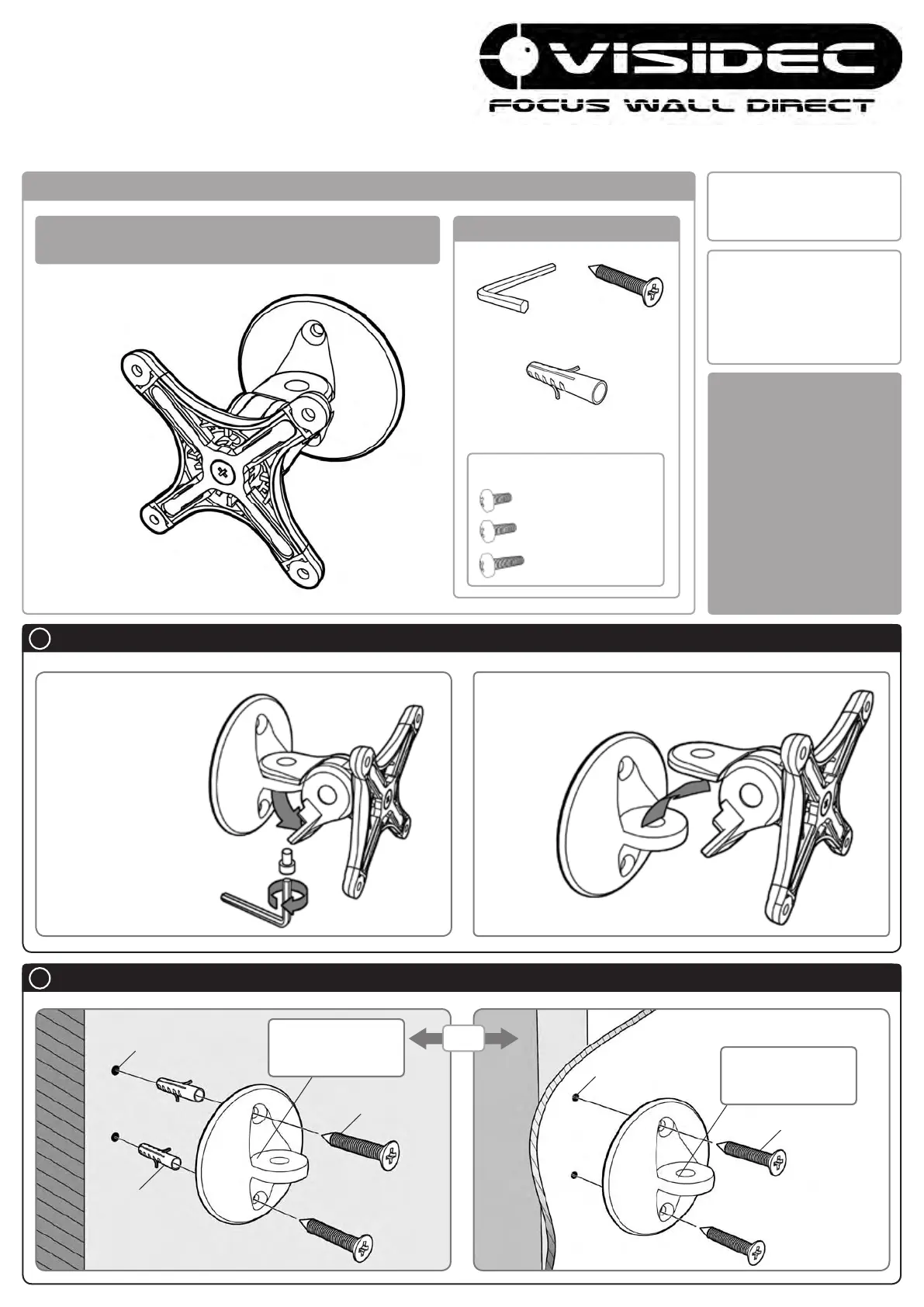

Component Checklist

Disassemble

Step 1

Using the supplied

Allen Key, remove

the bottom screw.

Installation Instructions

IMPORTANT: Ensure you have received all parts

against the component checklist prior to installing.

Bits Bag

5mm Allen Key

Wall Plug (x2)

50mm Screw (x2)

Mounting Fasteners

M4x10mm Screw (x4)

M4x12mm Screw (x4)

M4x16mm Screw (x4)

Visidec Focus Wall Direct

supports a maximum

weight of 8kgs (17.5lbs)

TOOLS REQUIRED:

l Power Drill

l 5.5mm (1/4”) Drill Bit

l 8mm (5/16”) Drill Bit

l Phillips Head Screwdriver

NOTE: This product is

designed to support

a flat panel monitor

in a noninteractive

environment.

i.e. It should not be

used in a situation

where the display’s

position will be

frequently changed.

Step 2

Separate the two

components.

Wall Direct Assembly

Attach Base to Wall

Masonry Wall

Timber Stud Wall

Wall Plug

8mm (5/16”) hole

50mm Screw

Tip: Use a Spirit Level

to ensure this surface

is horizontal.

5.5mm (1/4”) hole

Timber

Stud

50mm Screw

Tip: Use a Spirit Level

to ensure this surface

is horizontal.

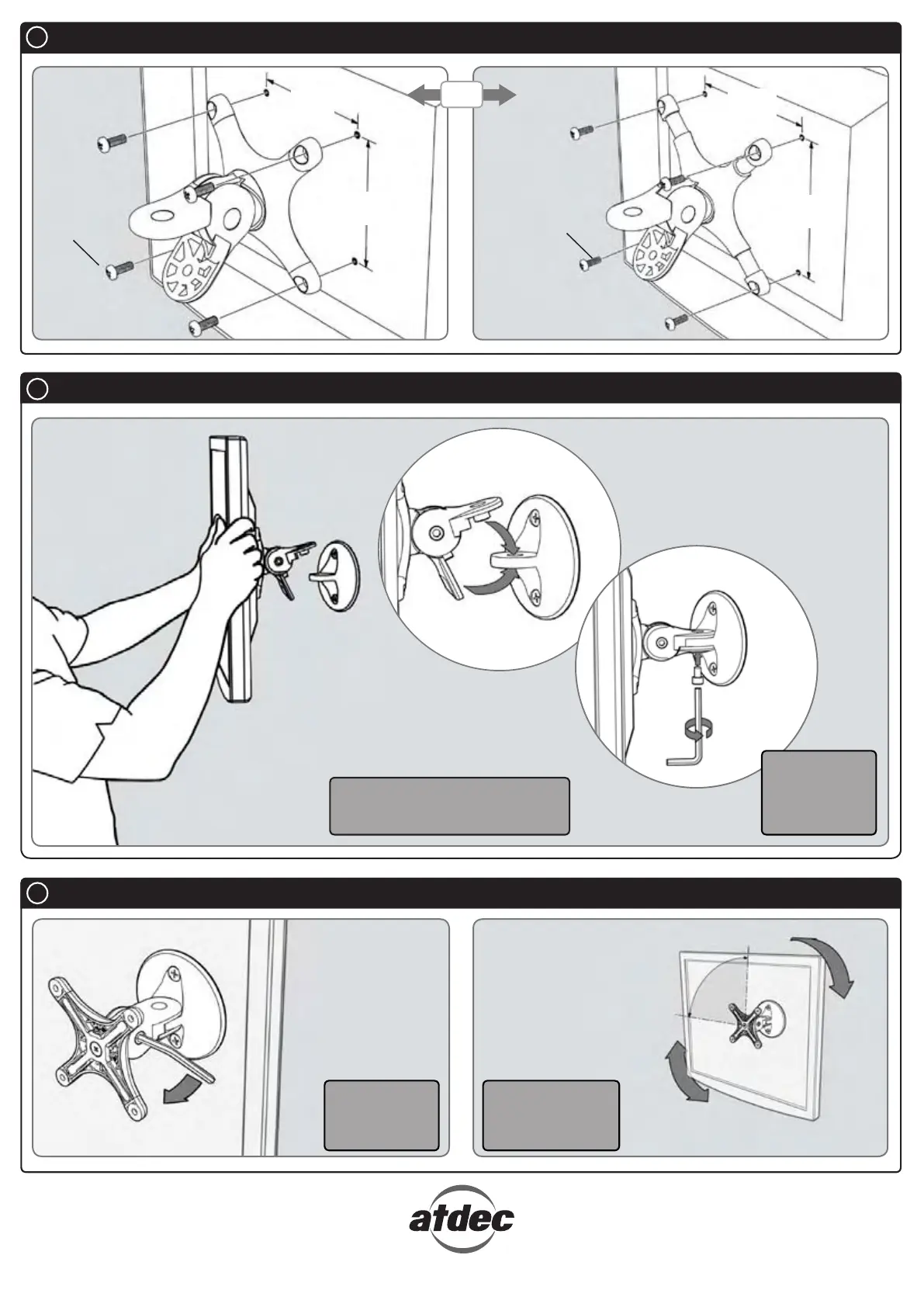

Attach Head to Display

Attach Display to Wall

Adjust Display Position

No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.

Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published: 18.01.08 ©

Step 1

Position the

Display & Bracket

over the Base.

Step 2

Close the two halves of the Bracket

around the Base by firstly positioning

the top half and then the bottom half.

Step 3

Reassemble the Wall Direct Assembly

ensuring the weight of the display is

supported until the screw is tightened.

Tip: This step can be made

easier by using two people.

WARNING:

Do not

overtighten.

Step 1

Adjust the display to

the desired viewing

angle then lock it in

place by tightening

the tilt screw in the

direction shown.

Step 2

Adjust the display’s

position between

landscape and portrait.

The display can rotate

through +/-95º.

WARNING:

Do not

overtighten.

NOTE:

Screen does not

rotate 360°

Tighten

+/-95º

75x75mm VESA 100x100mm VESA

75mm

(3”)

75mm

(3”)

M4 screw

100mm

(4”)

100mm

(4”)

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Flatpanelstøtte
Modell:	VF-WD
Vekt (imperial):	17.5 Ibs
Produktfarge:	Sort
Vippevinkelområde:	-35 - 35 °
Skjermstørrelsekompabilitet:	12 - 24 "
Monteringsgrensesnitt:	VESA 75mm x 75mm / 100mm x 100mm
Dreietapp/dreiemekanisme:	95 °
Montasjetype:	Vegg
Vekt (maks):	8 kg
