COMPONENT CHECKLIST
A
Notebook tray
assembly
(x1)
B
Hand grip
assembly
(x1)
C
Rotation
limiter
(x1)
D
Primary arm
cable cover
(x1)
E
Secondary arm
cable cover
(x1)
F
Self adhesive
hook & loop
(x4 sets)
Installation Guide
AF-AN
Notebook Arm
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product is designed to be used in conjunction with an external keyboard and mouse.
! This product is compatible with the range of AF poles and arms.
! The manufacturer accepts no responsibility for incorrect installation.
WEIGHT RANGE
0 - 8kg
(0 - 17.6lbs)
AF-AN Page 2 of 3
5mm Allen key
Pole top cap

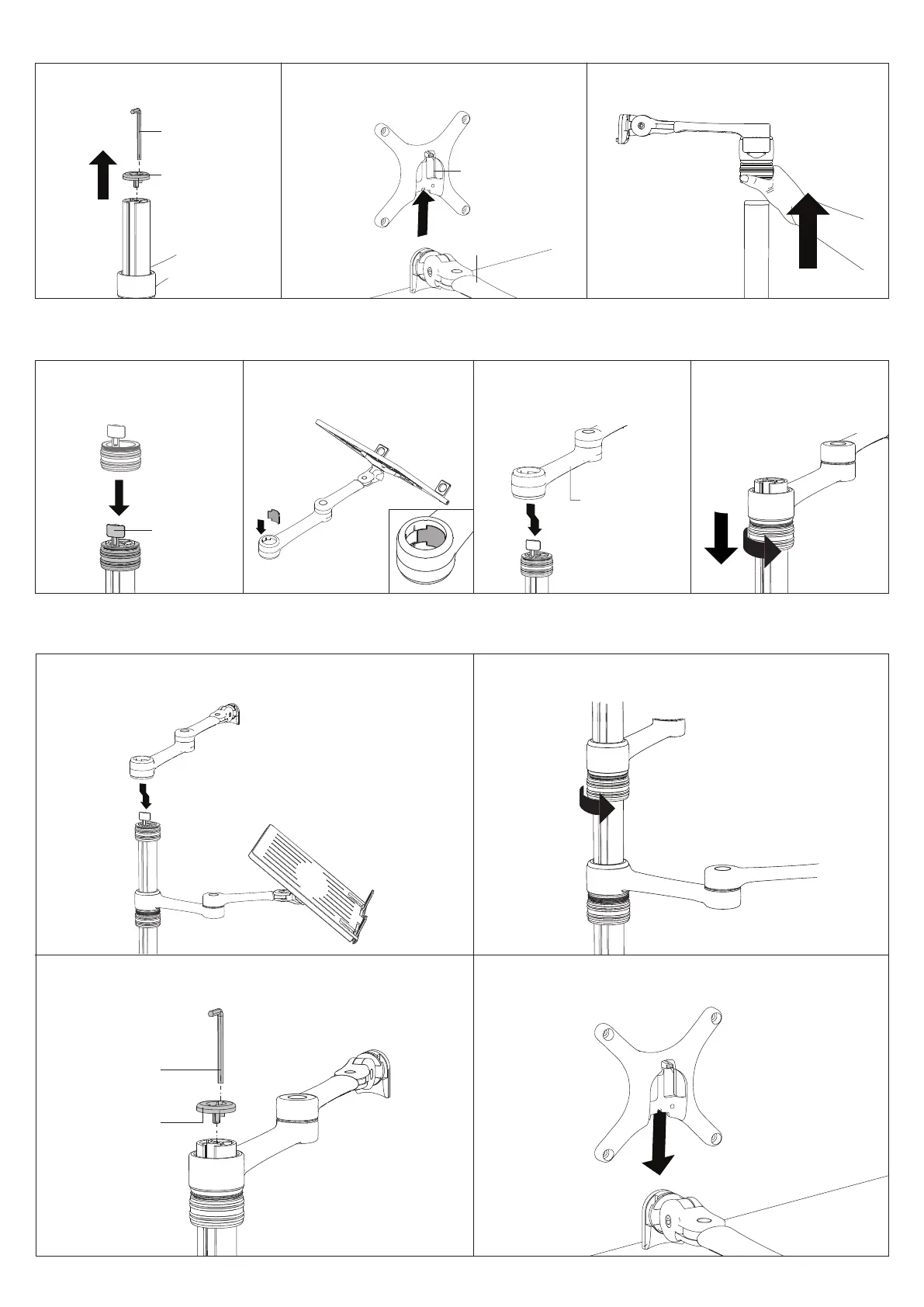

1. Remove existing arm and monitor from AF pole (Ensure monitor cables are unplugged)
1.1 Remove pole top cap and 5mm
allen key from the Visidec pole
1.2 Quick release the monitor from
arm assembly
1.3 Remove the arm assembly from AF pole
Handgrip
Tab
2. Attach notebook tray onto AF Pole
2.1 Slide the Handgrip onto
the top of the Visidec Pole
so the handgrip tab protrudes
3.2 Lock the monitor arm handgrip in the desired position
3.3 Insert pole top cap into pole.
This is also where the allen key is stored
3.1 Slide the existing arm and monitor onto the visidec pole
3. Re-install the existing arm and monitor
VESA
monitor
head
Arm
assembly
Notebook Tray
& Arm Assembly
2.2
OPTIONAL ROTATION LIMITER
Insert rotation limiter for 180�
rotation around mounting pole
2.3 Slip the notebook tray &
arm assembly over the handgrip
tab and then onto the pole
2.4 Slide the arm assembly
and handgrip down the pole
before locking the Handgrip
at the desired heighta
5mm
Allen key
Pole
top cap
3.4 Insert VESA monitor head into the receptacle
in the arm assembly
