Atdec AF-AN-SW Bruksanvisning

Atdec datatilbehør AF-AN-SW

Les nedenfor 📖 manual på norsk for Atdec AF-AN-SW (3 sider) i kategorien datatilbehør. Denne guiden var nyttig for 3 personer og ble vurdert med 3.9 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/3

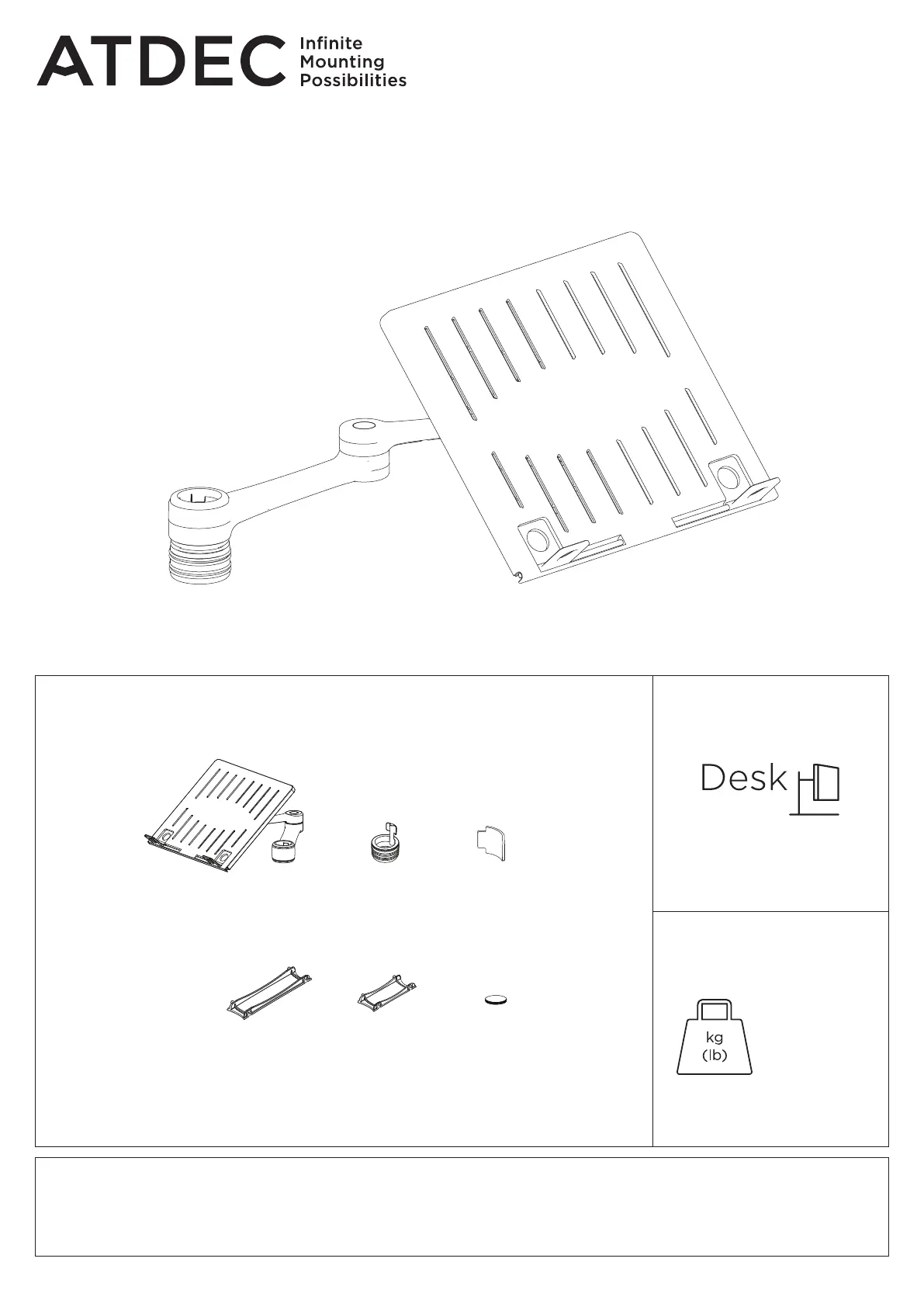

AF-AN Page 1 of 3

COMPONENT CHECKLIST

Notebook tray

assembly

(x1)

Hand grip

assembly

(x1)

Rotation

limiter

(x1)

Primary arm

cable cover

(x1)

Secondary arm

cable cover

(x1)

Self adhesive

hook & loop

(x4 sets)

Installation Guide

AF-AN

Notebook Arm

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! This product is designed to be used in conjunction with an external keyboard and mouse.

! This product is compatible with the range of AF poles and arms.

! The manufacturer accepts no responsibility for incorrect installation.

WEIGHT RANGE

0 - 8kg

(0 - 17.6lbs)

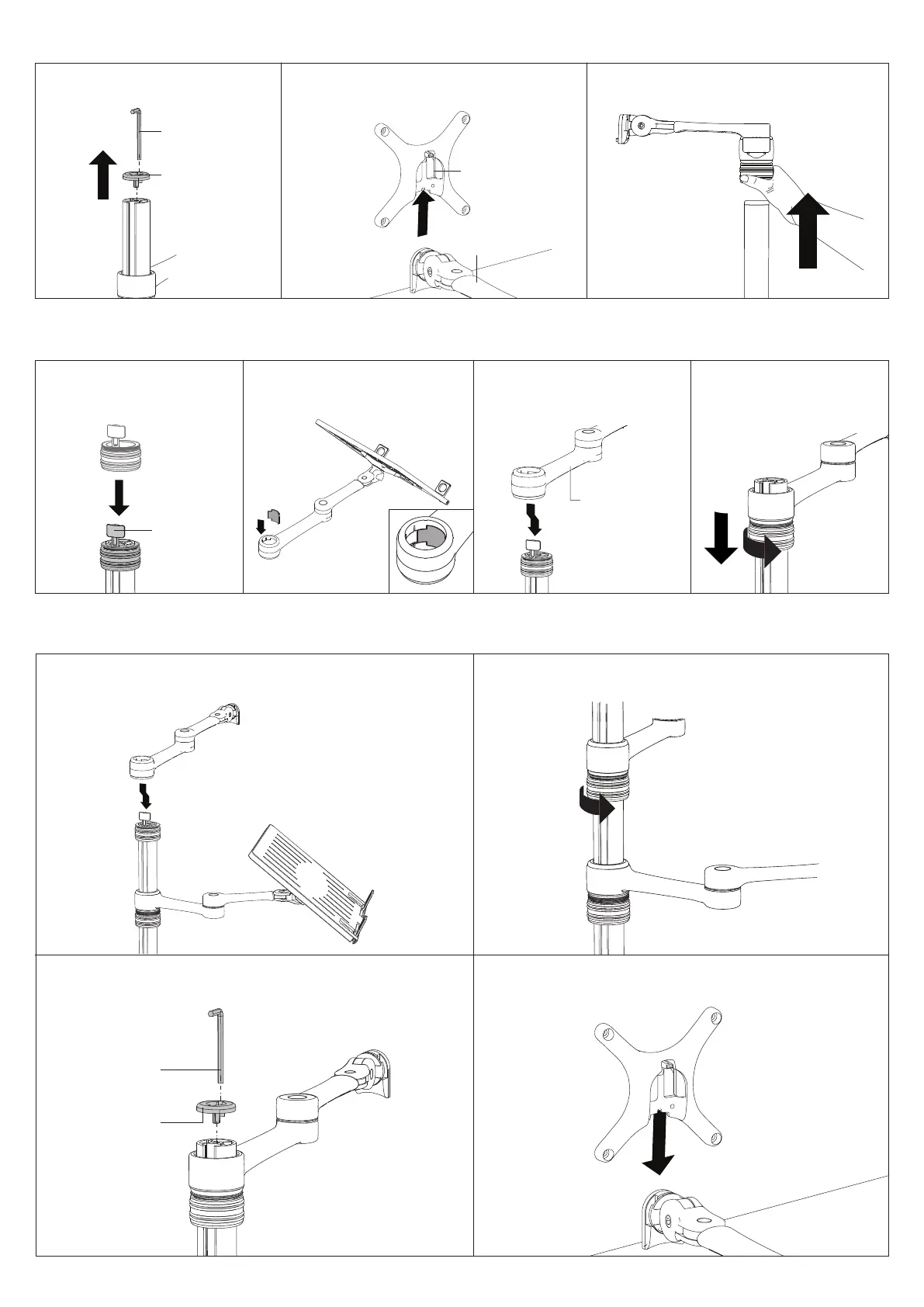

AF-AN Page 2 of 3

5mm Allen key

Pole top cap

1. Remove existing arm and monitor from AF pole (Ensure monitor cables are unplugged)

1.1 Remove pole top cap and 5mm

allen key from the Visidec pole

1.2 Quick release the monitor from

arm assembly

1.3 Remove the arm assembly from AF pole

Handgrip

Tab

2. Attach notebook tray onto AF Pole

2.1 Slide the Handgrip onto

the top of the Visidec Pole

so the handgrip tab protrudes

3.2 Lock the monitor arm handgrip in the desired position

3.3 Insert pole top cap into pole.

This is also where the allen key is stored

3.1 Slide the existing arm and monitor onto the visidec pole

3. Re-install the existing arm and monitor

VESA

monitor

head

Arm

assembly

Notebook Tray

& Arm Assembly

2.2

OPTIONAL ROTATION LIMITER

Insert rotation limiter for 180�

rotation around mounting pole

2.3 Slip the notebook tray &

arm assembly over the handgrip

tab and then onto the pole

2.4 Slide the arm assembly

and handgrip down the pole

before locking the Handgrip

at the desired heighta

5mm

Allen key

Pole

top cap

3.4 Insert VESA monitor head into the receptacle

in the arm assembly

Produkspesifikasjoner

Merke:	Atdec
Kategori:	datatilbehør
Modell:	AF-AN-SW
Pakkevekt:	1740 g
Materiale:	Aluminium, Plastic
Antall per pakke:	1 stykker
Kompatibilitet:	AF-AT
Rotasjonsvinkel:	360 °
Produktfarge:	Hvit
Vippevinkelområde:	10 - 35 °
Pakkedybde:	352 mm
Pakkehøyde:	131 mm
Pakkebredde:	320 mm
Skjermstørrelsekompabilitet:	18 - 18 "
Masterkassens (ytterkassens) bruttovekt:	11500 g
Masterkassens (ytterkassens) lengde:	725 mm
Masterkassens (ytterkassens) bredde:	345 mm
Masterkassens (ytterkassens) høyde:	410 mm
