Side 1/4

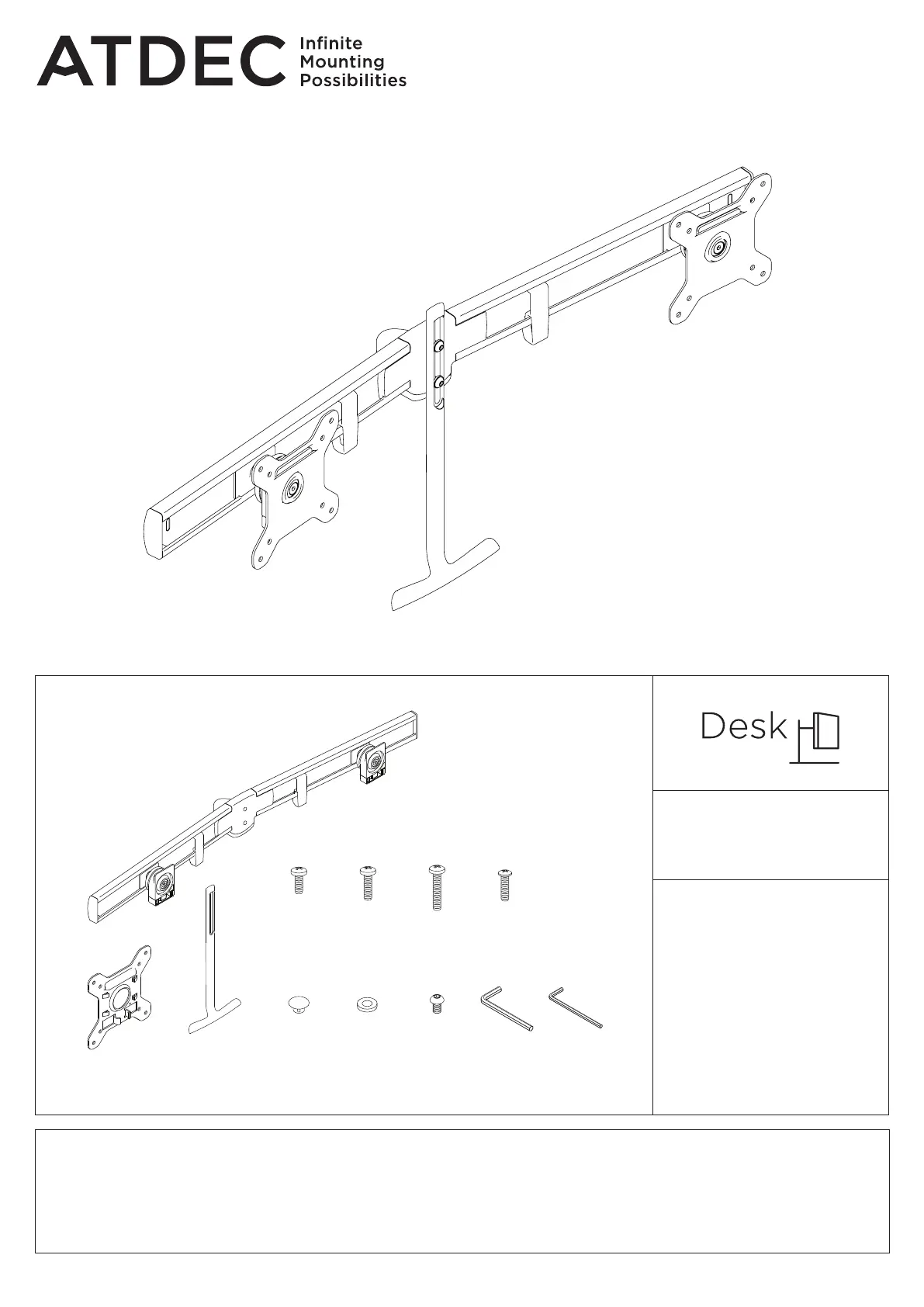

AWM-LR Page 1 of 4

Installation Guide

AWM-LR

Dual Crossbar

COMPONENT CHECKLIST

REQUIRED TOOLS

• Phillips Head Screwdriver

Crossbar

Assembly

(x1)

VESA Plate

(x2)

Handle

(x1)

Screw

M4x10mm

(x8)

Screw

M4x12mm

(x8)

Screw

M4x16mm

(x8)

Plastic

Washer

(x2)

Hole

Cap

(x2)

Screw

M6x12mm

(x2)

Security

Screw

(x2)

4mm

Allen Key

(x1)

3mm

Allen Key

(x1)

2 - 7kg

(4.5 - 15lbs)

per monitor

WEIGHT RANGE

Monitor weight should be

within the weight range of

all modular elements that

make up the complete

monitor mounting solution.

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! Curved monitors, deep devices (such as all-in-one PCs) and offset VESA locations exert additional leverage that can exceed

the capacity of the mount even though the monitor weight may be within the stated range.

! The manufacturer accepts no responsibility for incorrect installation.

! This product is compatible with AWM Series monitor arm products.

AWM-LR Page 2 of 4

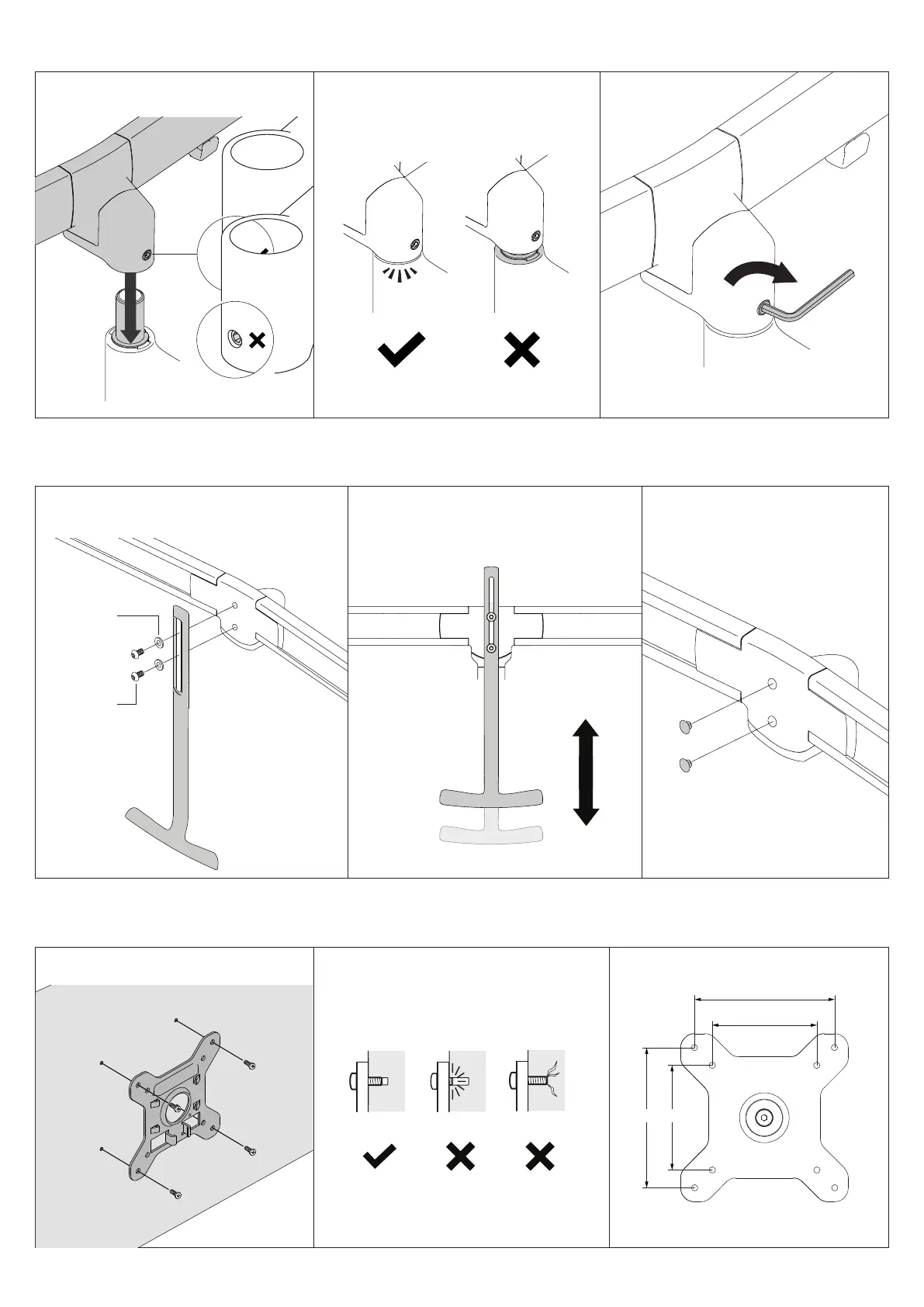

3. Attach VESA plates to monitors

3.2 Ensure suitable screw length is used. 3.3 VESA mounting compatibility

Note: For other sizes, use

a suitable adaptor plate

3.1 Screw VESA plates onto the monitors.

100mm

75mm

100mm

75mm

1. Mount crossbar onto arm

2. Attach handle (Optional)

1.1 Push crossbar onto shaft at end of arm.

2.1 Use the 4mm allen key to loosely fasten

the handle onto the crossbar.

2.2 Adjust handle to a height that suits the

monitors, then tighten the two screws.

2.3 If not using handle t hole caps.

1.3 Tighten joint

screw to secure

rail to arm.

Too short

Too long

Note: Check the crossbar rotation

is smooth after tightening.

1.2 Ensure crossbar is fully pushed

onto shaft.

M6x12

Screw

Plastic

Washer

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Flatpanelstøtte
Modell:	AWM-LR
Produkttype:	Monteringsarm
Kompatibilitet:	AWM-AHX, AWM-A13, AWM-A46, AWM-A71
Rotasjonsvinkel:	180 °
Maksimal skjermstørrelse:	27 "
Produktfarge:	Sort
Kroppsmateriale:	Aluminium
Panelmonterbart grensesnitt:	75 x 75, 100 x 100 mm
Maksimalvekt (kapasitet):	7 kg
