Side 1/4

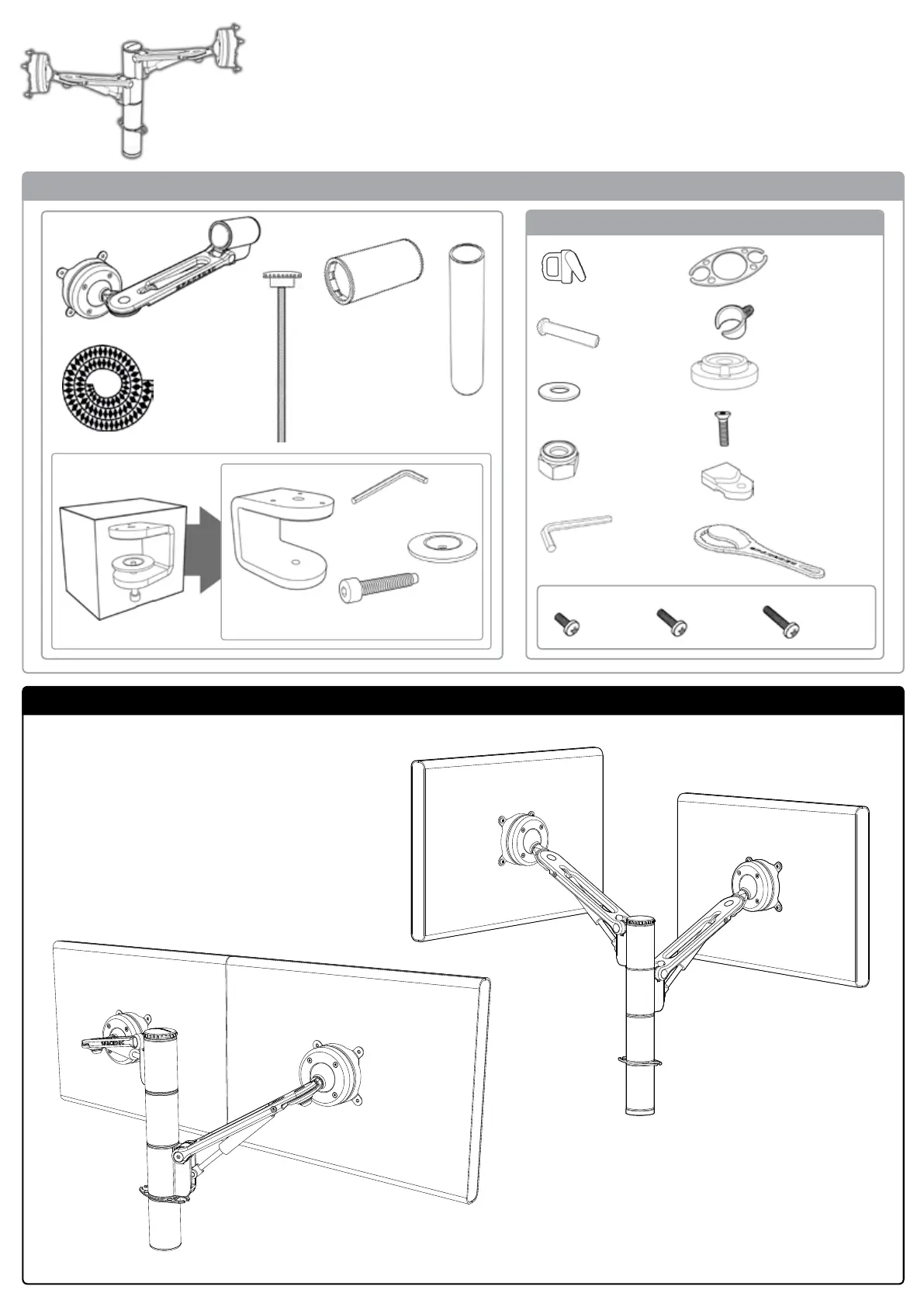

Component Checklist

Installation Instructions

SPACEDEC ACROBAT

SWING ARM DOUBLE

Swing Arm

Assembly (x2)

Cable Wrap

Applicator (x1)

Top Cap Tool (x1)

2.5mm Allen

Key (x1)

Cable Clip

(x4)

Extension

Clip (x8)

Bits Box

Mounting Fasteners

M4x10mm

Screw (x8)

M4x12mm

Screw (x8)

M4x16mm

Screw (x8)

16mm Cable

Wrap (x2)

Washer (x1)

Base Casting (x1)

Spacer Tube

Assembly (x2)

M8 Interscrew

(x1)

M8 Nyloc Nut (x1)

Cable Manager

Tube Clip (x1)

5mm Allen

Key (x1)

M4x16mm

Countersunk

Screw (x3)

Desk Clamp Box

M8 Desk Clamp

Screw (x1)

Pressure

Plate (x1)

Inner Tube Post

Desk Clamp

Bracket (x1)

Component Checklist

Threaded Rod

and Top Cap

(x1)

Component Checklist

Possible Configurations

Spacedec Acrobat Swing Arm Double can be

assembled in a number of different configurations

depending on the users requirements.

Two such examples are shown below and right.

Arm, Spacer, Arm, Spacer

Side by side displays

Arm, Arm, Spacer, Spacer

Back to Back displays

Spacer Tube (x2)

Internal Tube Post

Top Cap and

Threaded Rod

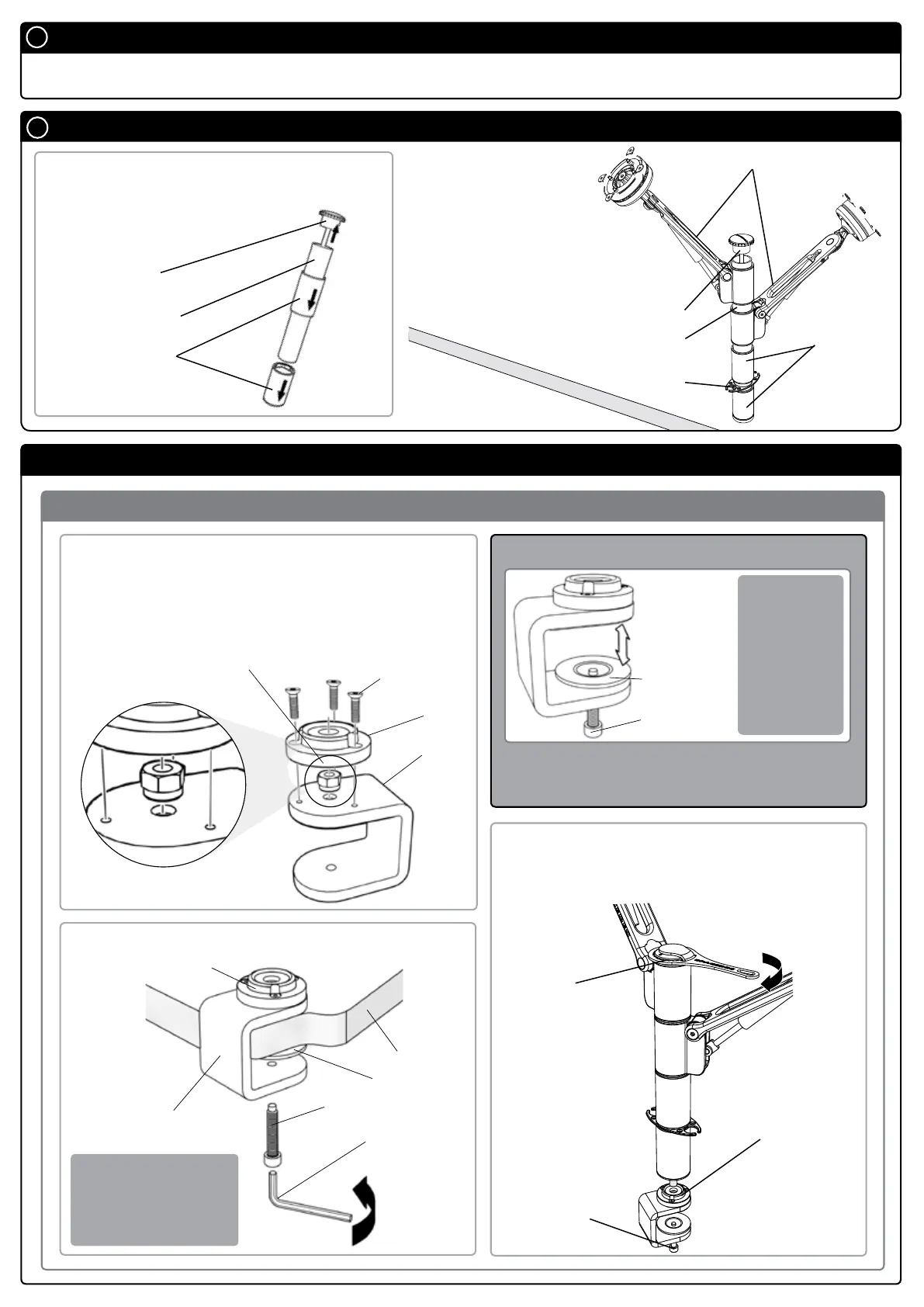

C.1. Desk Clamp

To assemble the Desk Clamp Assembly, first place the

M8 Nyloc Nut inside the Base Casting with the Plastic

Ring facing down, then screw the Base Casting on to the

Desk Clamp Bracket using the M4x16mm Countersunk

screws.

C.1.1. Assemble the Desk Clamp

C.1.2. Attaching the Desk Clamp

Tighten

Firmly

Base Casting

Desk Clamp

Assembly

Desk Top

Pressure Plate

M8 Desk Clamp Screw

5mm Allen Key

Adjust the Desk Clamp to suit your desk thickness by

turning the M8 Desk Clamp. Screw with the supplied

5mm Allen Key

Suits 12mm (

”)

to 38mm (1

”)

thick work

surfaces

Pressure Plate

M8 Desk

Clamp Screw

C.1.3. Attaching the Swing Arm Post

Use the Top Cap Tool to tighten the Threaded

Rod into the Base Casting as shown below.

Top Cap

Tool

Threaded

Rod

Base

Casting

NOTE: Desk Clamp

Assembly is suitable

for square edged

desks only.

Tighten

Firmly

NOTE: It is

recommended

that the Desk

Clamp be

attached to

the rear or

side edge

of the work

surface

DESK CLAMP ADJUSTMENT RANGE

M4x16mm

Countersunk

Screw (x3)

Base

Casting

Desk

Clamp

Bracket

M8 Nyloc

Nut

Component Checklist

Check you have received all parts against the Component Checklist on the previous page.

Assemble the Arm

Threaded Rod

and Top Cap

Swing Arm

Assembly

(x2)

Internal Tube Post

Spacer Tube

(x2)

Cable Manager

Tube Clip

B.2. Assemble

the Swing Arm

Assemble the Swing Arm in

the desired configuration

ensuring all components

are used as shown.

You will need to disassemble the Tube Assembly

before assembling the Swing Arm

B.1. Disassemble the Tube Assembly

Mounting Options

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Flatpanelstøtte
Modell:	SD-SA-DK-DB-P
Rotasjonsvinkel:	360 °
Produktfarge:	Sølv
Vippevinkelområde:	-40 - 40 °
Monteringsgrensesnitt:	VESA 75mm x 75mm, 100mm x 100mm
Svingvinkel:	85 ° °
Panoreringsomfang:	-40 - 40 °
Montasjetype:	Bord
Maksimalvekt (kapasitet):	9 kg
Heis:	46 cm
