Flat screen ceiling mount | long pole

Flat screen ceiling mount | short pole

The TH-1040-CT is cutting edge ceiling mount offering superior display versatility,

combined with enhanced safety features and hassle-free installation. The “donut”

mounting head effortlessly rotates the screen through 360 degrees around the pole and

to maximise display impact the VESA Ball Mount can infinitely adjust display position by

20 degrees in any direction. Display height is also customised with the telescopic pole

adjustments. Installation is simple, with in-built safety features to prevent the unlikely event

of the telescopic poles separating. Once installed, you’re guaranteed a clean and

professional finish by fully internal cable management, a dress cover to hide the ceiling

connection and a clean pole without screw holes. Angled ceilings are accommodated

with the raked ceiling accessory kit (TH-1040-RCA sold separately). You can also

customize this mount to support two screens, back to back (TH-1040-CT-B2B sold

separately).

Product key features:

Adjustable telescopic pole allows:

Minimum distance from ceiling: 900mm (35.5”)

Maximum distance from ceiling: 1800mm 70.87”)

Secondary display height adjustment: 765mm (30.12”)

Infinite display adjustment of 20° in any direction; portrait to landscape rotation

Display 360° rotation around the pole

Quick attachment/quick release mechanism with security features

Enhanced safety features

Advanced cable management

All mounting hardware included

Mounting hole pattern:

75mm x 75mm;100mm x 100mm;

200mm x100mm;200mm x200mm

TH-1040-CTL

TH-1040-CTS

Maximum weight carrying capacity:

25kg (55 lbs)

Atdec North America www.atdec.com

Atdec Global www.atdec.com.au

Fits most displays from 17" to 42"

Secondary height adjustment:

TH -1040 - CTS -316mm (12.40”)

TH -1040 - CTL - 765mm (30.12”)

Can accomodate

angled ceilings up to 45°

(TH - 1040 - RCA accessory

sold separately)

Portrait to

landscape rotation

Telescopic pole

length adjustment range:

TH-1040-CTS model:

400mm-900mm (15.75” - 35.43”)

TH-1040-CTS model:

900mm - 1800mm (35.43” - 70.87”)

Advanced

internal cable

management

Can be easily

converted into a

dual display

configuration (TH -

1040 - CT - B2B

accessory sold

separately)

Ball joint mechanism

allows display

adjustment of 20° in

any direction

Product information, single unit

Package information, master pack

Package information, single unit

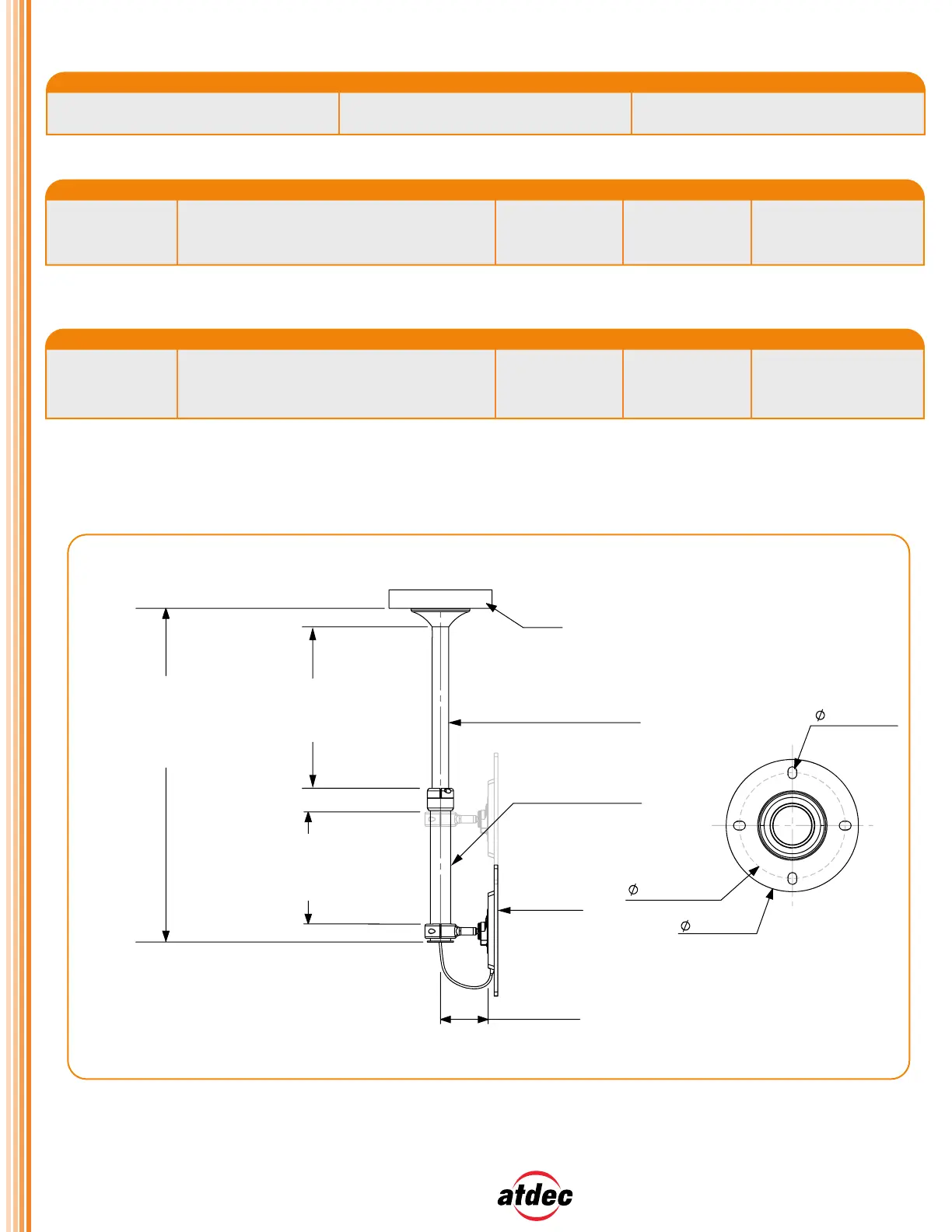

Technical drawings

Load capacity

Material Color

25kg (55lbs) Steel/Aluminum

Size

Ship weight UPC code Contents

All hardware required for

installation supplied

881493006010

881493005990

100.5cm x 24cm x 10cm (39.4" x 9.4" x 4.3")

55.5cm x 24cm x 10cm (9.4" x 3.9" x 12.1")

8.5kg (18.7lbs)

5.5kg (12.1lbs)

Size

Ship weight UPC Units per master pack

881493006300

881493006003

101.5cm x 25.5cm x 22.5cm (40" x 10" x 8.9")

57cm x 25cm x 33m (22.4" x 9.8" x 13")

17.7kg (38.9lbs)

17kg (37.4lbs)

Atdec North America www.atdec.com

Atdec Global www.atdec.com.au

Silver with Black

128mm (5")

Display

Ceiling

Tube

diameter

inside = Ø40mm

(1.58

outside =

Ø45mm

(1.77

10mm (0.39

120mm (4.72

150mm (6")

Ceiling Plate

Tube

diameter

inside = Ø50mm

(1.99

outside =

Ø55mm

(2.17

Primary Height Adjustment

TH-1040-CTS:

400-900mm (15.75" - 35.43")

TH-1040-CTL:

900-1800mm

(35.43" - 70.87")

Secondary Height Adjustment

TH-1040-CTS: 315mm (12.40")

TH-1040-CTL: 765mm

(30.12

TH-1040-CTS:

up to 454mm (17.87")

TH-1040-CTL:

up to 904mm

(35.59

TH-1040-CTL

TH-1040-CTS

Product

TH-1040-CTL

TH-1040-CTS

Product

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Flatpanelstøtte
Modell:	Telehook TH-1040-CTL
Takmonteringsrørlengde (min):	90 cm
Produktfarge:	Sort
Vippevinkelområde:	-20 - 20 °
Panelmonterbart grensesnitt:	100 x 100,200 x 100,200 x 200 mm
Montasjetype:	Tak
Maksimalvekt (kapasitet):	25 kg
Takmonteringsrørlengde (maks):	180 cm
Monteringsgrensesnitt, kompatibilitet (min):	100 x 100 mm
Monteringsgrensesnitt, kompatibilitet (maks):	200 x 200 mm
