Bits Bag

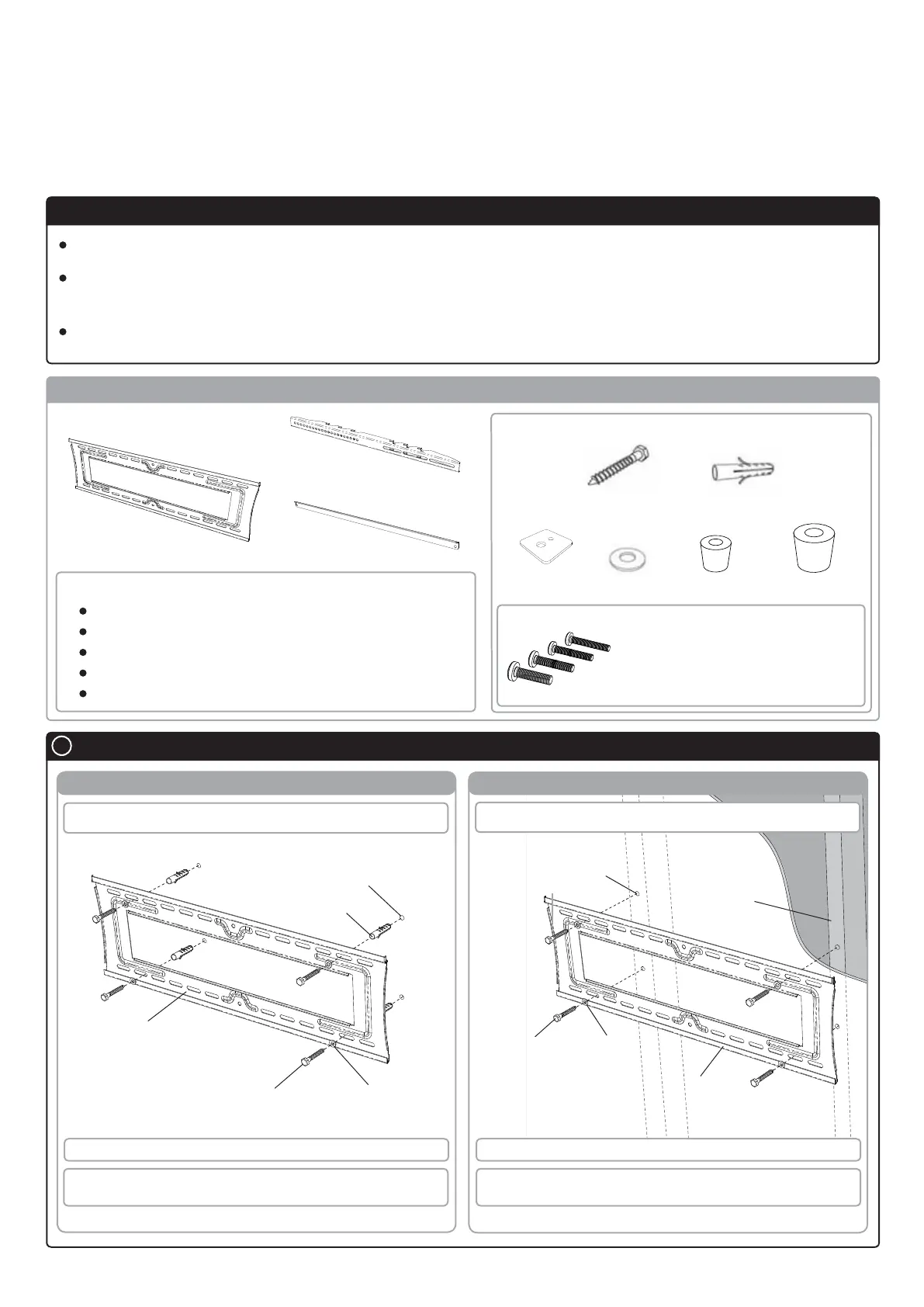

Component Checklist

Display Bracket (x2)

Wall Plate

Important Notes

TOOLS REQUIRED:



Power Drill



12mm (

”), 10mm (

”) or 7mm (

”) Drill Bit



Phillips Head Screw Driver



Spirit Level



17mm (

”) Socket Wrench or Shifter

Supports a maximum load of 150kgs (330lbs).

Suits displays with mounting hole patterns from 200mm to 800mm wide (8”-31.5”) by 200mm to 600mm

high (8”-23.5

”).

The manufacturer does not accept responsibility for incorrect installation.

Security Bracket

Mounting Screws

M8x15mm / M8x35mm / M8x45mm (x4 each)

M6x15mm / M6x35mm / M6x45mm (x4 each)

M5x15mm / M5x35mm / M5x45mm (x4 each)

M4x15mm / M4x35mm / M4x45mm (x4 each)

Cross Recessed Screws

Coach

Screw (x4)

Masonry Wall

Plug (x4)

Washer (x4)

Multi

Washer (x4)

Mounting the Wall Plate

13mm Spacer

Bush (x4)

20mm Spacer

Bush (x4)

Masonry Wall Timber Stud Wall

Note: Ensure the Wall Plate is mounted with the folded tabs point

upwards

Note: Ensure the Wall Plate is mounted with the folded tabs point

upwards

TIP: Use a spirit level to ensure the wall plate is horizontal TIP: Use a spirit level to ensure the wall plate is horizontal

Use a stud finder to precisely locate the timber stud and ensure that the

mounting holes are located in the centre of the stud

It is recommended when mounting directly into masonry wall, that the

mounting holes are positioned as far apart as possible.

12mm (0.5”) hole

Masonry Wall Plug

Wall Plate

Coach Screw Washer

7mm (0.25”) hole

Coach Screw Washer

Wall Plate

Timber stud

Installation Instructions

Flat Screen Wall Mount | Fixed

TH-40100-UF

Produkspesifikasjoner

Merke:	Atdec
Kategori:	Flatpanelstøtte
Modell:	Telehook TH-40100-UF
Maksimal skjermstørrelse:	- "
Minimum skjermstørrelse:	- "
Produktfarge:	Sort
Panelmonterbart grensesnitt:	200 x 200,400 x 400,600 x 600,800 x 800 mm
Montasjetype:	Vegg
Maksimalvekt (kapasitet):	150 kg
Monteringsgrensesnitt, kompatibilitet (min):	200 x 200 mm
Monteringsgrensesnitt, kompatibilitet (maks):	800 x 800 mm
